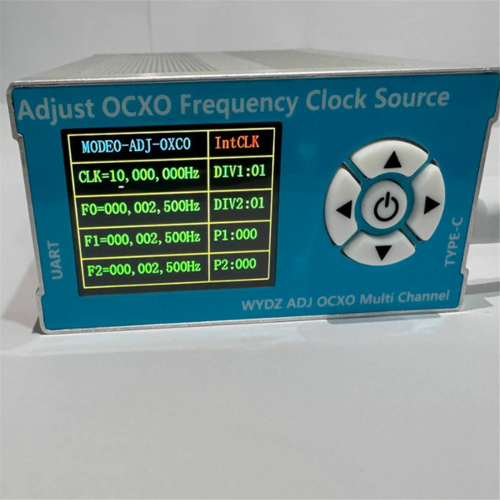

10M 0.1ppm OCXO Adjustable Frequency Standard 2.5K

10M 0.1ppm OCXO Adjustable Frequency Standard 2.5K Description

Power supply requirements: 5V 1A TYPE-C power supply. The power-up is at 800mA. The current be 400mA after the internal OCXO is stabilized
Weight: 400g/0.9lb

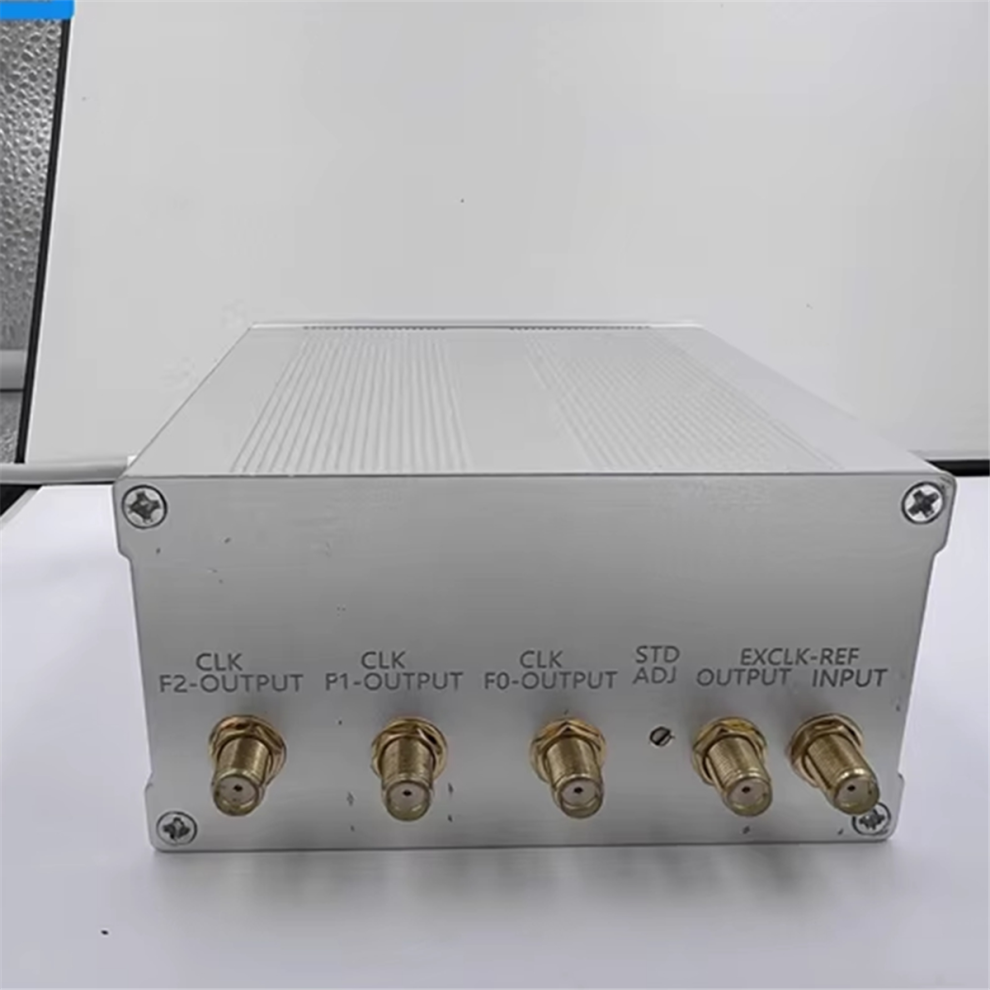

Input and output interface: SMA female connectors

Clock Source Parameters:
1. Frequency range: 2500Hz-200MHz
2. Amplitude--to-:
MODE0:
F0: 3.21Vpp
F1: 3.23Vpp
F2: 3.21Vpp
MODE1:
F0: 3.15Vpp
F1: 3.12Vpp
F2: 3.12Vpp
Note:Due to different production batches, there are differences in printed labels and slight color difference, which does not affect use.
Colour:Silver
Material:Metal+Plastic
Size:13cm x 9.6cm x 5cm/5.1 x 3.8 x 2Inch(LxWxH)

Package Contents:
1 x Clock Source Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
