Description & Details
Summary

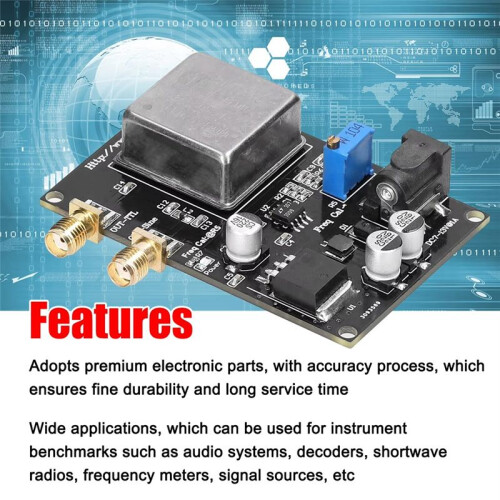

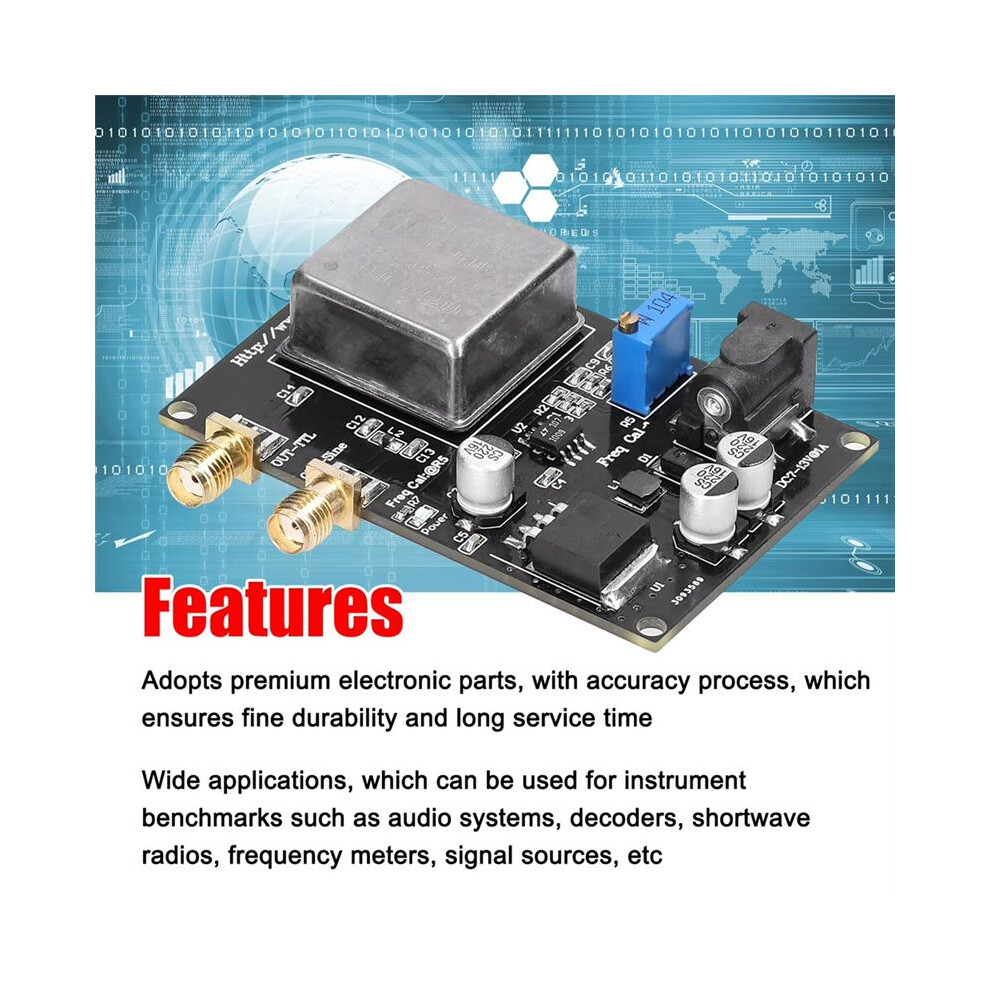

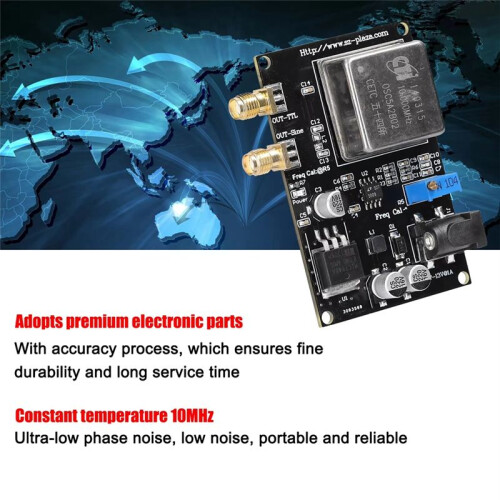

- Adopts premium electronic parts, with accuracy process, which ensures fine durability and long service time.
- Constant temperature 10MHz, ultra-low phase noise, low noise, portable and reliable.
- This product adopts 10MHz frequency standard, and which is provided by OCXO oven controlled crystal oscillator.
- Constant temperature crystal oscillator means that this product uses a constant temperature bath to keep the temperature of a crystal oscillator or a quartzs crystal oscillator constant, so that the change in the output frequency of the oscillator caused by changes in the surrounding temperature is reduced to a minimum, which makes it has higher accuracy, ±0.01Hz.
- Equipped with SMA outer screw inner hole interface. Wide applications, which can be used for instrument benchmarks such as audio systems, decoders, shortwave radios, frequency meters, signal sources, etc.
10MHz OCXO Frequency Reference Module Frequency Reference Source Low Phase Noise for Sound System Decoder Frequenc Meter Description
Adopts premium electronic parts, with accuracy process, which ensures fine durability and long service .
Constant temperature 10MHz, ultra-low phase noise, low noise, portable and reliable.
This product adopts 10MHz frequency standard, and which is provided by OCXO oven controlled crystal oscillator.
Constant temperature crystal oscillator means that this product uses a constant temperature bath to keep the temperature of a crystal oscillator or a quartzs crystal oscillator constant, so that the change in the output frequency of the oscillator caused by changes in the surrounding temperature is reduced to a minimum, which makes it has higher accuracy, 0.01Hz.
Equipped with SMA outer screw inner hole interface. Wide applications, which can be used for instrument benchmarks such as audio systems, decoders, shortwave radios, frequency meters, signal sources, etc.

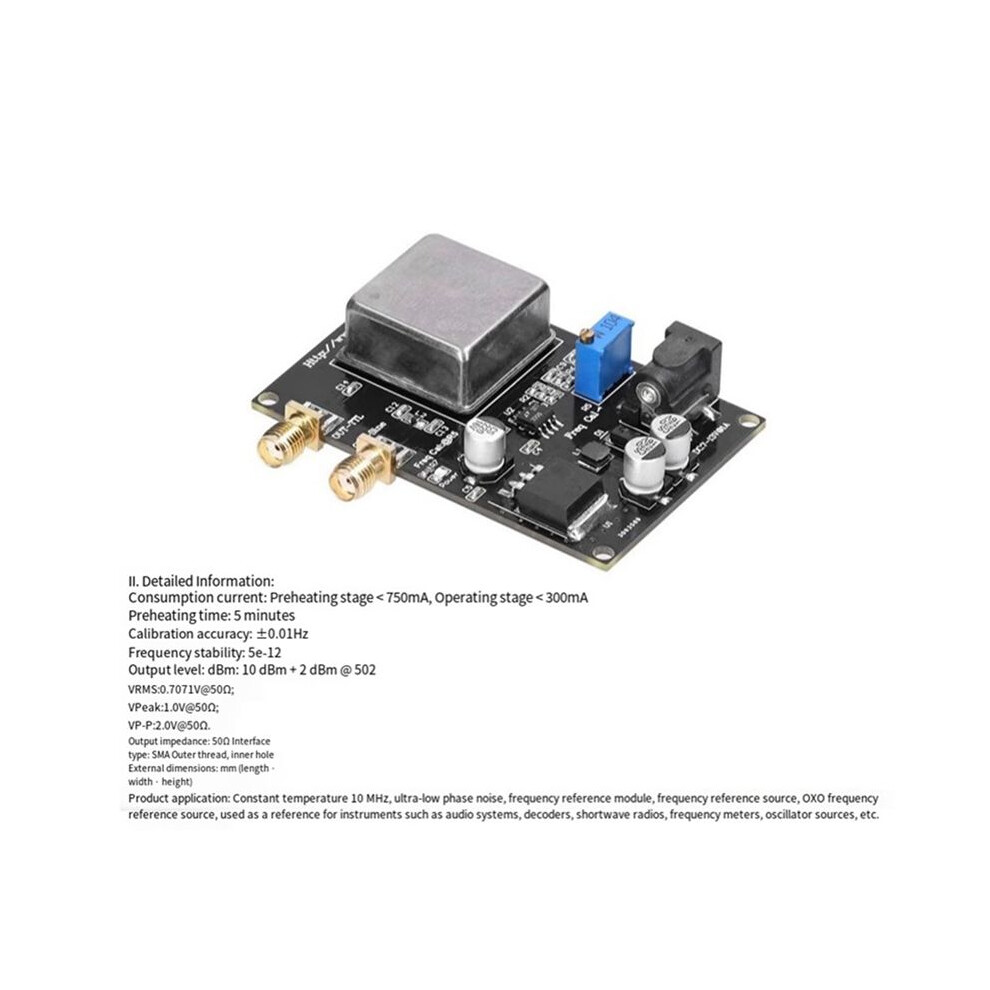

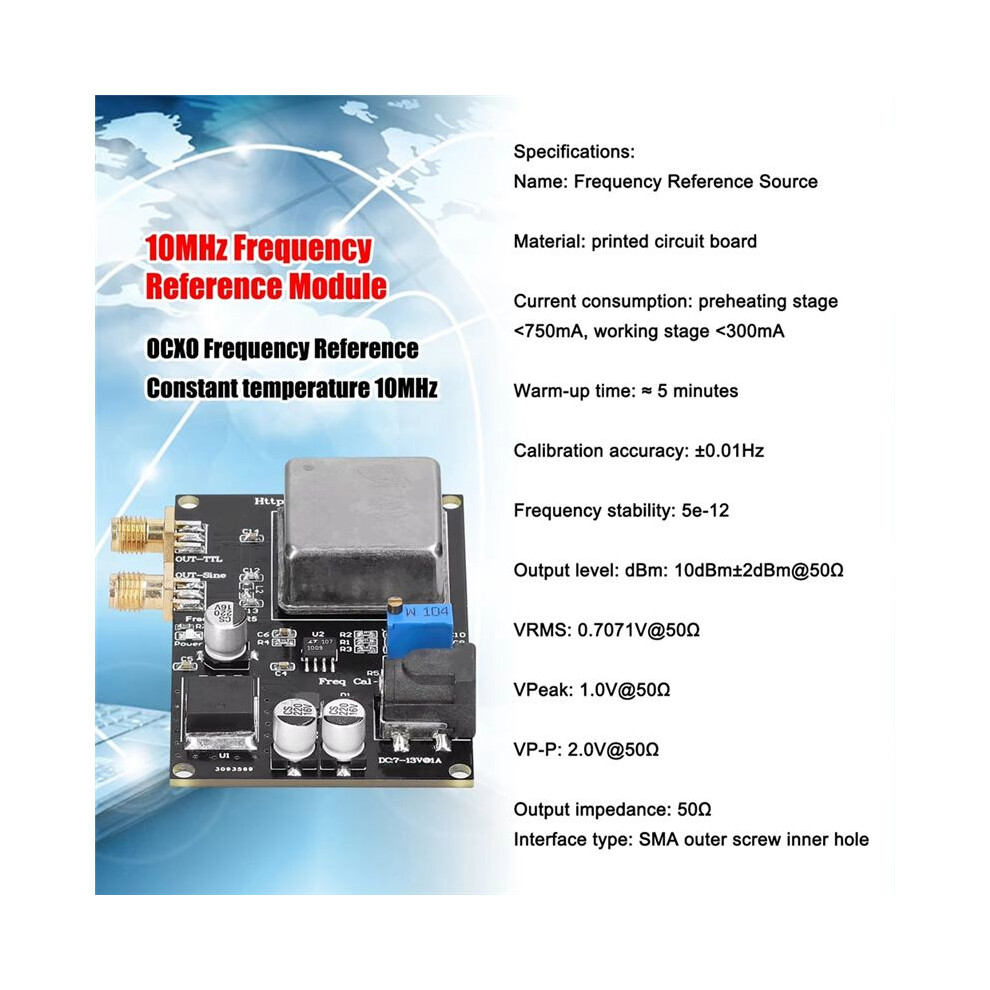

Name:Frequency Reference Source
Current consumption: preheating stage Less than 750mA, working stage Less than 300mA
Warm- : About 5 minutes
Calibration accuracy: 0.01Hz
Frequency stability: 5e-12
Output level: dBm: 10dBm2dBm@50Ω
VRMS: 0.7071V@50Ω
VPeak: 1.0V@50Ω
VP-P: 2.0V@50Ω
Output impedance:50Ω
Interface type:SMA outer screw inner hole
Item size:67x58x14mm/2.64x2.28x0.55in
Item weight:40g/1.41ounce
Color:Black
Material:ABS
Package Contents:
1 * 10MHz OCXO Frequency Reference Module
Details
| OPC | PXXRC7M |
|---|---|
| Brand | Exogio |
| Codes | 4711474012180 (EAN) |
