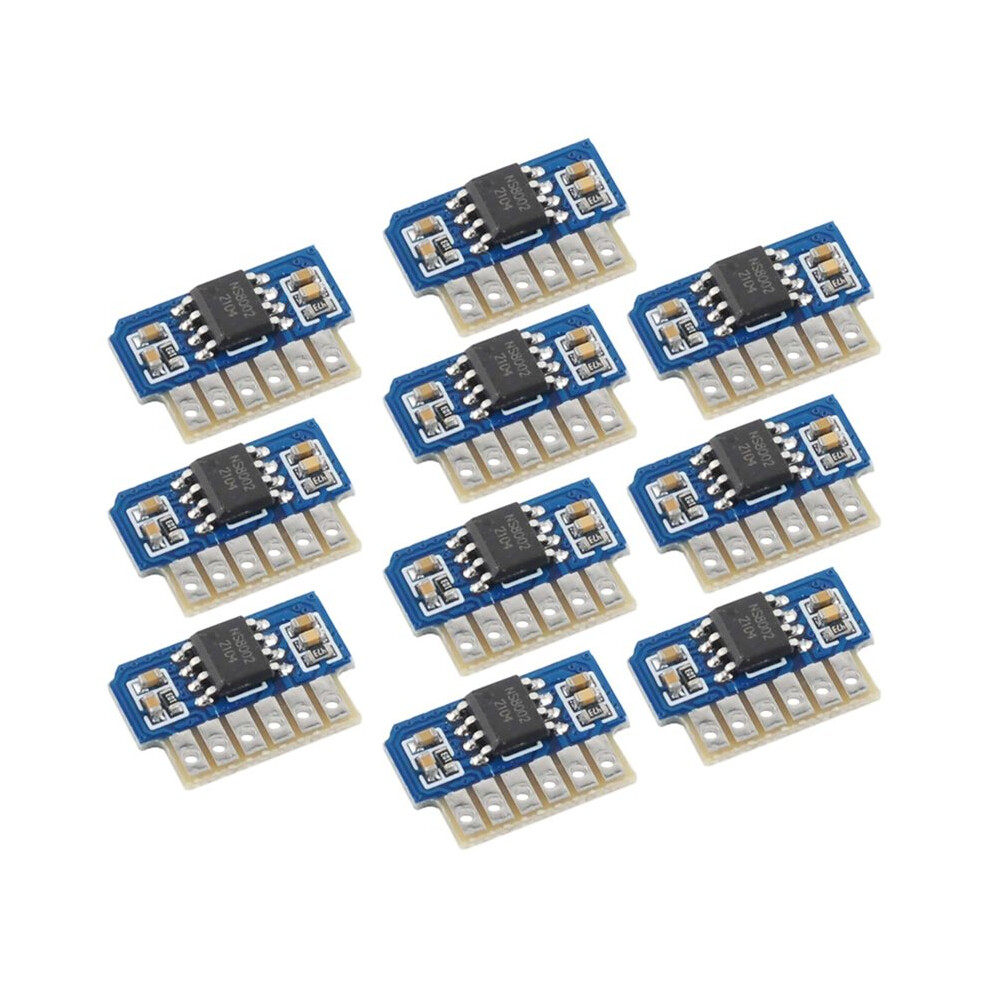

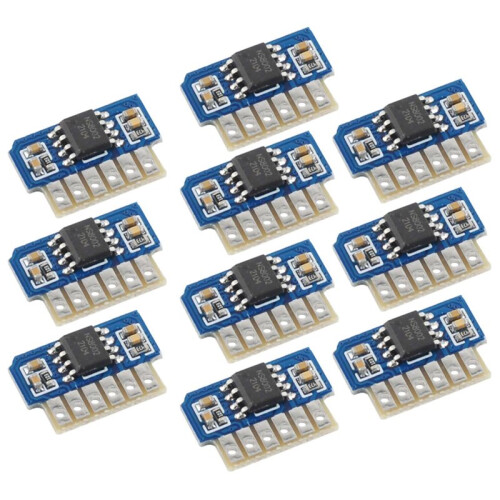

10PCS 3v-5v NS8002 Mono Power Amplifier Module Diy Low Voltage Stereo Audio Systems Class AB Amplifier Circuit
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 133,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Priority (Free) | Fri 18th - Mon 21st Sep
Sold by: JKSYshop
Returns: 30 days
180-day payment protection
You might also like
Summary
- PCB size: length 16 x width 10.5 x thickness 2.6mm (including protruding part);Installation method: inline, SMT patch; Output power: mono 3W;Supply voltage: 2V-5V (3.7V lithium battery can be used);
- Output impedance: 4 ohms - 8 ohms;Frequency response: 150HZ-20KHZ;Efficiency: 90%;Silent control: yes;Volume adjustment: none;Wiring instructions;
- This board should be grounded, and the 3 pin is the negative pole of the power supply and the ground. 1 pin is a silent output, it should be connected with 3 feet, when the voltage is 0
- 1. Improved PSRR at 217 Hz & 1 KHz 60 dB;2. Power output at 5.0V, 10% THD+N, 4 Ohm 2.0 W (typ.);3. Power output at 5.0V, 1% THD+N, 8Ohm 1.5 W (typ.);4. 2.2V - 5.5V operation;
- 5. Improved circuitry eliminates pop-click noise during turn-on and turn-off transitions;6. No output coupling capacitors, snubber networks or bootstrap capacitors required;7. Unity-gain stable;8. External gain configuration capability;
10PCS 3v-5v NS8002 Mono Power Amplifier Module Diy Low Voltage Stereo Audio Systems Class AB Amplifier Circuit Description
PCB size: length 16 x width 10.5 x thickness 2.6mm (including protruding part);Installation method: inline, SMT patch; Output power: mono 3W;Supply voltage: 2V-5V (3.7V lithium battery can be used);
Output impedance: 4 ohms - 8 ohms;Frequency response: 150HZ-20KHZ;Efficiency: 90%;Silent control: yes;Volume adjustment: none;Wiring instructions;
This board should be grounded, and the 3 pin is the negative pole of the power supply and the ground. 1 pin is a silent output, it should be connected with 3 feet, when the voltage is 0
1. Improved PSRR at 217 Hz & 1 KHz 60 dB;2. Power output at 5.0V, 10% THD+N, 4 Ohm 2.0 W (typ.);3. Power output at 5.0V, 1% THD+N, 8Ohm 1.5 W (typ.);4. 2.2V - 5.5V operation;
5. Improved circuitry eliminates -click noise during turn- and turn-off transitions;6. No output coupling capacitors, snubber networks or bootstrap capacitors required;7. Unity-gain stable;8. External gain configuration capability;
