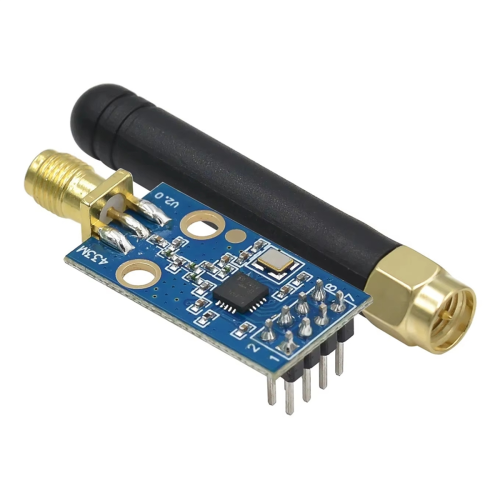

10PCS CC1101 Module with SMA Antenna Wireless Transceiver Module

10PCS CC1101 Module with SMA Antenna Wireless Transceiver Module Description

Wireless Module
Condition:
Operating frequency:(Module:387-464MHZ)
Working voltage :1.8-3.6V
Instantaneous maximum working current: 30ma

Features:
Maximum transmit power: 10mW (+10dBm)
315/433/868/915MHZ ISM band
Support 2-, GFSK and MSK modulation
Receiver sensitivity -110dBm at 1200 baud
Minimum operating speed 1.2kbps, the highest 500kbps
Separate 64-byte RX and TX data buffer
Built-in hardware error detection ensures reliable data transmission
Support RSSI signal strength detection and carrier sense function
Low power consumption
Operating frequency can be programmed via SPI
Programmable output power, for all the support frequencies up to +10 dBm
WOR feature can be set to standby, the proportion receiving state timer switch time to reduce power consumption
Fast frequency synthesizer with proper frequency hopping system
Colour:Blue & Black
Material:Metal + Plastic
The actual product may have slight color difference or difference, which not affect the use

Package Contents:
10 * CC1101 Wireless Module
10 * Short stick

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
