10X 24Ghz Human Presence Sensor Module TTL Serial Communication LD1115H Micro-Motion Detection
Brand Semoic
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 129,000 Trustpilot reviews and an 'Excellent' rating
£56.98
£70.35
19% off!
FREE Delivery
1%
Earn £0.57 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Thu 23rd - Sat 25th Jul
Sold by: PUPUSUN
Returns: 30 days
180-day payment protection
Most Popular in Motion Sensors
Hot
Description & Details
Summary
- Introduction
- HLK-LD1115H is a high sensitivity 24GHz millimeter wave human presence detection radar module. The main feature of this module is that on the basis of the function of the traditional human body induction radar, it also has the function of judging the existence of the human body by detecting and accumulating small movements such as human breathing.
- Therefore, the presence detection within a certain range has higher accuracy and is not easy to miss.
- LD1115H
- micro-motion detection
10X 24Ghz Human Presence Sensor Module TTL Serial Communication LD1115H Micro-Motion Detection Description
Introduction

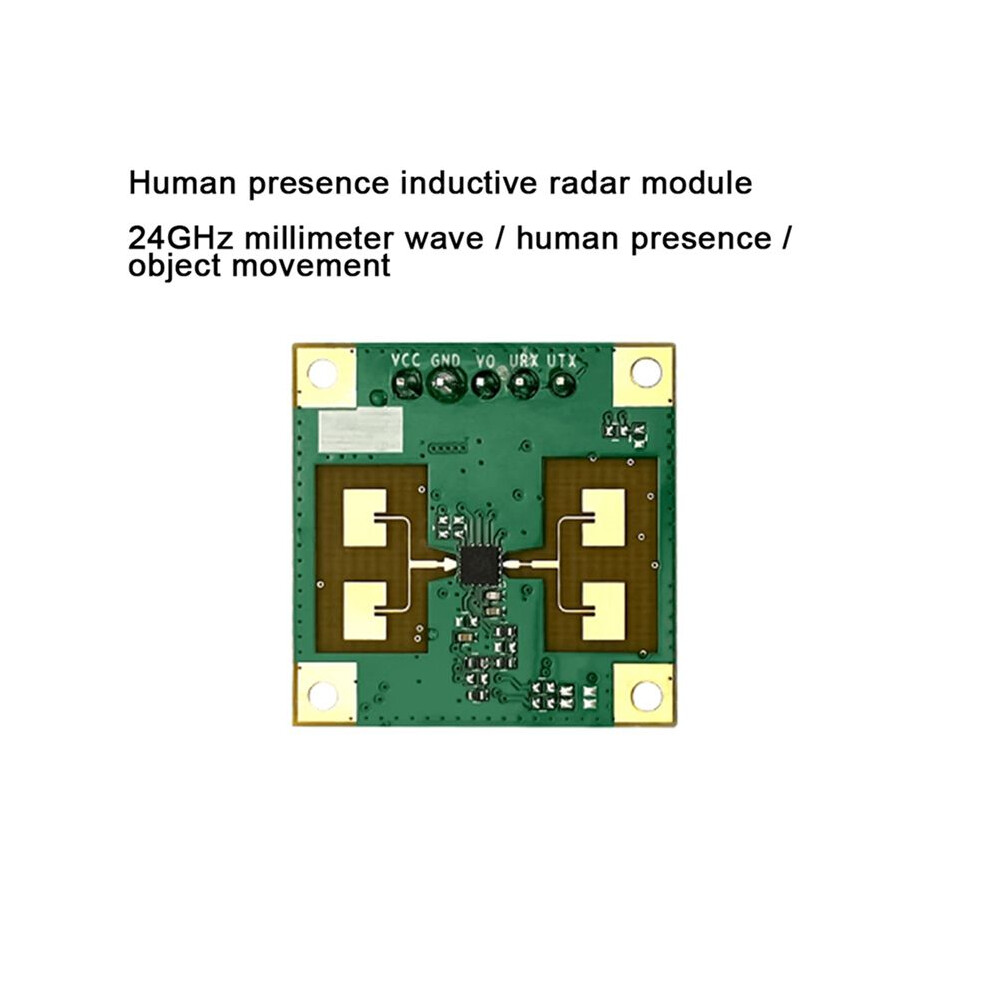

HLK-LD1115H is a high sensitivity 24GHz millimeter wave human presence detection module. The main feature of this module is that the basis of the function of the traditional human body induction , it also has the function of judging the existence of the human body by detecting and accumulating small movements such as human breathing.
Therefore, the presence detection within a certain range has higher accuracy and is not easy to miss.
Color as shown
material:PC+Metal
Specifications
Frequency 24G-24.5GHz
Modulation method CW
Detection distance Greater than 4m static human presence detection, Greater than 16m motion detection
Range hanging height , static body detection coverage radius 2m, mobile detection radiusGreater than 5m
Power supply 3.6-5V
Current 70mA
Output serial level 3.3V
Detection cycle adaptive

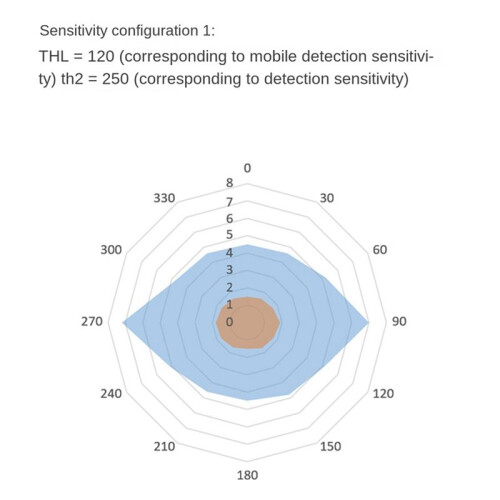

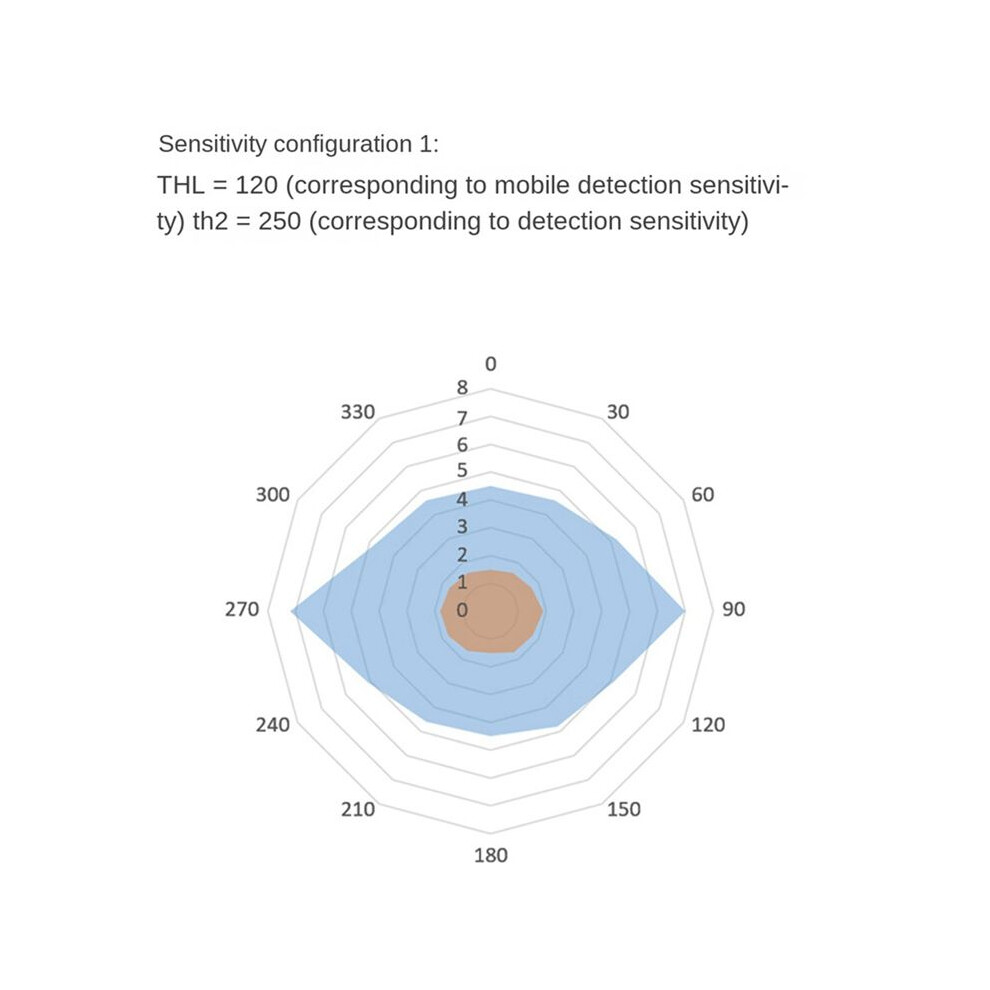

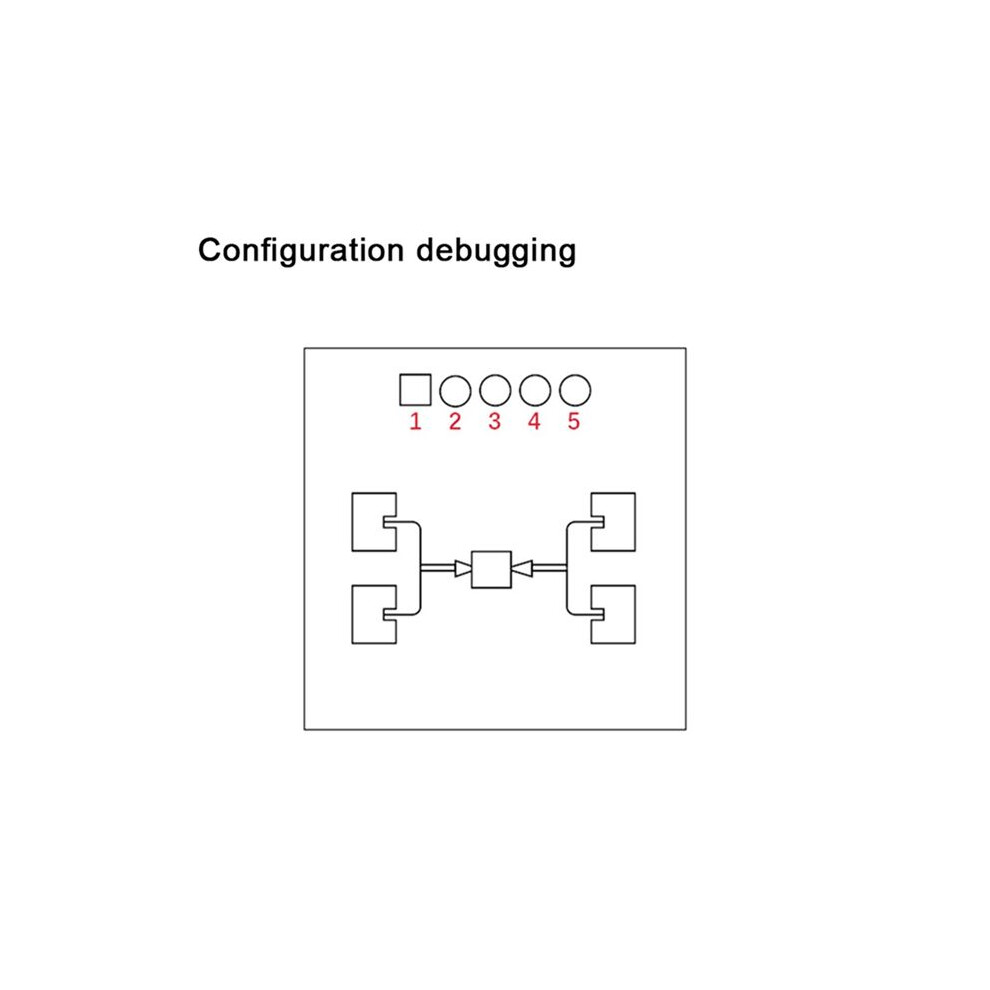

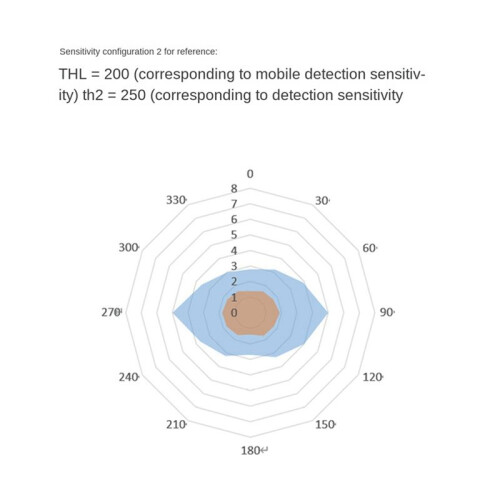

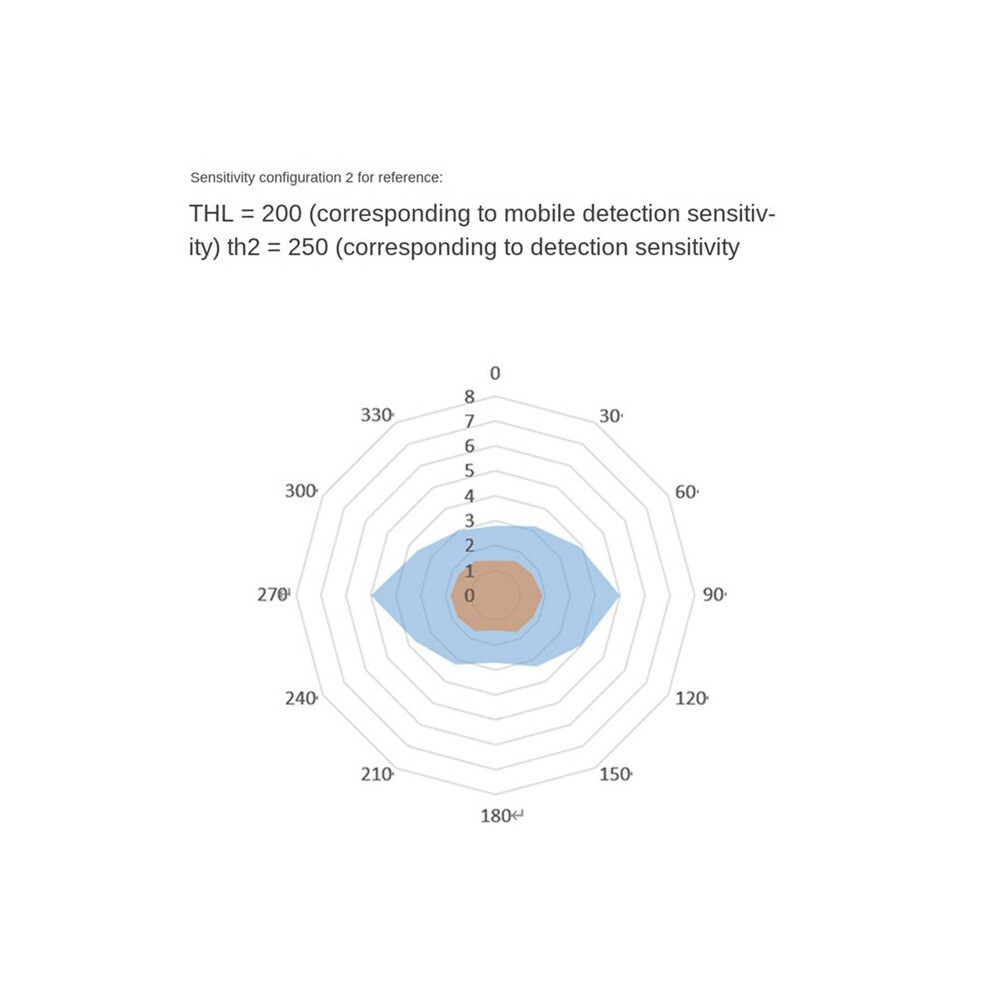

Antenna half power angle horizontal 57, vertical 24 (see the figure below for the definition of antenna horizontal/vertical direction)
Data format Serial port ASCII output/high and low level
Startup about 15 seconds
Package Contents:

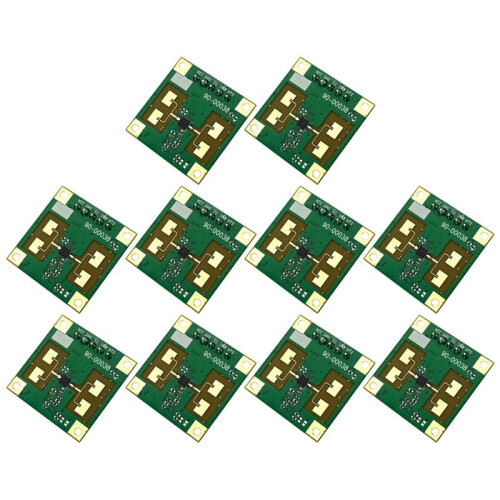

10pc 24GHz millimeter wave human presence detection module
Details
| OPC | PSHTTPX |
|---|---|
| Brand | Semoic |
| Codes | 4712875189259 (EAN) |
Product Data
| Height | 10cm |
|---|---|
| Width | 3cm |
| Length | 3cm |
| Weight | 0.02kg |
| Colour | as shown |
| Material | PC+Metal |
