12-24V Non-contact Tank Liquid Water Level Detect Sensor Switch Container DC 5V

12-24V Non-contact Tank Liquid Water Level Detect Sensor Switch Container DC 5V Description

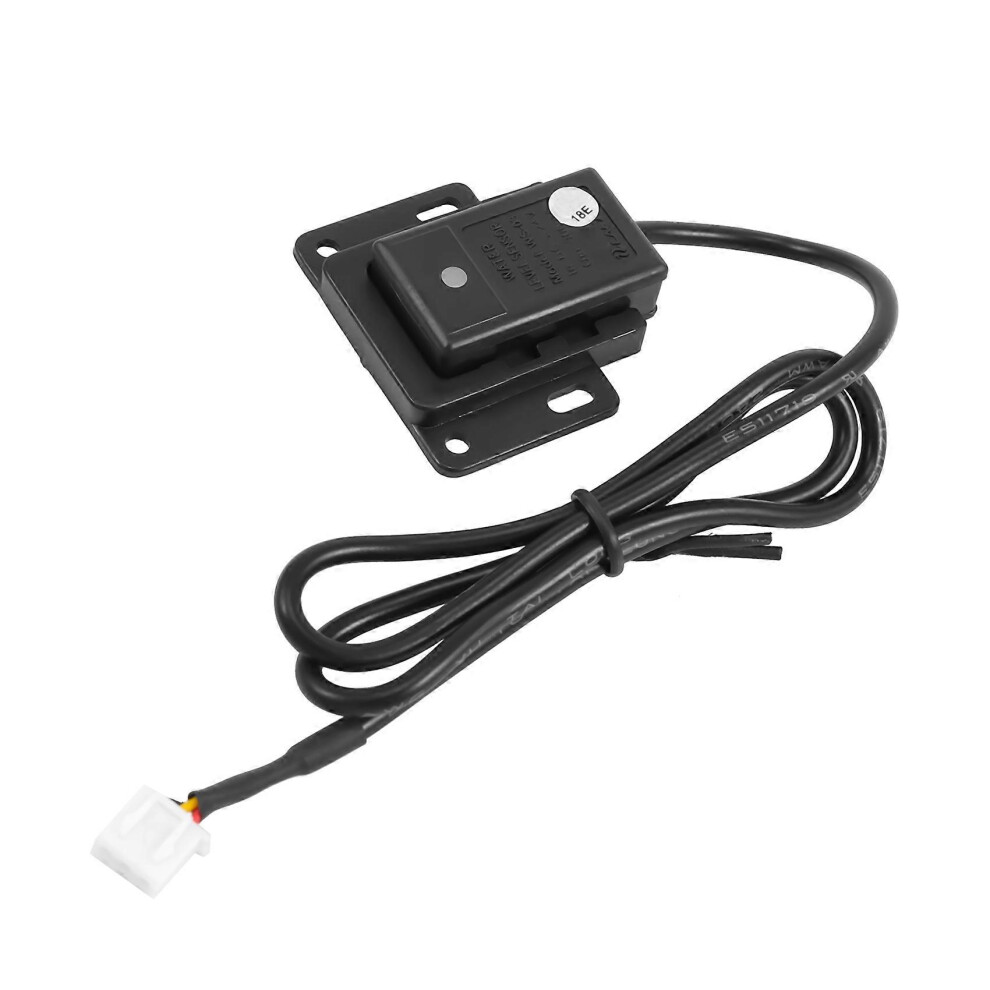

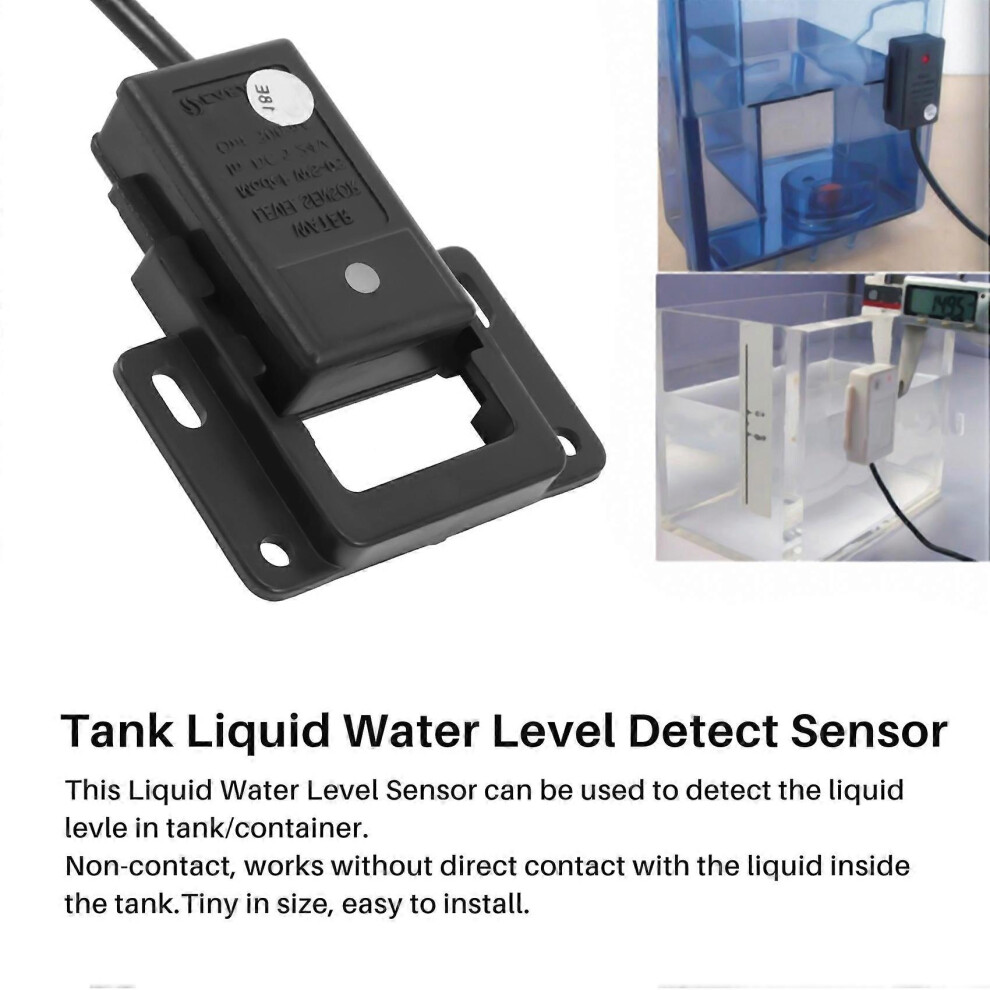

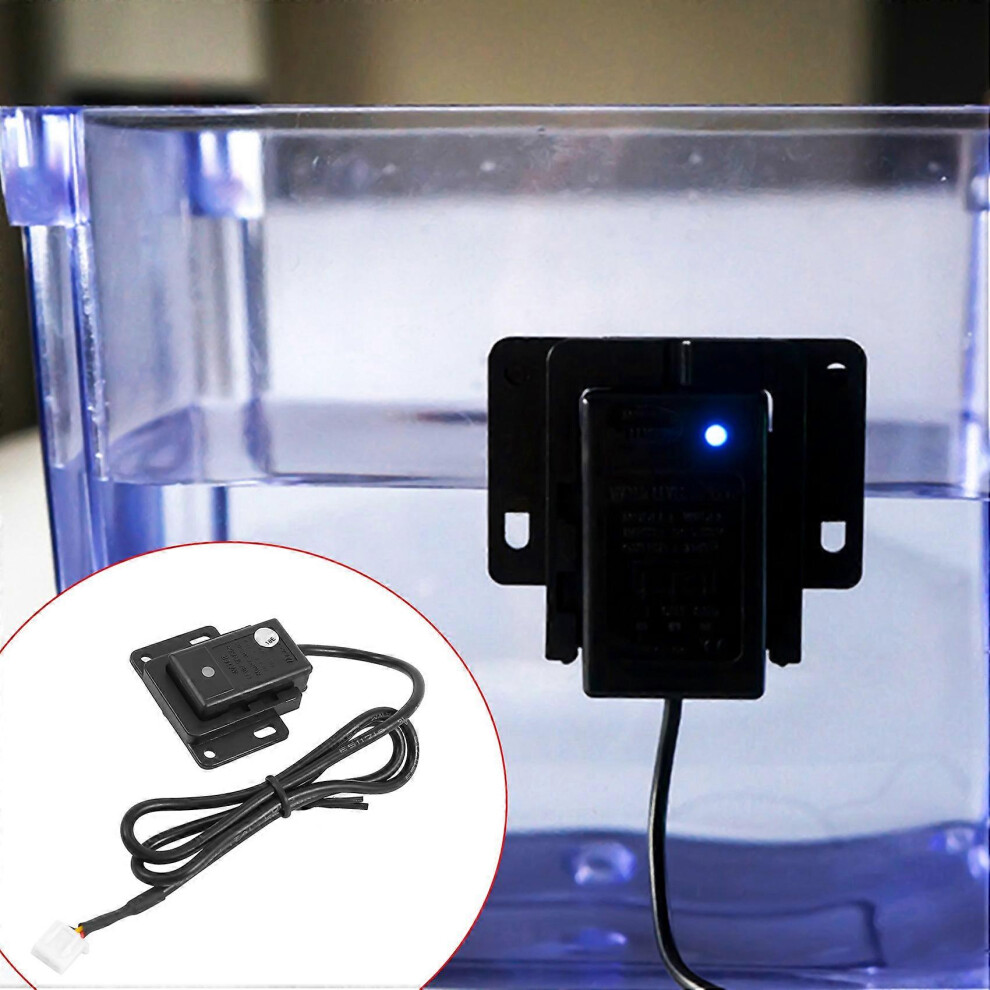

This Liquid Water Level Sensor can be used to detect the liquid levle in tank/container.

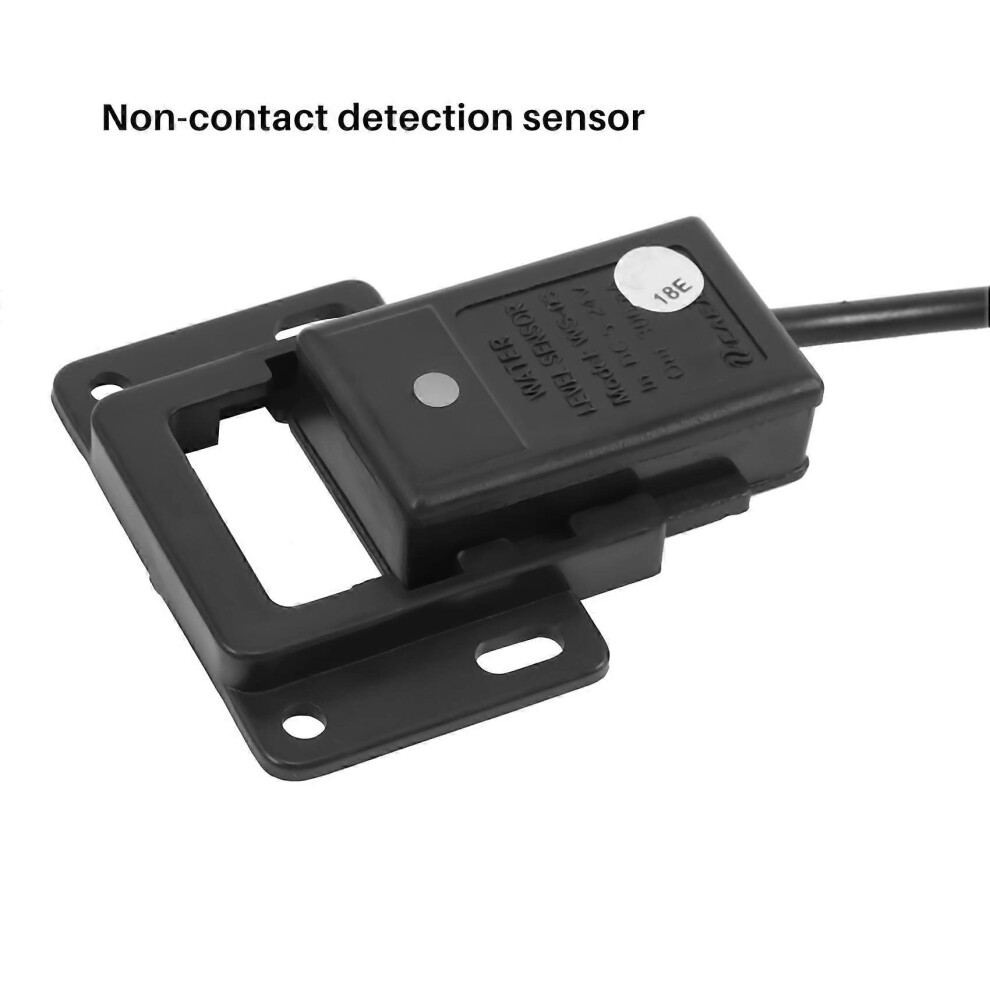

Non-contact, works without direct contact with the liquid inside the tank.Tiny in size, easy to install.
Size:30*19*10mm/1.18"*0.75"*0.39"

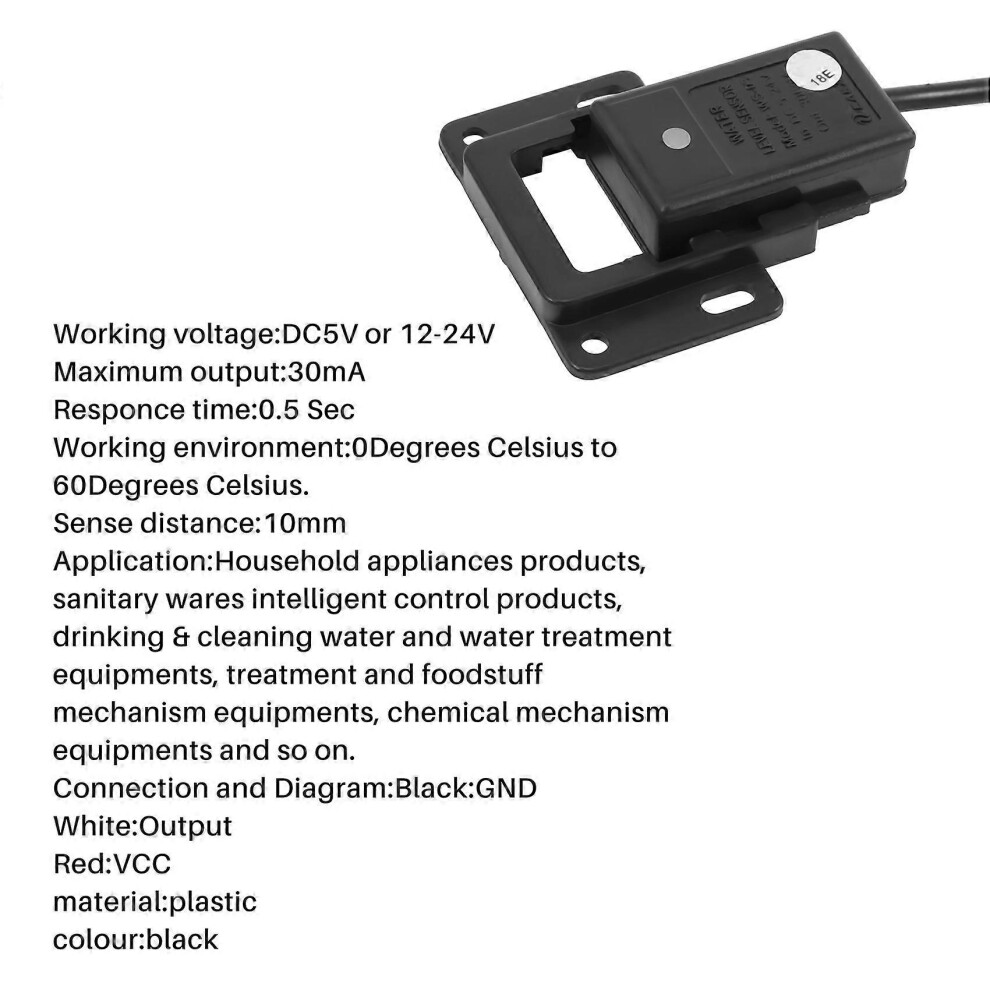

Working voltage:DC5V or 12-24V
Maximum output:30mA
Responce time:0.5 Sec
Working environment:0Degrees Celsius to 60Degrees Celsius.
Sense distance:10mm
Application:Household appliances products, sanitary wares intelligent control products, drinking & cleaning water and water treatment equipments, treatment and foodstuff mechanism equipments, chemical mechanism equipments and so on.
Connection and Diagram:Black:GND
White:Output
Red:VCC
material:plastic
colour:black
Package included:1 x Non-contact Tank Liquid Water Level Sensor Switch
1 x Bracket(just for flat surface)
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
