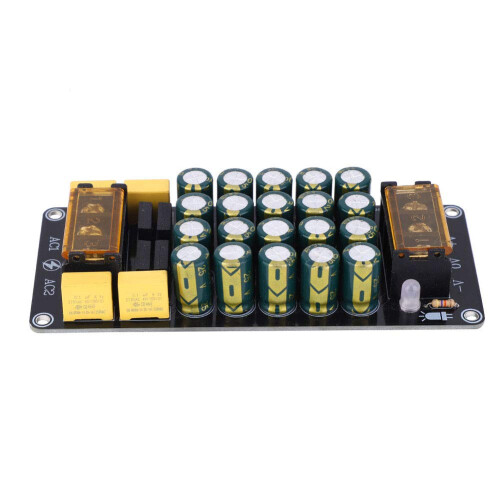

1200W DC Power Rectifier Filter Module with Dual Input Output and Stable DC for Audio Amplifiers

1200W DC Power Rectifier Filter Module with Dual Input Output and Stable DC for Audio Amplifiers Description

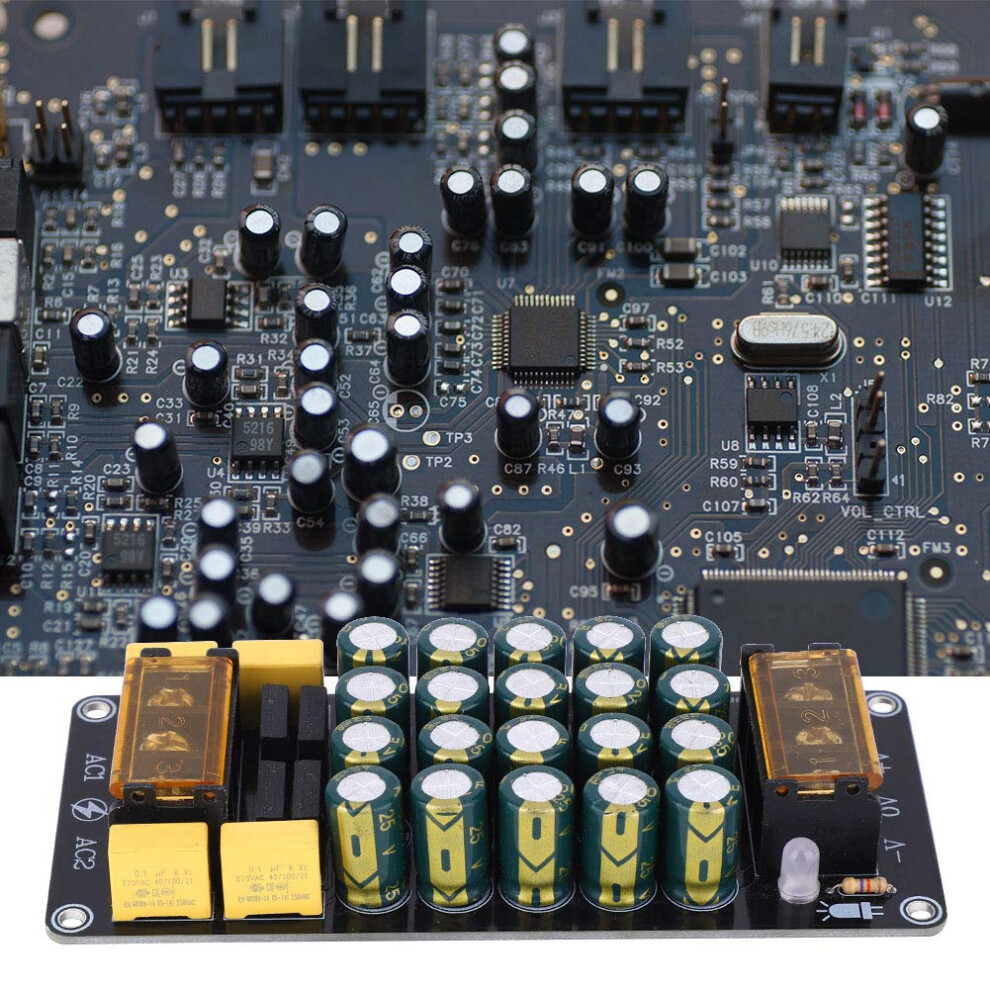

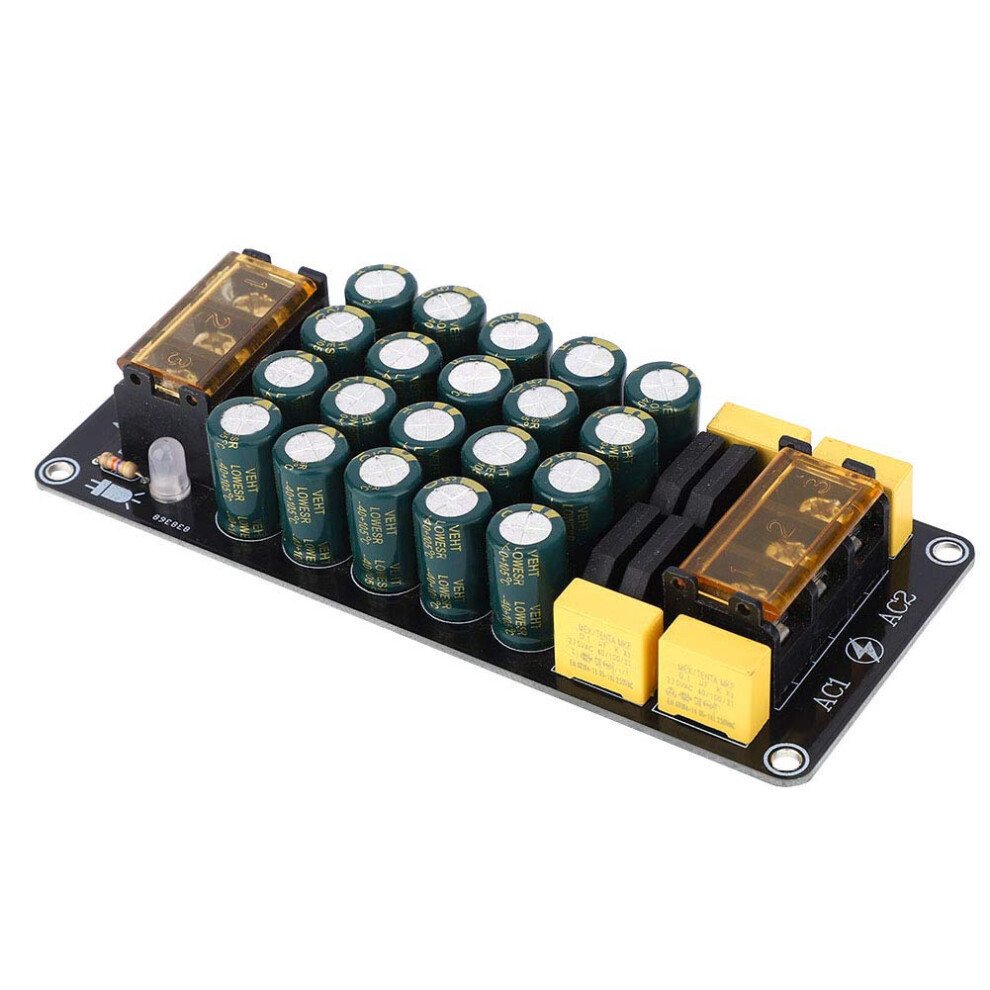

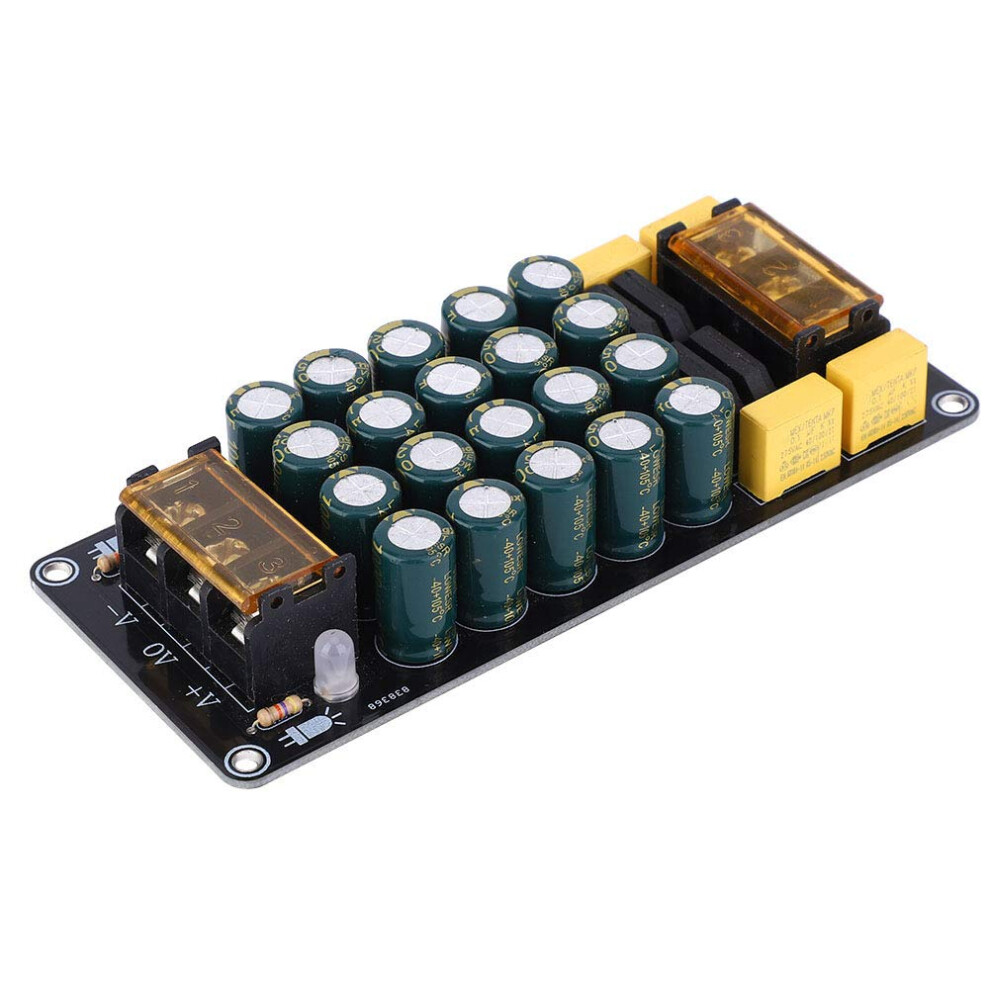

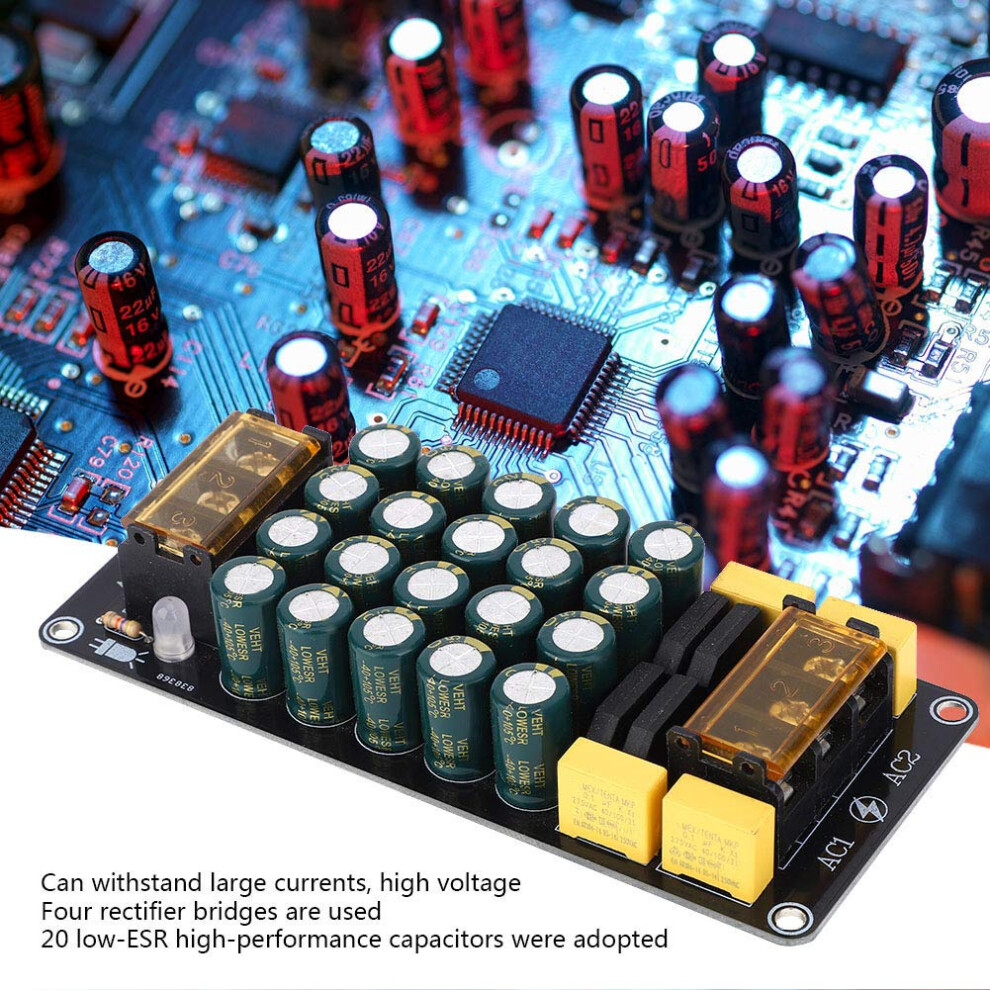

Rectifier Filtration Module A compact, performance filtration module designed for DC rectifier and power distribution applications. Uses 20 lowperformance capacitors to stabilize output and improve conversion rates. Key benefits Flexible input and output configurations: supports four independent working modes to match a variety of power architectures and simplify system design. Improved output stability: the capacitor array reduces ripple and helps maintain steady DC output under varying load conditions. Robust current connections: large front and rear input and output terminals with safety covers provide secure wiring, able to withstand current and voltage. Spaceefficient design: small footprint allows installation in tight enclosures and rack systems. Primary functions and features Working modes supported: single power input to single power output single power input to double power output double power input to double power output double power input to single power output Capacitors: 20 lowperformance capacitors for filtration and improved conversion Terminals: large input and output terminals on both front and rear, each fitted with a safety cover Electrical limits: maximum voltage 100 V, maximum current 12 A, maximum power 1200 W Size: 119 x 51 x 19 mm (4.69 x 2.01 x 0.75 in) L x W x H Designed for reliable performance in DC power systems where reduced ripple and flexible routing are required Compatibility and installation notes Works with DC rectifier systems and power distribution equipment within the specified voltage and current limits Front and rear terminals allow versatile wiring layouts and easy access during installation and maintenance Compact form factor fits standard instrument panels and modular racks Practical use scenarios Industrial control cabinets: integrate the module to filter rectified DC supplies feeding PLCs, motors, and sensors, reducing ripplerelated interference. Telecom or network power systems: use dualinput modes for redundant supply paths and filtered outputs to sensitive equipment. Battery charging and DC loads: stabilize charging circuits and downstream DC loads by reducing voltage ripple and improving conversion consistency. What makes it stand out Four distinct working modes for flexible system topologies Large, covered terminals on both sides for current, voltage connections and straightforward wiring Compact size combined with a 1200 W capacity enables deployment where space is limited but power demands are significant Specifications summary Capacitor count: 20 lowperformance capacitors Modes: single to single, single to double, double to double, double to single Maximum voltage: 100 V Maximum current: 12 A Maximum power: 1200 W Dimensions: 119 x 51 x 19 mm (4.69 x 2.01 x 0.75 in) L x W x H This module is intended for integration into DC rectifier and power distribution systems that require flexible input and output configurations, reliable filtration, and robust current connections.
