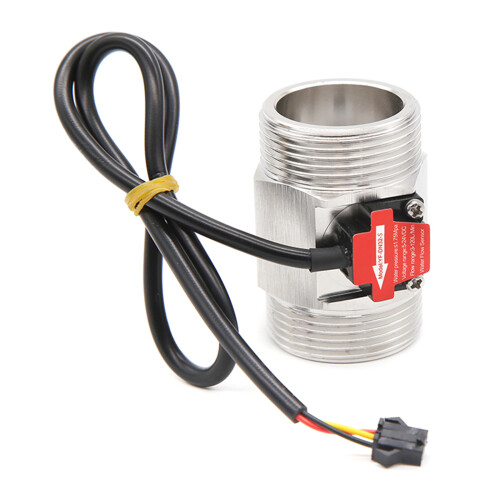

1.25" flows Meter Steel Hall Effect Liquid Water Switches

1.25" flows Meter Steel Hall Effect Liquid Water Switches Description

Features:

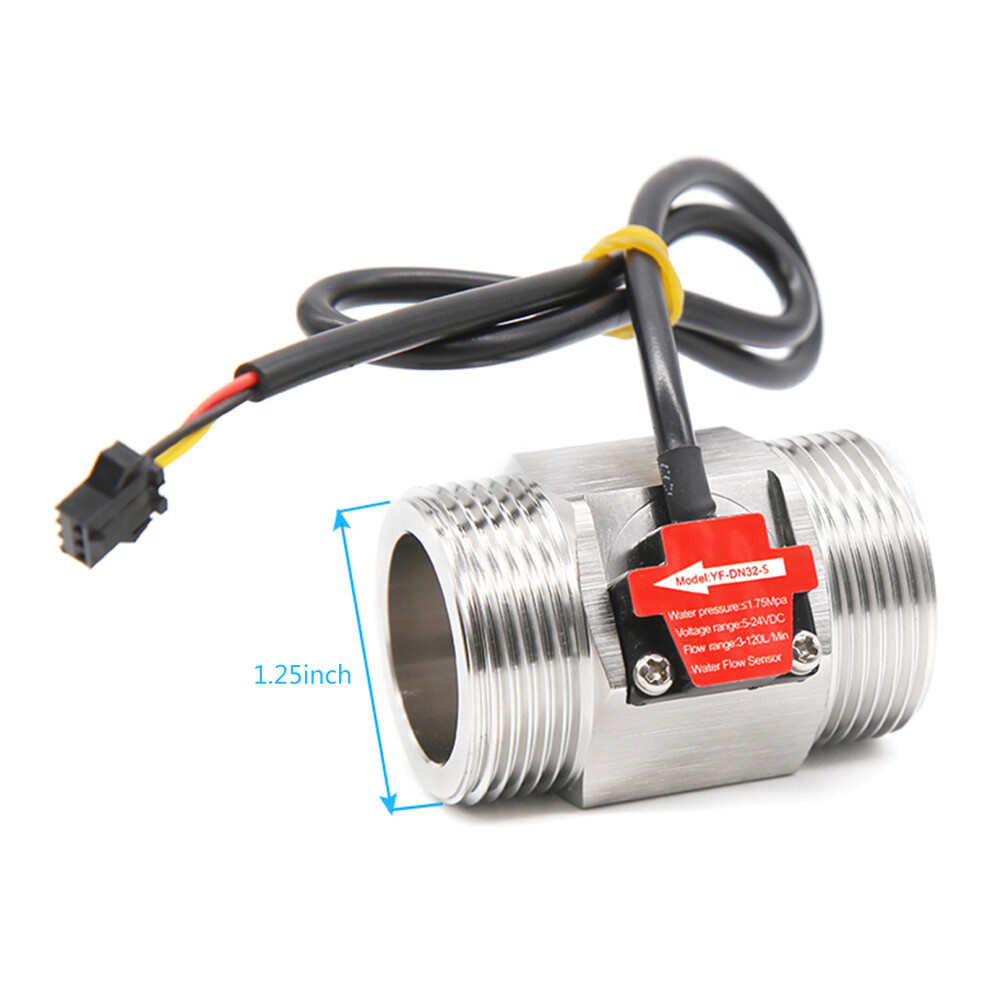

Thread: 1.25inch, flows ranges: 3-120L/MIN1%, volatge: 5-24VDC.
All steel structure, good sealing Performances, easy to install.
Wiring: Red-in-Positive/Yellow-out-signal output/Black--Negative.

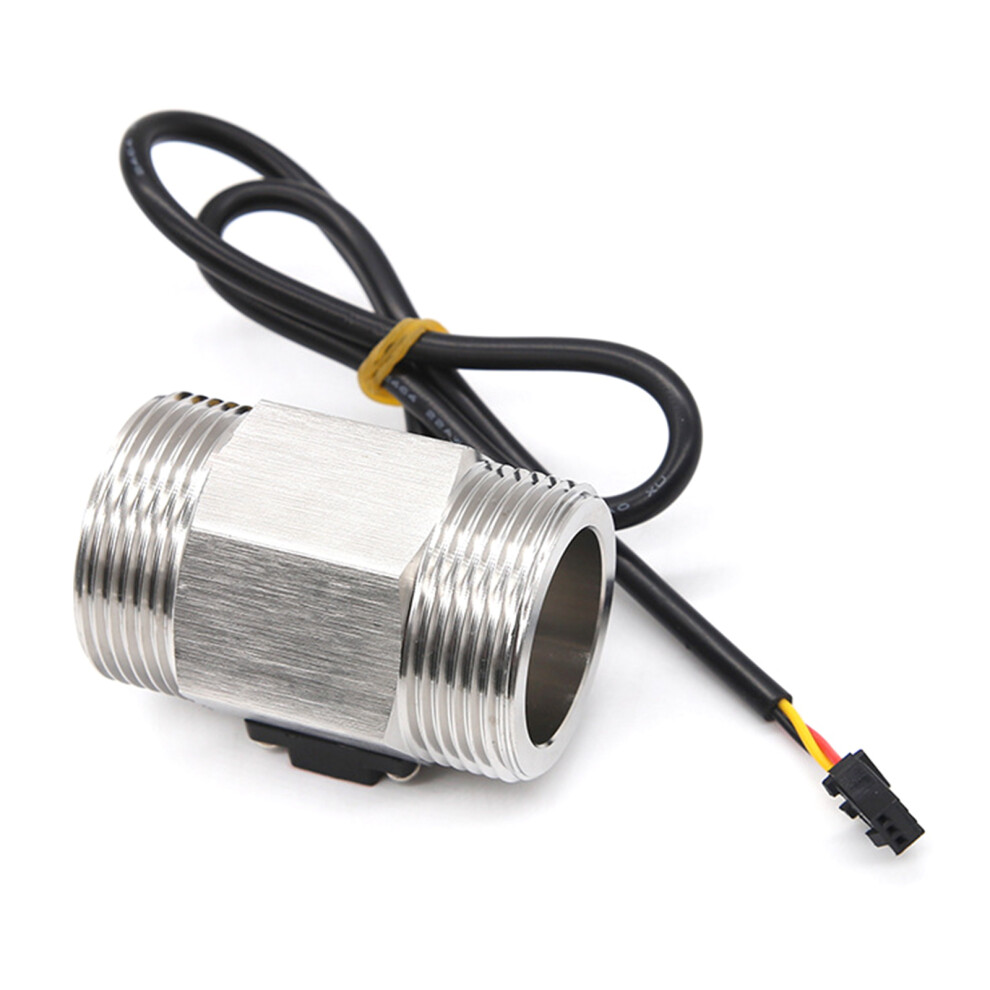

The water- flows Meter consists of steel body, flows Rotors- assembly and hall Meter .
Widely used in petrochemical industry, farmland- irrigation, waterwork-, residential water flows- control, swimming pool, water - construction, river thinning and other water- flows control fields-.

Specifications:
Material: steel
Size: approx 4.7x4.7x6.4cm/2x2x2.5in
Operating Electric ranges: 5-24VDC
Maximums operating current: 15mA (DC5V)
Load capacity: equal or less than 10mA (DC5V)
Allowable pressure equal or less than1.75mpa
Storage temperature/Moisture : -25 to +80C/25% to 90%-
flows ranges: 3-120L/MIN1%
Pulse characteristics () =[1.08xQ]5%, which is 128 pulses per liter of water

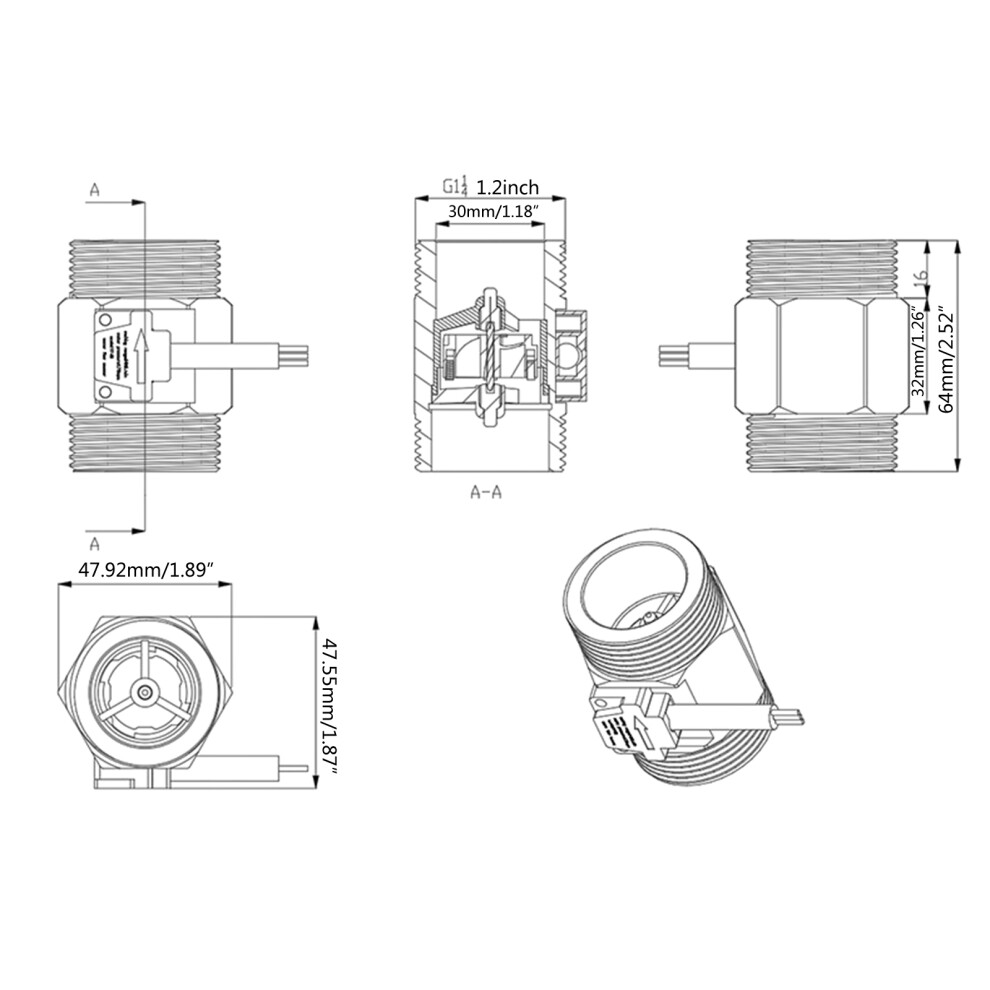

Inner diameter/outer diameter inlets inner diameter 32.5mm, outlet inner diameter 30mm/ outer diameter 41.5mm
The length of screw teeth is 16mm
Output pulse high level : more- than DC4.5V (input Electric DC5V
Output pulse low level:
The output pulse duty ratio is 5010%

Package Includes:
1xWater- flows Meter

note:
Please allow 1-3cm error due to manual measurement. make sure you do not mind before you bid.
Due to the differences between different monitors, the picture may not reflect the actual colorful of the item.
