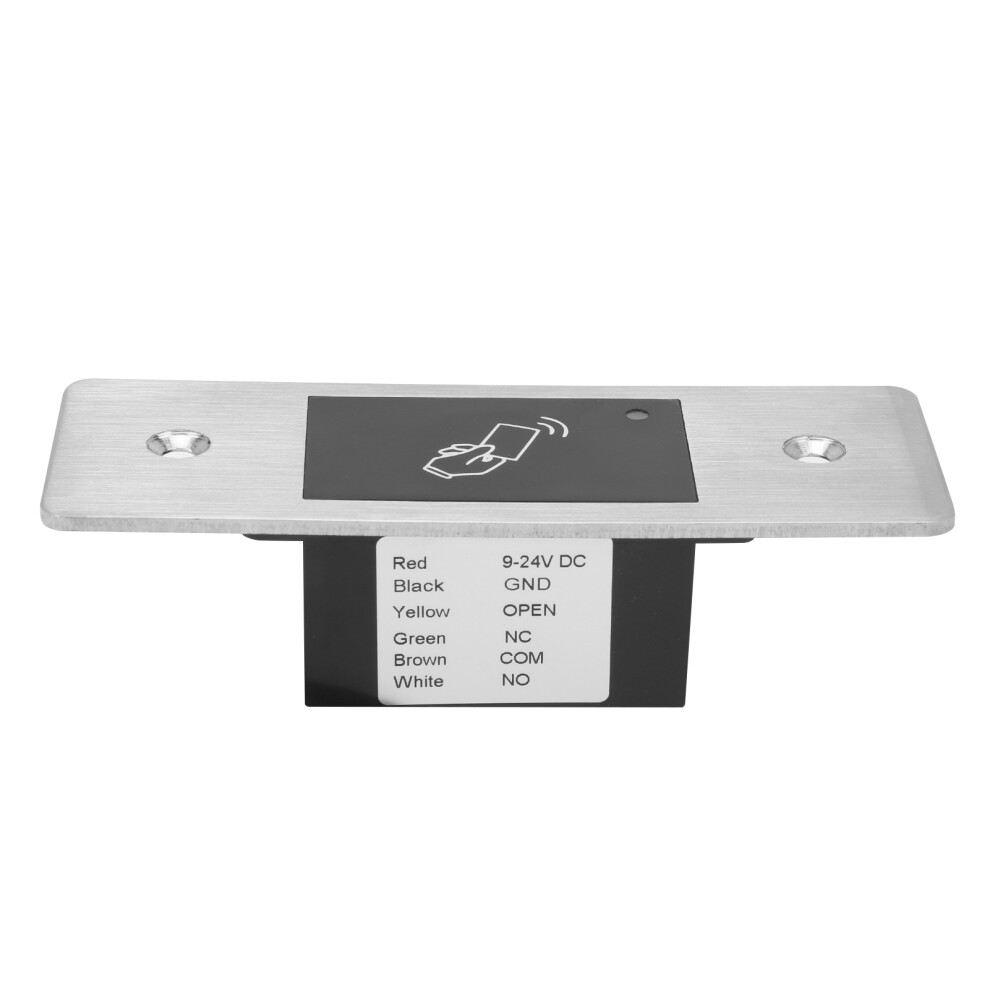

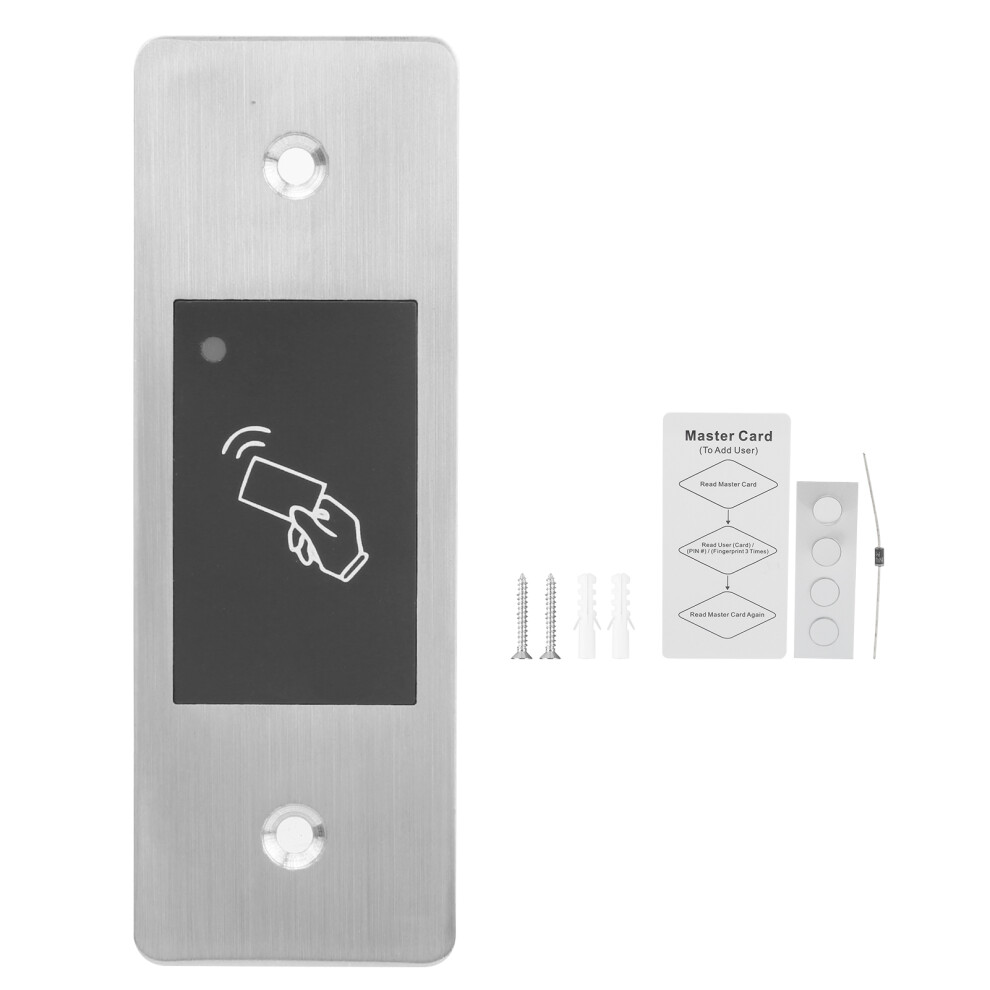

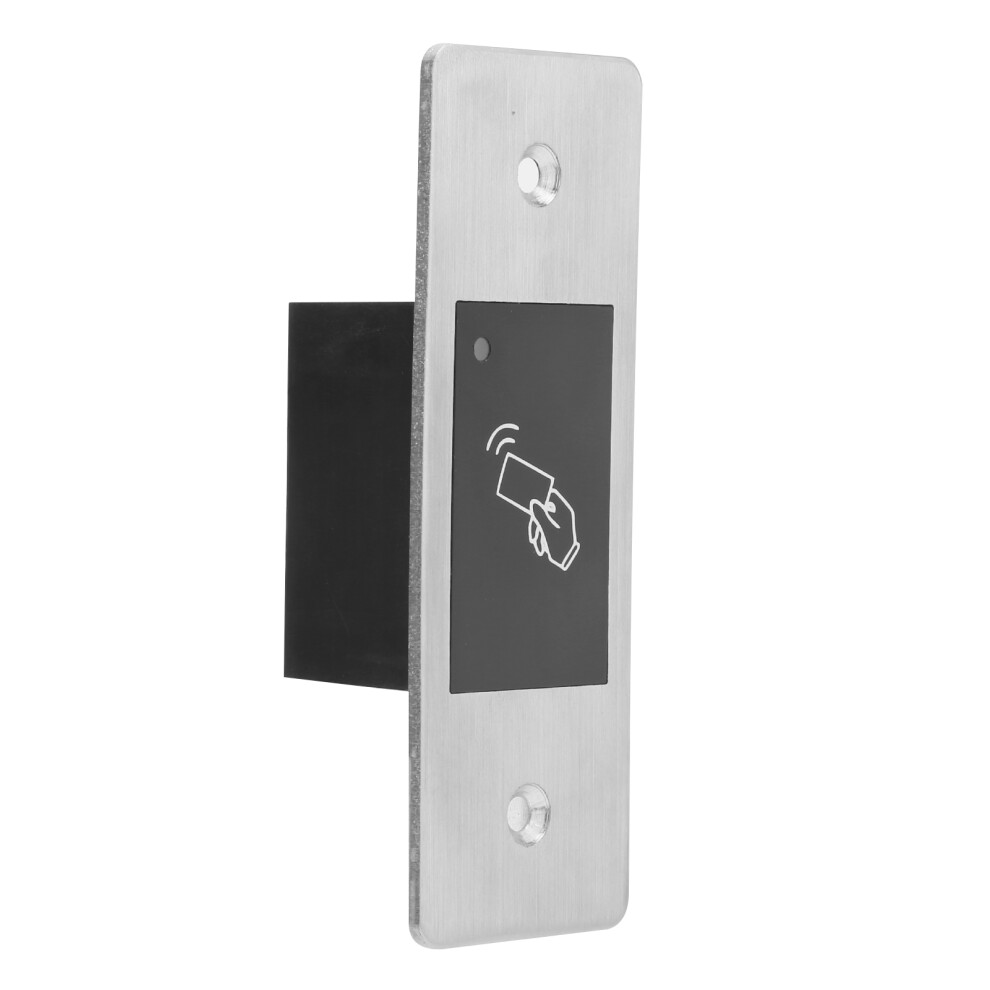

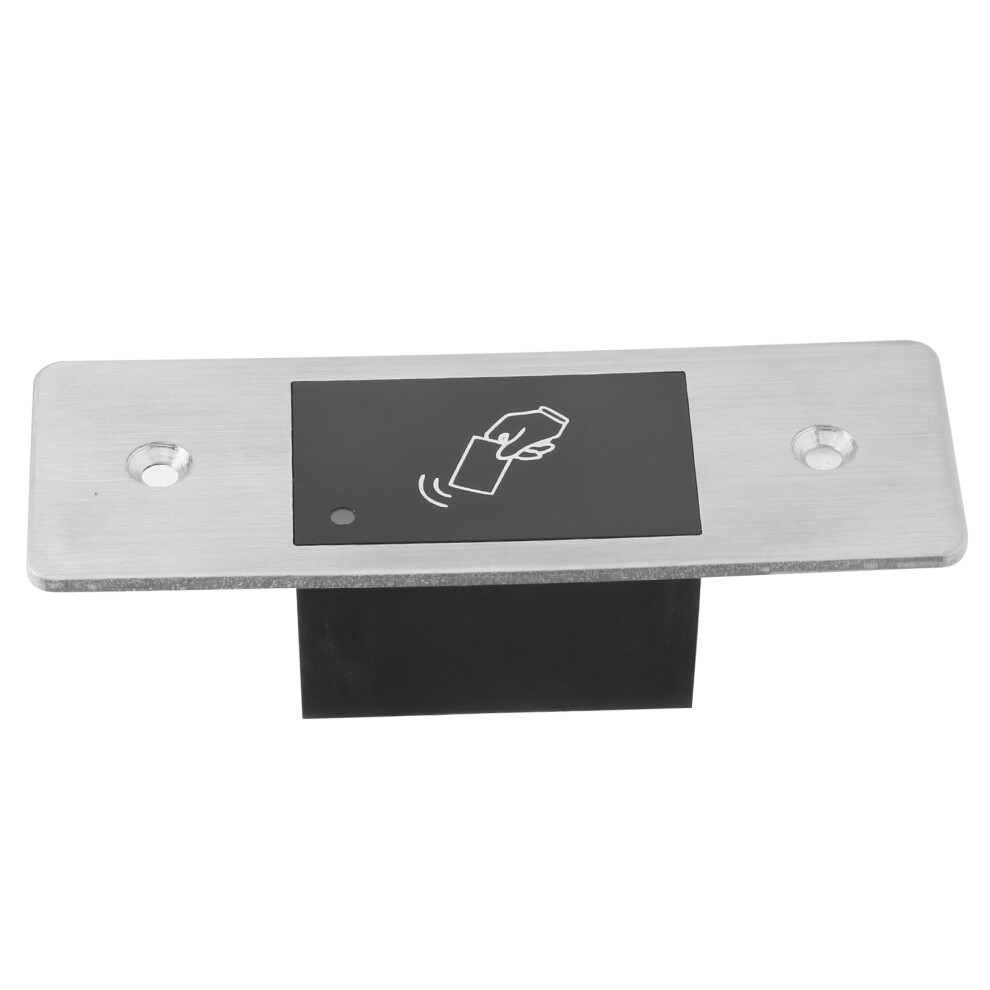

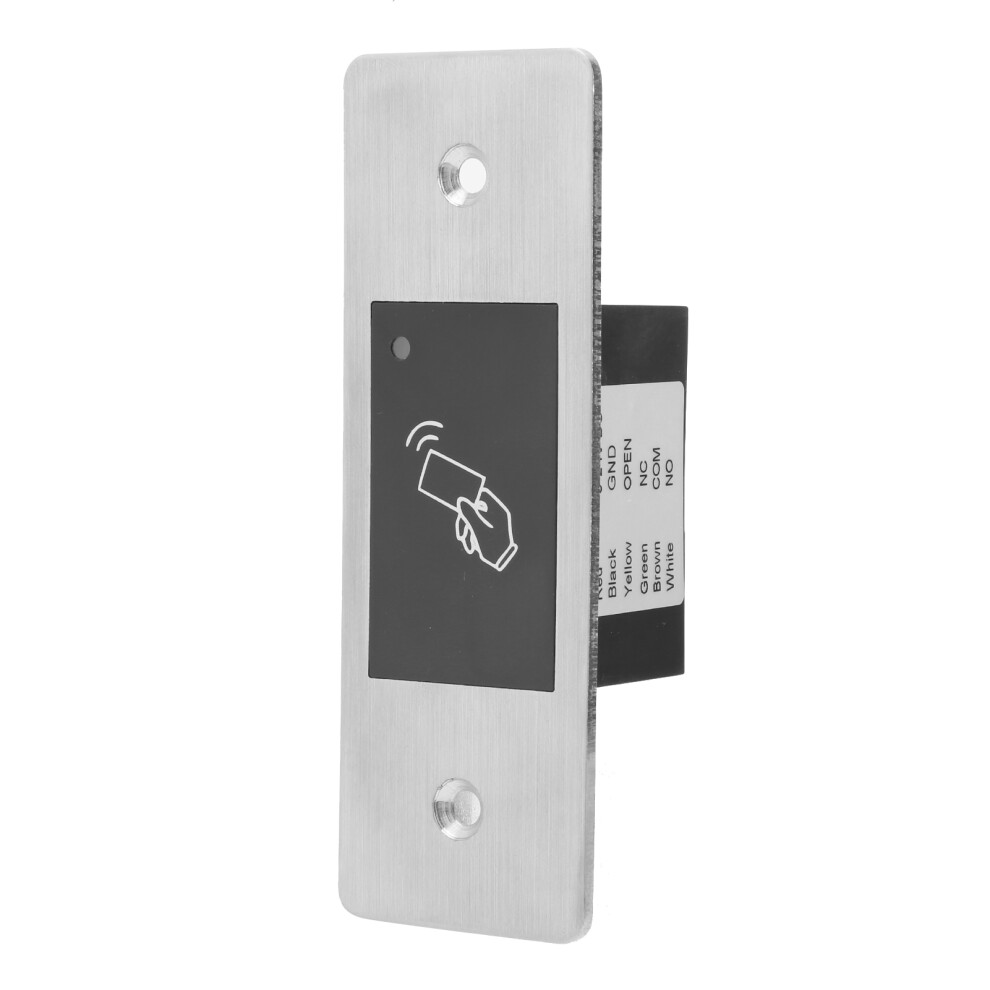

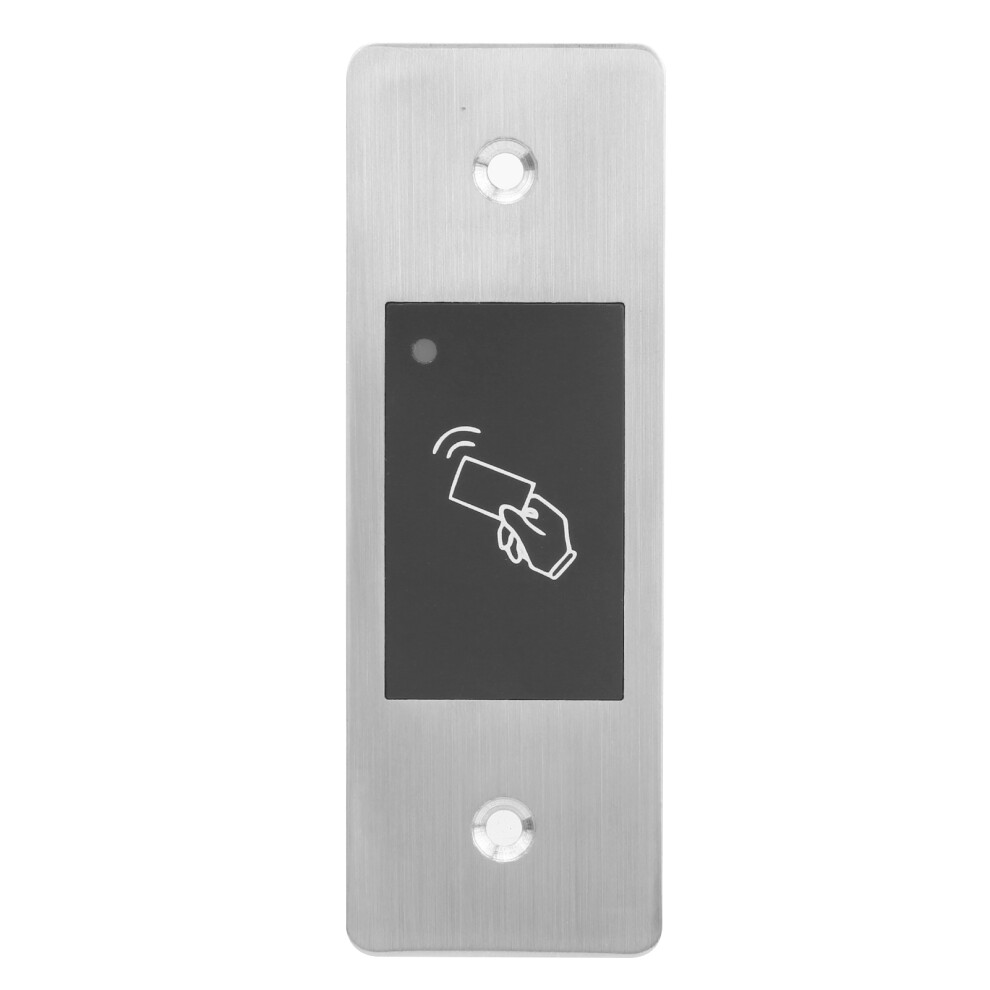

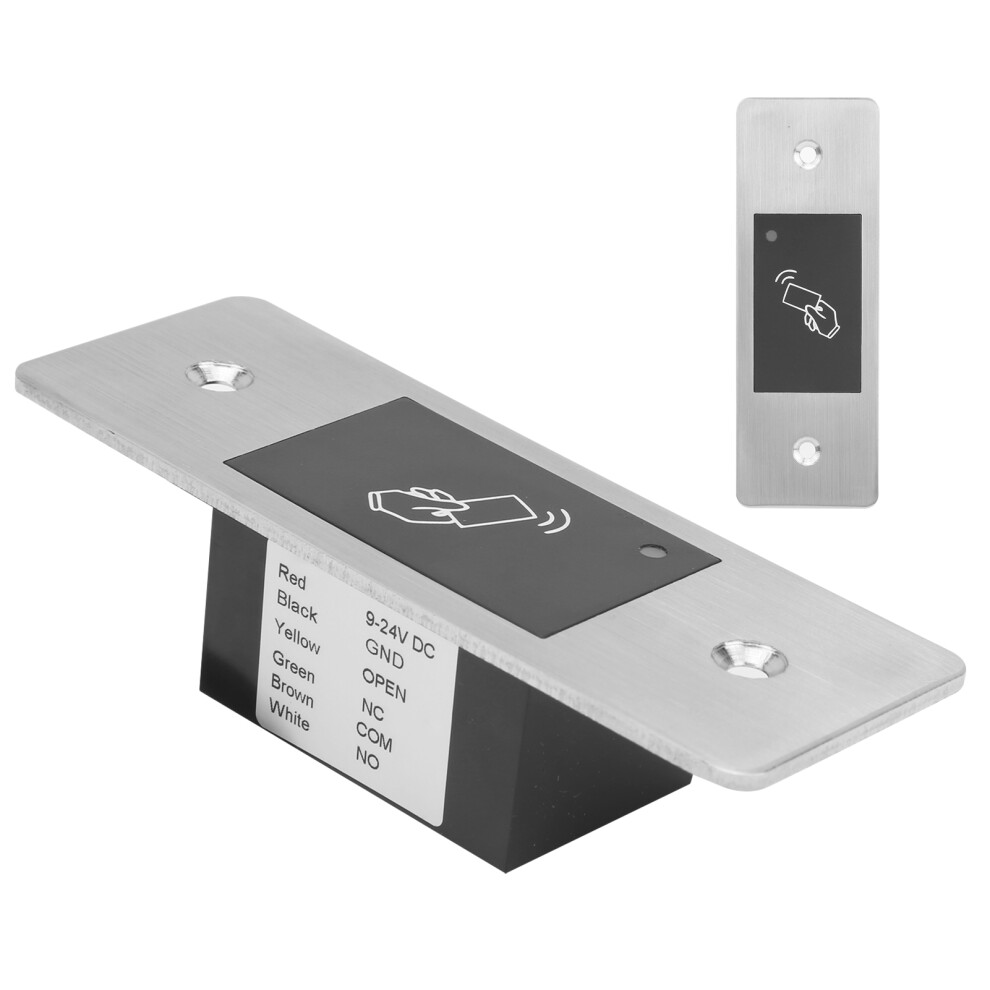

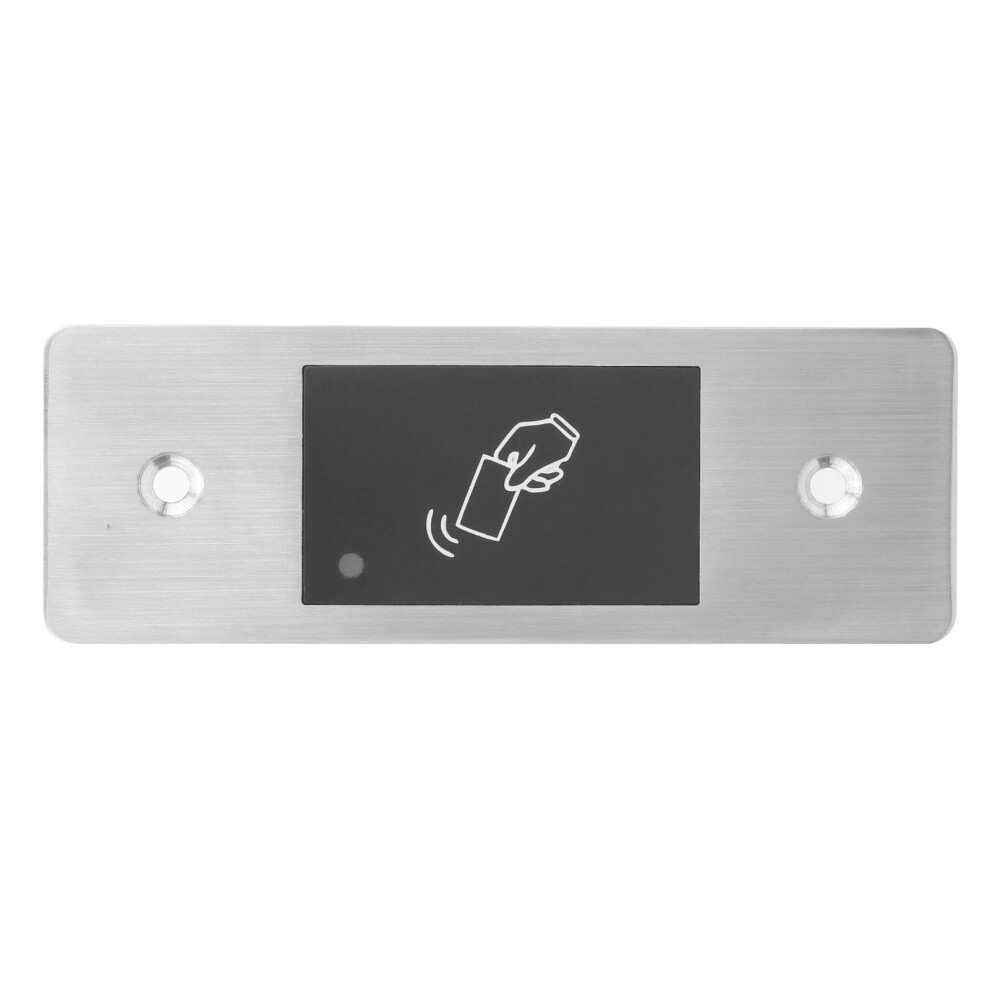

125KHz RFID Access Control Machine IP66 Waterproof, 3000 Users, 115x40x30mm

125KHz RFID Access Control Machine IP66 Waterproof, 3000 Users, 115x40x30mm Description

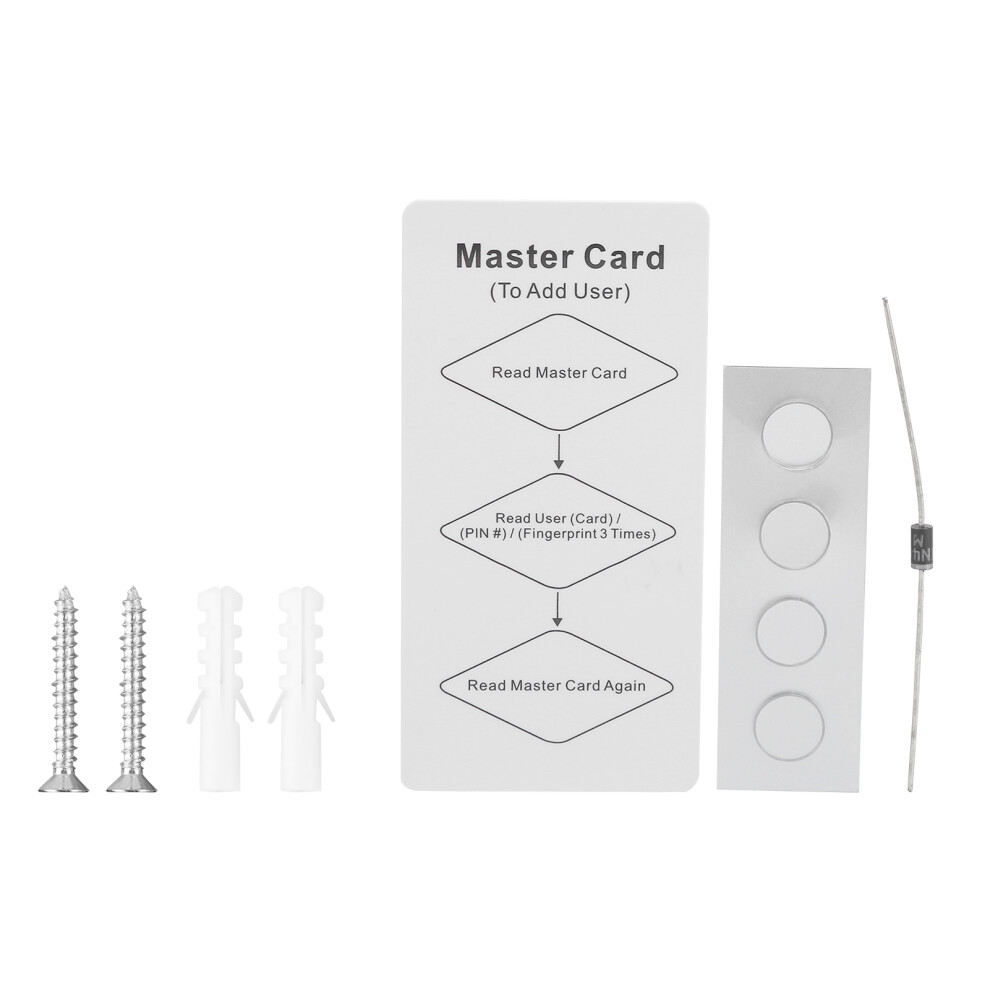

125KHZ RFID Access Control Machine IP66 Waterproof 3‑Color LED Indicator with Master Card
Item Type: Access Control Machine
Material: MetalUser Capacity: 3000 card users
Support Card Type: 125 KHZ EM card
Working Current: 100mA
Card Sensing Distance: 5cm
Relay Contact Load Capacity: 2A
Working Temperature: -25-60
Working Humidity: 0%-99%
Size: Approximately. 115x40x30mm/4.5x1.6x1.2in
Protection Level: IP66

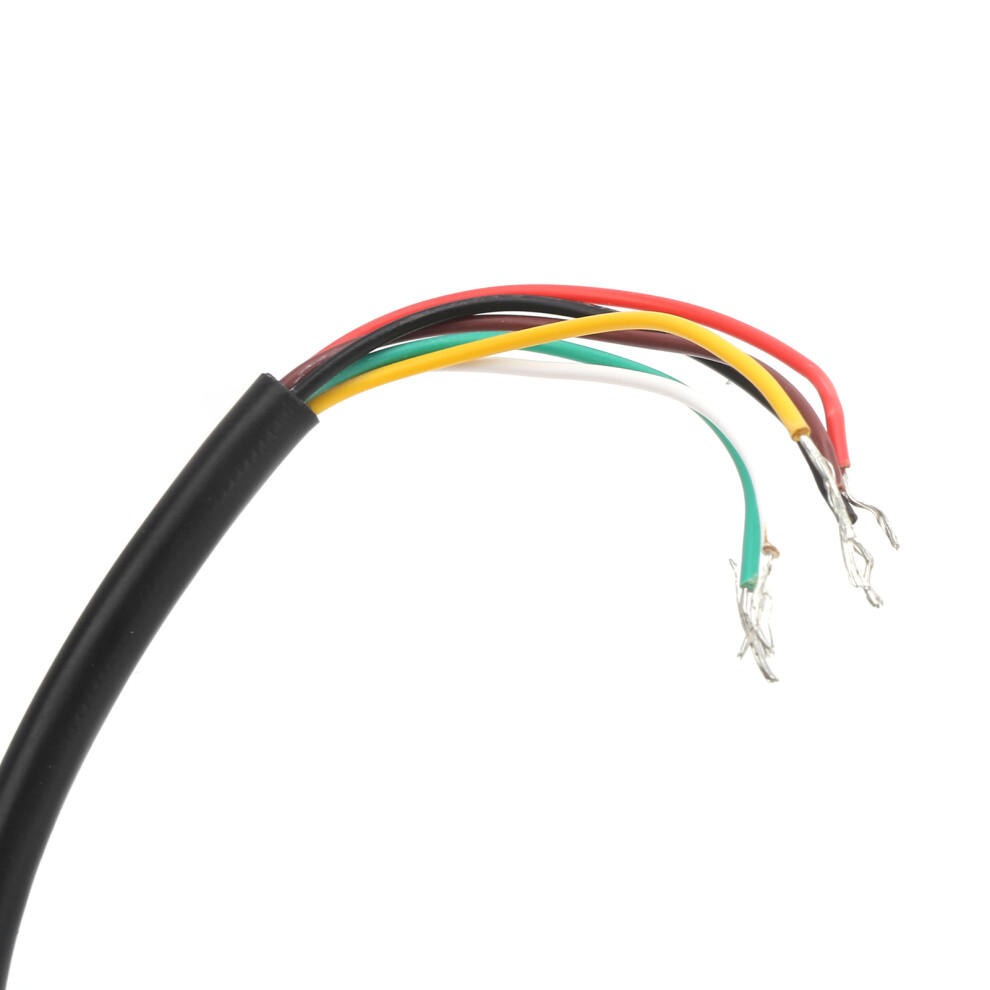

Cable Length: About 250mm10mm / 9.8in0.4in
How e:
1. Add an administrator
Press and hold the door button to power on, the machine beeps once, let go, add the administrator card and administrator fingerprint (after adding one, wait 10S to automatically exit after adding).
2. Set the door opening time (the factory default is 5S, the maximum can be set to 99s)
Press and hold the door open button to power on, let go after the standby beeps 2 times, and enter the door open time setting menu
(1) Set switch mode
Press the button to open the door and immediately let go (1S), the machine beeps 3 times, and it is in switch mode at this time
(2) Set door opening time
Press the door button to keep it, the machine will not let go after 3 beeps, the machine will beep every 1S, and let go after the set time is reached
It can be set to the corresponding door opening time.
3. Reset (the reset operation will clear the user and the administrator, and the door opening time will be restored to the factory default 5s)
Press and hold the door button to power on, let go of the standby device after 3 beeps, press and hold the door button again for 10 seconds, and the reset is successful. (Machine less than 10S will not reset).
