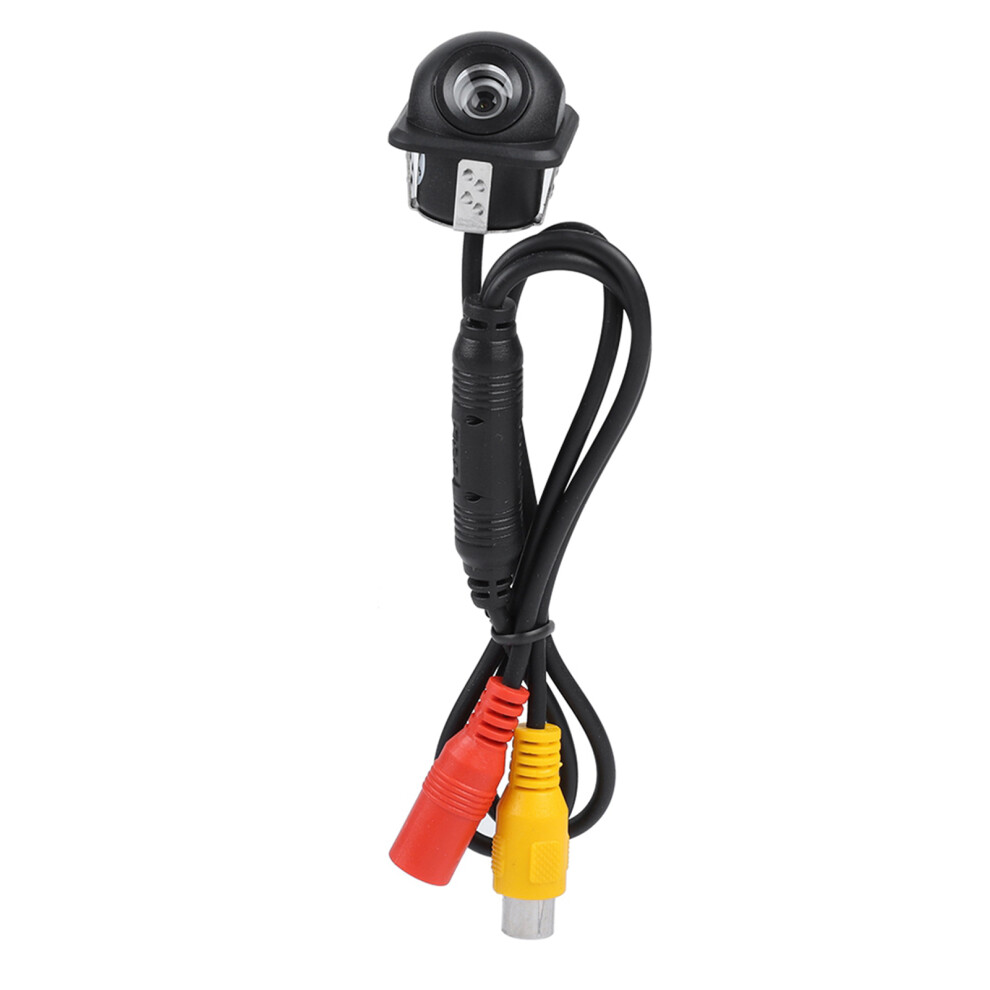

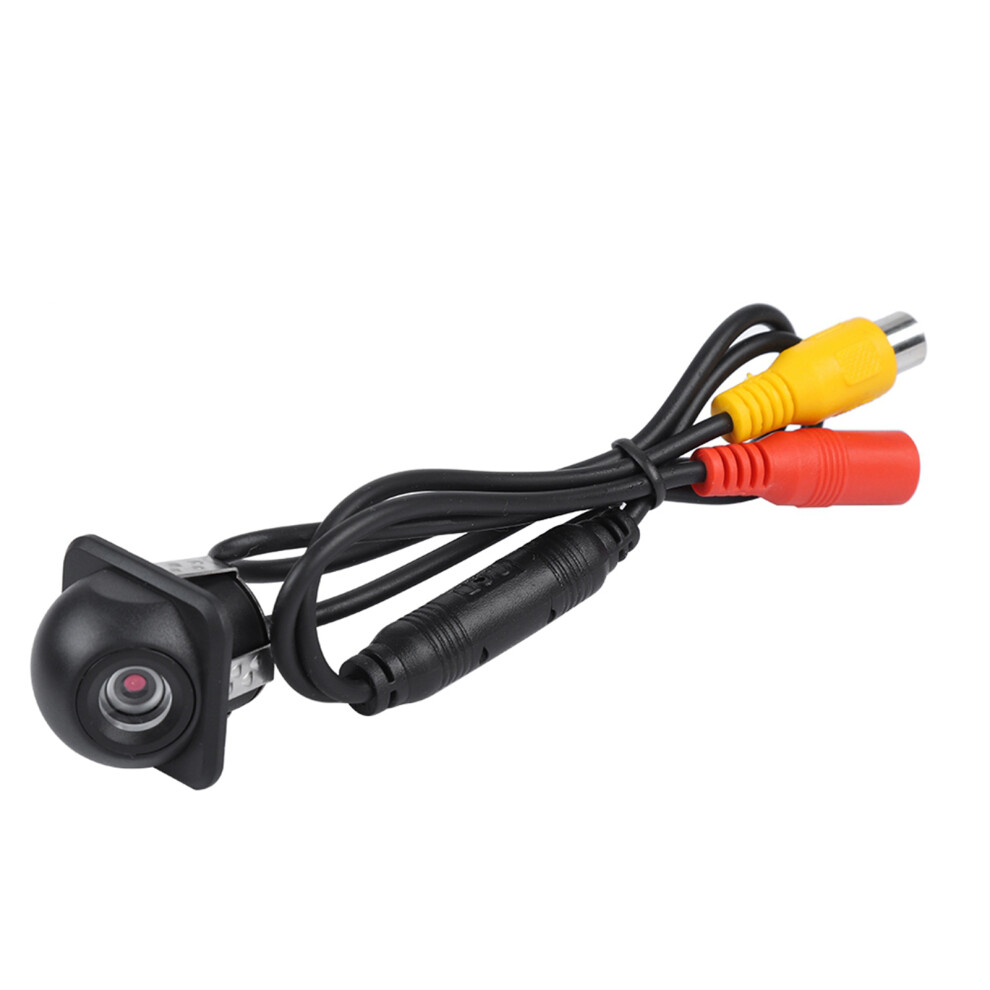

12V 170 HD Car Rear View Backup Camera

12V 170 HD Car Rear View Backup Camera Description

1、Aftermarket Car Reversing Camera with Premium Material. 2、High sensitivity and low power consumption, high durability in use. 3、High‑definition and wide viewing angles: Anti fog glass, high‑definition and 170 degree wide viewing angle. 4、Water-proof, shock-proof and anti-jamming functions, ensure your safe driving, to avoid any vehicle accidents. 5、Easy installation and simple operation.
Features:
Aftermarket Car Reversing Camera with Premium Material.
High sensitivity and low power consumption, high durability in use.
High-definition and wide viewing angles: Anti fog glass, high-definition and 170 degree wide viewing angle.
Water-proof, shock-proof and anti-jamming functions, ensure your safe driving, to avoid any vehicle accidents.
Easy installation and simple operation.
Applicable to variety of vehicles, such as car, truck, RV, etc.
Specification:
Material: Plastic
Color: Black
Voltage: 12V
Power: 24W
Current: 2A
View angle: 170
Water resistant rating: IP68
Video Output: 1.0Vpp, 75Ohm
Scanning System: 2:1 Interlace
S/N Ratio: Greater than 48dB
Horizontal Resolution: 480 TV lines
Effective Pixels: NTSC: 510(H) * 492(V)
Current Consumption: No More Than 300mA
Image Sensor: CMOS 1/4 MT9V125 or PC1030,color
Minimum Illumination: 0.2 Lux/ F1.8(0 Lux with LED)
Storage Temperature: -40 to + 85C,95% RH maximum
Operating Temperature: -20 to + 75C,95% RH maximum
Electronic Shutter: 1/50 to 1/100,000 seconds, 1/60 to 1/100,000 seconds
The size of camera: 30.2mm * 26mm * 28.3mm / 1.18 * 1.02 * 1.11in ( L * W * H )
Cable Length of Camera: Approx. 55cm / 21.65in
Power Supply Cable Length: Approx. 100cm / 39.37in
Video Cable Length: Approx. 590cm / 232.28in
Package Weight: Approx. 171g / 6.1oz

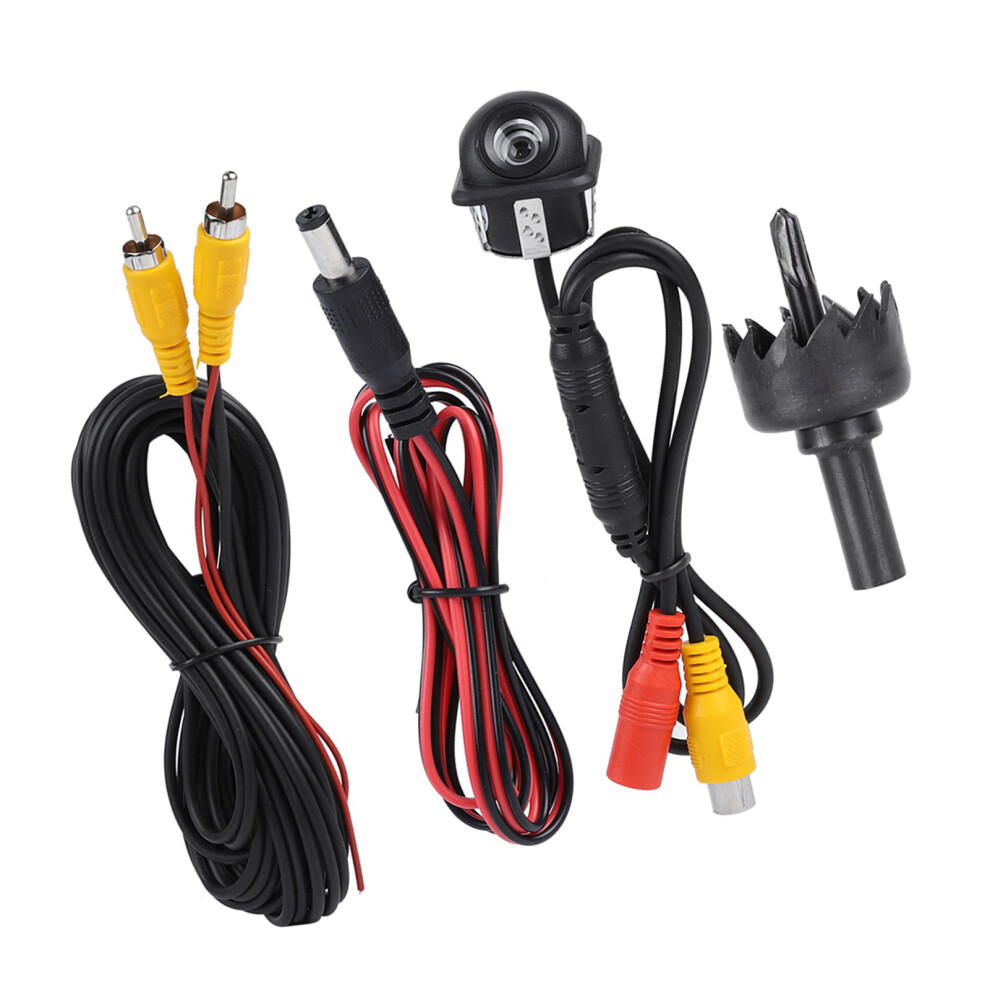

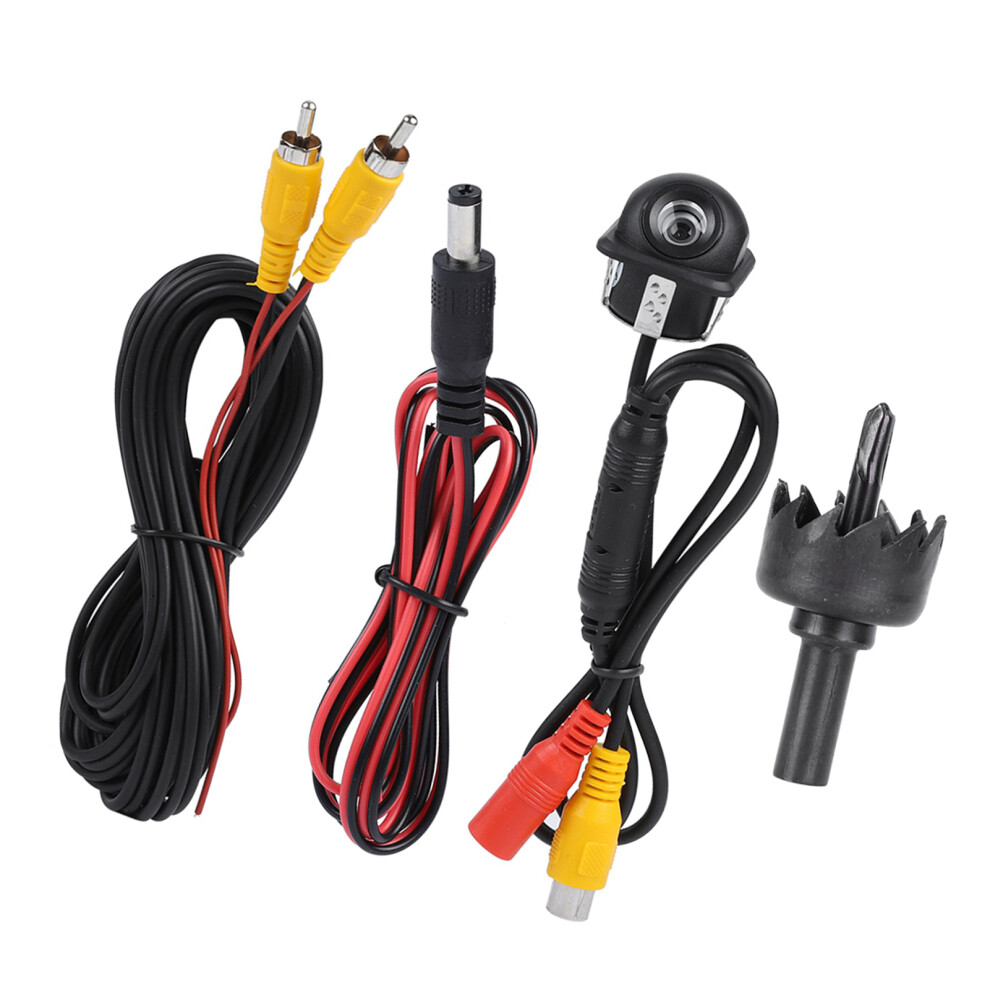

Package Included:
1 x Car Rear View Camera
1 x Video Cable
1 x Power Supply Cable
1 x Drill
Note:
1. We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.
2. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)
3. The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.
4. Professional Installation is Highly Recommended!
