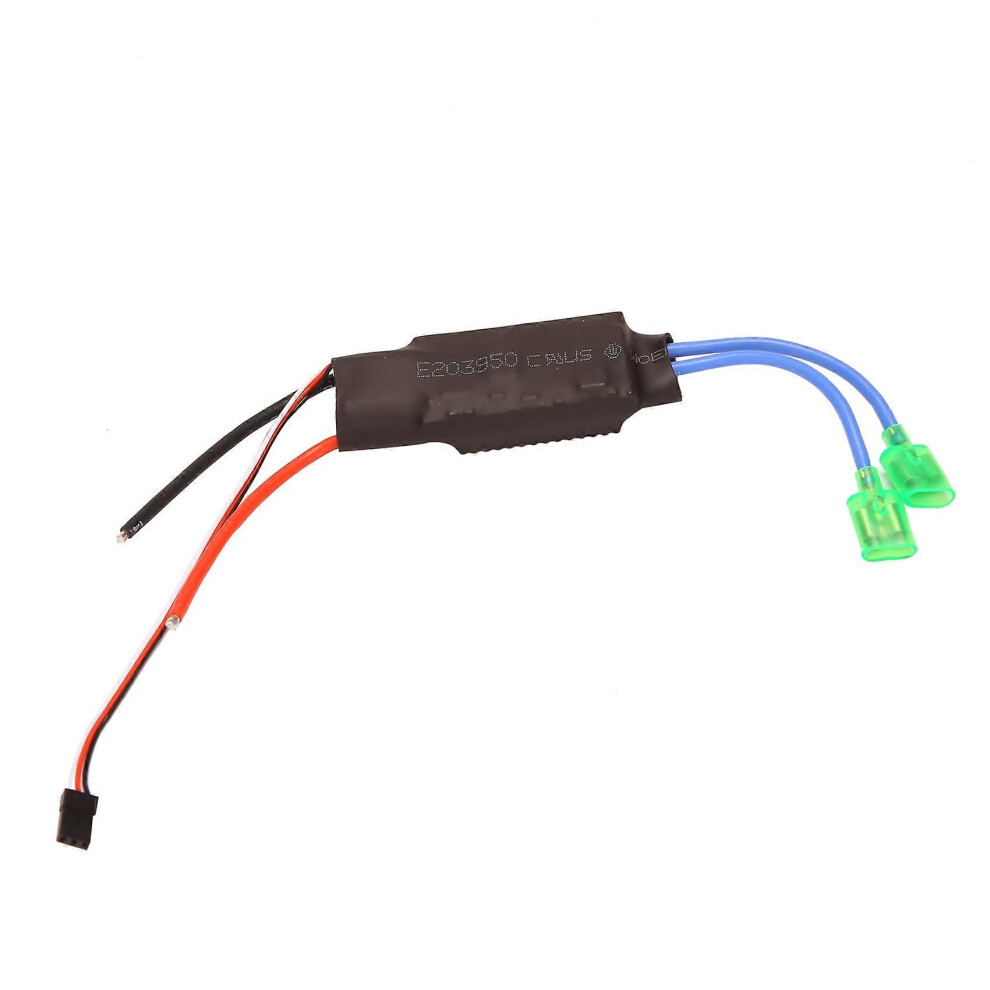

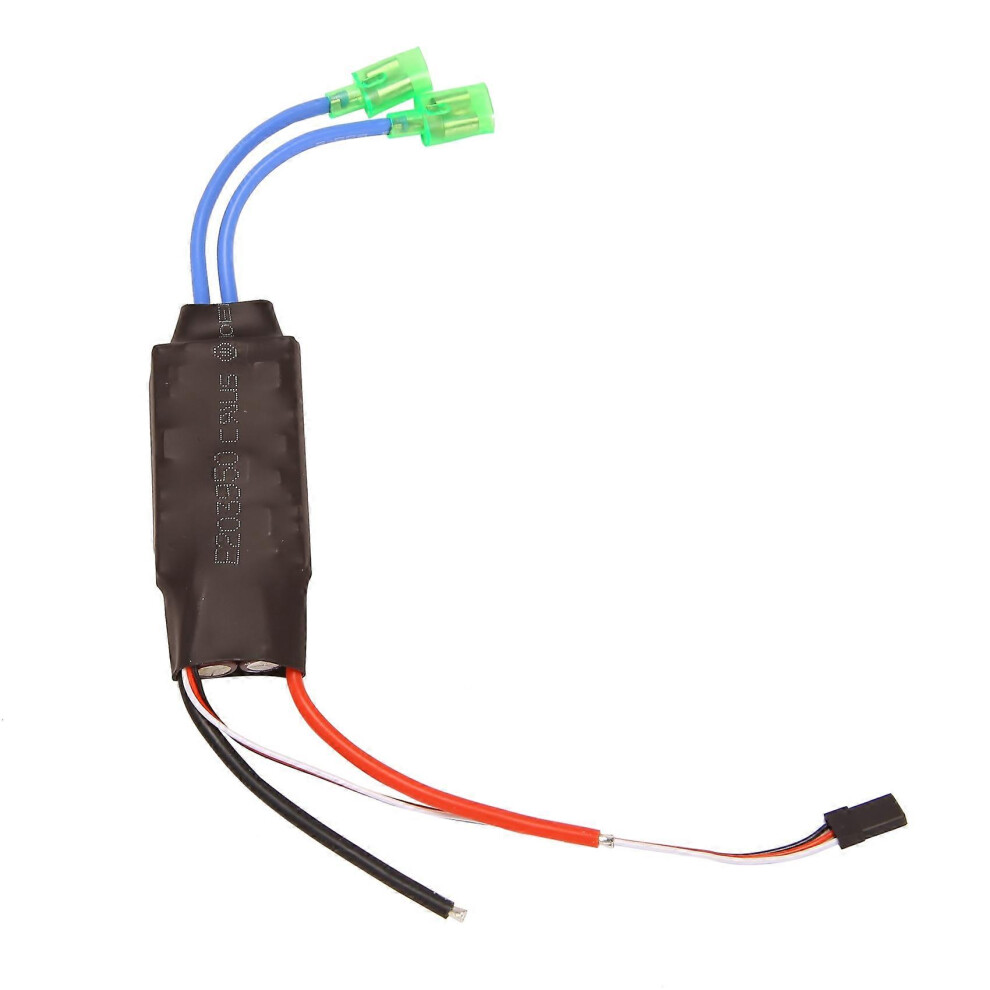

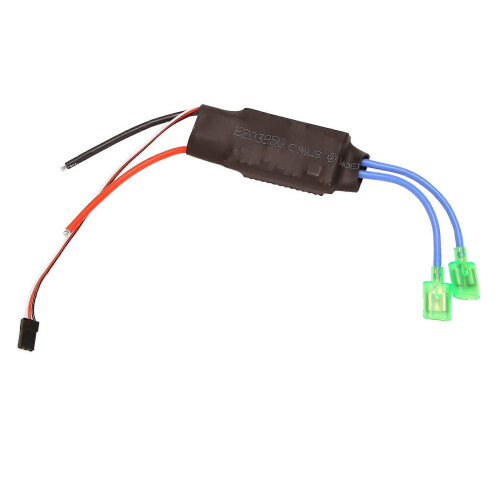

12V-24V Bidirectional ESC Brush Speed Controller compatible with DIY Heavy-Duty Net Pulling Boat Ship, compatible with 775/795

12V-24V Bidirectional ESC Brush Speed Controller compatible with DIY Heavy-Duty Net Pulling Boat Ship, compatible with 775/795 Description

① The controller's input pulse width is 0.8 ms to 2.2 ms, with 1.5 ms being the midpoint. ② The UBEC 5V 3A switch can drive two 25kg servos. It is not a linear 7805 controller, therefore two ESCs cannot be used simultaneously to power the receiver. ③ After powering on, the LED indicator will blink slowly 3 times for a self-test. A steady light after the self-test indicates normal operation. ④ If the throttle pedal is not in the center position when the unit is powered on, the LED will blink intermittently. You must then set the throttle pedal position to the center position; the ESC will only function when the LED is continuously lit. ⑤ If the throttle pedal signal is lost and the LED blinks rapidly, the motor will stop. ⑥ Note: If a receiver uses two ESCs simultaneously, you must cut the red positive wire in the middle of the BEC signal wires of one ESC. One ESC can power the receiver; if two ESCs power the receiver simultaneously, it will be destroyed. ⑦ The ESC is not waterproof. You must waterproof it yourself (e.g., by applying adhesive). ⑧ Supports forward and reverse, no brake. ⑨ The ESC power connector is XT60 or T-plug. ⑩ The motor end connector is a 4mm ball connector, single plug (one for one) or dual plug (one for two). ⑪ The ESC wire is 14AWG high-temperature silicone soft wire, high-current copper wire. ⑫ A total of 24 high-power MOSFETs on the front and back. ⑬ H-bridge, each lower arm has 6 high-power MOSFETs. ⑭ The forward and reverse power output is identical; this is not a design that reduces reverse output power. ⑮ The actual peak continuous current for both forward and reverse rotation is 100 A, and the ESC's rated power is 1000 W. ⑯ 640A 860A is only the designation of the brushed ESC, not the actual current rating, and is meaningless. ⑰ Suggested: 12V operating conditions: 3x 540 or 3x 550 or 2x 775 or 2x 795 or 1x 895 or 1x 997 motor. 24V operating conditions: 2x 775 or 2x 795 or 1x 895 or 1x 997 motor. ⑱ Model number: 640A / 860A ⑲ Dimensions: 7.2 x 3.5 x 2.4 cm ⑳ ESC operating voltage: 10.5V-26V ㉑ Material: Composite material ㉒ col
