(12V-48V) 12V-24V 220V 12-way 10A Industrial-grade High-power Wireless Switch Learning Code Switch with 12-key Remote Controller

(12V-48V) 12V-24V 220V 12-way 10A Industrial-grade High-power Wireless Switch Learning Code Switch with 12-key Remote Controller Description

Description:
This DC 12V 12-way switch, the switching power supply adopts professional switching power management chips imported from the United States, and the power supply voltage is very stable, which completely solves the problem of instability of the power supply voltage caused by the resistance-capacitance step-down, which causes the entire switch to be unstable.

This remote control switch uses a 10A relay, which can load high-power electrical appliances, learn-type single-chip decoding, can learn multiple remote controls, simple operation and flexible matching; the output working mode adopts the remote control button to switch, (inching, self-locking, Interlock) can be arbitrarily selected, easy to use, suitable for multiple fields and multiple purposes; reserved data bit output adjustment pads, you can select the corresponding remote control button position by shorting different solder joints, which is convenient for customers to match their own Favorite remote control.

Mainly used in garage door control, lighting control, electric doors, remote control curtains, lifting equipment, motor control, water pumps, projection screen lifter control, and security industries. It has the advantages of easy installation, simple use, safety and reliability.

Specification:
Product name: New 12V12 way 10A remote control switch.
Working voltage: DC12V.
Working frequency: 315MHZ/433MHZ (default 315MHZ).
Working mode: Jog M4/self-locking T4/interlocking L4.
Code matching method: intelligent learning type.
Working environment: -40~+80 degrees.
Receiving sensitivity: -105dBm.
Output current: 30A.
Maximum load: 190W-700W.

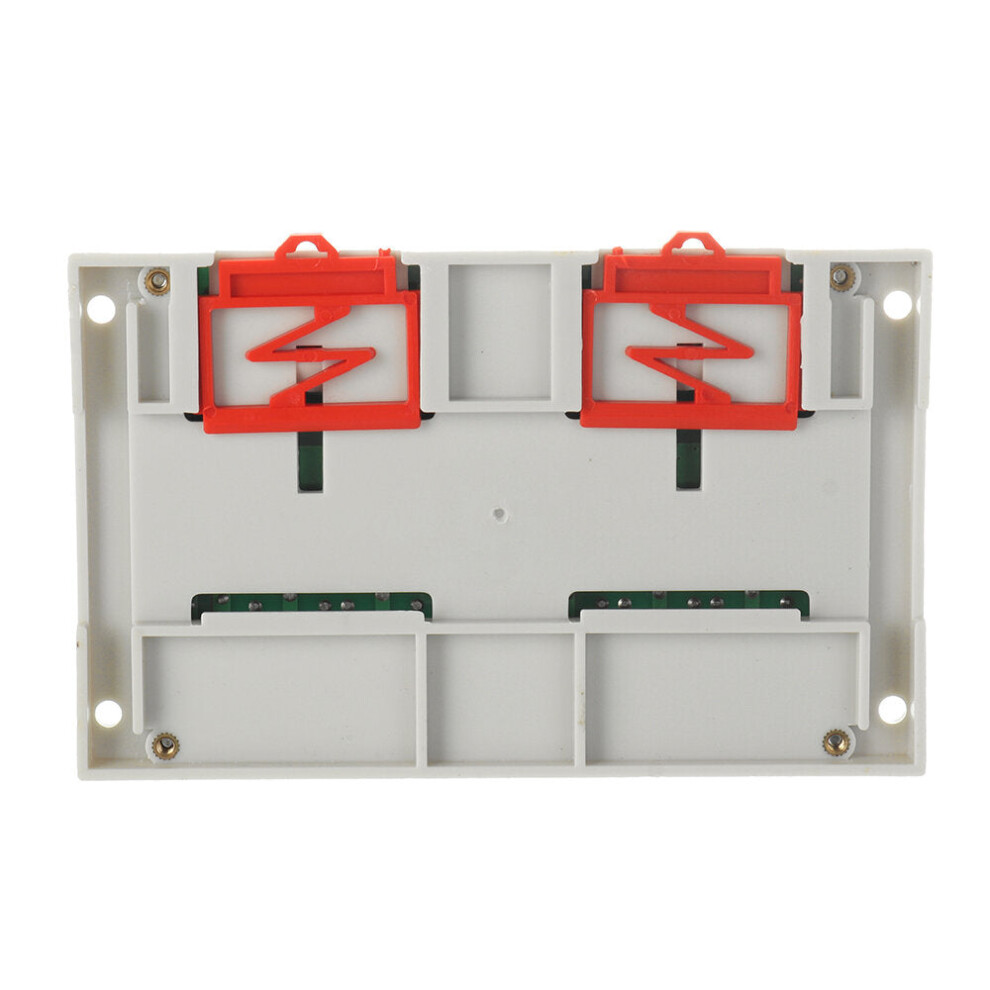

Dimensions: Outer shell: 144*91*40mm; Inner panel: 122*87*17mm.

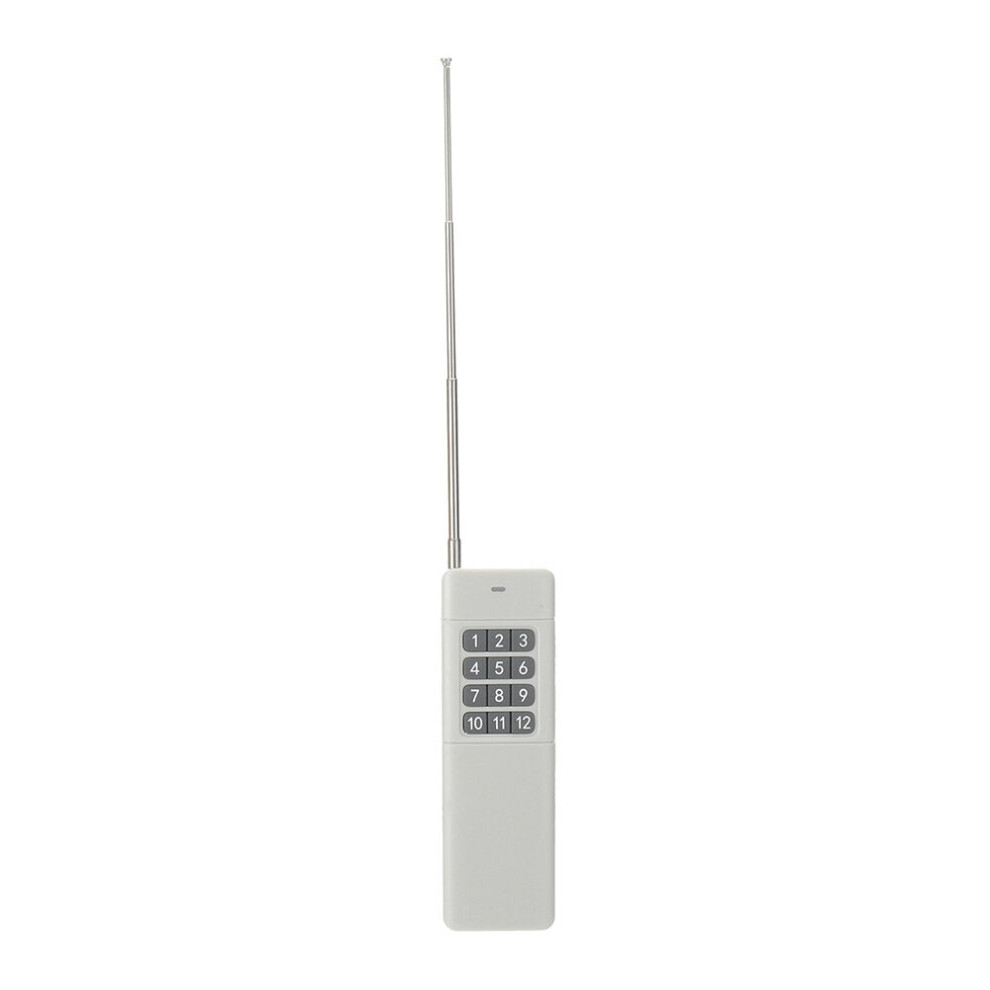

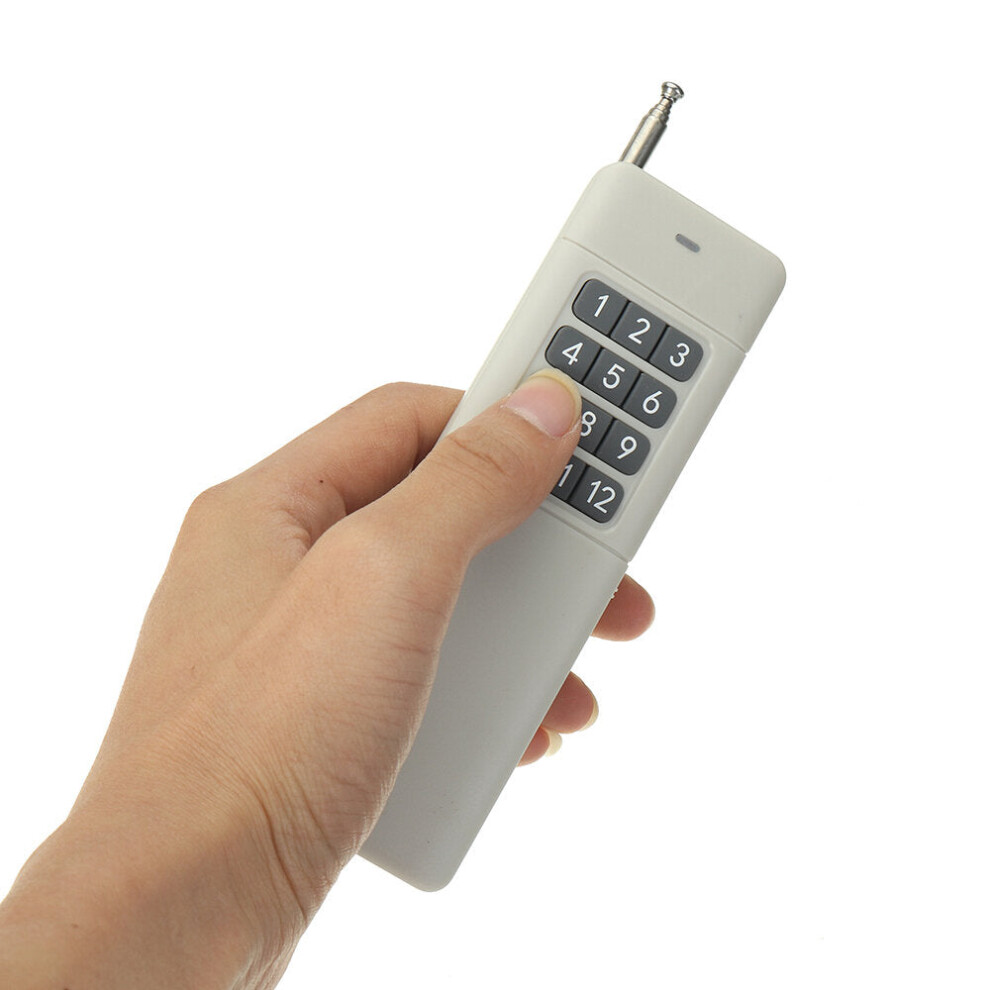

Product name: 4000m 12-key remote control
Working voltage: DC9V (one 9V battery).
Chip model: 1527 or 2264 (different in different batches).
Encoding type: millions of codes or pad type into a password.
Oscillation resistance: 4.7 (default).
Modulation method: ASK (stable and less interference).
Remote control distance: 4000 meters (open).
Dimensions: 136*42*25mm.

Instructions for use:
Description of working status:
The receiver has the following 8 working modes can be set, inching, self-locking, interlock, and you can change the working mode according to your own needs, but remember to change the working mode when the power is off.
1. Jog M: When learning, press the 1st button on the remote control to jog M, and there is a mark M on the board.2. Self-locking T: When learning, press the 3rd button on the remote control to be self-locking. There is a mark T< on the board. Literal translation: that is, the receiver is turned on and off on the same button on the remote control, press in turn The first button of the remote control is on, the second button is off, the third button is on, the fourth button is off, and so on.
3. Interlock L: When learning, press the remote control button No. 2 to be interlock L<Function literal translation: Press the remote control A button to open and B button to close or A button to close and B button to open. If the remote control has multiple buttons, it will learn which button is on, and all other buttons are off.
4. 1-6 jog, 7-12 self-locking: press the 5th button on the remote control to learn.
5. 1-6 jog, 7-12 interlock: press the 4th button of the remote control to learn.
6. 1-4 jog, 5-12 self-locking: press the No. 7 button of the remote control to learn.
7. 1-4 jog, 5-12 interlock: press the No. 6 button of the remote control to learn.
8. 1-4 self-locking, 5-12 interlock: press the 8th button on the remote control to learn.

Code learning method:
1. Learning: Press the learning button on the receiving board once and the buzzer will sound. Long press any key on the remote control and the buzzer will stop sounding, indicating successful learning.
2. The 2262, 2260, 1527 chip equivalent frequency fixed code learning code wireless remote control that can learn more than 20 different address codes;
3. Code clearing: Long press the receiving board to learn until the buzzer stops, indicating that the code clearing is successful and the data has been cleared.

Package included:

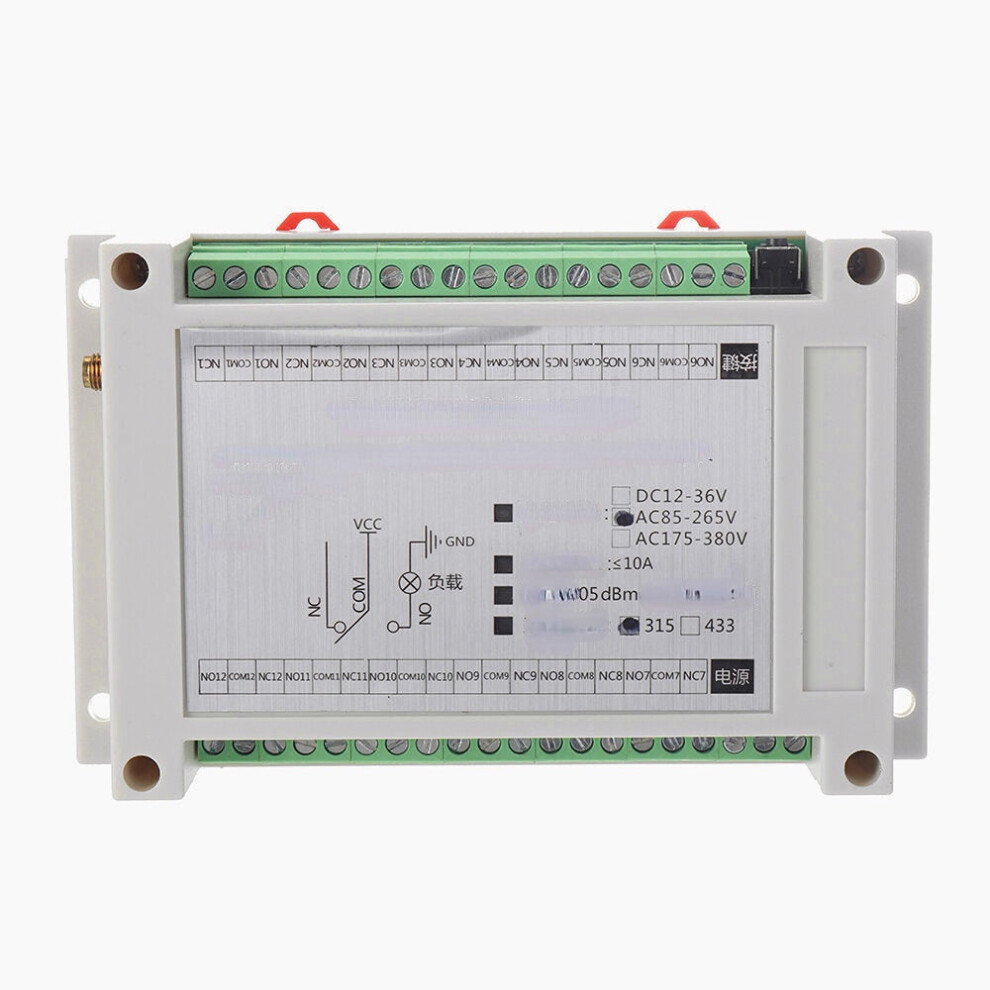

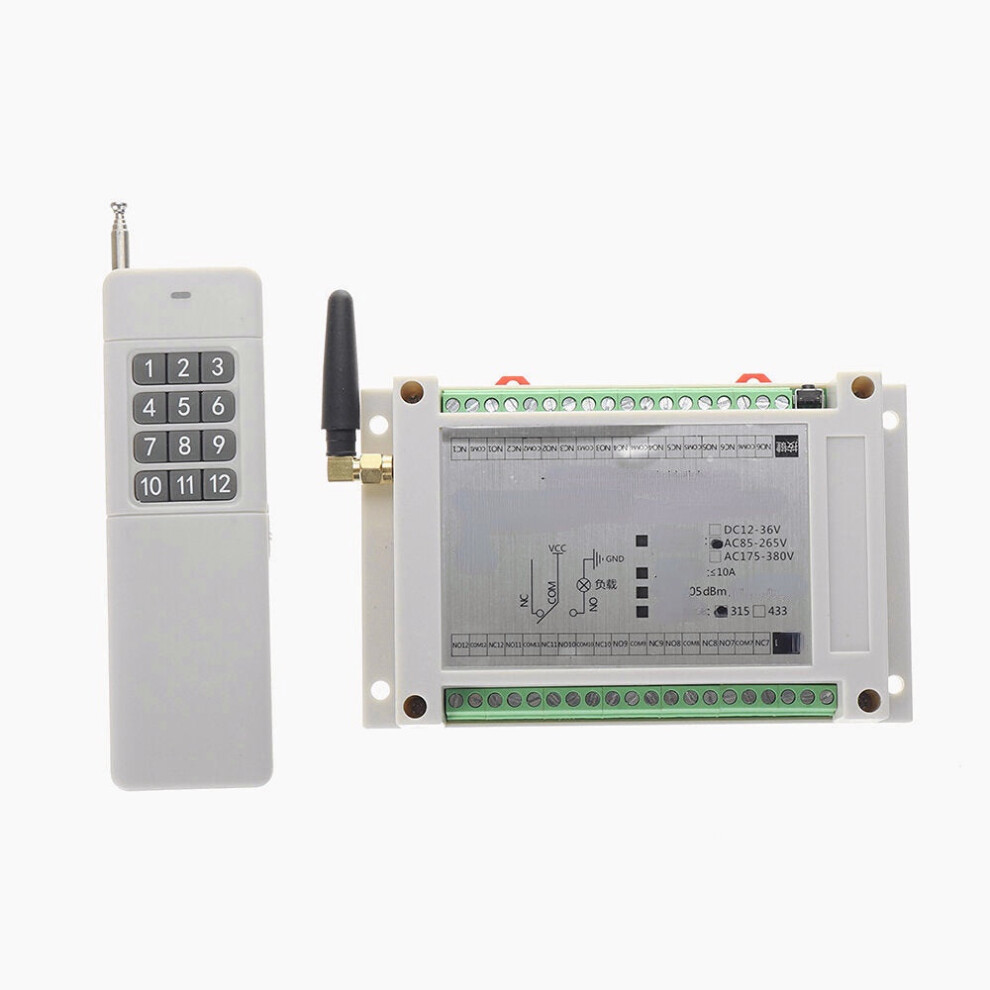

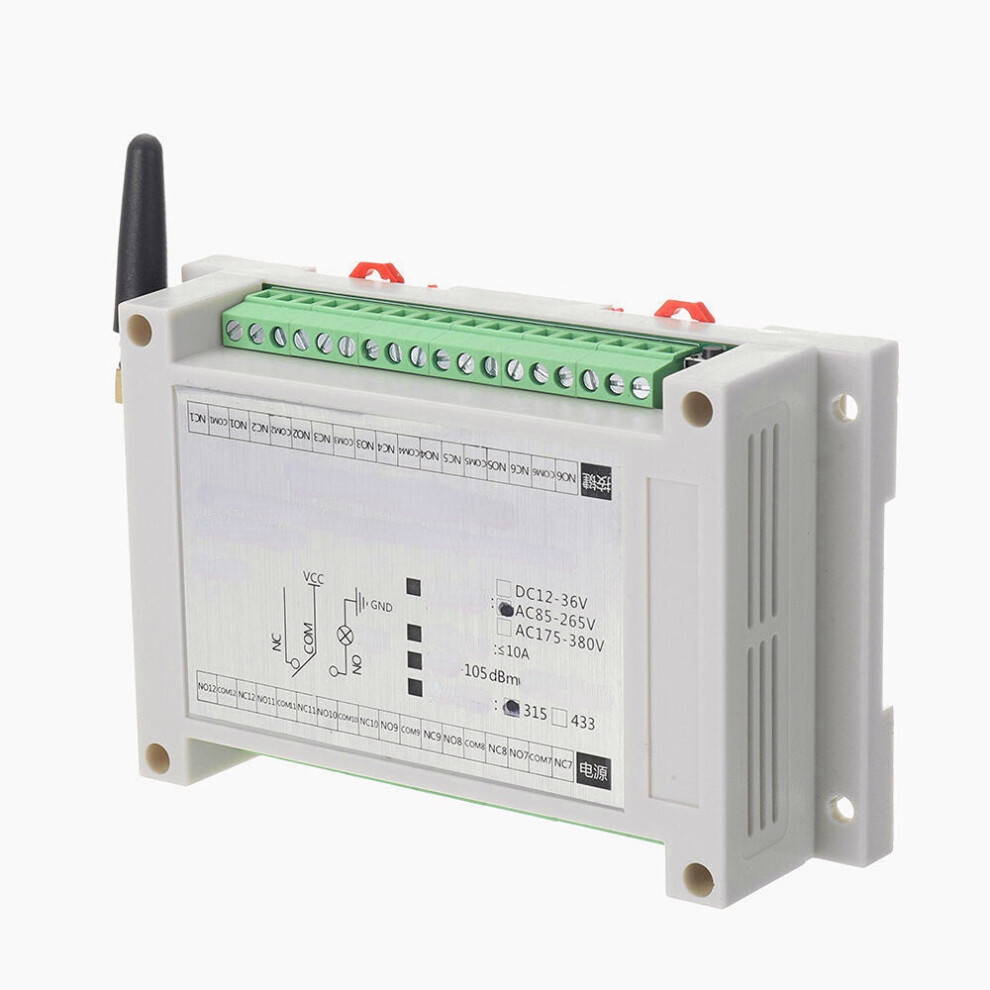

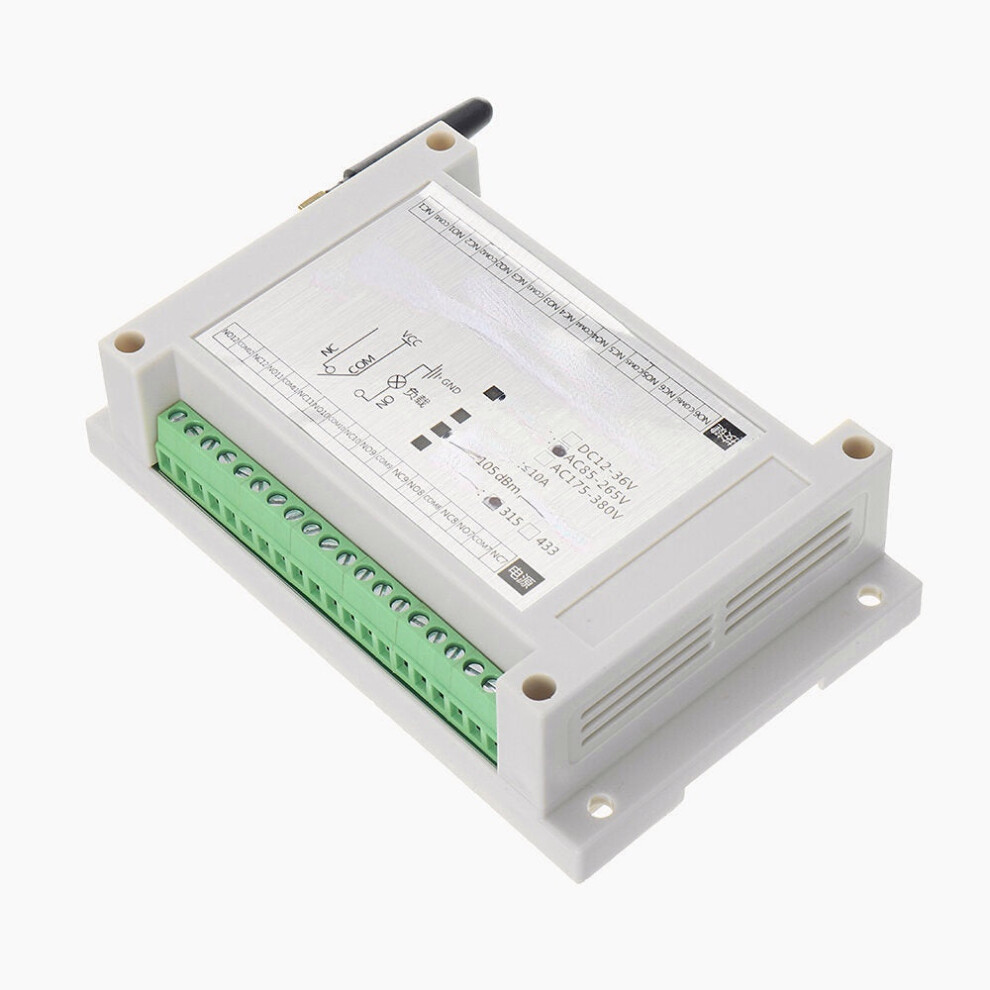

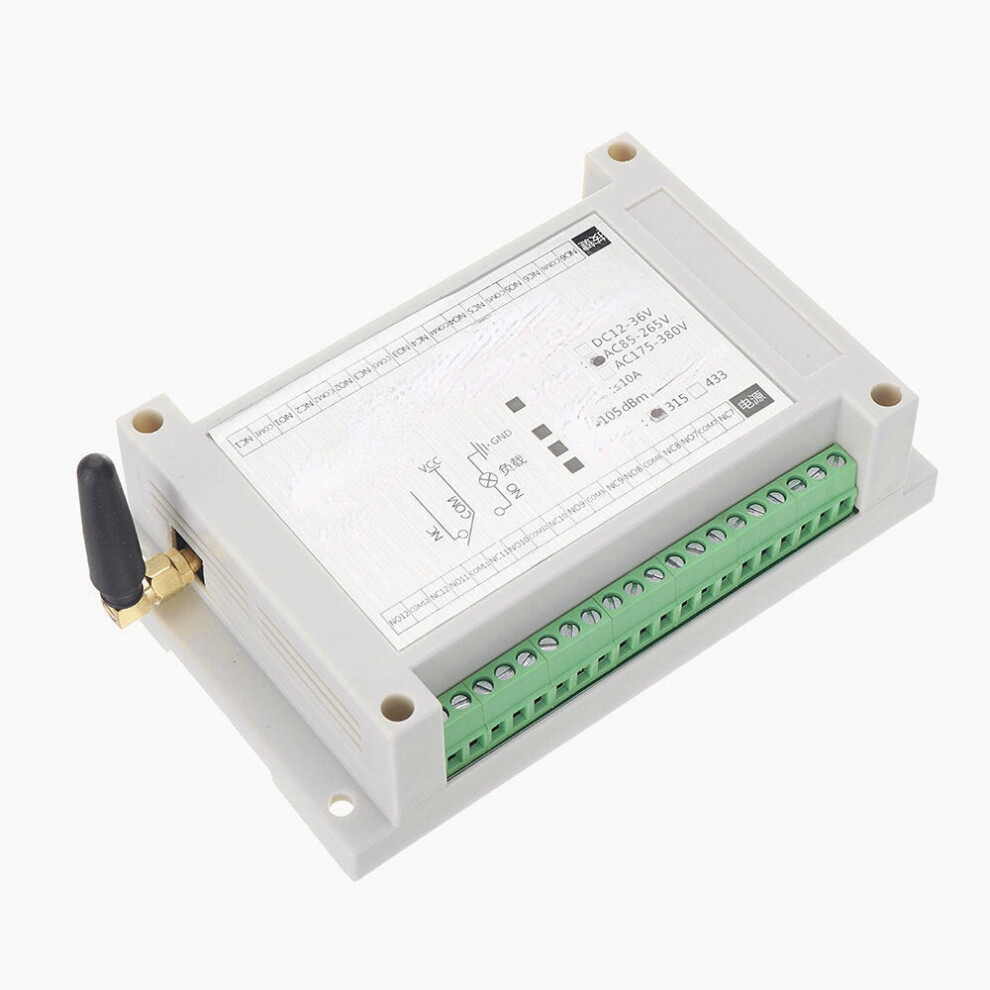

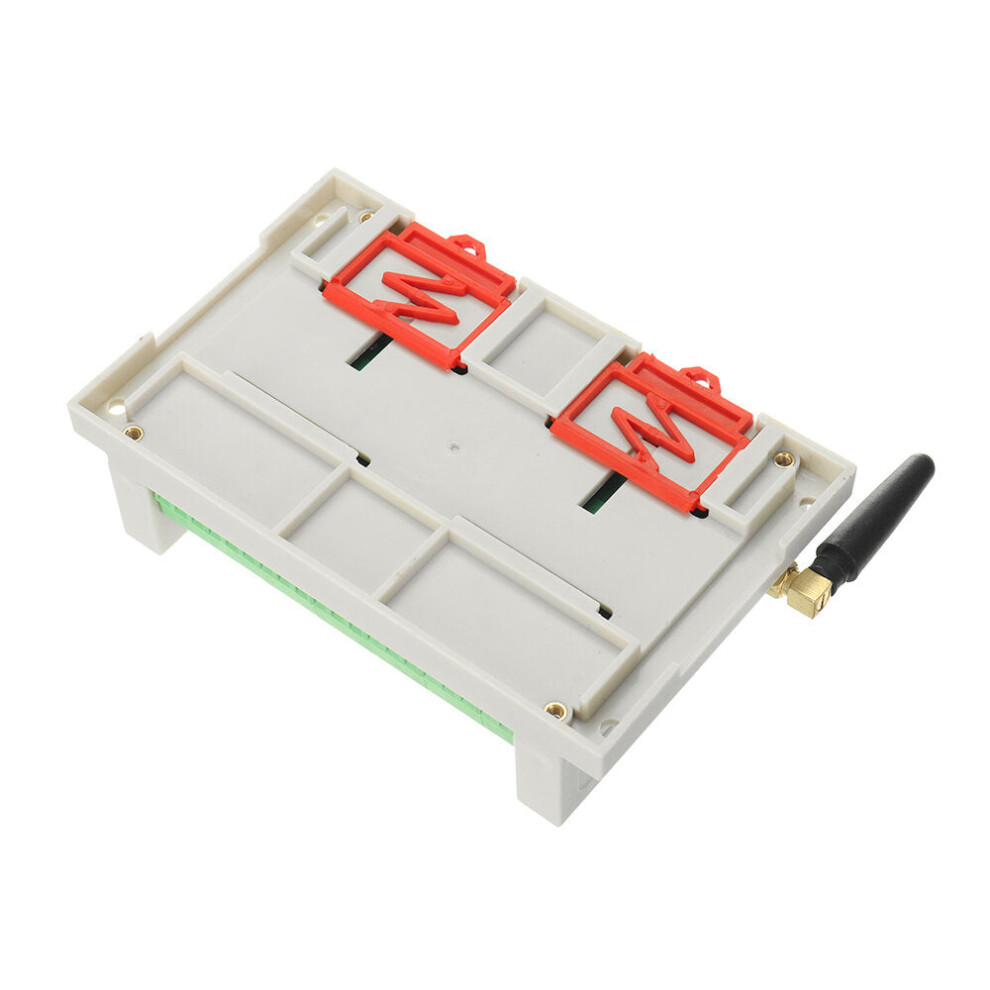

1 x Wireless Remote Control Switch Module with shell.
1 x Remote Controller(Not included battery)
