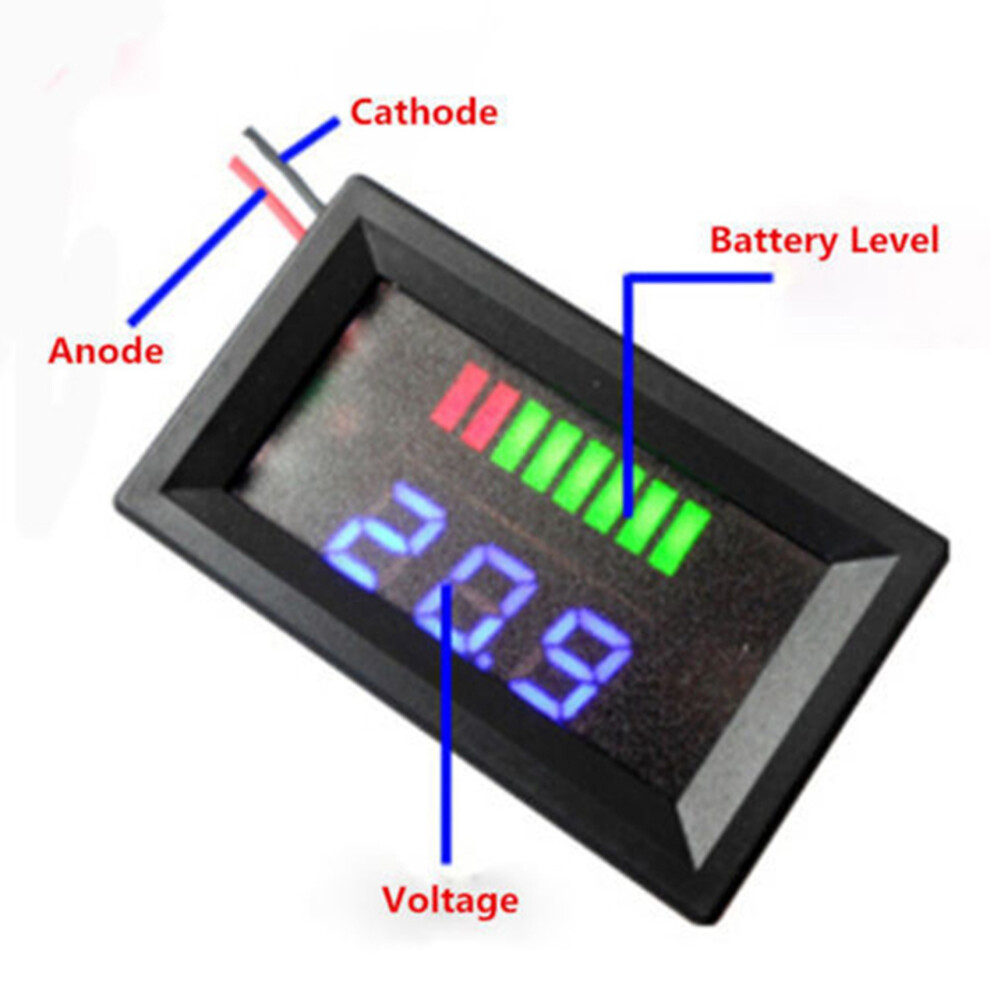

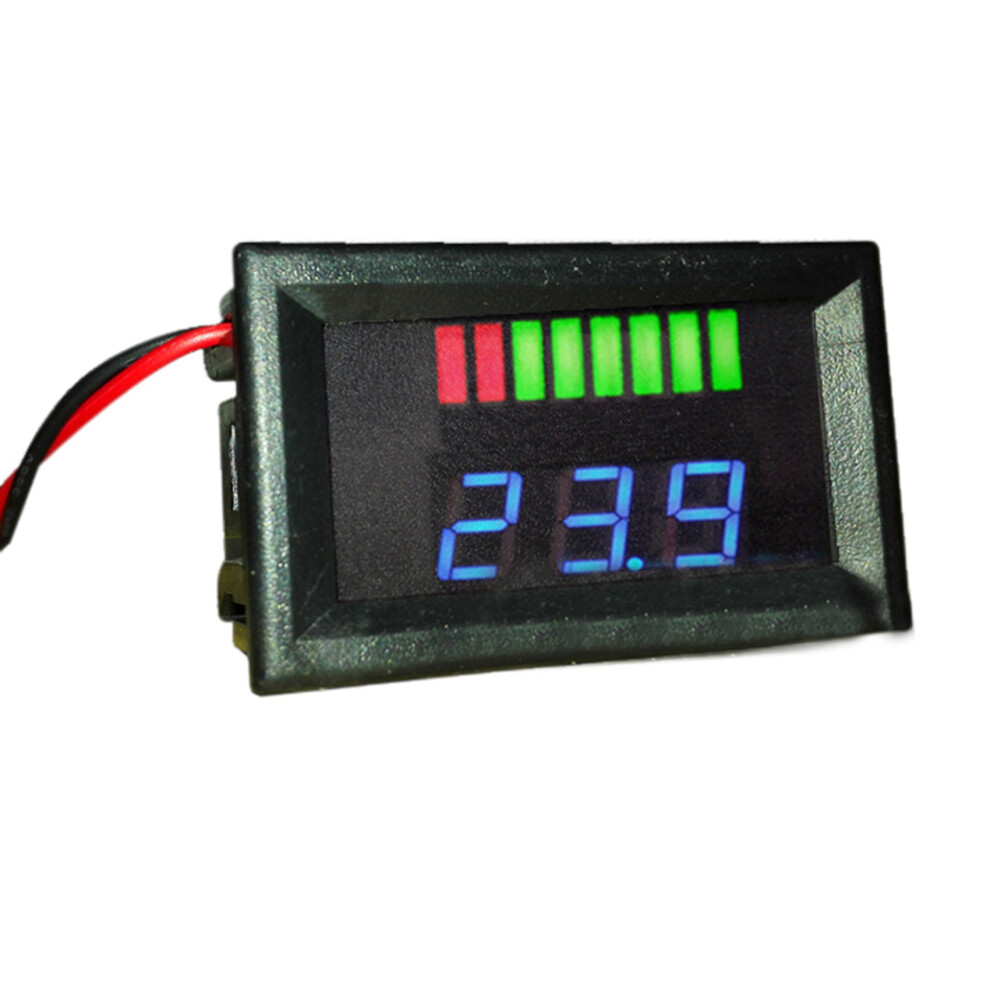

12V ACID Lead Battery Capacity Indicator Charge Level LED Tester

12V ACID Lead Battery Capacity Indicator Charge Level LED Tester Description

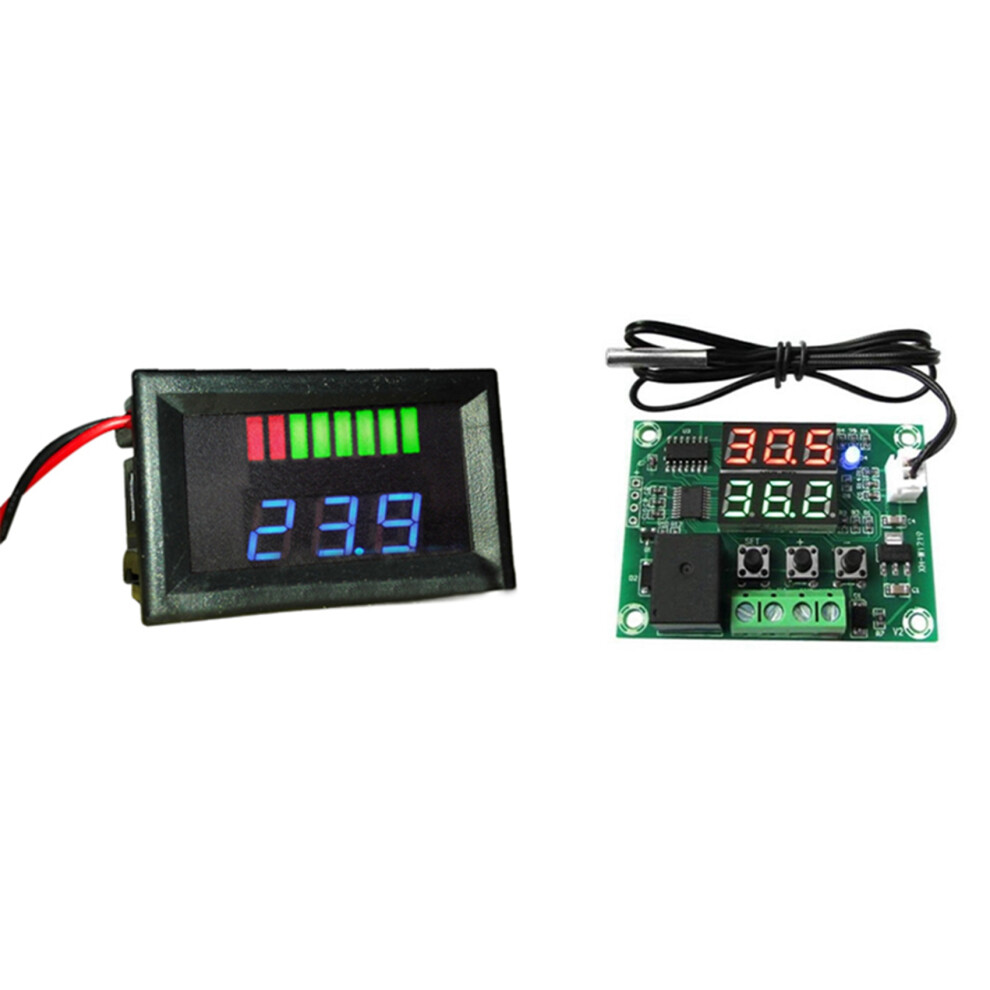

set2: 1 x Sensor Module + 1 x 12V ACID Lead Battery Capacity Indicator Charge Level LED Tester Blue Voltmeter
Working current: 5-15mA(The lower the battery voltage and current smaller) Eight electricity Resolution: 10% 25% 40% 50% 60% 75% 90% 100%. Voltmeter accuracy: 1%. Working temperature: -10 ~ +65 Celsius.
Module: XH-W1219. Function: Temperature Controller. Power Supply: DC12V. Operating Humidity: 10 ~ 80%. Dimensions: 48 x 29 x 21 mm
Color: black & green. Light color: blue. Material: plastic
NOTE: It only display voltage if not measure lead-acid battery!! Please pay attention for your first use. You need wait 6s after your setting data, the module save the date you have set after 6s. Short button SET: If you start the time setting mode , Nixie tube blink. You could adjust the time T1 and T2 by button+ and button-. Please wait 5s after your setting date, the module save the date you have set after 5s.

Long button SET: if you start the parameter setting mode. There are two group parameter for : P0 and P1. You could switch P0 or P1 by short SET. Under the parameter P0 and P1,you could set the timing mode by the button+ and button-.
P0--0: timing mode is 0--999 seconds; P0--1: timing mode is 0--999 minutes; P0--2: timing when the pattern is 0--999; P1--0: T1 time delay relay (T1 timer); P1--1: T1 delay time relay releases (T1 timer)
P1--2: time delay relay after T1 (T1 timer), then the delay time T2 successor electrical release (T2 timing) ends.
P1--3: T1 delay time relay releases (T1 timer), then the delay time T2 successor Electric energized (T2 timing) ends.
P1--4: time delay relay after T1 (T1 timer), then the delay time T2 successor electrical release (T2 timer), repeat the cycle.
P1--5: T1 delay time relay releases (T1 timer), then the delay time T2 successor Electric energized (T2 timer), repeat the cycle.
Colour: green
Material: plastic
Size: 60x44mm

Package Contents:
1 x Sensor Module
1 x 12V ACID Lead Battery Capacity Indicator Charge Level LED Tester Blue Voltmeter

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
