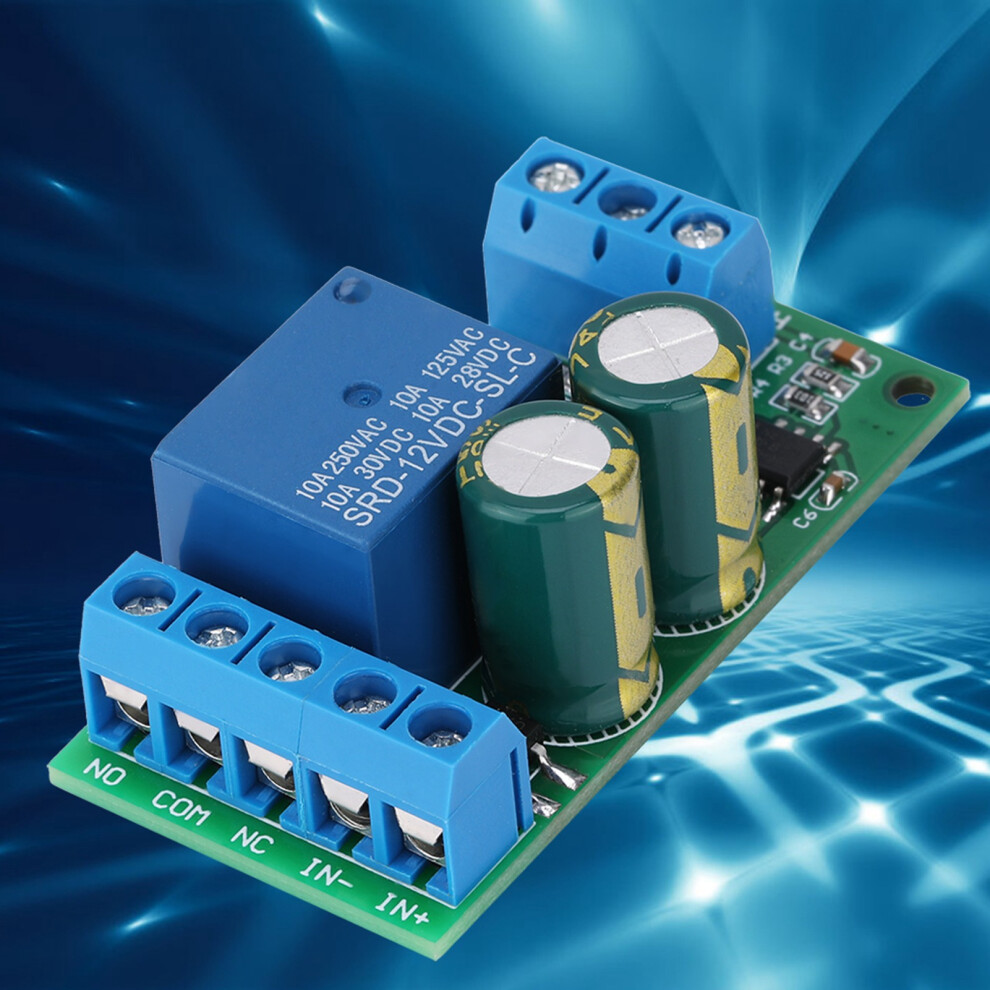

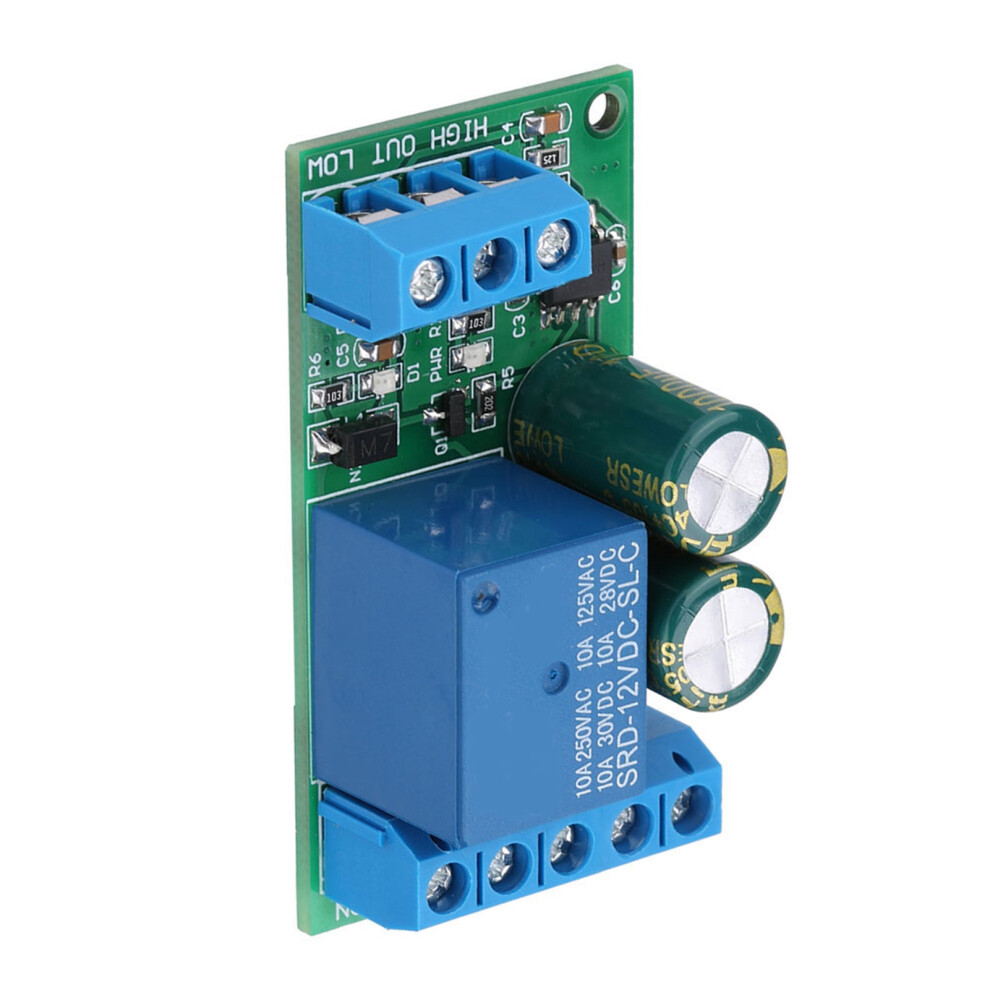

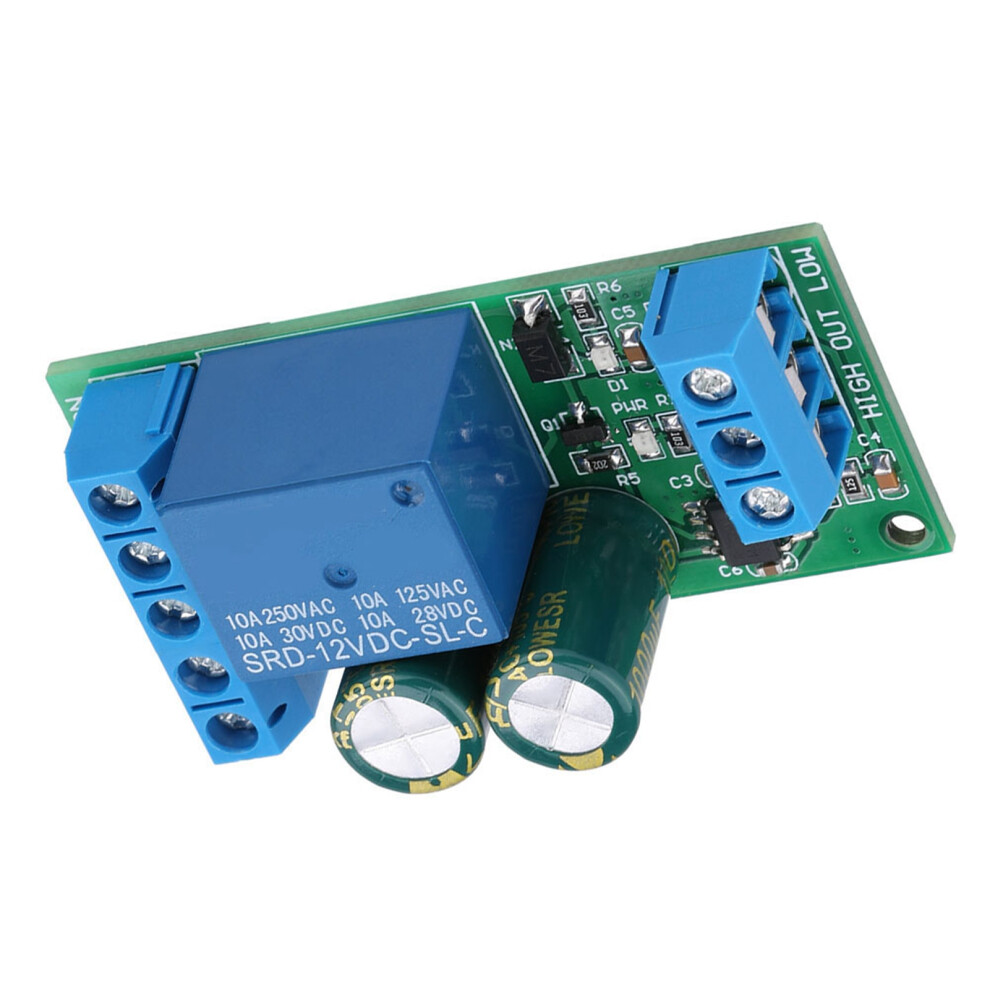

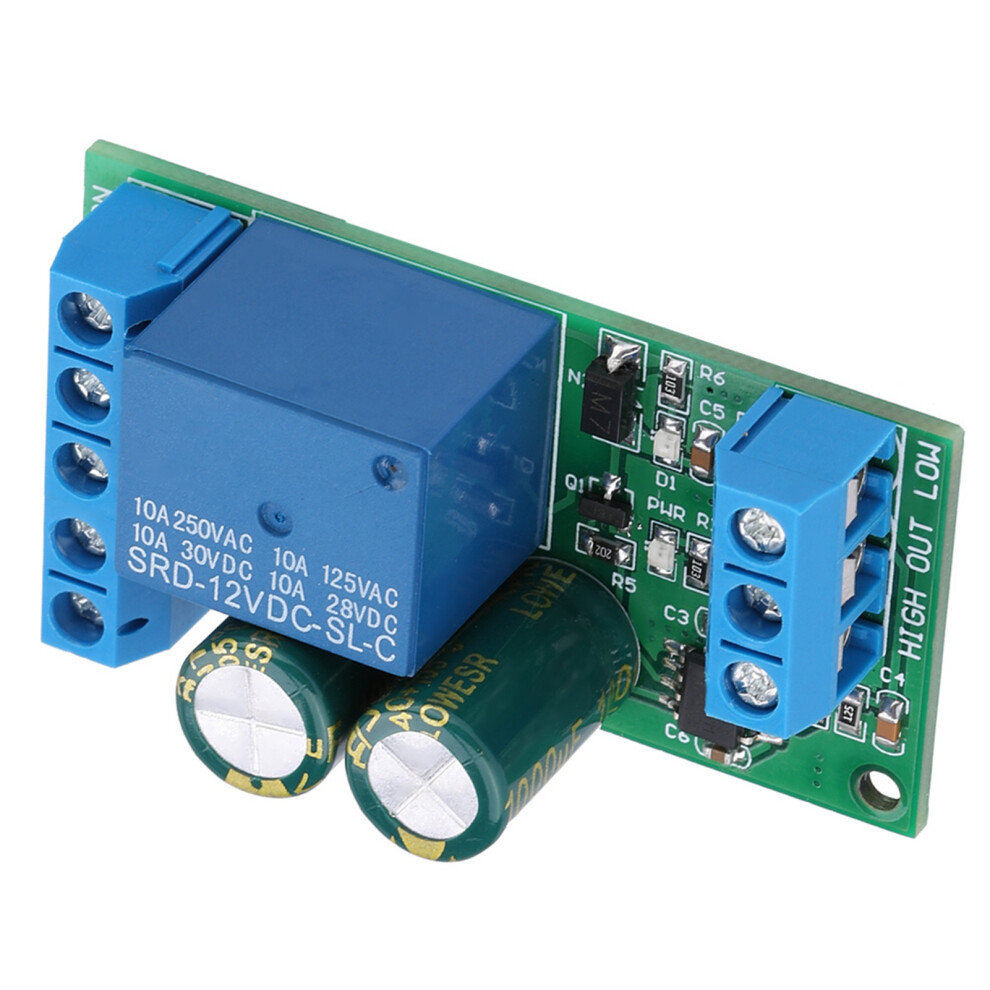

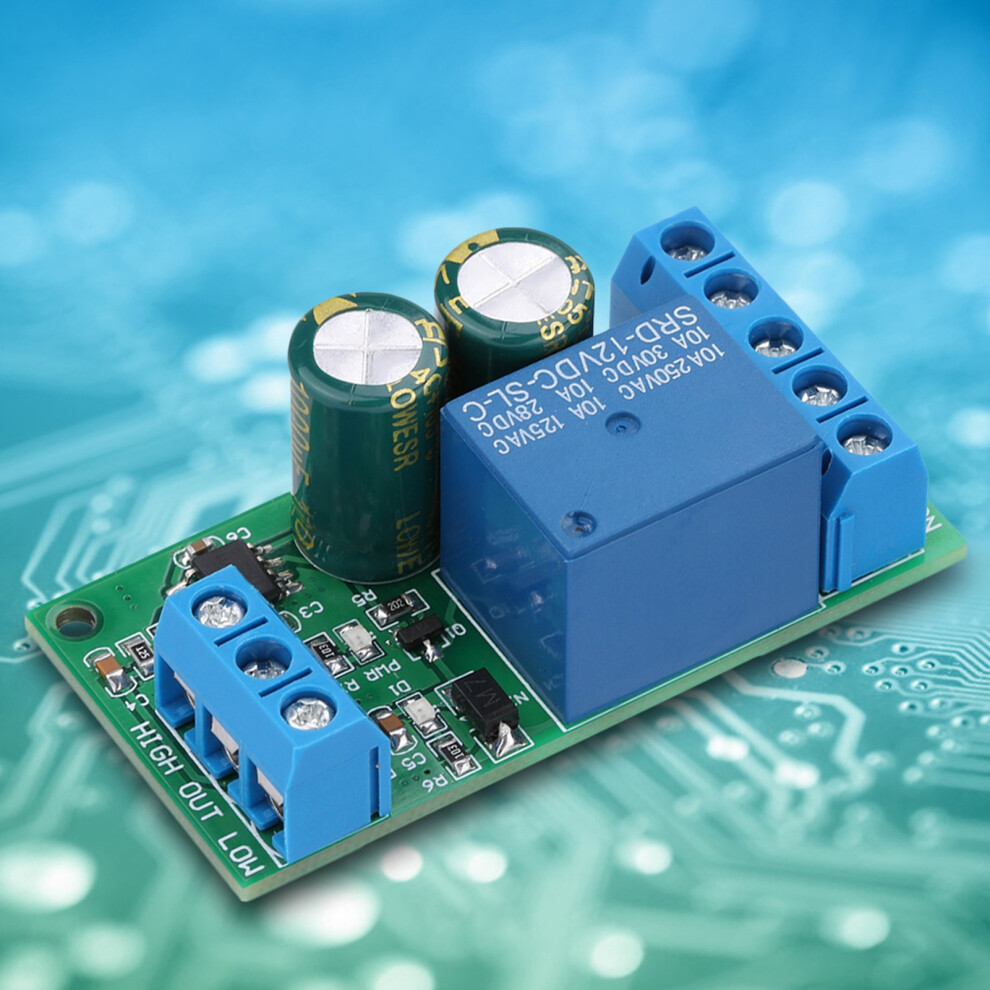

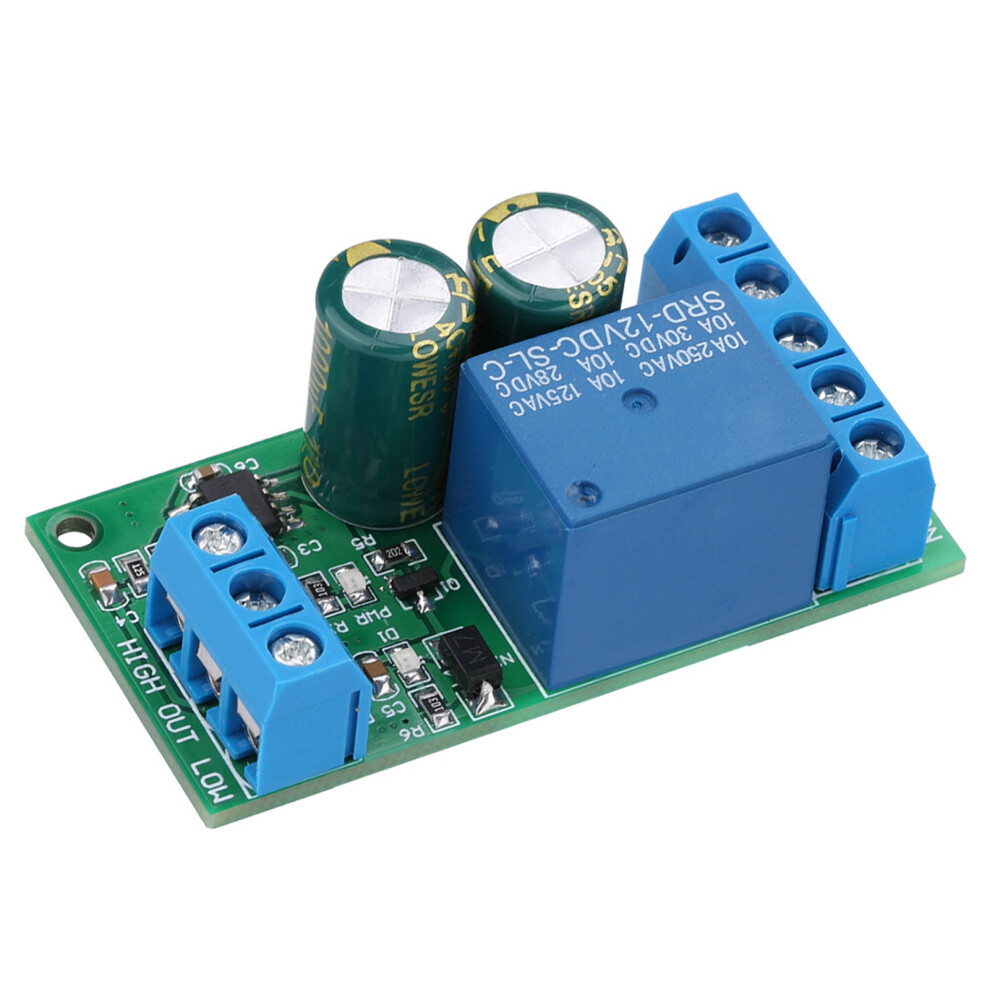

12V Aquarium Water Level Controller Module 54*27*19mm, Auto Liquid Switch

12V Aquarium Water Level Controller Module 54*27*19mm, Auto Liquid Switch Description

12V Water Level Controller Automatic Liquid Control Switch Module for Fish Tank Aquarium
Features:



Strong compatibility, can be used in conjunction with a variety of liquid level sensor


Strong protection, with waterproof pump idling protection and water level overflow detection output.


Relay dry node output, can be applied to a variety of load control


Control of diversification, manual or automatic mode control of water pump


The installation is simple and convenient, the screw can be positioned and installed, and the electric box track can also be installed.



Specification:

Model: LC25A01

Weight: 28g/1oz

Standby current 10MA

Working current 40MA

Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC

Size: 54*27*19mm/2.1*1.1*0.7inch

Application:

Home water tower automatic water supply system.

Aquarium fish tank water changer system.

Conductive liquid automatic control.

Automatic feeding system for poultry and livestock.

Farm automatic water supply system.

And other occasions that require automatic water supply and water exchange.

Solenoid valve water pump motor automatic control.

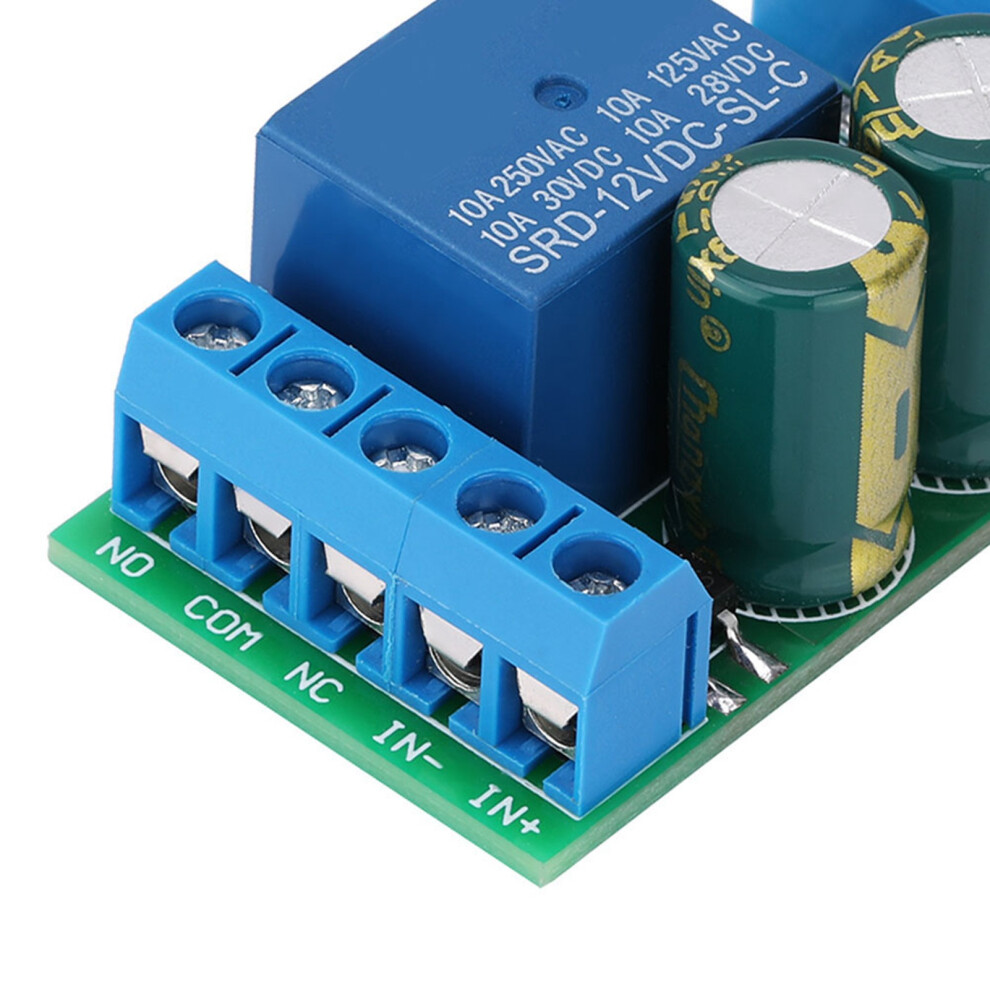

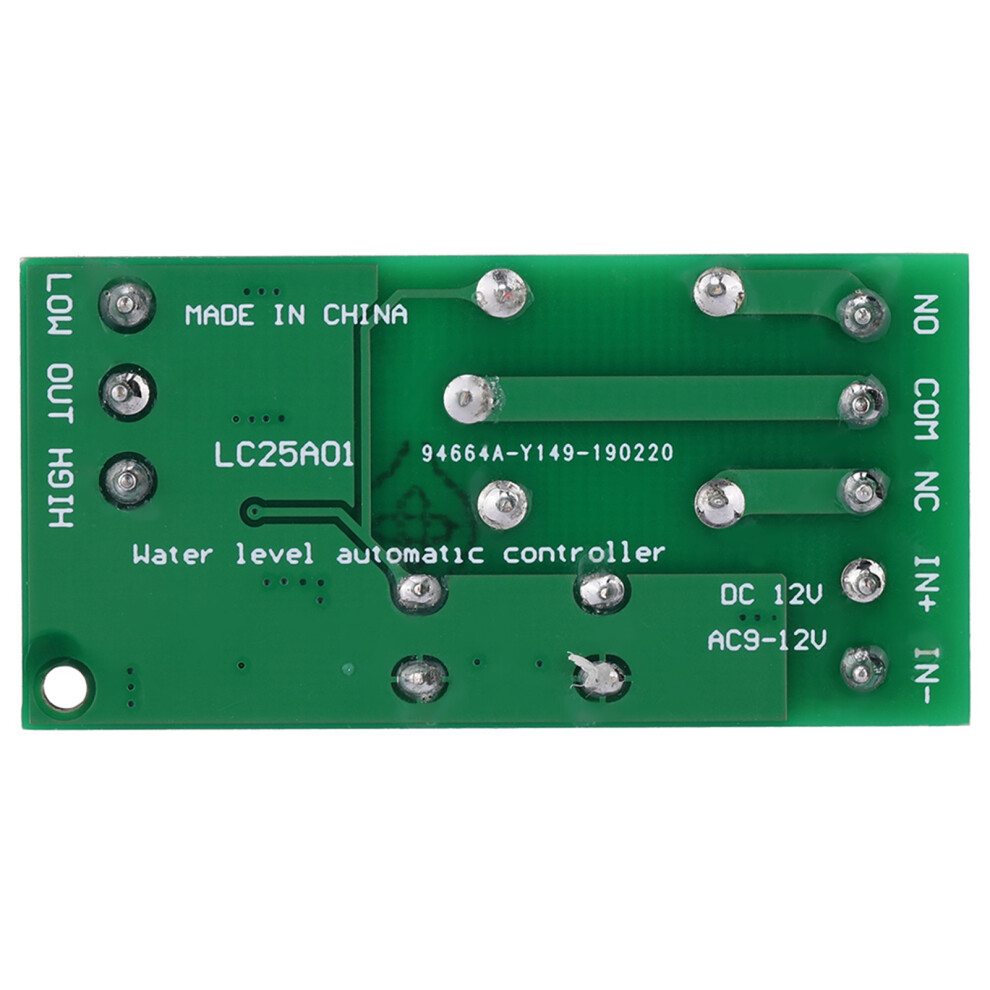

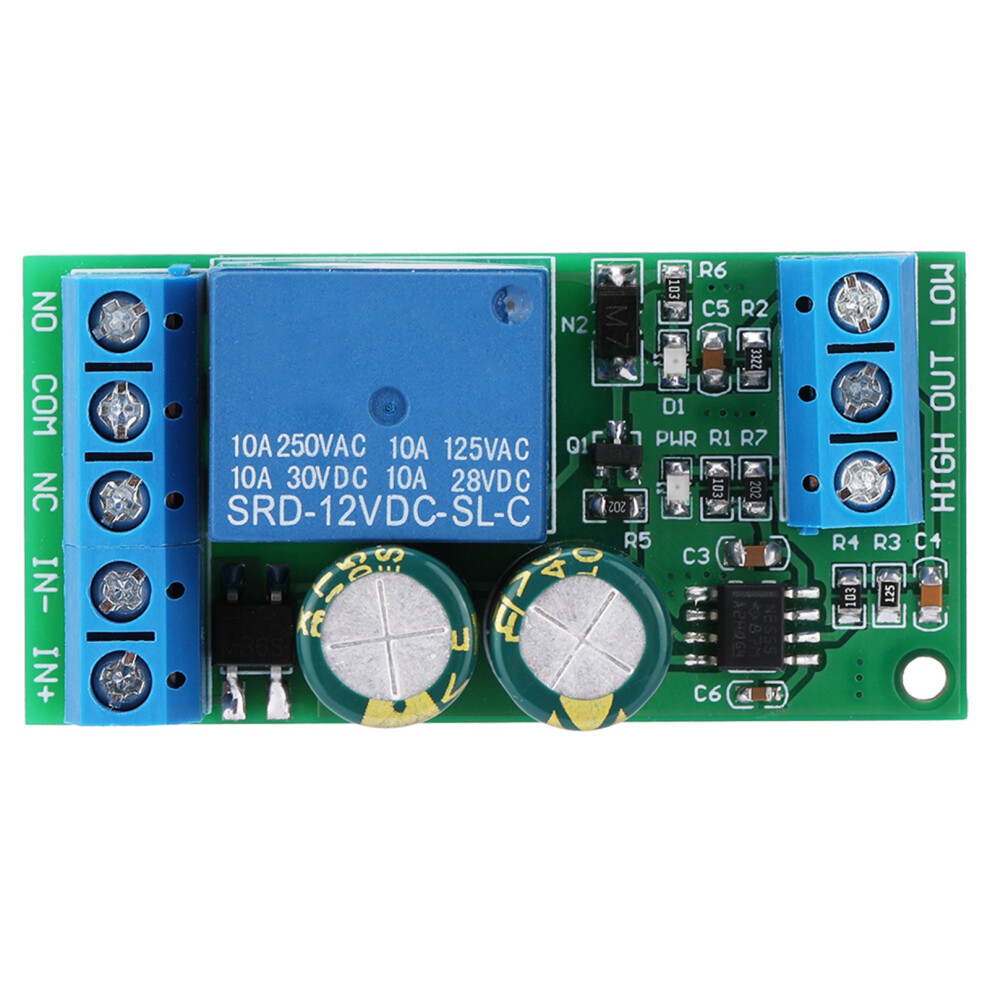

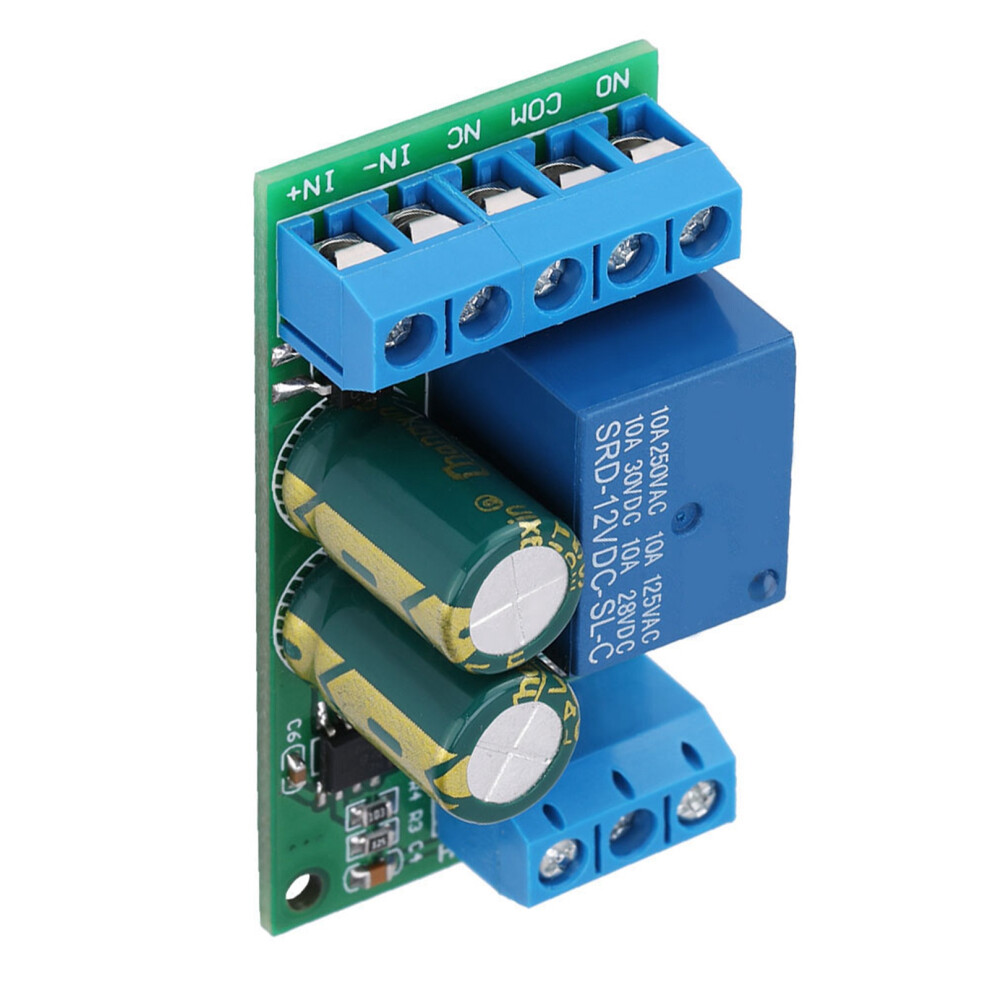

Interface description:

HIGH : Upper limit probe

OUT : Output probe

LOW : Lower limit probe

IN+ : Power terminal 1 (regardless of positive and negative)

IN- : Power terminal 2 (regardless of positive and negative)

NC: Relay normally closed contact

COM: Relay common contact

NO: Relay normally open contact


Package List:

1 x Level Controller Module


Note:

1. Package does not contain probe (wire).No need e a dedicated probe, the probe can be made using household wires

2. For safety, use an AC/DC power supply with good isolation.
