12V Automotive Glow Plug Analyzer Tester LED Diagnostic Tool

12V Automotive Glow Plug Analyzer Tester LED Diagnostic Tool Description

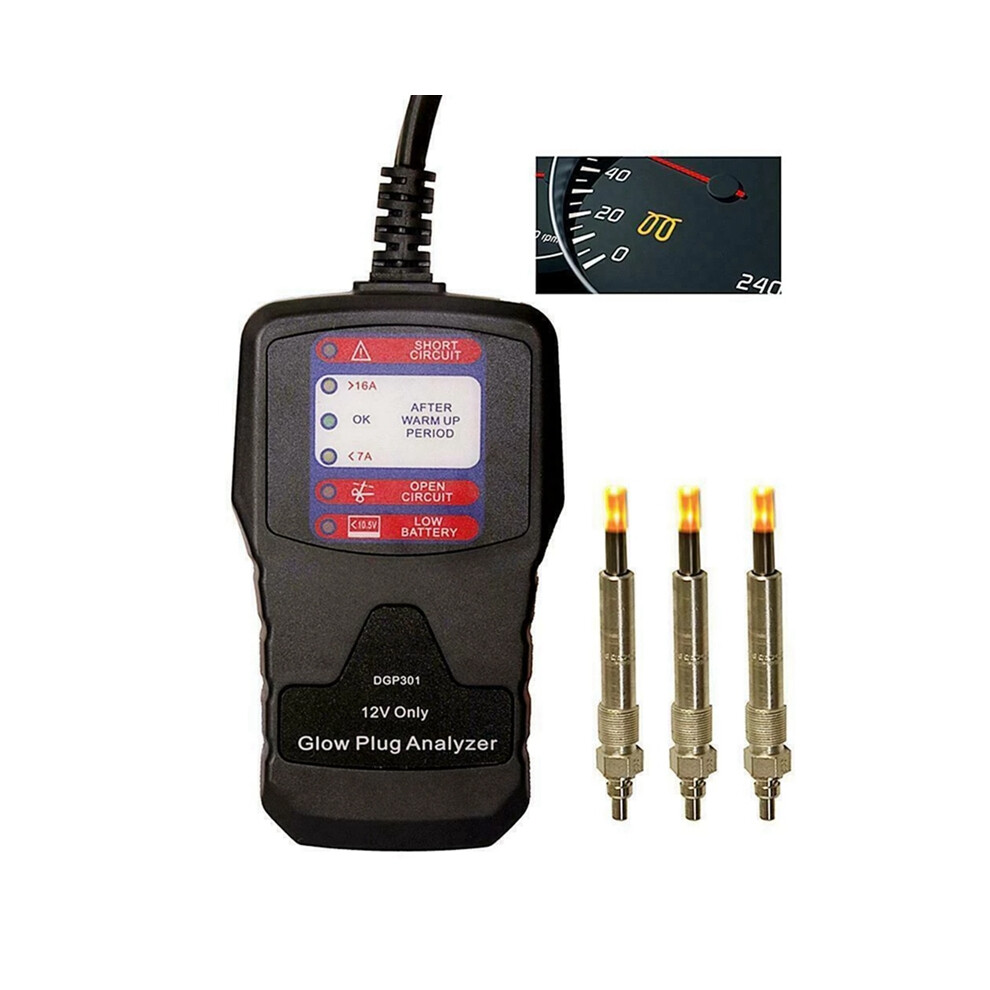

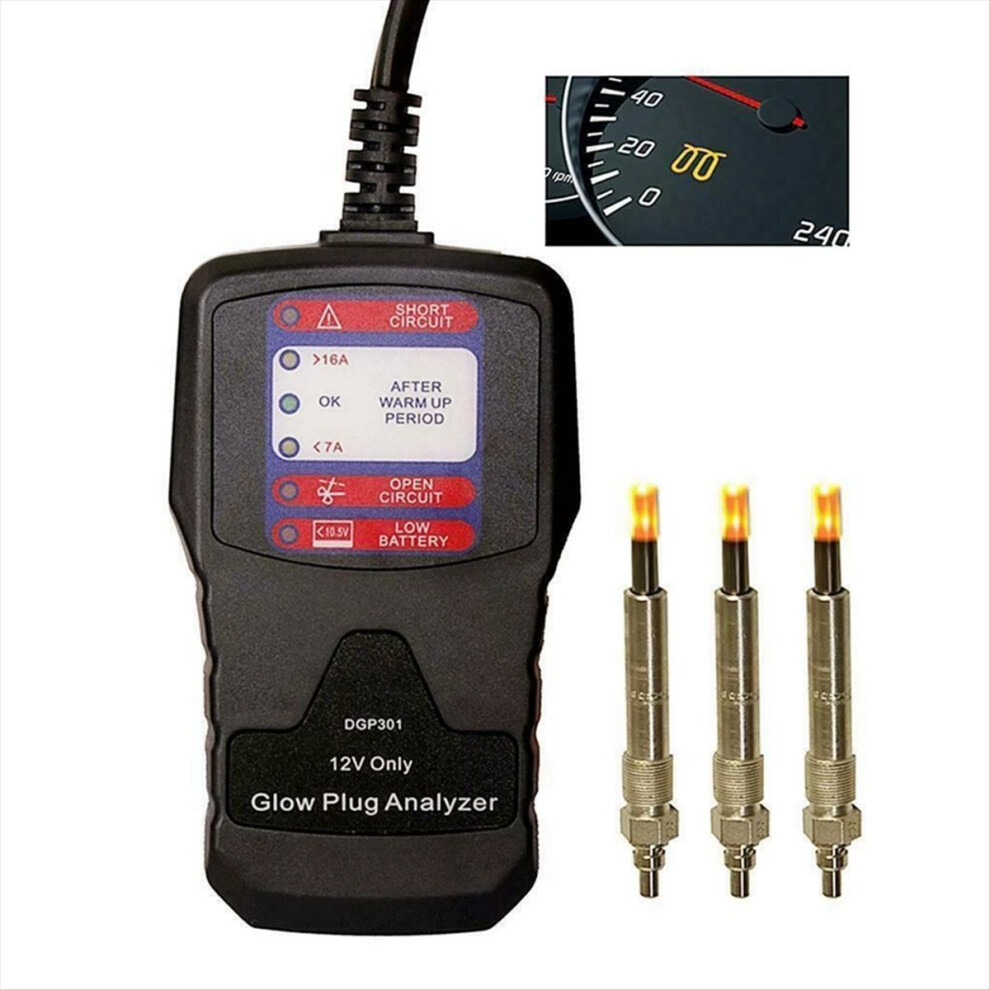

DGP301 Glow Plug Tester provides fault detection thru LED's for a quick analysis of short circuit over current normal operation and open circuit/under current
Tester allows for testing without removing glow plug from engine and powers the glow plug to test the plug in its operating state
Much more accurate test than a cold resistance test which can miss short circuits
Tester uses a current measurement to accurately determine proper operation and check for short circuits

OPERATING INSTRUCTIONS:
Designed To Work On 12V ONLY !
Disconnect the busbar or leads from the glow plugs to be tested;
Connect the RED battery clamp to the positive terminal of the battery, and the BLACK battery clamp to the negative terminal of the battery;
Push the contact plate in of the test probe onto the glow plug;
Terminate until the glow plug has warmed up. This might take between 3 and 20 seconds (Check manufacturers specs for exact warm-up time)

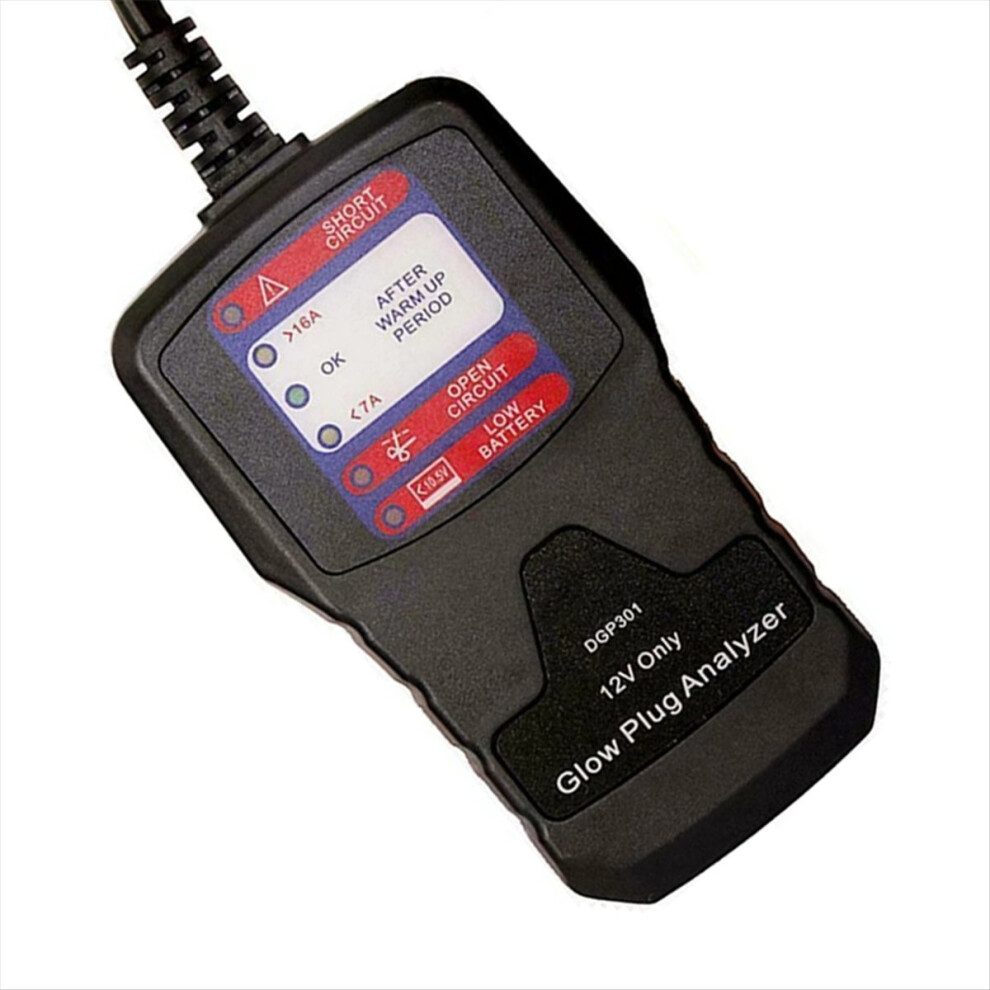

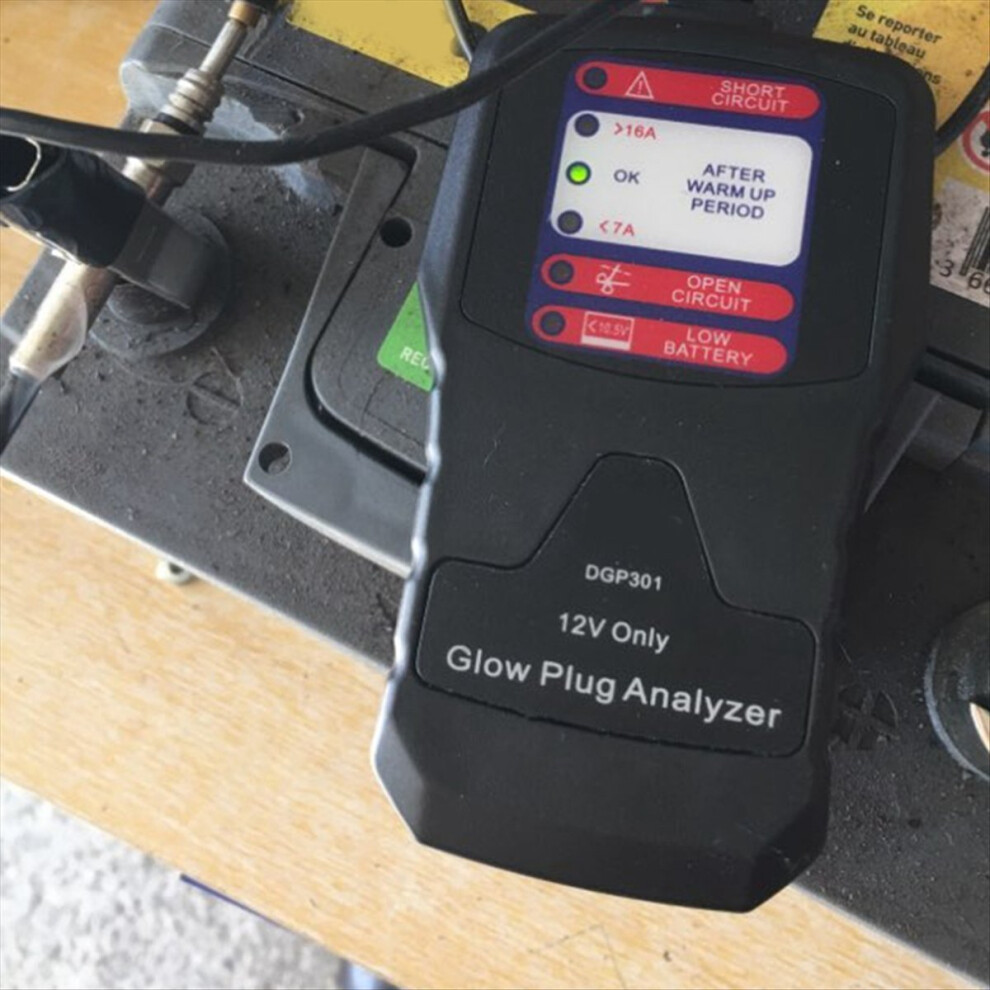

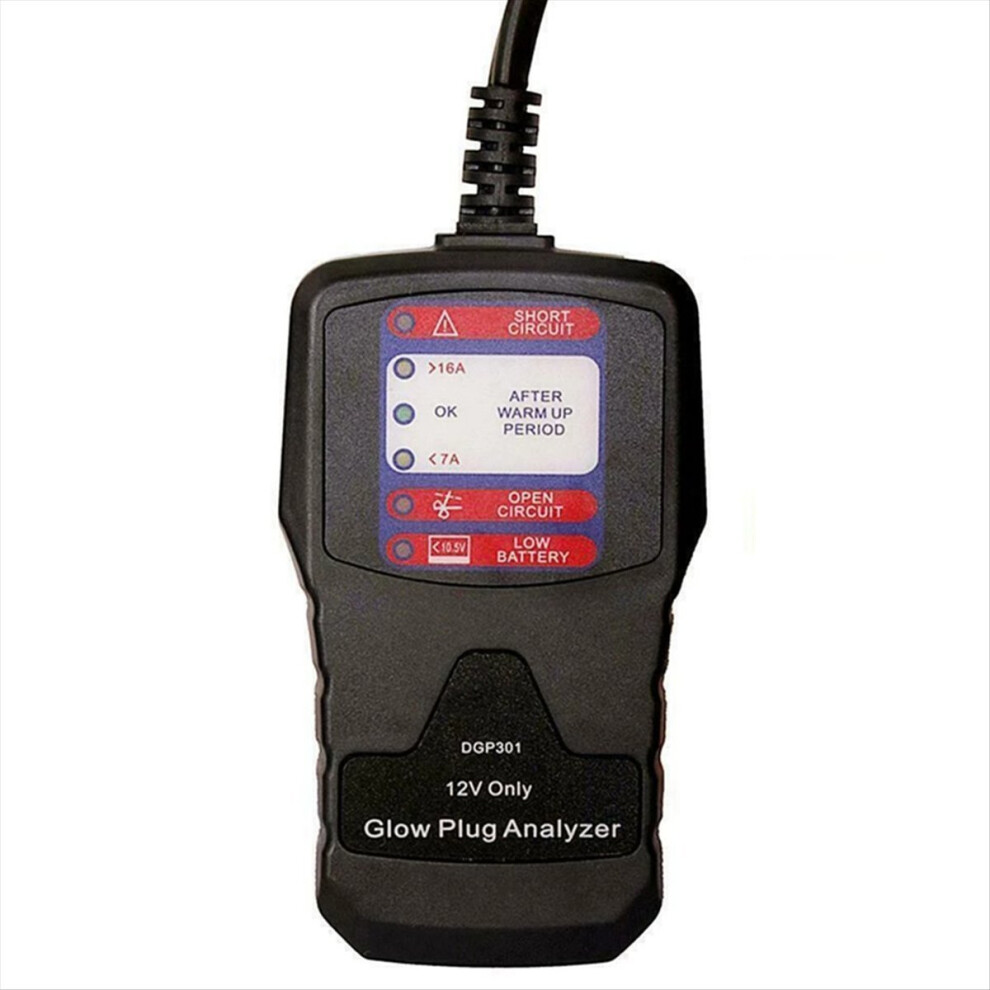

Check which LED is illuminated on the control panel;
NOTE:Even all 4 glow plugs are open circuit, DO NOT assume this tool is faulty. The vehicle might be still started up with all 4 glow plugs being defective.
Due to different batches, there may be differences in product appearance, color, and printed text, which not affect the use.
Colour:Black
Material:Plastic

Package Contents:
1 * Tester

Only the above package content, other products are not included.
