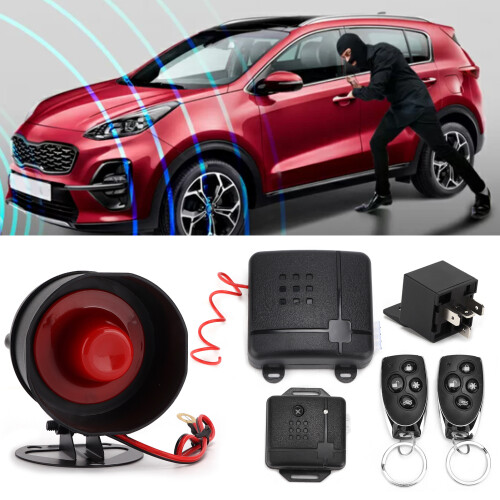

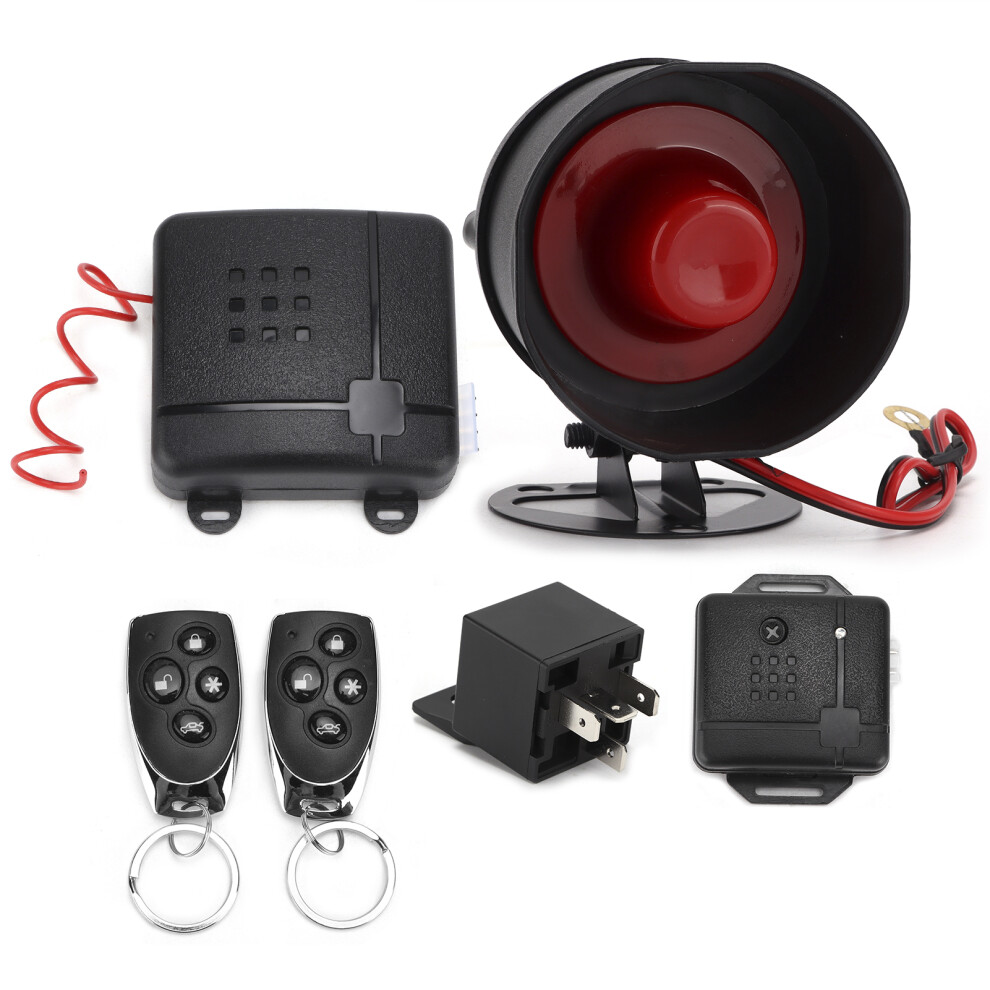

12V Car Alarm System Anti Theft Keyless Entry Security with 2 Remote

12V Car Alarm System Anti Theft Keyless Entry Security with 2 Remote Description

12V 1-Way Car Alarm System Anti Theft Keyless Entry Security Alert Central Door Lock with 2 Remote Control
Item Type: Car Alarm System
Material: ABS
Color: Black
Battery Type: Button Battery (included)
Battery Capacity: 120mAh
Battery Model: CR2025
Power Supply Voltage: 12 (V)
Working Temperature: -25-80 ()
Alarm Mode: Sound and light prompt
Alarm Range: 30-100 meters
Type: One-Way Anti-theft device
Alarm Loudness: 105DB
Alarm Response Time: 1S
Applicable Models: 12V car general
Features:

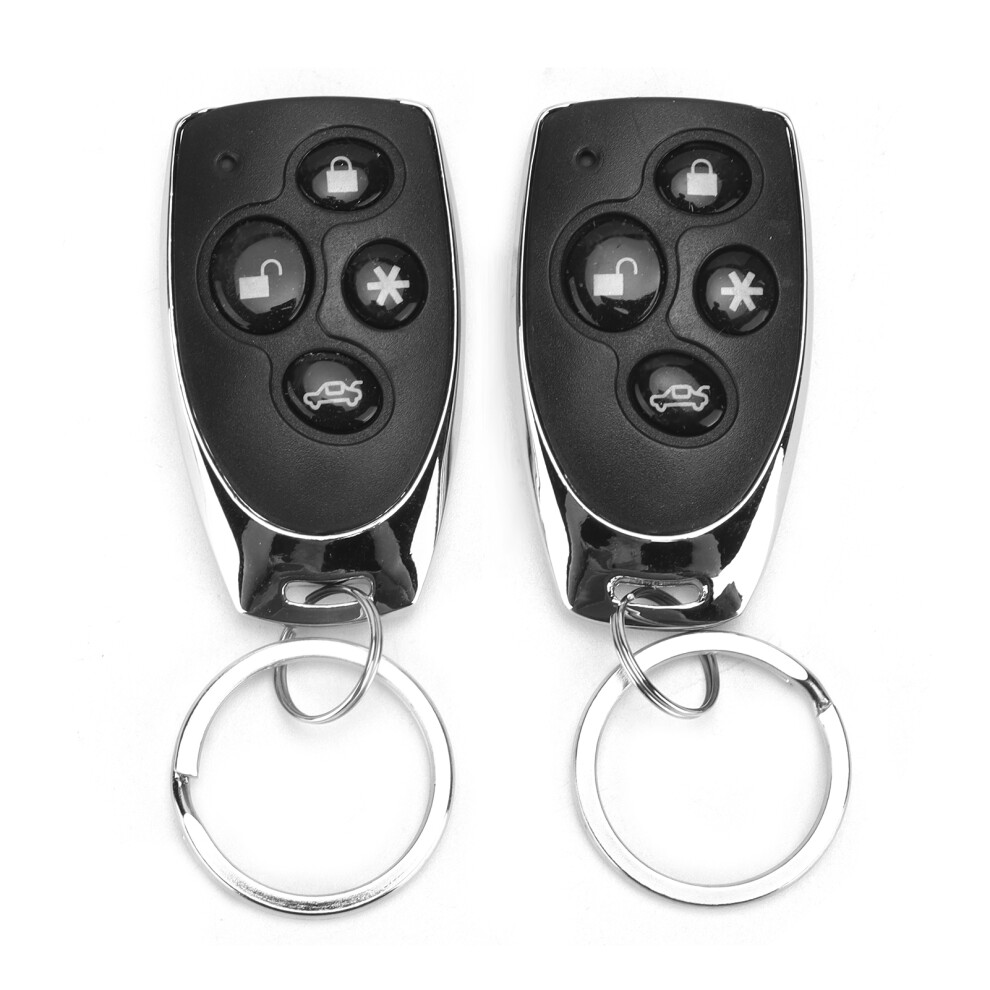

1. Button 1: Arm
The direction light flashes once, the horn and the horn make a negative beep, close the lock and flameout. The LED flashes slowly, and each press is effective, but the second press does not close the lock. If you press to release within 3 seconds after the system is armed, the horn and horn will beep once, and the vibration sensor will be turned off. Exit when armed again. With ACC, close the lock by fortification.
2. Button 2: Release
The direction light flashes twice, the horn and the horn beeps twice, unlock, and the LED flashes slowly. If you press it again, it will only unlock. If there is ACC, press the release button to unlock.
3. Button 3: (Anti-robbing) (programmable) Please refer to the function setting table 8
a. Anti-grabbing at the side door:
Turn on the ACC, if you open and then close the main driving door, the LED flashes and the lights flash twice, indicating that the function is activated. If the sound is set, the horn will beep twice. To enable the anti-robbing function, you must connect the anti-robbing line to the side door .
b. Remote control anti-robbing:
Turn on the ACC, press the meter key or mute button for 3 seconds, the light flashes twice, the horn and the negative horn beeps twice, and the LED flashes quickly, indicating that the function is on. If the sound is on, the horn beeps twice and the function is programmable. (See function setting table 8)
c. Ignition prevention:
If this function is turned on, every time you turn on ACC, the system will automatically activate the anti-robbing function. There is no need to open the door. Press the remote control. After activation, the LED will flash and the car lights will flash twice. If the sound is turned on, the horn will beep twice and the function can be set. (See programming table 10)
d. On-site anti-robbing:
This function is used when the car is driven out, use an additional remote control (except the 2 remote controls) to emergency stop the car, activate within 60 seconds, the LED flashes, the car lights flash 2 times, if the sound is turned on, the horn will sound 2 Second, the function can be set (see the function setting table), so the optional remote control will stop the car 60 seconds after leaving the car.
e. Enter anti-robbing
The system enters anti-robbing mode, and the car lights flash twice. If function 13 is also activated, the horn will beep twice, and the LED will start to flash slowly. After 30 seconds, the car lights flash and the horn shouts. After 15 seconds, if function 14 is turned on When the sound is turned on, the current cut-off device (relay) will immediately turn on and send a bad working signal to the engine. After 15 seconds, the current cut-off device will activate again, shut off the engine, lock the door, and the horn will keep beeping.
f. Exit anti-robbing:
Turn off the anti-robbing system before the horn keeps beeping, or press the emergency contact button once within 60 seconds of the anti-robbing trigger, and then release it.
After the horn starts to sound, or 60 seconds after the anti-robbing is triggered, turn on the ACC, press the emergency contact and the security code the same number of times (the factory default is 1 time), and then wait 3 seconds to confirm whether it is correct.
4. Button 4: Tail box,
a. Long press the trunk or search for 3 seconds to open the trunk.
b. Press the button * and the tail box button at the same time, you will activate channel 3, (see the function setting of channel 3)
5. Deter
Press button 1 and button 2 at the same time for 3 seconds to activate the deterrent function. The direction light and the horn flash in negative synchronization, the horn is long beeping, and the flame is turned off for a long time, and the LED flashes slowly. You can only exit by pressing release.
6. Mute fortification
Press button * once, then button 1 once, the system will mute the defense, the direction light flashes once, the lock is turned off, and there is no sound.
7. Mute and disarm
Press button 3 once, then button 2 once, you will disarm in the mute state, the direction light will flash twice, unlock, and there will be no sound.
8. For automatic defense (programmable), please refer to the function setting table 1.
After the engine is turned off and all doors are closed for 30 seconds, the lights flash once, the horn beeps once, and the LED flashes slowly. If the electric door closing system is set, the doors will automatically close.
If the automatic defense is in the car wash mode, it will be automatically cancelled.
9. Prompt if the door is not closed
During defense, if there is a fault in an area, the horn will beep 3 times and the direction light will flash 3 times, indicating that there is a problem in a certain area, and the side door and tail box are not closed properly.
10. Emergency alarm
When the system is armed, ACC, the side door is opened, or the vibration is re-triggered, the horn is called for a long time, and the direction and the horn are blinking synchronously for 30 seconds. If it is still turned on after 30 seconds, the sound and light alarm will continue. You can use the arm and release keys to pause.
11. Trigger alarm prompt
When disarming, the horn will beep 4 times, the light will flash 4 times to indicate that the car has been invaded again, and the LED will keep flashing until the engine is turned on.
12. Automatic secondary re-arming (programmable), please refer to function setting table 5.
a. In the anti-theft state, after the remote control is disarmed, the LED indicator will flash quickly. If the door is not opened for 90 seconds, or the engine is not turned on, the system will be armed again, the horn will beep once, and the light will flash once.
b. If you want to automatically re-defense and close the lock. This function should be turned on in menu 15.
13. Car search
In the defense state, press the 1 button, the horn will beep once and the lights will flash 5 times.
14. Car repair mode
a. Turn on the ACC, then press and hold the emergency contact button for 3 seconds, the LED will light up, enter the car repair mode, turn off the sound and light anti-theft, you can only find the car, block the drink, open the trunk, open the door, open the window (channel 3) Wait.
b. Exit the car boy mode, turn on the ACC, press the emergency release switch, the LED goes out, indicating that you have exited the car repair mode.

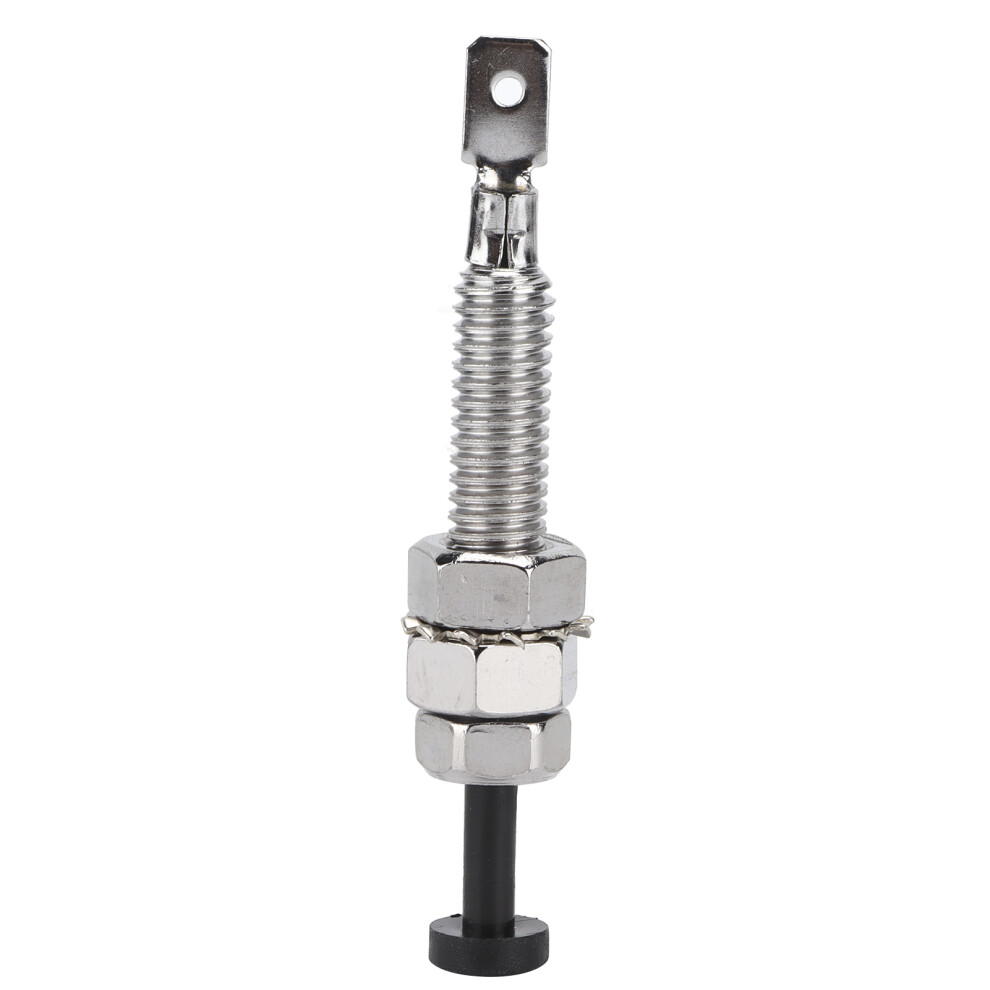

15. Emergency release switch to disarm
If the remote control is lost or damaged, disarm through the emergency release switch
In the armed state, open the driver's door, the horn starts to sound, turn on the ACC, press the emergency release switch once within 10 seconds, and the horn continues to sound for 3 seconds. If the security code is correct, the system will disarm. (The default security code is 1 time)
