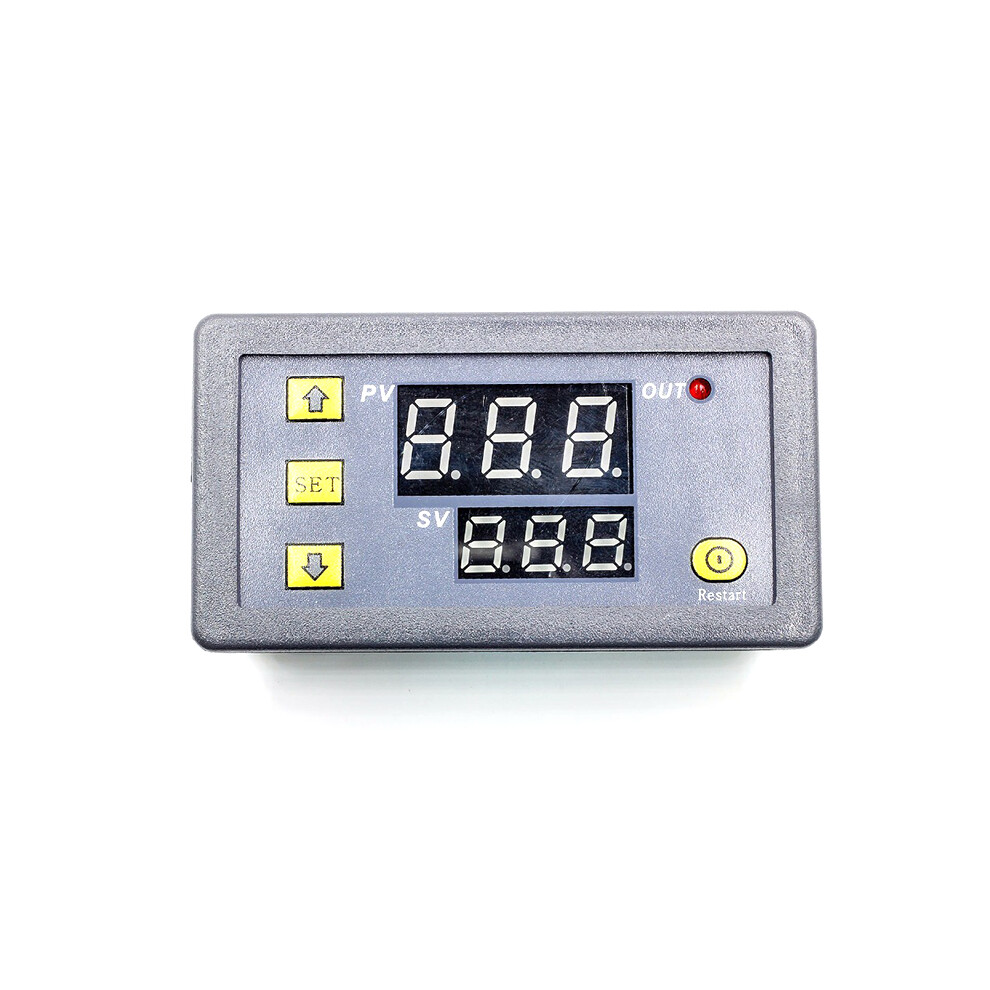

(12V) DC 12V 24V Digital Time Cycle Delay Switch Relay Module ON-Off Control 0-999 Second/Min/Hour LED Display

(12V) DC 12V 24V Digital Time Cycle Delay Switch Relay Module ON-Off Control 0-999 Second/Min/Hour LED Display Description

Features:
Functions: Support 18 types working mode including timing, delaying, cycle and cycle working modes meeting your most demands.
Max. power: Max. working current is 10A, max. power is 1500W.
Dual LED display: On-board dual LED display module and tactile push-button, which is easy to set the delay time and working modes (one readout for practical value(PV); other readout for set value (SV)).
Timing adjusting range: 0-999S/ 0-999M/ 0-999H, available for various application.
Widely used: Can be used in timing, delaying, cycle timing, intermittent timing, slow-down machine DIY, timing switch machine, timing alarm control board and so on.

Specification:
Display panel: about 79*43mm
Installation: about 71*40*24mm
Power supply: DC 24V/DC 12V
Timing range: 0 ~ 999S/ 0 ~ 999M/ 0 ~ 999H
Color: black
Material: ABS

Package list:
1* Controller Timing Relay Switch

Simple instructions:

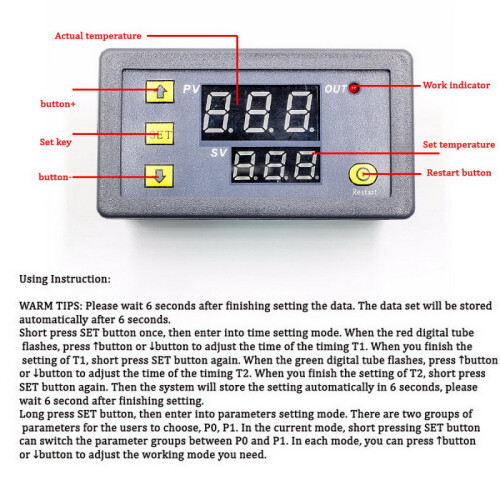

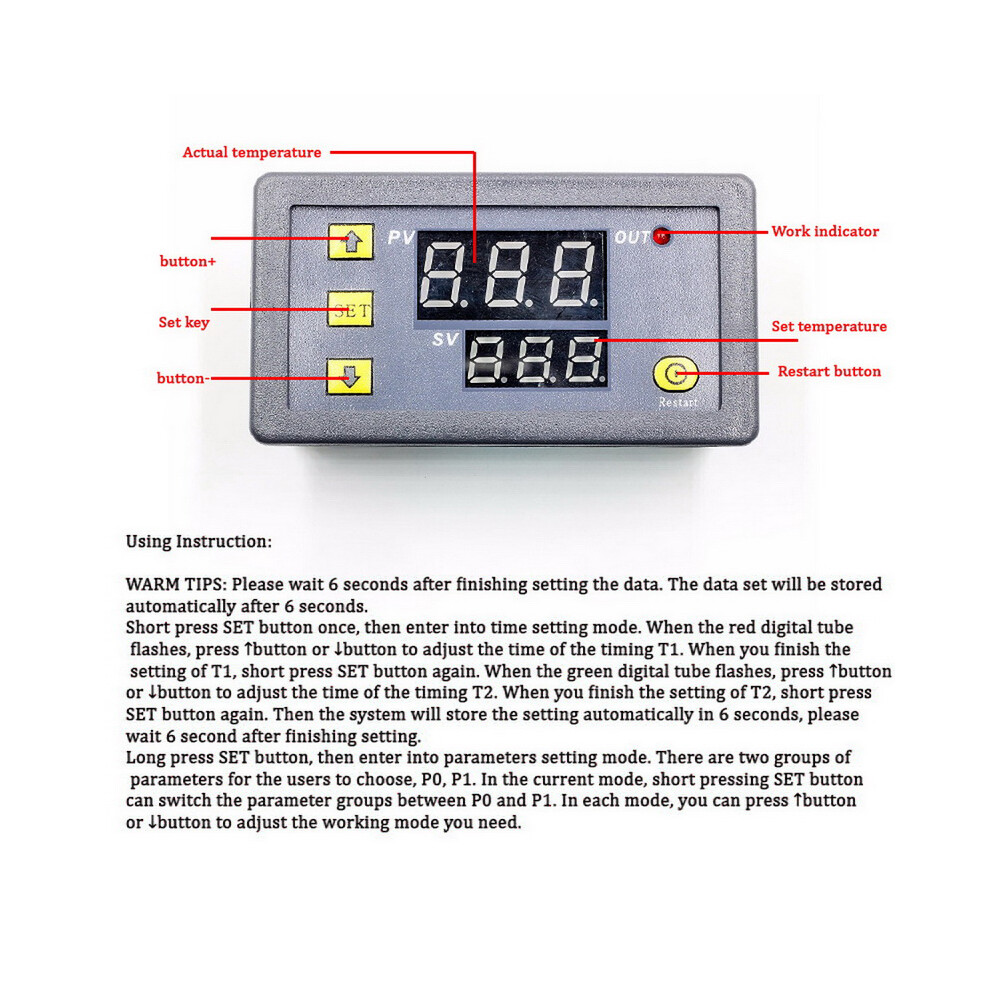

1. Short press SET button once, then enter into time setting mode. When the red digital tube flashes, press ?? button or ?? button to adjust the time of the timing T1.
When you finish the setting of T1, short press SET button again. When the green digital tube flashes, press ?? button or ?? button to adjust the time of the timing T2.
When you finish the setting of T2, short press SET button again. Then the system will store the setting automatically in 6 seconds, please wait 6 second after finishing setting.
2. Long press SET button, then enter into parameters setting mode. There are two groups of parameters for the users to choose, P0, P1.
In the current mode, short pressing SET button can switch the parameter groups between P0 and P1.
In each mode, you can press ?? button or ??button to adjust the working mode you need.

P0-0: The timing mode of T1 is second.
P0-1: The timing mode of T1 is minute.
P0-2: The timing mode of T1 is hour
P1-0: After T1 time delay, the relay pulls in.(T1 timing)
P1-1: After T1 time delay, the relay releases.(T1 timing)
P1-2: After T1 time delay, the relay pulls in (T1 timing). Then after T2 time delay, the relay releases (T2 timing).
P1-3: After T1 time delay, the relay releases (T1 timing). Then after T2 time delay, the relay pulls in (T2 timing).
P1-4: After T1 time delay, the relay pulls in (T1 timing). Then after T2 time delay, the relay releases (T2 timing) and repeat the cycle.
P1-5: After T1 time delay, the relay releases (T1 timing). Then after T2 time delay, the relay pulls in (T2 timing) and repeat the cycle.
e.g.: someone need to turn on after 10 seconds, then turn off after 20 seconds and repeat the cycle.

The setting method is as following:
 T1 is set to 10 and T2 is set to 20.
 Choose P0-0 (The timing mode of T1 is second.).
 Choose P1-5 (The working mode of the relay is working firstly then stopping working and then repeating the cycle).

Warm tips:
Please wait for 6 seconds after finishing setting the data. The data setting will be stored automatically after 6 seconds.
