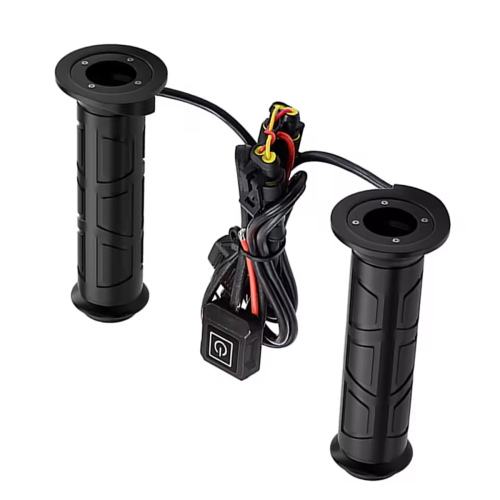

12V Electric Heated Grips Handlebar for ATV Intelligent

12V Electric Heated Grips Handlebar for ATV Intelligent Description

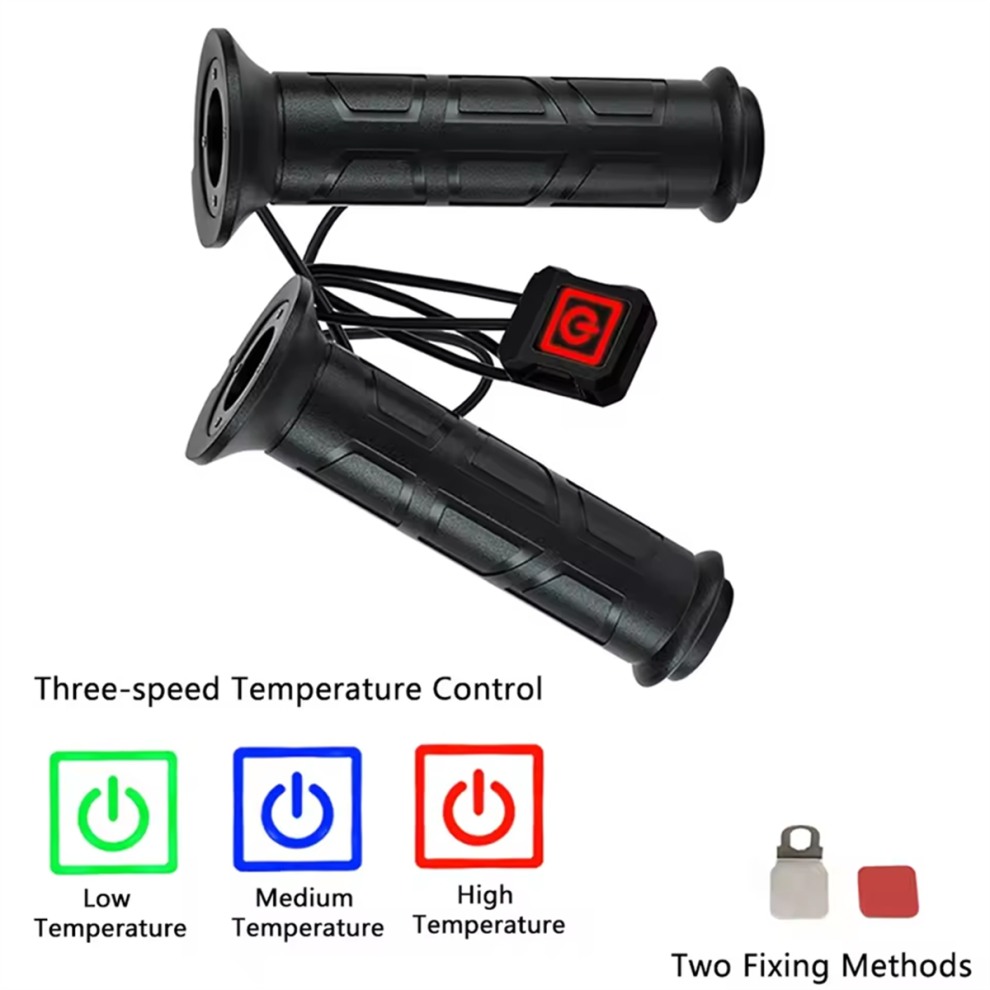

[Intelligent 3-Speed Temperature Adjustment]Electric heated handgrips are built-in intelligent temperature control chip, 3-speed adjustable temperature, low temperature 40C/104, medium temperature 50C/122, high temperature 60C/140, low power consumption, reduce power, give your hands some warmth in the cold winter.

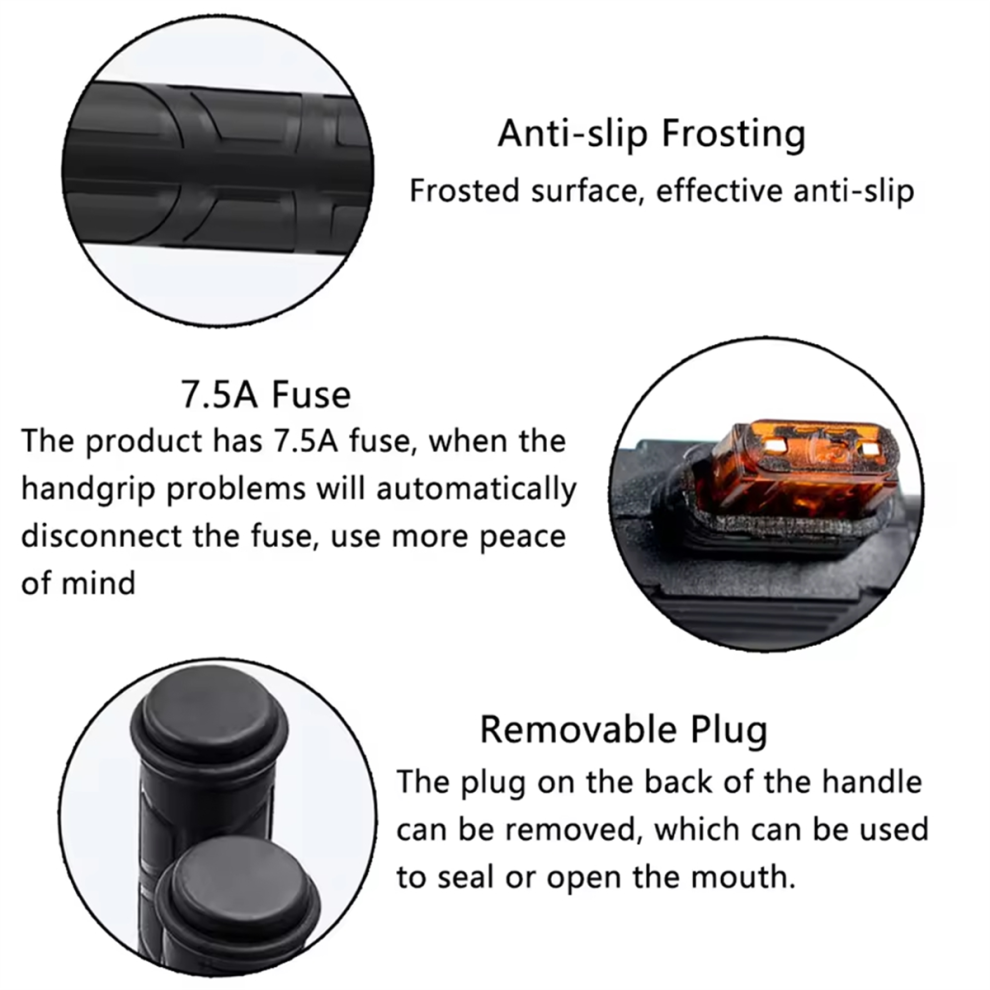

[7.5A Fuse]The electric handgrip comes with 7.5A fuse, when there is a problem with the handgrip, the fuse be disconnected automatically, which makes you feel more at ease when using it. [Removable Plug]The plug on the back of the handle is removable, sealable and pass-through design, which does not affect the installation of handle plugs and other equipment accessories outside the handle.
[Application]Motorcycle electric handlebar is suitable for 12V beach bikes (ATV) with handlebar diameter of 2.2 cm/0.87 inch. Long 3 seconds to switch on, bright red breathing light, after reaching the temperature automatically become blue, lightly a change to blue light temperature for medium temperature, lightly two to green, the temperature is low, three for the red three-stage high temperature, long 3 seconds to switch off.
[Quality Material]The electric handlebar is made of high-quality nitrile material, one-piece moulding, preventing rain and dust from entering the internal parts, and the frosted texture, effective anti-slip, longer service life and more peace of mind.

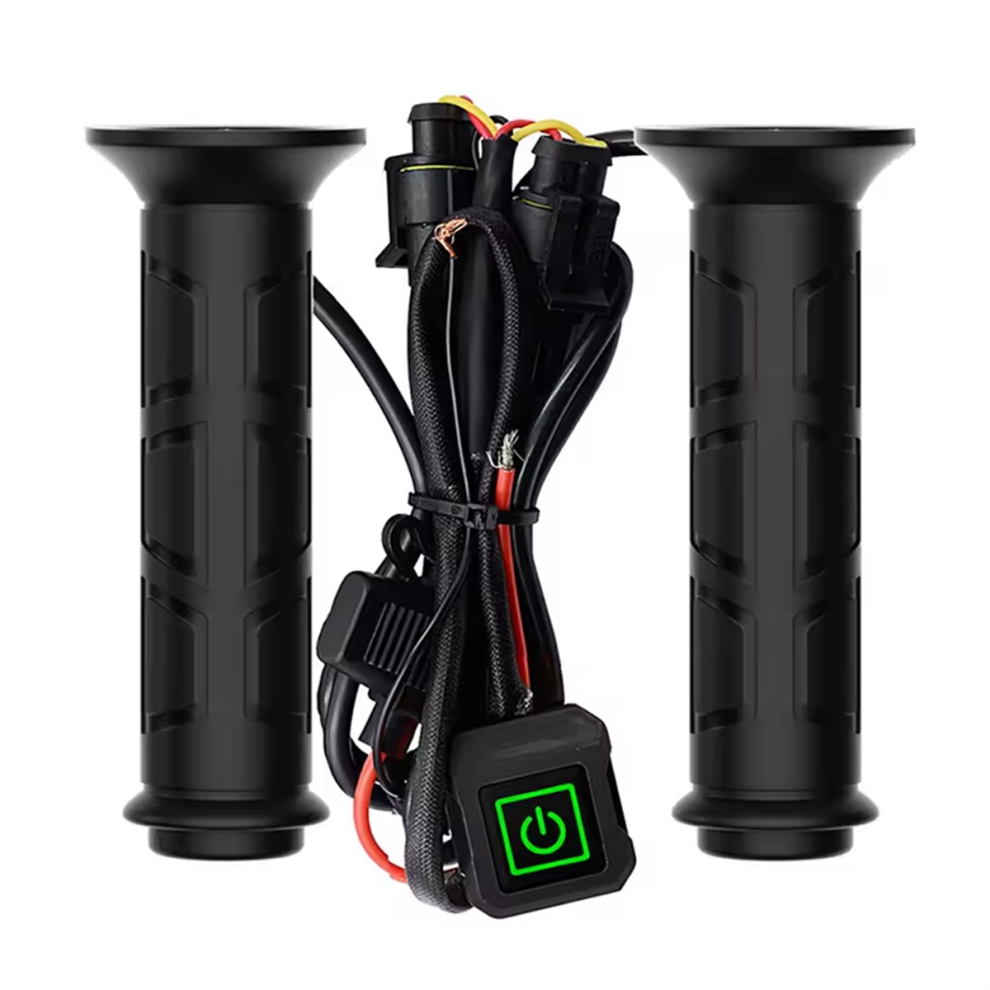

Product Name: Motorcycle Heated Grip. Handle Colour: Black. Product Size: 12.7 x 5.2 cm/5 x 2.05 inch. Pipe Diameter: 2.2 cm/0.87 inch. Input Voltage: DC 12V. Product Power: Red Light 35W, Blue Light 25W, Green Light 17W. Note: When installing the left handle, do not twist the handle too much, too much twisting cause the electric heating wire to shift.

Product Wiring Method: Connect to the positive and negative battery position, red to the positive battery [+], black wire to the negative battery [-].
Warm Tips: Wiring, red to the positive pole, black to the negative pole if connected to the reverse, the switch be burned, but the handle be hot, so in the wiring, please determine a good positive and negative interfaces and then wiring to prevent burned out.
Fitment:
Suitable for 12V beach bikes (ATV) with handlebar diameter of 2.2 cm/0.87 inch
Operating Instructions:
1. Energised: Red light, blue light and green light flash once each and then go out.
2. Working Status: Indicator light is always on (high: red light is always on, medium: blue light is always on, low, green light is always on)
3. Long the switch key for 3 seconds: switch off the machine
4. Click on Switch: Switch Gear
Installation Instructions:
1. Remove the original-handlebar
2. Left handlebar inner hole with soapy water to wet, the installation of twisted amplitude can not be too large
3. Power cable, red wire to the positive pole, black wire to the negative pole, please confirm and then connect, do not connect the opposite
Color: Black
Material: Nitrile Rubber

Package Contents:
1 * Motorcycle Heated Handle Set

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
