12V Electric Winch Wireless Remote Control System

12V Electric Winch Wireless Remote Control System Description

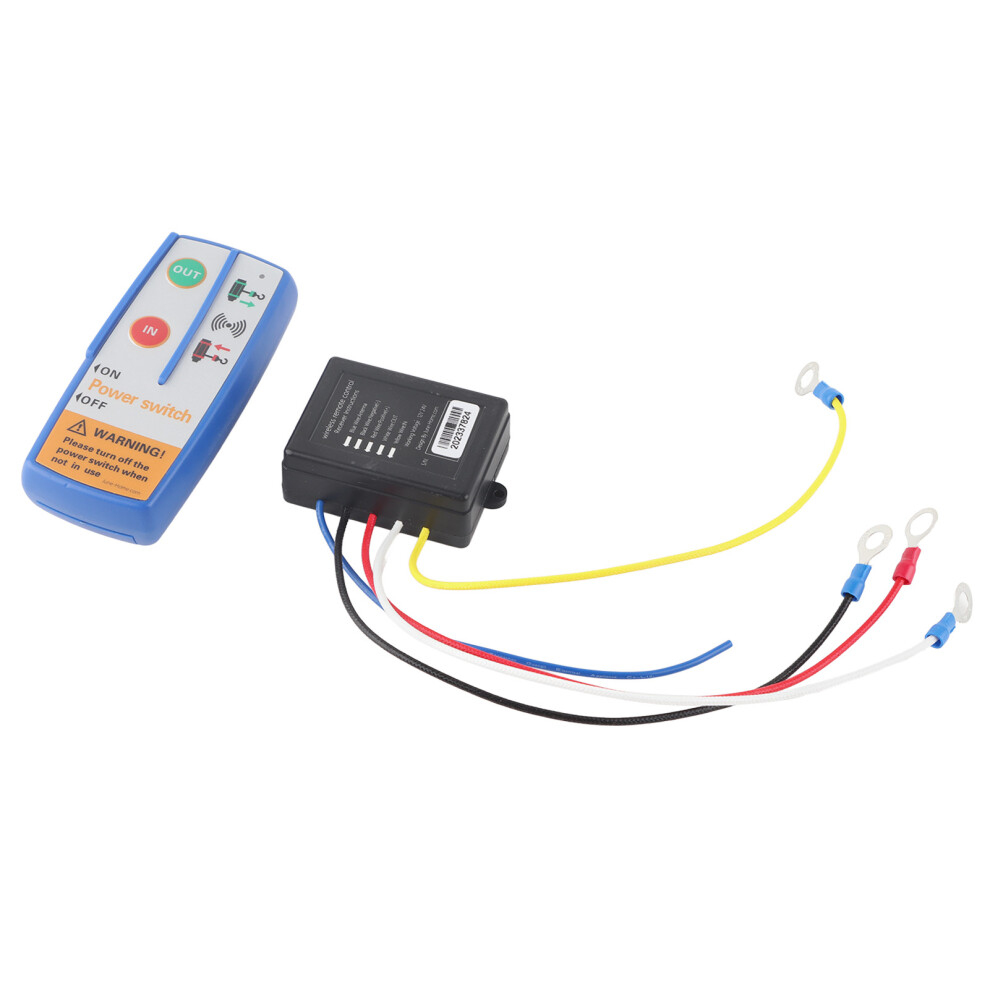

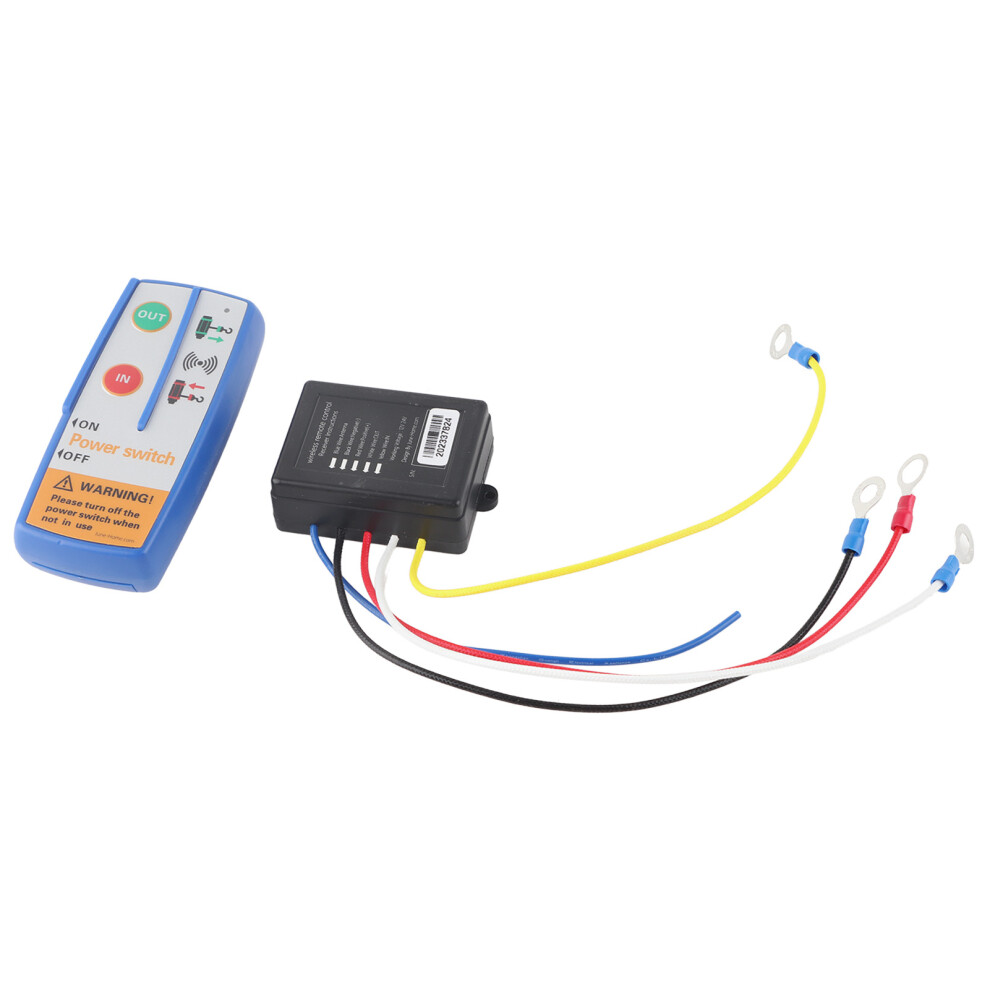

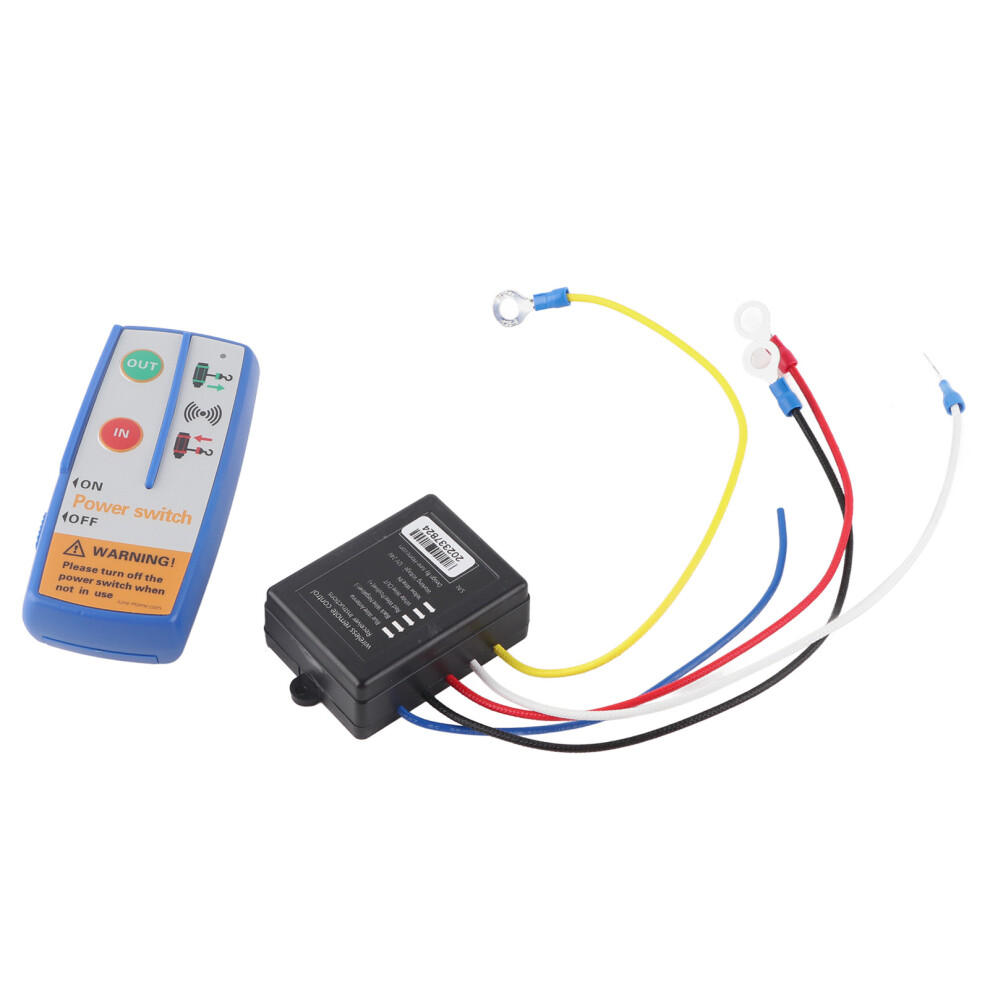

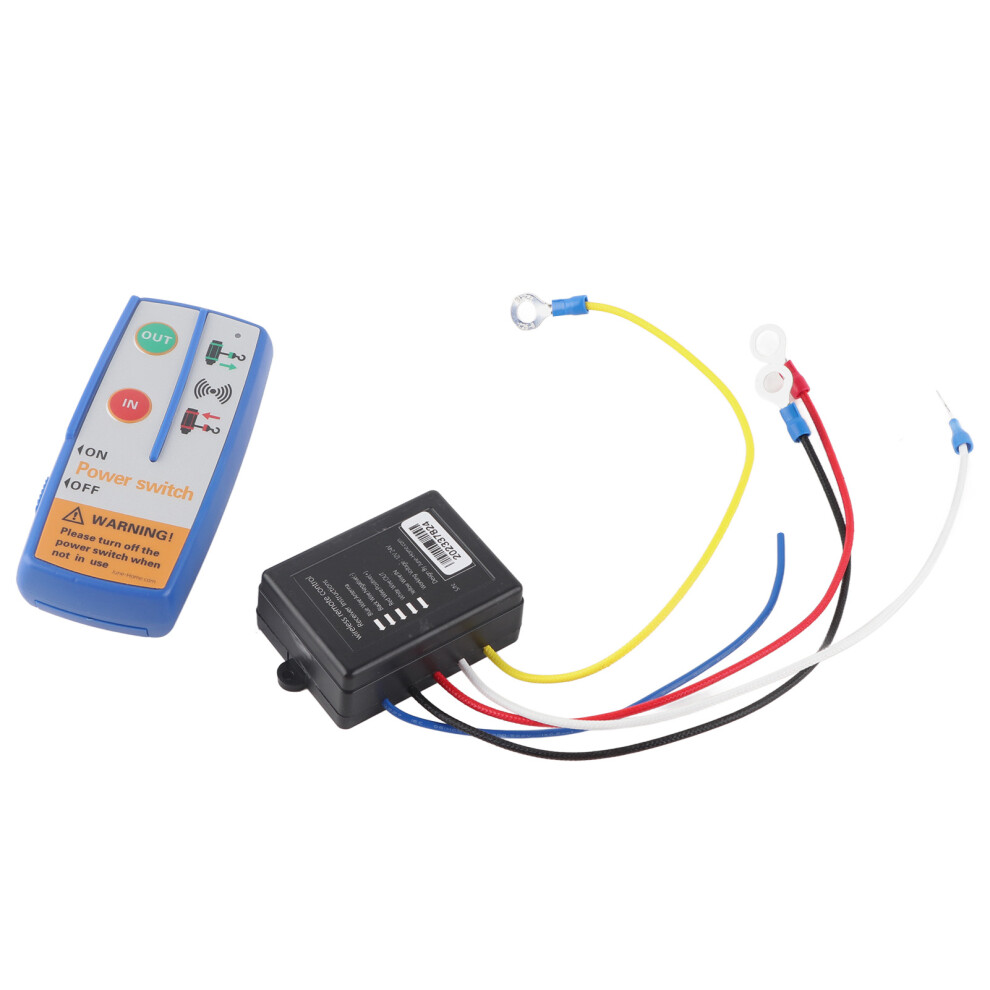

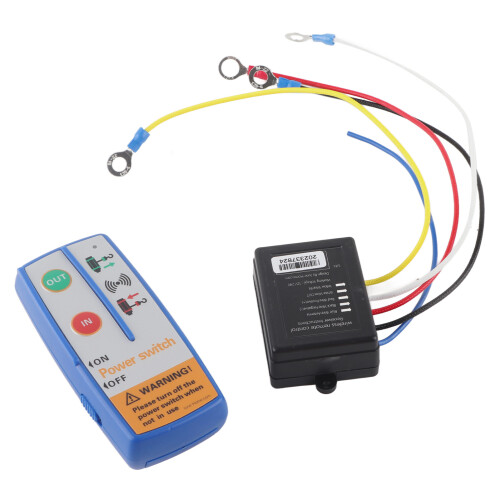

12V Electric Winch Wireless Remote Control System Transmitter Receiver Kit for Truck ATV SUV



1、Wireless remote control, allows you to operate the winch within a range of 50ft without the need for cables or switches. 2、Easy to operate, you can start, stop, in or out the winch just by pressing the remote control transmitter. 3、Suitable for most self‑recovery winches, such as for Warn, for Ramsey, for Superwinch, for Smittybilt, for Gorilla, for Bulldog, etc. 4、Designed with visual indicator light, which can clearly and intuitively display remote operation, convenient for using. 5、Manufactured according to the original production specifications, in line with strict quality standards, long service life.



Item Type: Winch Remote Control Kit Material: ABS + Metal Battery Type: Alkaline battery (included) Battery Capacity: 150mAh Battery Model: 12V 23A Frequency: 434MHz Voltage: 12V Remote Control Size: Approx. 43 x 100mm/1.7 x 3.9in Receiver Size: Approx. 43 x 70mm/1.7 x 2.8in Features: The remote range is up to 50 feet. The transmitter is equipped with a long life. Battery and power saving circuit. Transmitter and receiver. The visual indicator shows remote operation. An additional transmitter that can be used to operate the receiver. Installed in a few minutes. Transmitter replacement battery is available at any time. Suitable for Truck, ATV, SUV The wireless remote control is only designed for the front self-recovery winch. The remote control is not designed and used in industrial applications (commercial vehicle transporter/transporter, wrecker, crane, etc.) or any other remote control application for winches or cranes. We recommend that you operate the winch as follows: 1. Loosen the winch clutch. 2. Pull out the winch wire rope about 1.5 meters. 3. Re-engage the clutch of the winch. 4. Insert the plug of the remote control receiver into the female connector of the electromagnetic control box of the winch. If your wireless remote control is -03 type, you should correctly connect the black ground wire to the negative pole of the battery. 5. Put your receiver somewhere. 6. Keep the receiver antenna straight. 7. Pull out the transmitter antenna and move the transmitter cover down to expose the control buttons. 8. Press the button, you can operate the winch to start, stop, in and out. (It is strongly recommended to find a professional to install)



1 x Remote Control 1 x Receiver 1 x Manual
