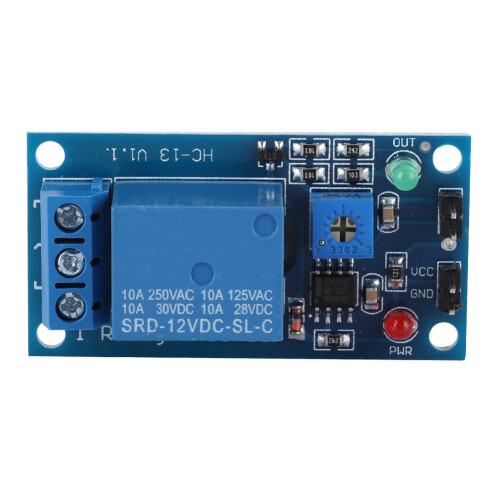

12V Rain Water Drop Sensor Module with Relay Control, 5x4 cm

12V Rain Water Drop Sensor Module with Relay Control, 5x4 cm Description

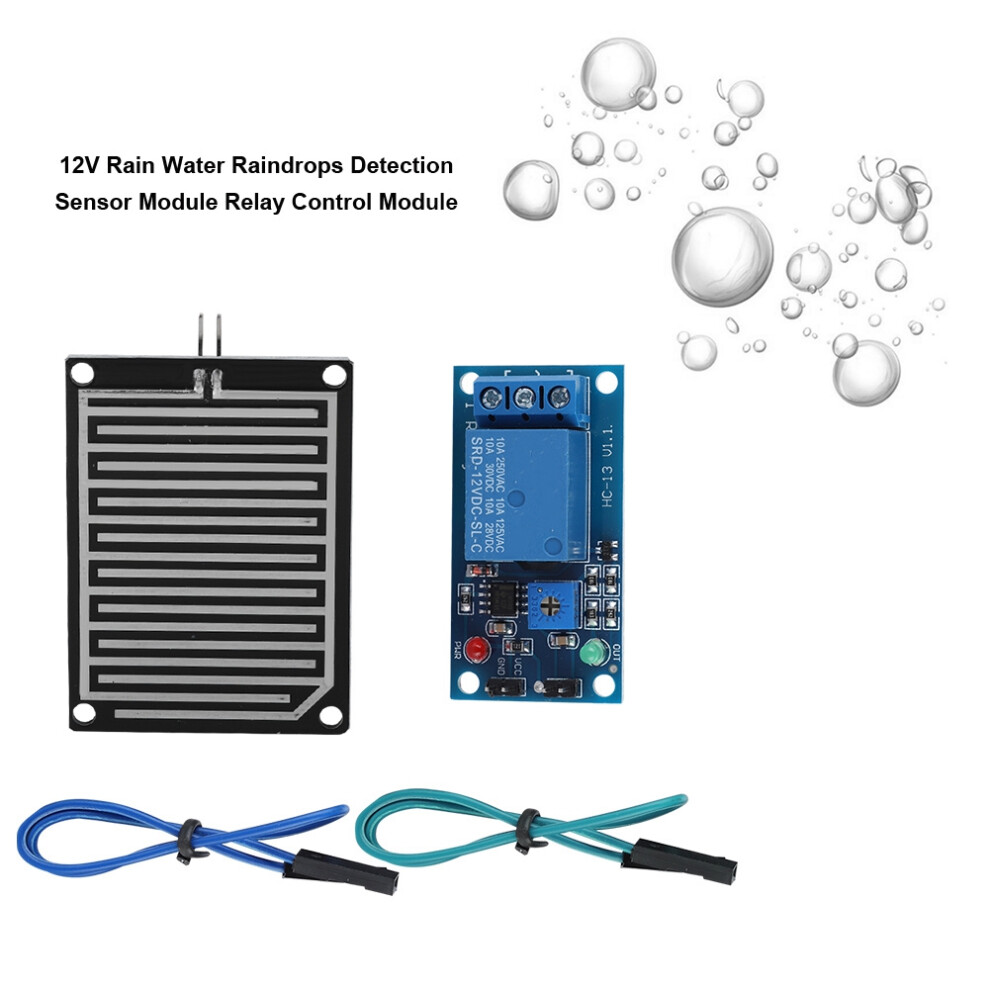

12V Rain Water Raindrops Detection Sensor Module Relay Control Module

Features:

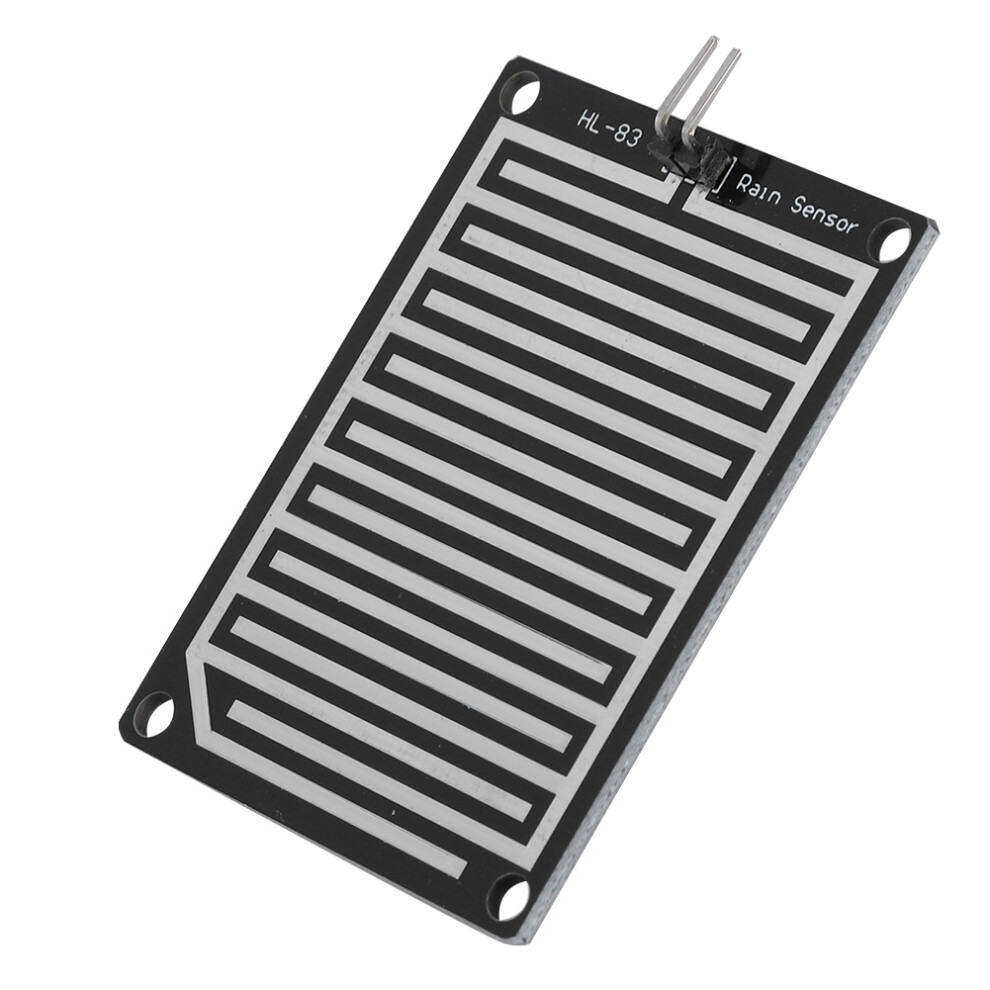

The sensor is made of quality FR-04double-sided material, with a super large area of 5.0*4.0CM, and the surface is treated with nickel plating, which has superior performance in anti-oxidation, electrical conductivity and service life


The module is directly equipped with high-power relay to directly control the load

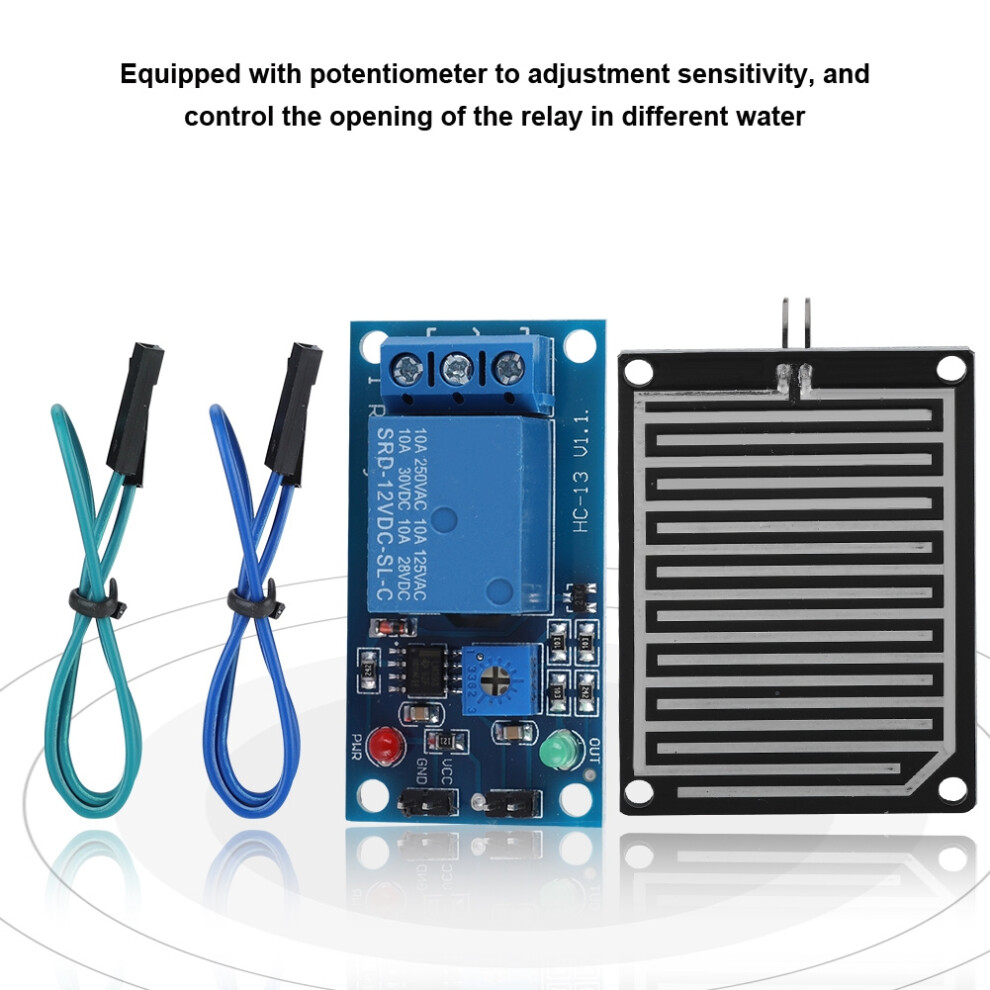

Equipped with potentiometer to adjustment sensitivity, and control the opening of the relay in different water


The products are made of high-quality materials, which can effectively avoid corrosion and wear and are durable for use


Professional chip sets provide excellent performance in the system







Specification:


Module power supply: 12V static current: 5-12mA



Size: 5*2.5*1.5cm/2*1*0.6in


Weight: Approx.25g/0.9oz





Use method: Connect to the power supply, the power indicator light is on, when there is water drop on the induction board, the relay absorbs, starts the relevant equipment, the switch indicator light is on, drop a drop of water, the relay is off, the switch indicator light is not on

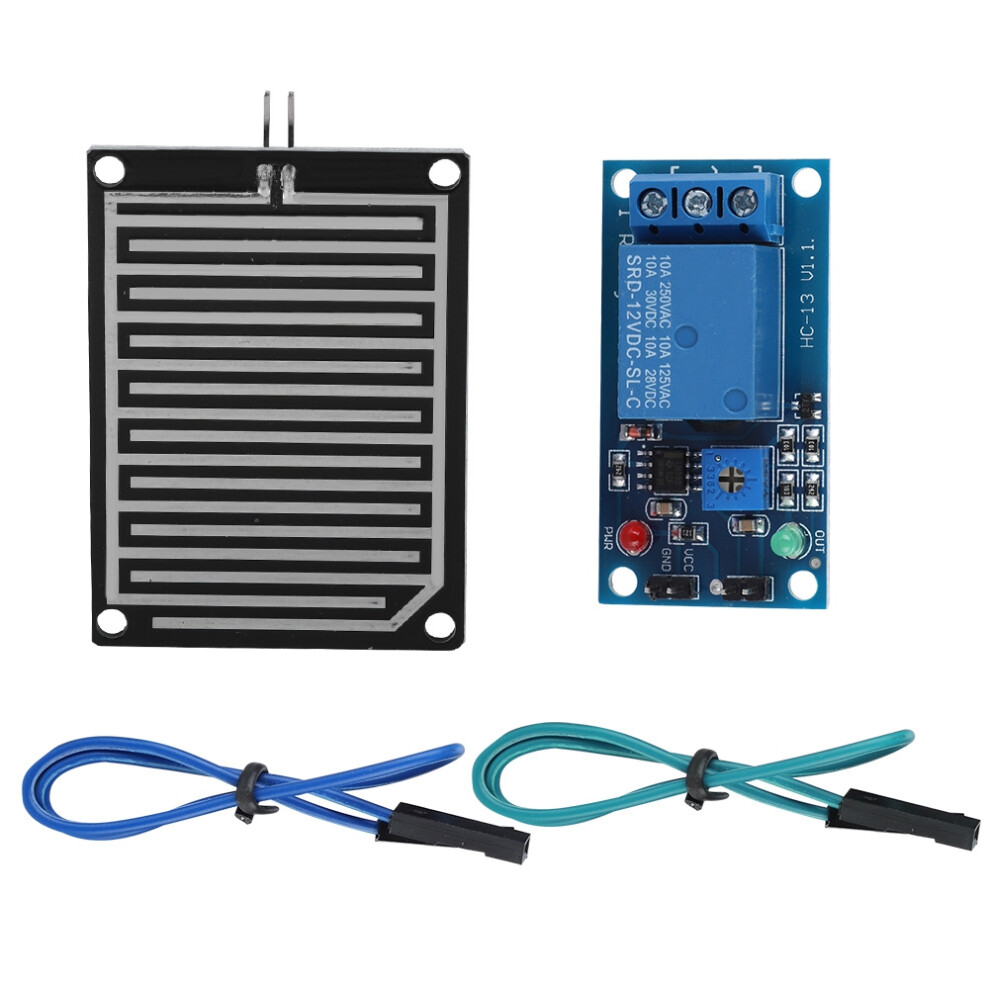

Package list:


1 x Relay module

1 x Raindrop sensor panel

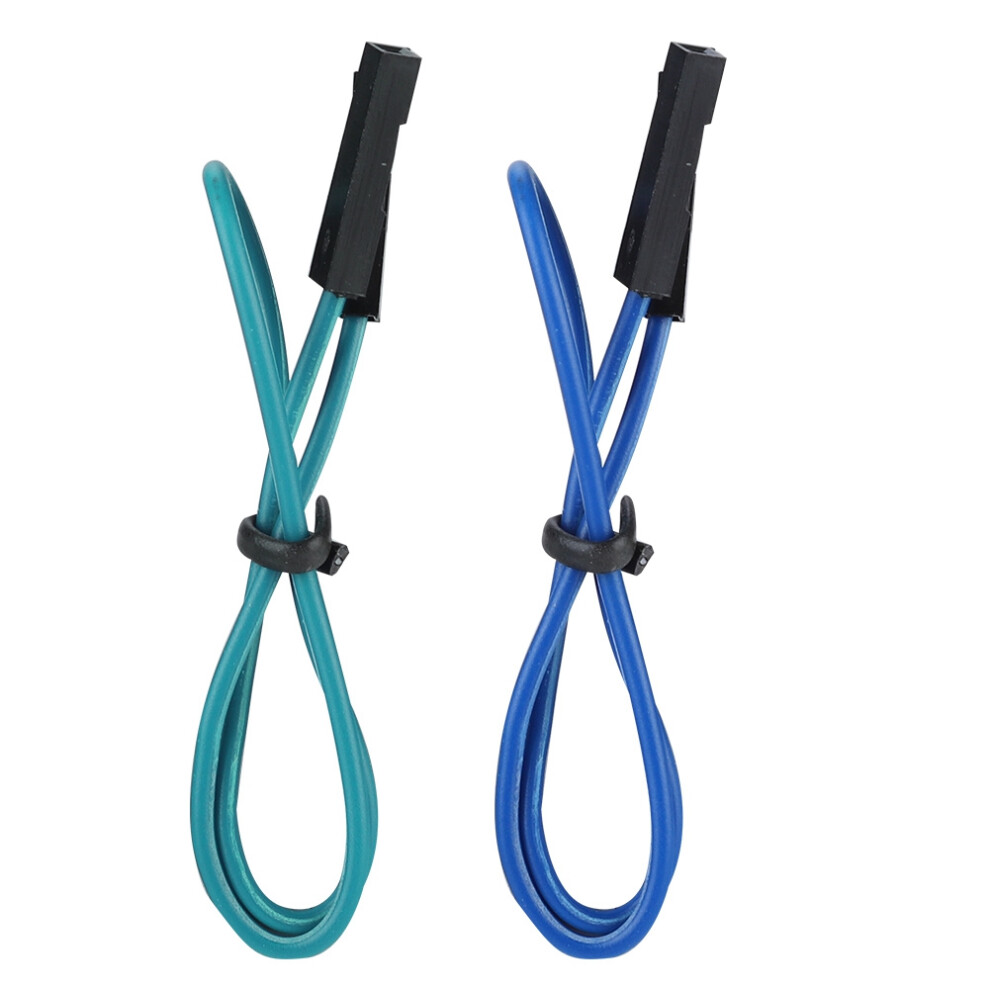

2 x 20cm cable
