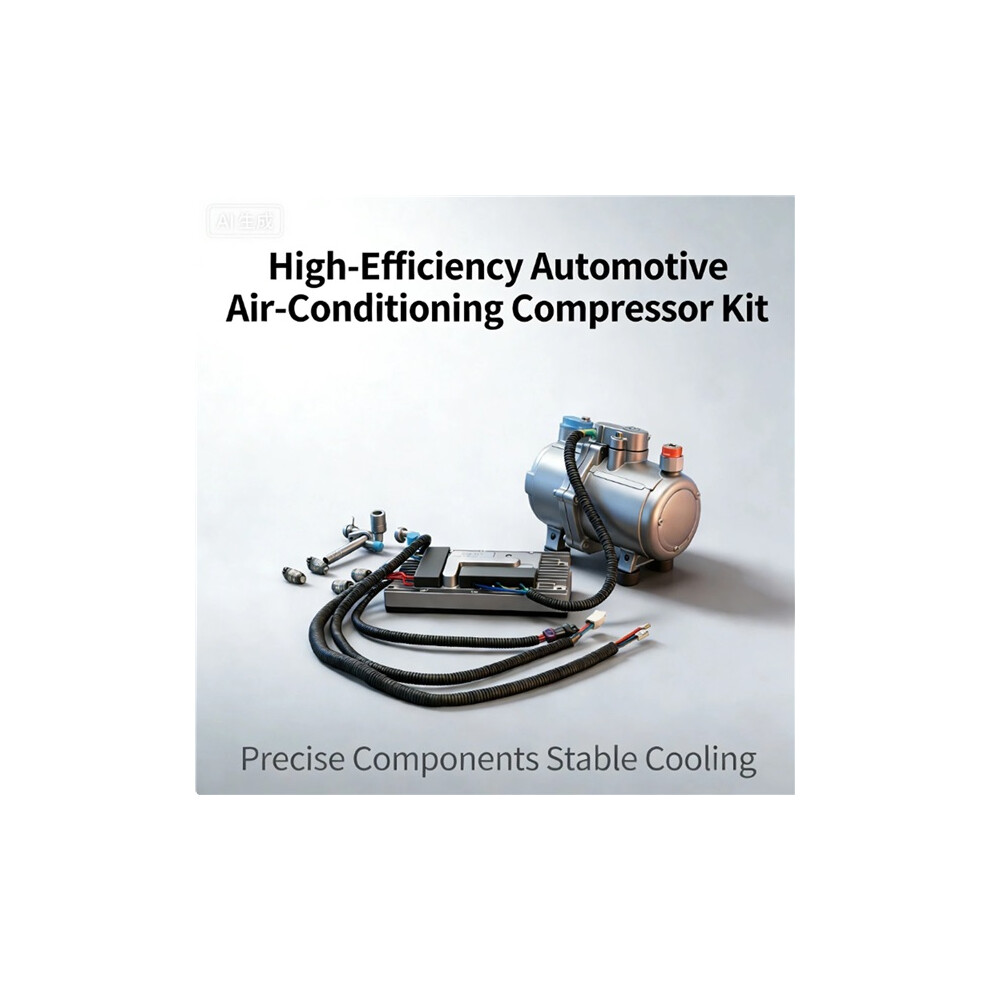

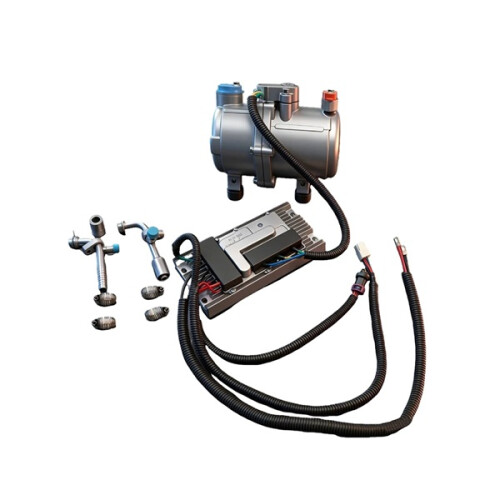

12V Scroll Compressor for Universal Car AC Semi Closed Air Conditioner Kital

12V Scroll Compressor for Universal Car AC Semi Closed Air Conditioner Kital Description

Specification:

12V Electric AC Scroll Compressor Universal Car Air Conditioner Semi Close Kit

12V Air Conditioner Compressor Electric A/C Kit Fit For Campers RVs Trucks Buses

Product Description

100% Brand new ＆ Premium Quality

2 Year warranty, long durable life!

OE replacement Compressor Kit

Premium ISO/TS 16949 quality; tested to meet or exceed OEM

Not include gasoline or gas required, Not include refrigerant.

specifications

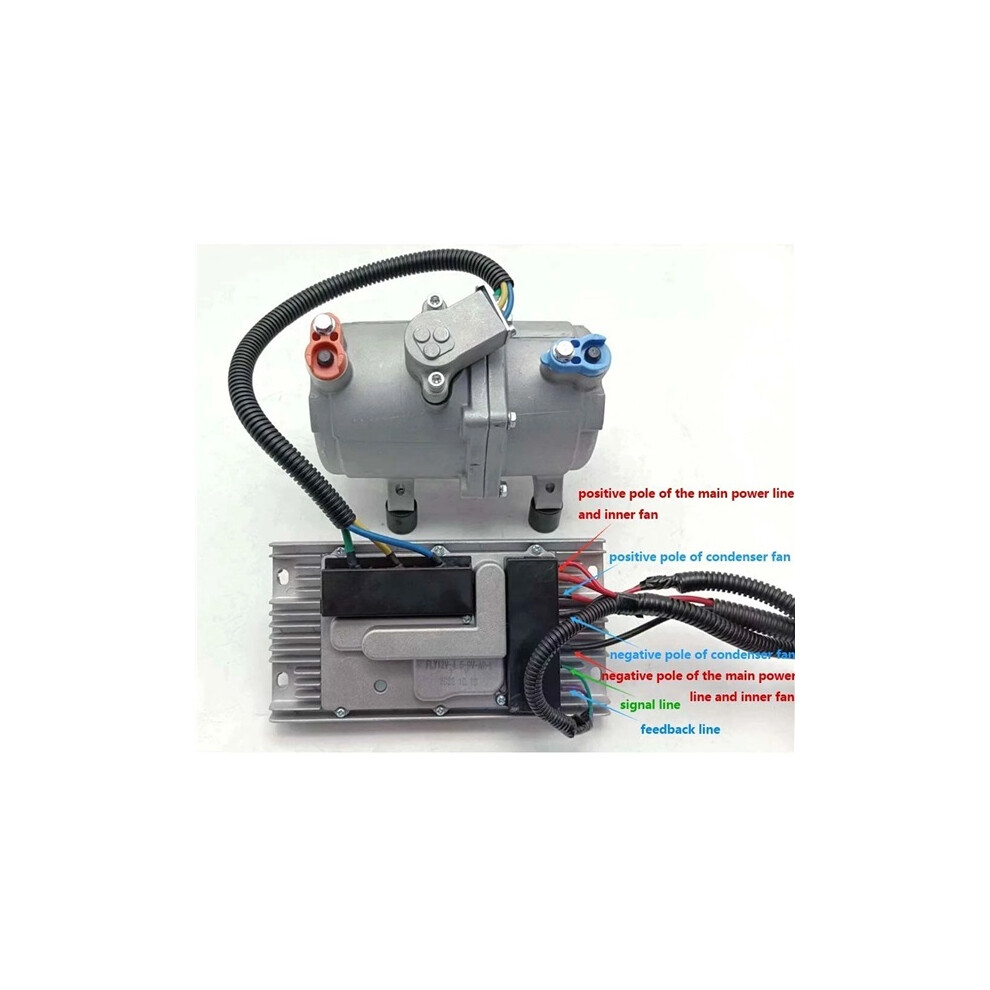

Control External Design: The air conditioner compressor separates the control panel from the main unit.

LED Flashing Prompt: The control panel adopts a brushless controller unit with LED flashing prompt and protected mode. LED flashing prompts are specially designed for faults.

Multiple Protection: Efficient work, the electric ac compressor will automatically stop working when encountering high pressure/under-voltage and then automatically restart after stable

Widely Used: A/C 12 volt electric compressor unit, suitable for AC air conditioning in automobiles, trucks, and buses.

After sales: Any problem please contact us by the message not hesitate, we're here for you! We are proud to offer quality service and we want your transaction to go perfectly~

Specificities：

Type: 12 V Automotive Electric AC Compressor

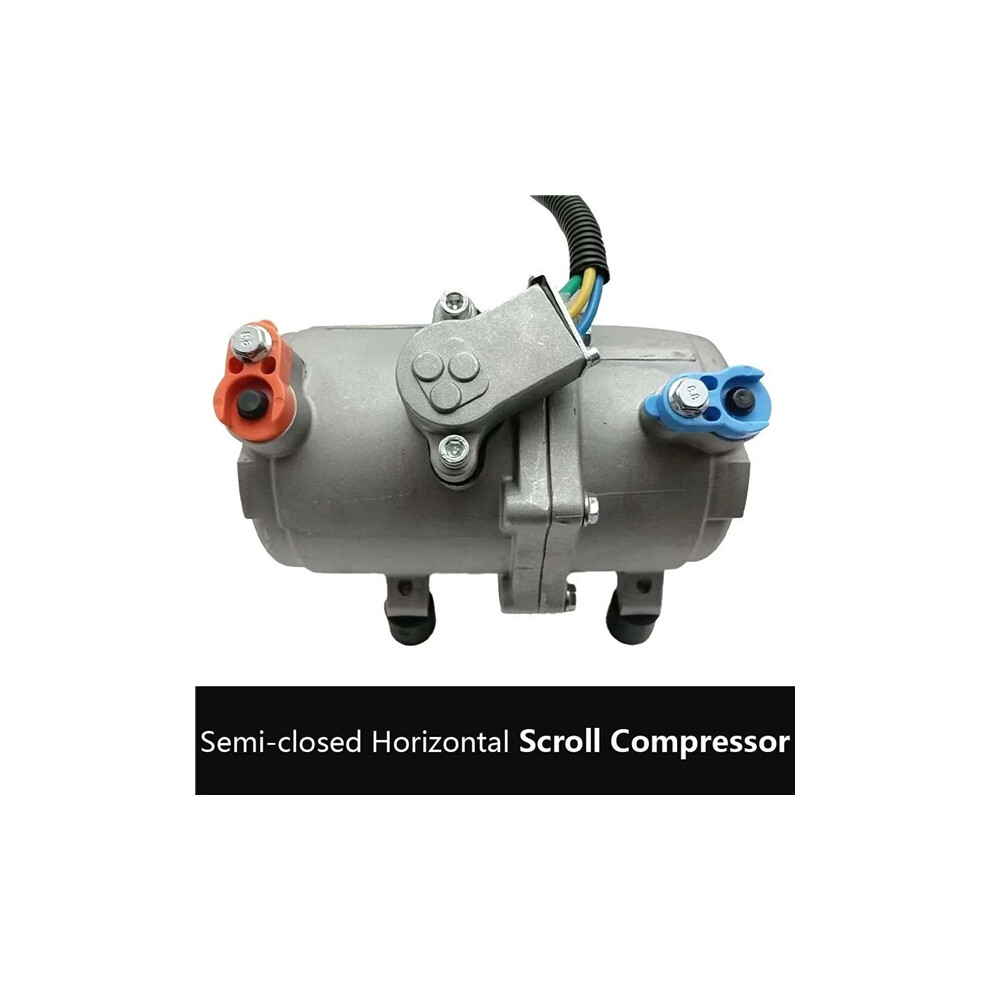

Compressor style: 12V Semi-closed Horizontal Scroll

max. applied power: 1000W

Refrigerant: R134a

max. speed (460V rating): 2100rpm

rated voltage: 12VDC

Speed range: 1000 - 2100rpm

refrigeration oil: POE oil RL68H/130ml

max. incoming current: 63A

Material:  Aluminum alloy

LED Blinking hint is special designs for the fault. during the using, some irreguar operate lead to some wrong like,Excessive current,Undervoltage,Locked rotor, Standby mode,over heated,over preasure. This Air conditioner compressor will turn to protection mode and hint by LED blinking .

Led blinking:

Blinking 1 times, pause 1 second: Standby mode.

Fast blinking 2 times, pause 1 second: Excessive current, Over 50A.

Fast blinking 3 times, pause 1 second: Locked rotor protection.

Fast blinking 4 times, pause 1 second: Undervoltage protection.

Fast blinking 6 times, pause 1 second: Electric fan fault.

Fast blinking 7 times, pause 1 second: Motor lack of phase. Please check if the motor got burnt and connection is correct or not.

Fast blinking 8 times, pause 1 second: Compressor over heated protection.

Fast blinking 9 times, pause 1 second: Pressure switch protection.

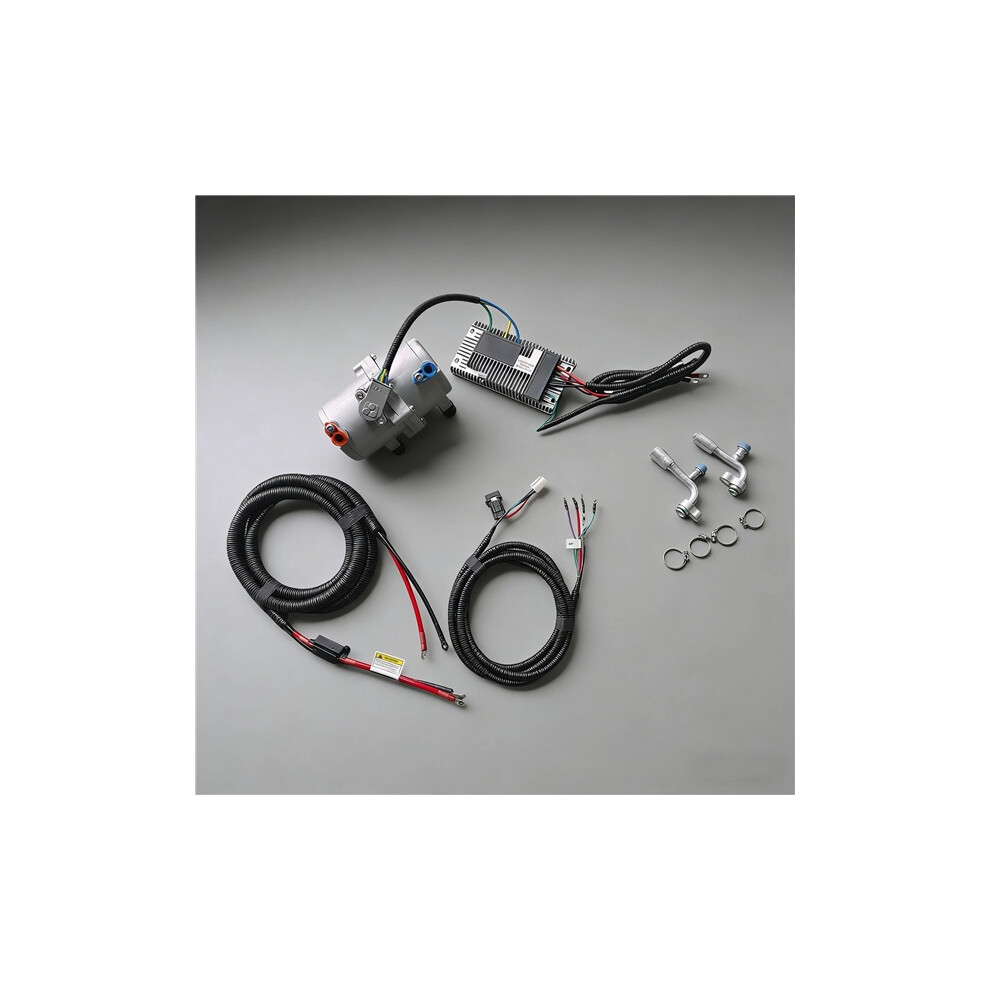

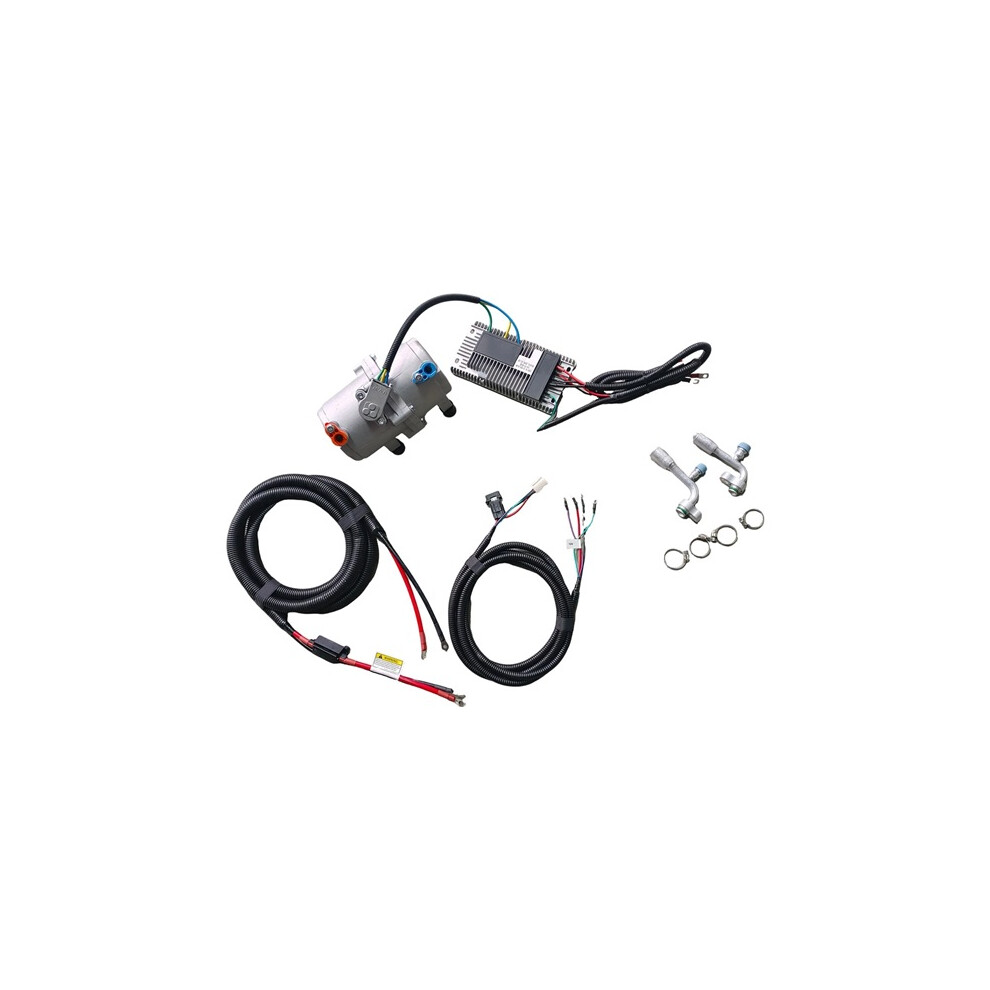

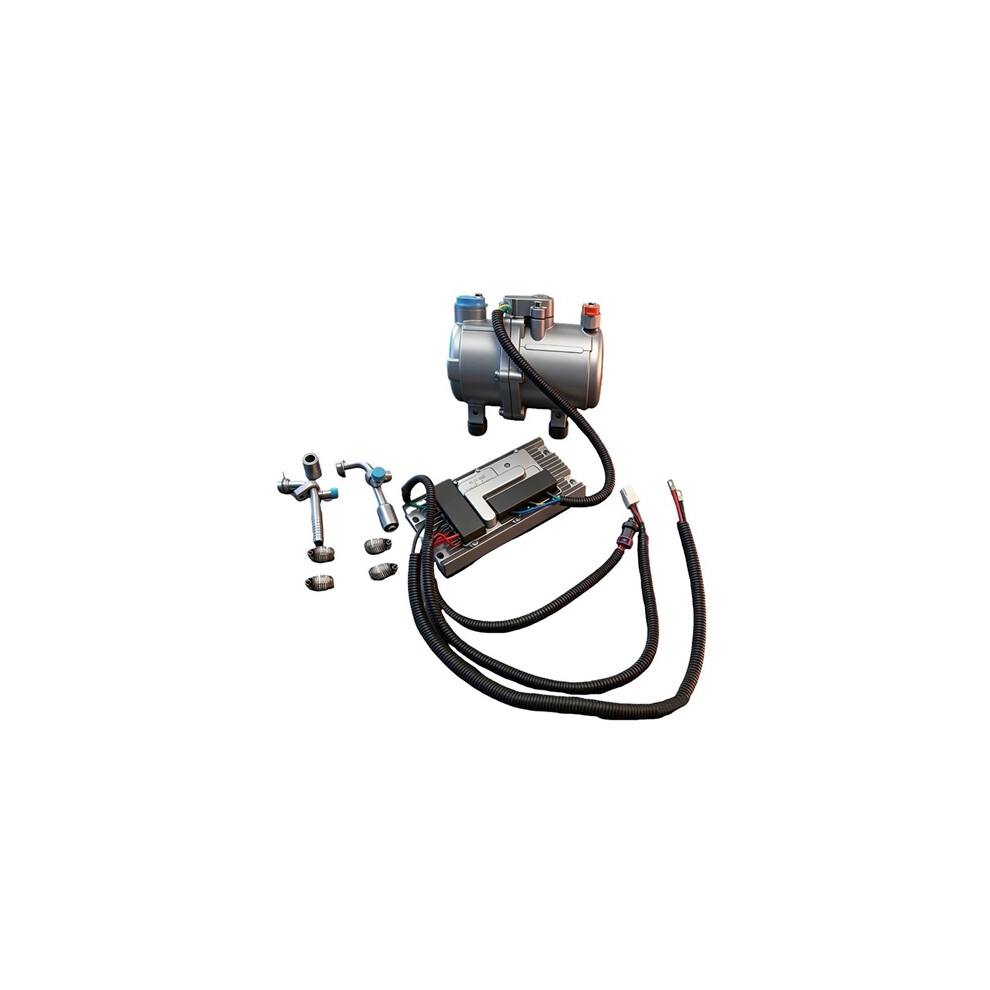

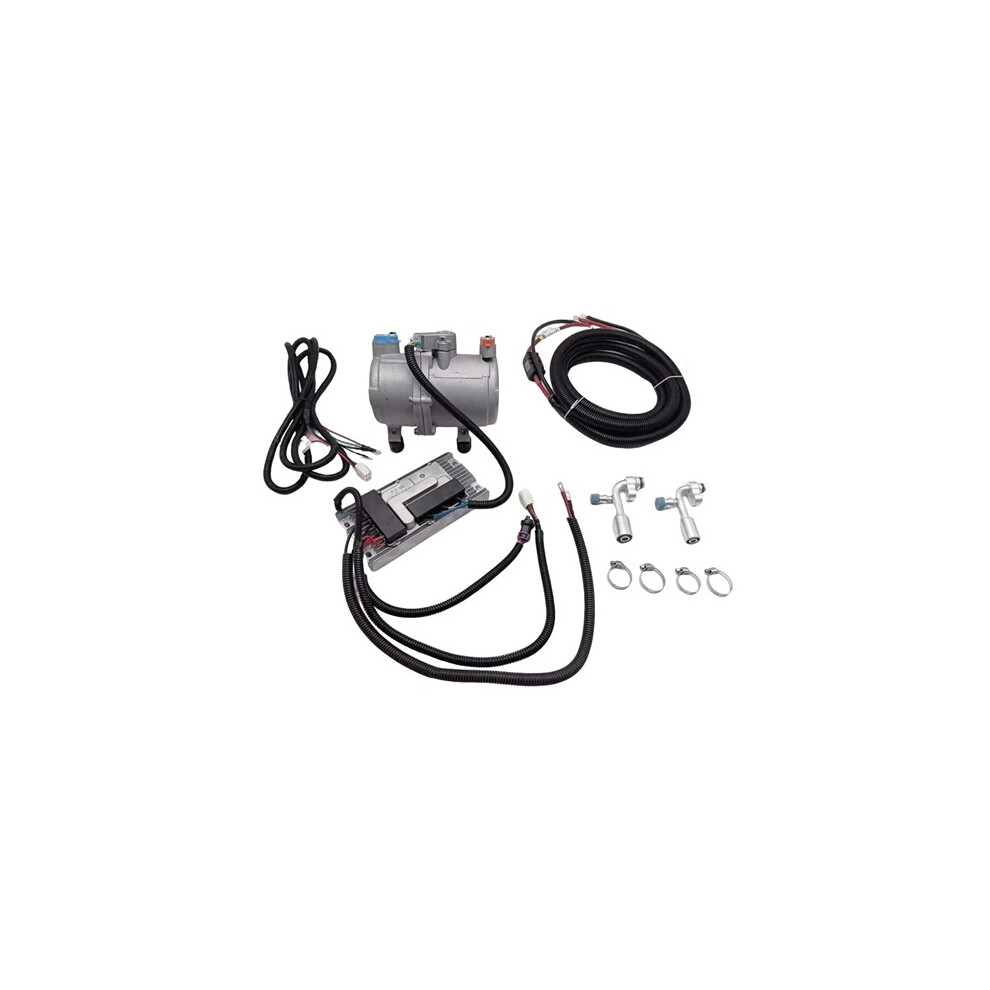

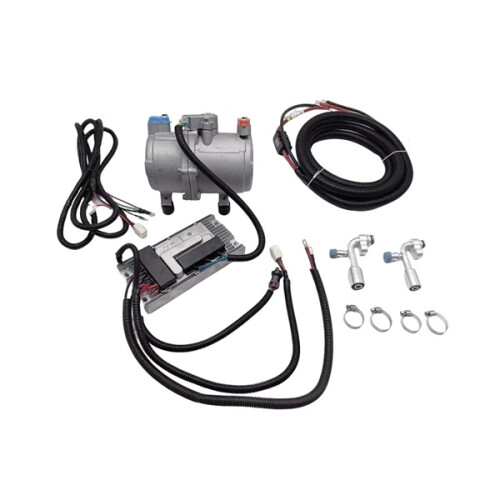

Package included:

1 x Compressor

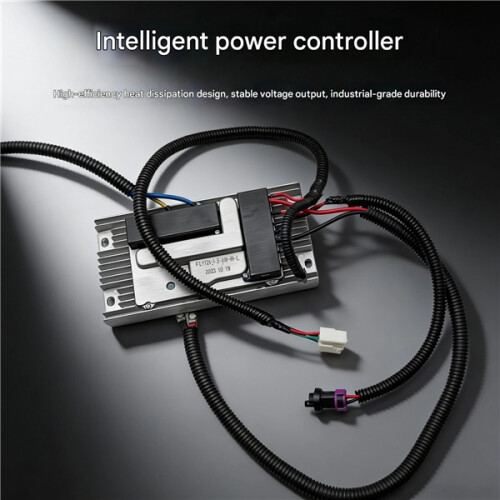

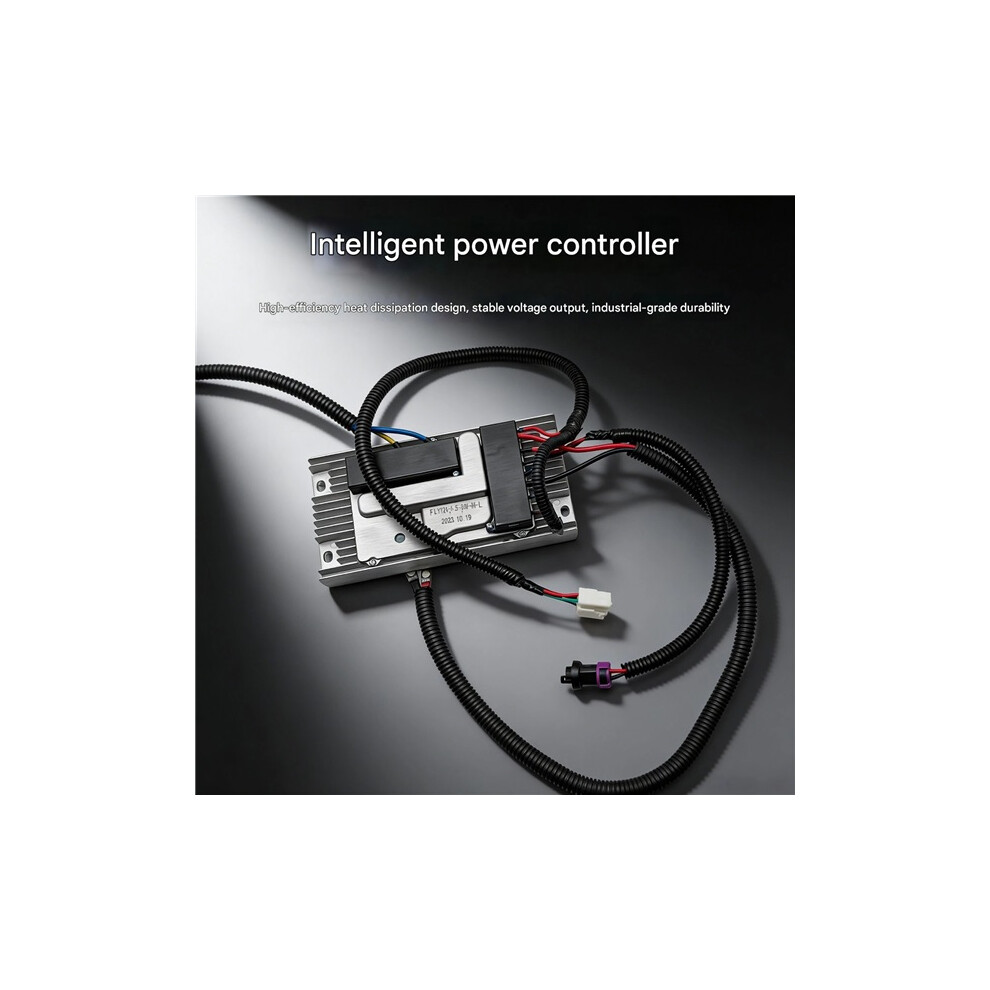

1 x Brushless controller unit

1 x Power wire1 x Evaporator wire

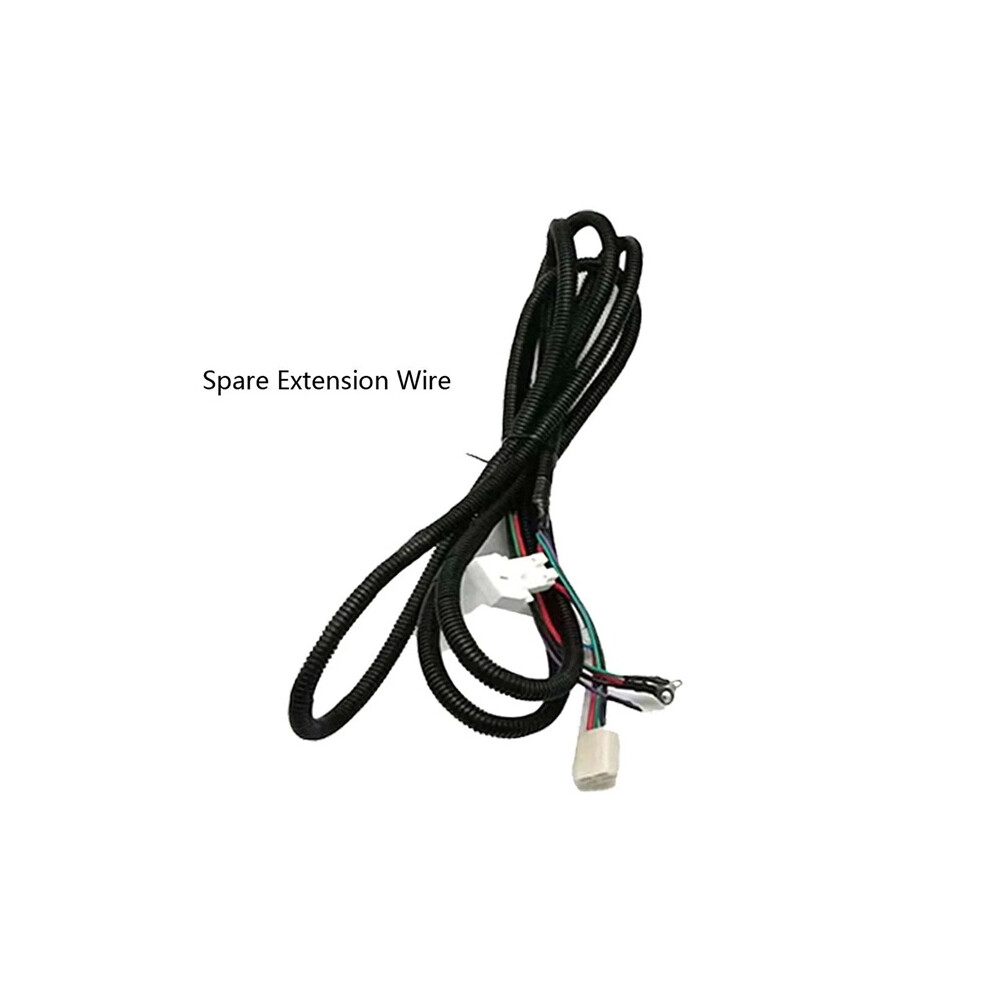

1 x Power Supply extension lines

1 x Pressure switch extension lines( Electric fan and drier are not including! )
