12V/24V To 5V USB C 5A 25W DC Converter Step-down Step Down Module Power Adapter Type C Wire Connector Electrical Equipment Part

12V/24V To 5V USB C 5A 25W DC Converter Step-down Step Down Module Power Adapter Type C Wire Connector Electrical Equipment Part Description

High-concerned chemical : None

DIY Supplies : Electrical

Origin : Mainland China

Features:

Input Voltage: DC 12V/24V, Output Voltage: DC 5V; Output Current:5A max; Output Power:25W max

24V/12V to 5V Converter Output USB C connector; Waterproof level IP68, for CE, ROHS certified；Conversion rate up to 96%

This product has reverse polarity protection at the input end. The product can automatically identify the charging device mode and handshake with the device through the corresponding USB charging protocol to obtain the maximum charging current, saving charging time while protecting the charging device

Input reverse connection protection/overload/overcurrent/low voltage/overheat and output short circuit protection

Compatible with most brands of mobile phones, tablets, and laptops,

Widely used in 5V electronic devices such as car dash cams, navigators, and electronic dogs

Specifications:

Part Name: DC-DC Converters

Color: Black

Material: Plastic

Model: F23J5V5A1S-C

Input rated voltage: 12V/24V DC

Input voltage range: 8-32V DC

Conversion efficiency: 96%

Output voltage: 5V DC

Output current: 5А

Output power: 25W

Voltage regulation: 1%

Load regulation: 5%

Ripple & noise: 30mVp-p

No-load loss: 0.15W

Operating temperature: -25C 80C

Waterproof grade: IP68

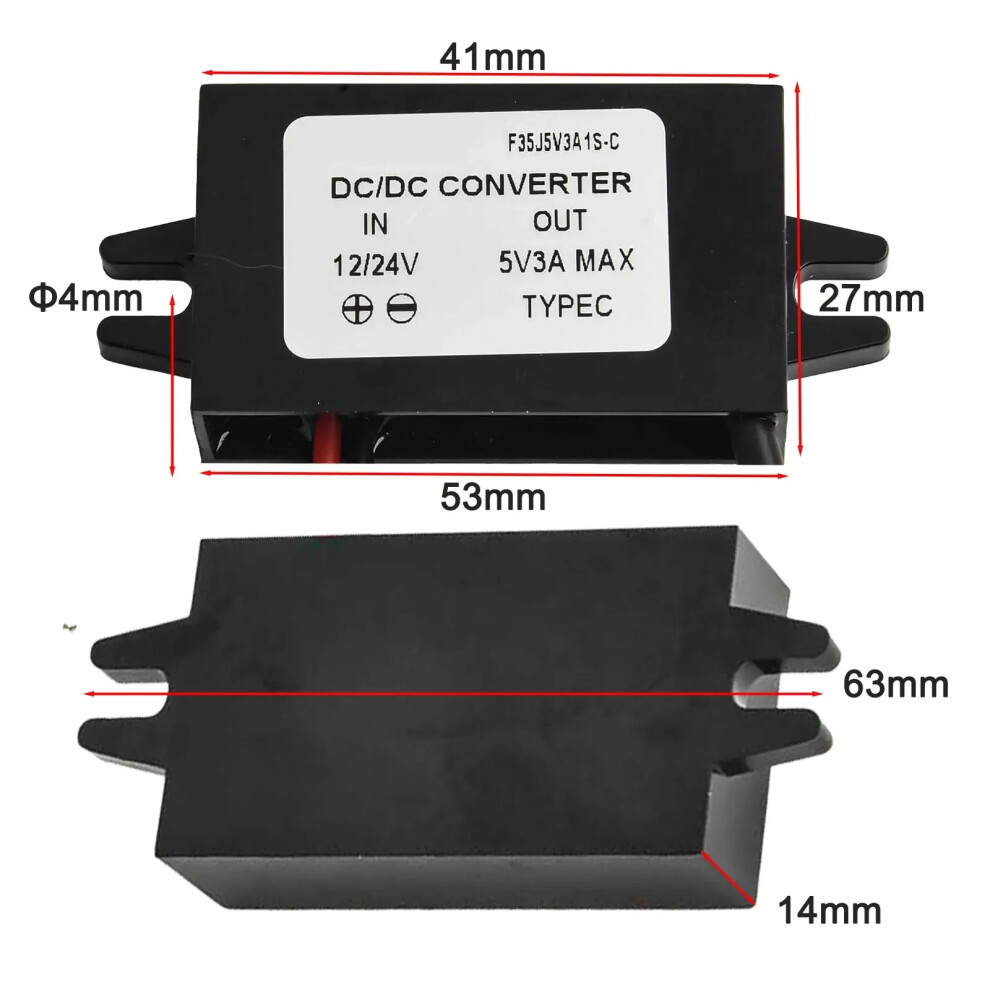

Size: 46（63）*27*14mm

Weight: 45g

Input wiring type: Wire gauge 20AWG (red positive, black negative)

Output wiring type: USB C

Package Contents:

1*DC-DC Converters

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2. Please allow slight manual measurement deviation for the data.
