12V 24V Wind Solar Hybrid Controller LCD Display MPPT Boost Charging Multifunctional LCD Wind Solar Controller GPI-6060
Item Type: Wind Solar Hybrid Controller
Material: Aluminum, IronWeight: Approx. 2216g/78.2oz

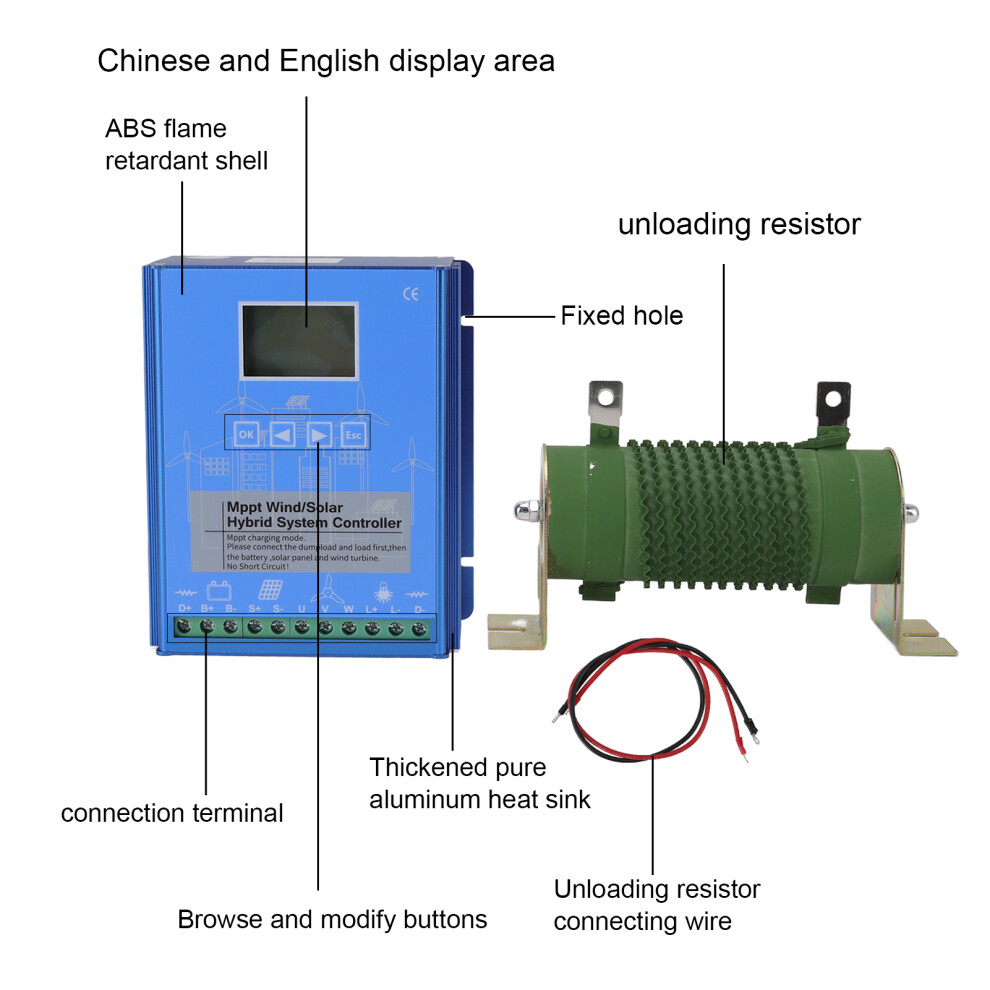

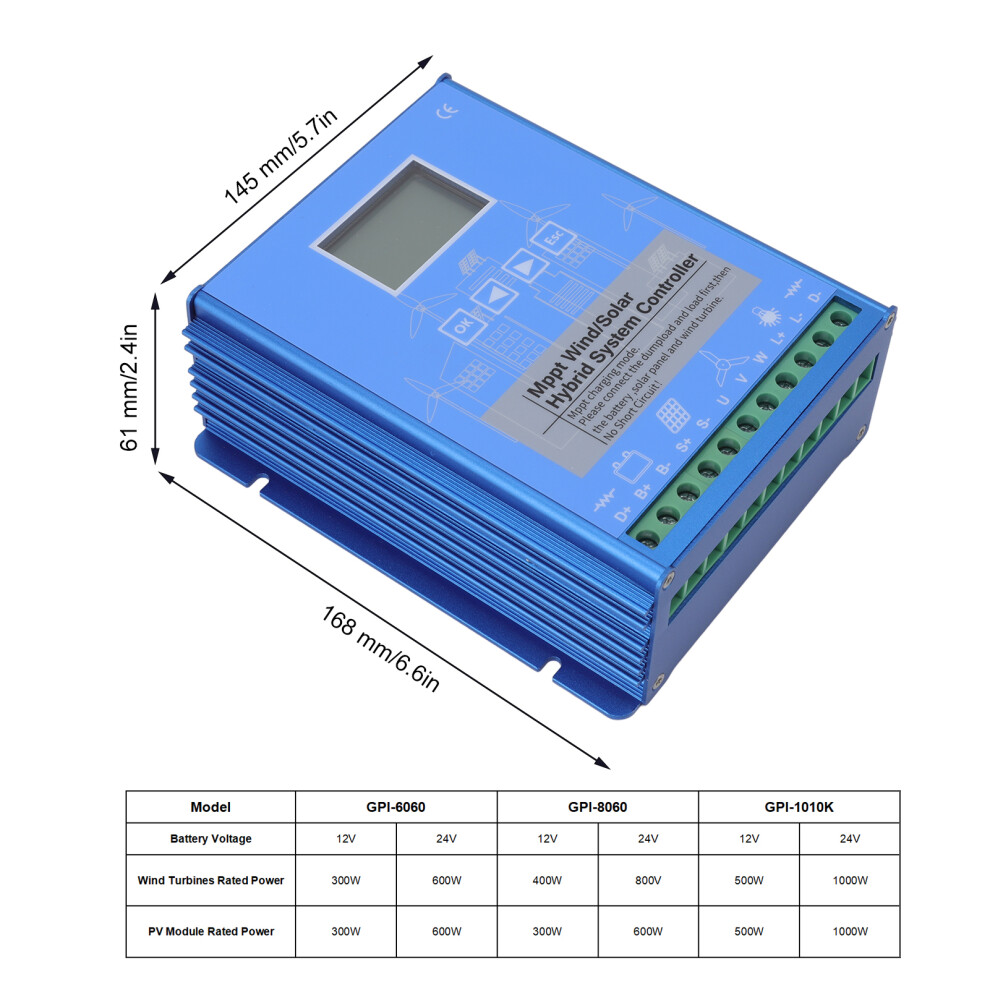

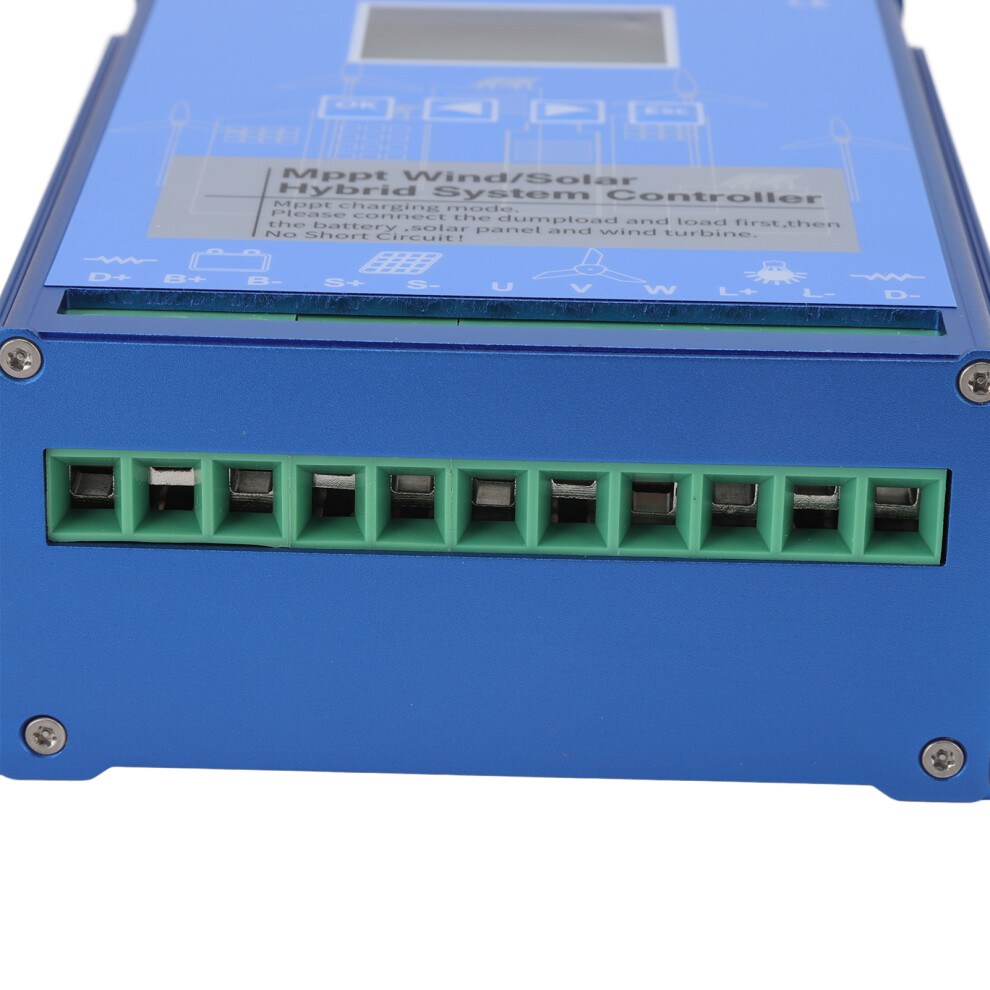

Host Size: Approx. 168x145x61mm / 6.6x5.7x2.4in
Housing Colour: Blue
Product Introduction: GPI series wind and solar power controller is designed for small off-grid wind and solar power system.
Functional features:
1. Wind turbine breeze charging, MPPT boost intelligent regulation.

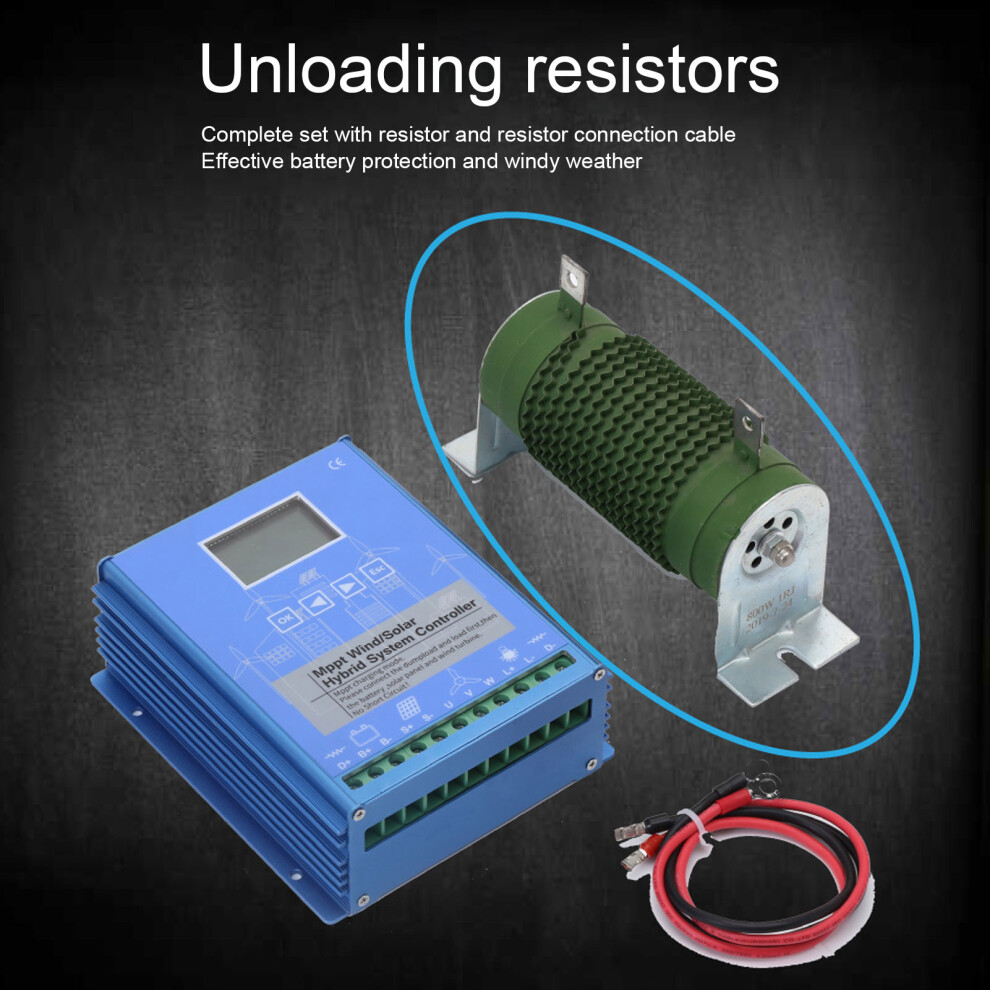

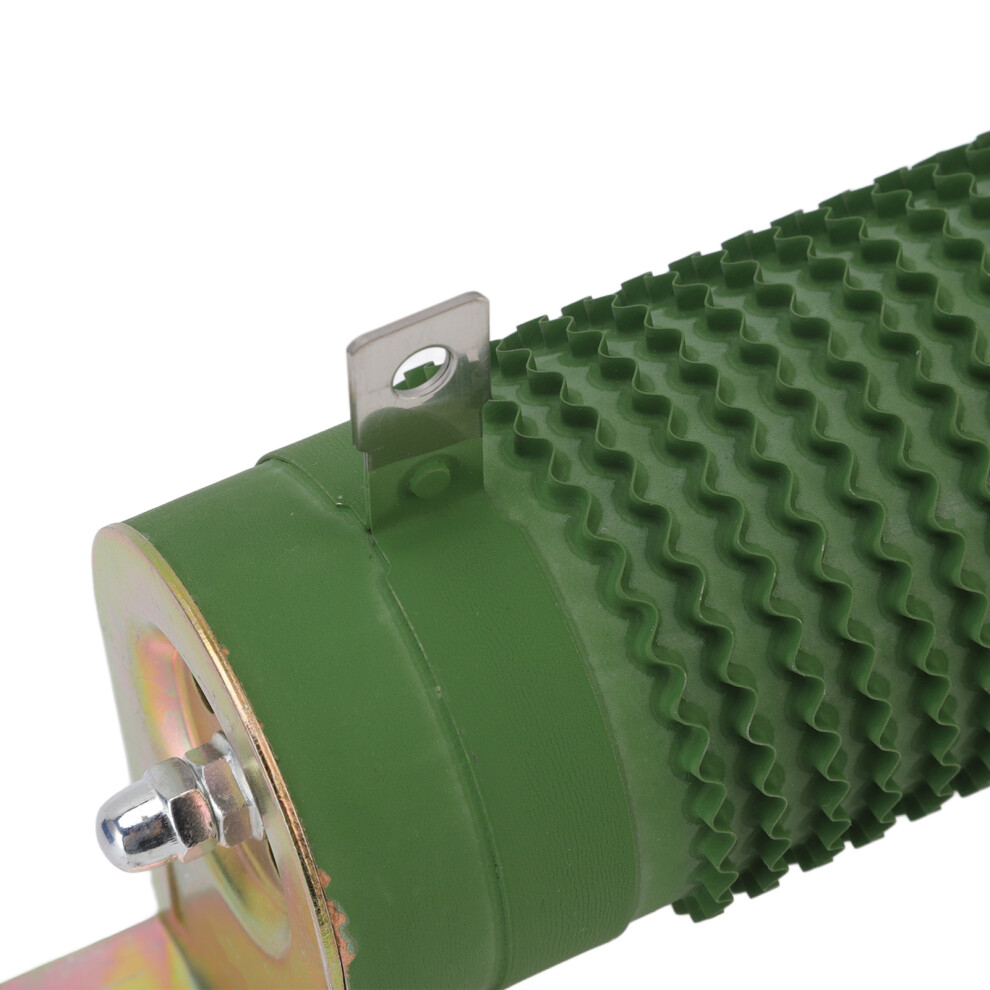

2. Wind turbine PWM infinitely unloading, external unloader, solar intelligent disconnect charging.
3. Controller dual power supply function: battery + solar power supply.

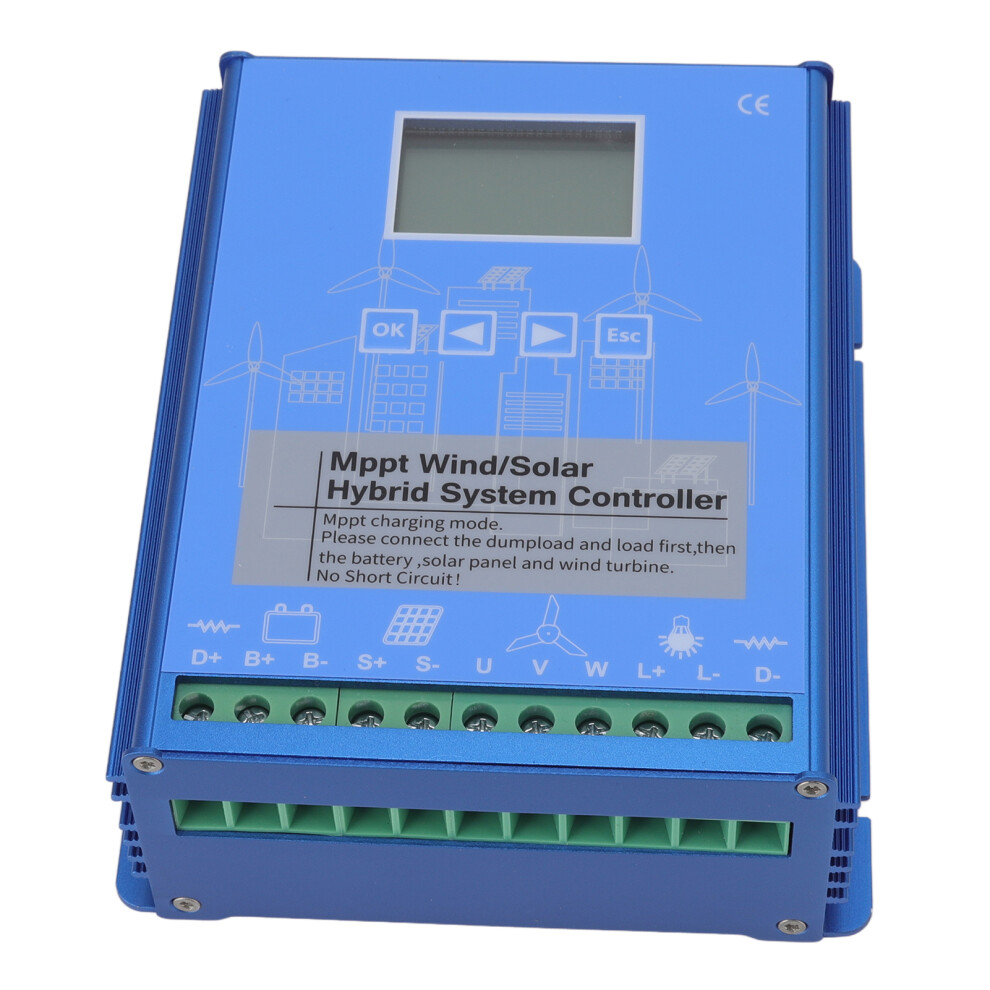

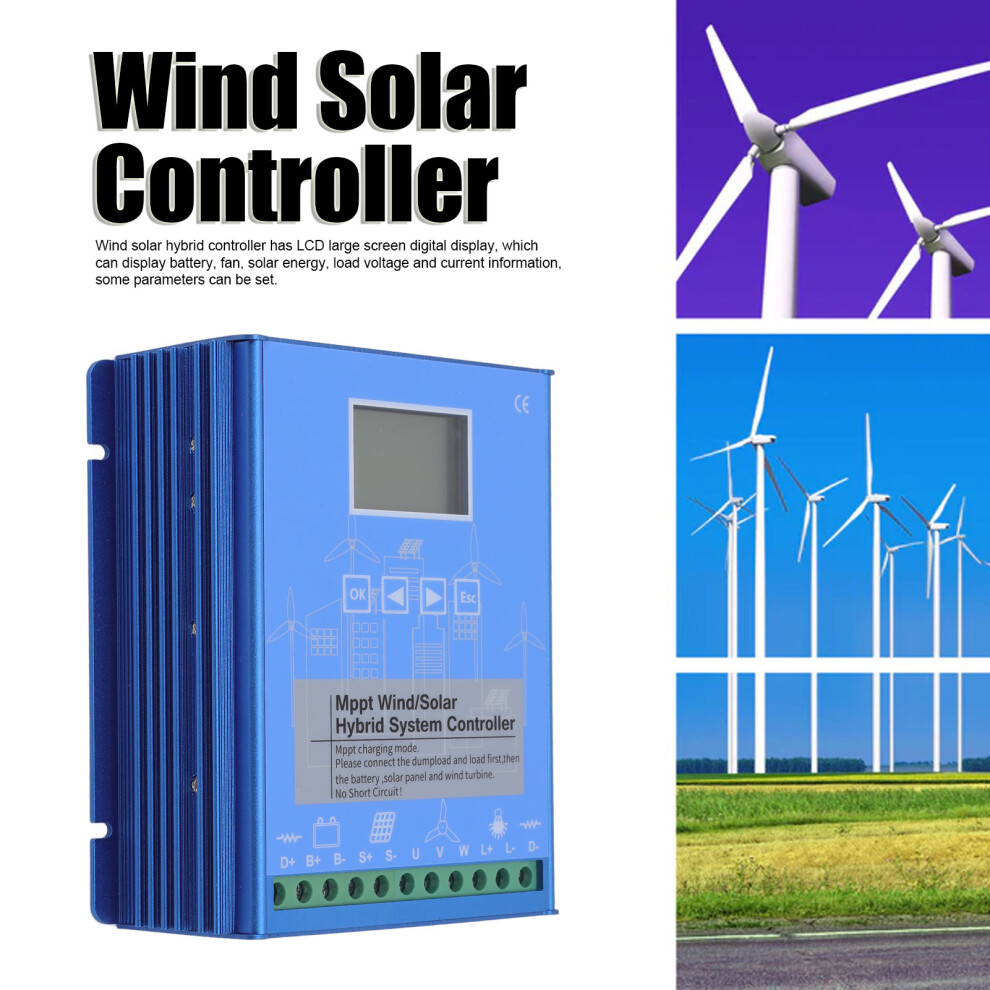

4. LCD display of battery, fan, solar energy, load voltage and current information, some parameters can be set.
5. Load output adjustable in various working modes.
6. High performance stable chip control.
7. The internal circuit board of the controller is sprayed with triple proof paint to guard against dust, moisture and static electricity.
Controller System Parameters:
System Rated Voltage: 12/24V automatic identification
Model
GPI-6060
GPI-8060
GPI-1010K
Battery Voltage
12V
24V
12V
24V
12V
24V
Wind Turbine Rated Power
300
600
400
800
500
1000
PV Module Rated Power
300
600
300
600
500
1000
Maximum Input Voltage: Wind Turbines <80V, Solar Panel <95V (12V/24V controller)
No Load Current (DC): 0.05A

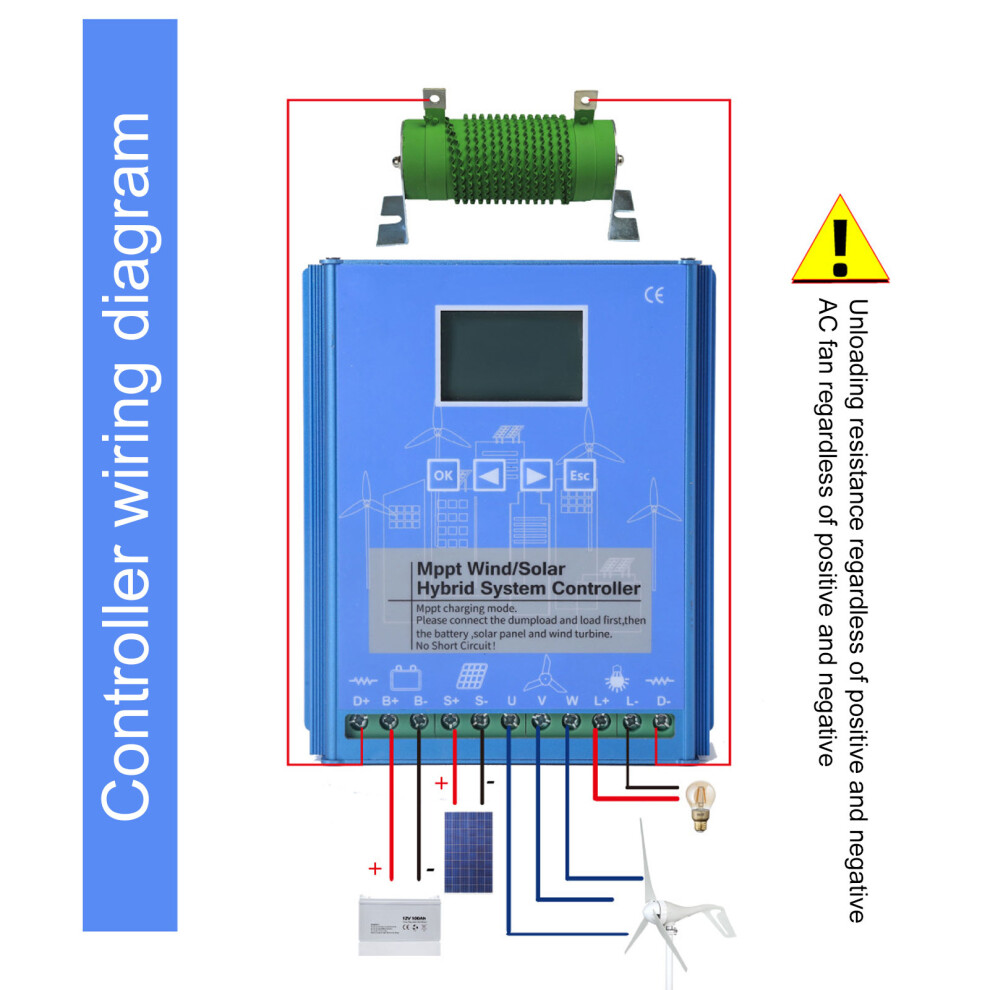

The Controller Takes Power: Battery or photovoltaic panel to take power
Control Method: Fan MPPT boost charging function, PWM unloading function, PWM overcurrent limiting function
Load: A variety of working modes are available: pure light control mode, normally open mode, light control + time control mode (four periods + morning light)
Display Mode: LCD, Chinese display, clear and intuitive
Display Parameters: Voltage, battery power, current, power, load mode, temperature, etc.
Protection Type: Solar battery anti reverse charging protection, battery open circuit protection, battery reverse connection protection, overcurrent and overvoltage soft automatic braking protection, overload protection, etc.

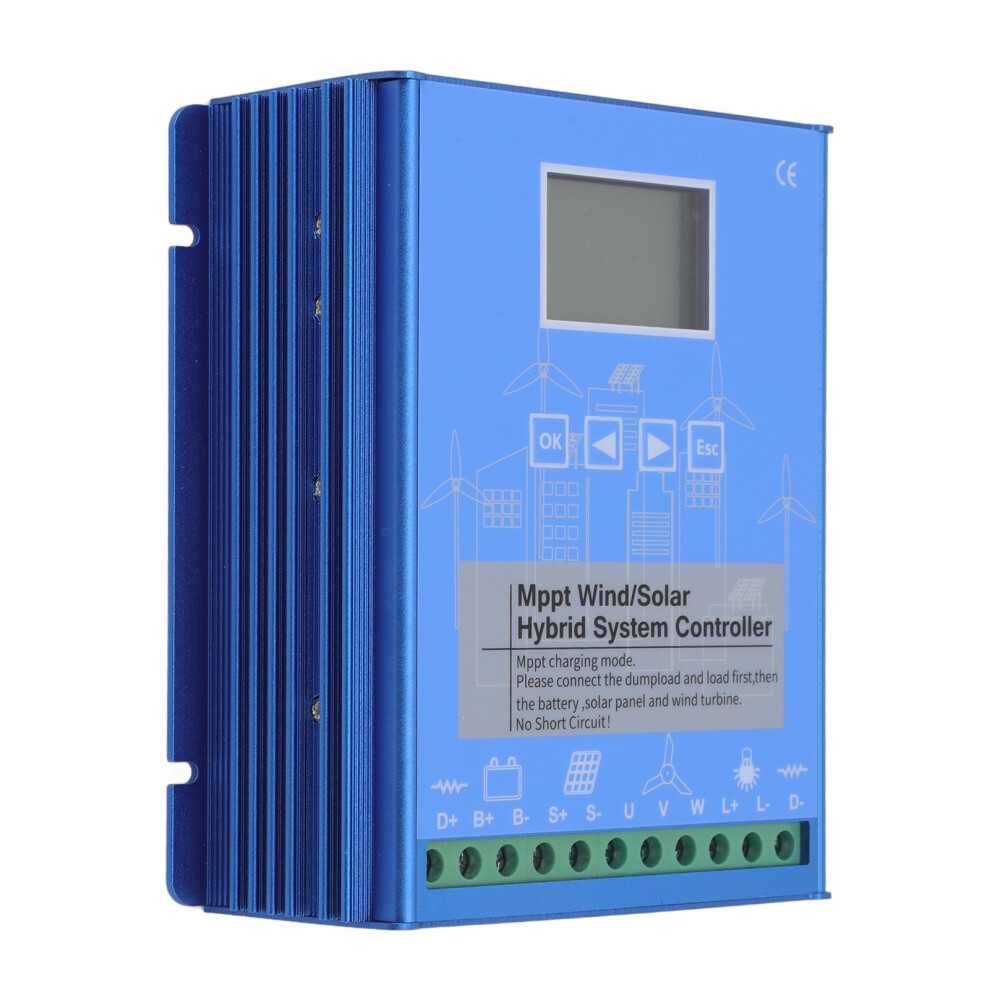

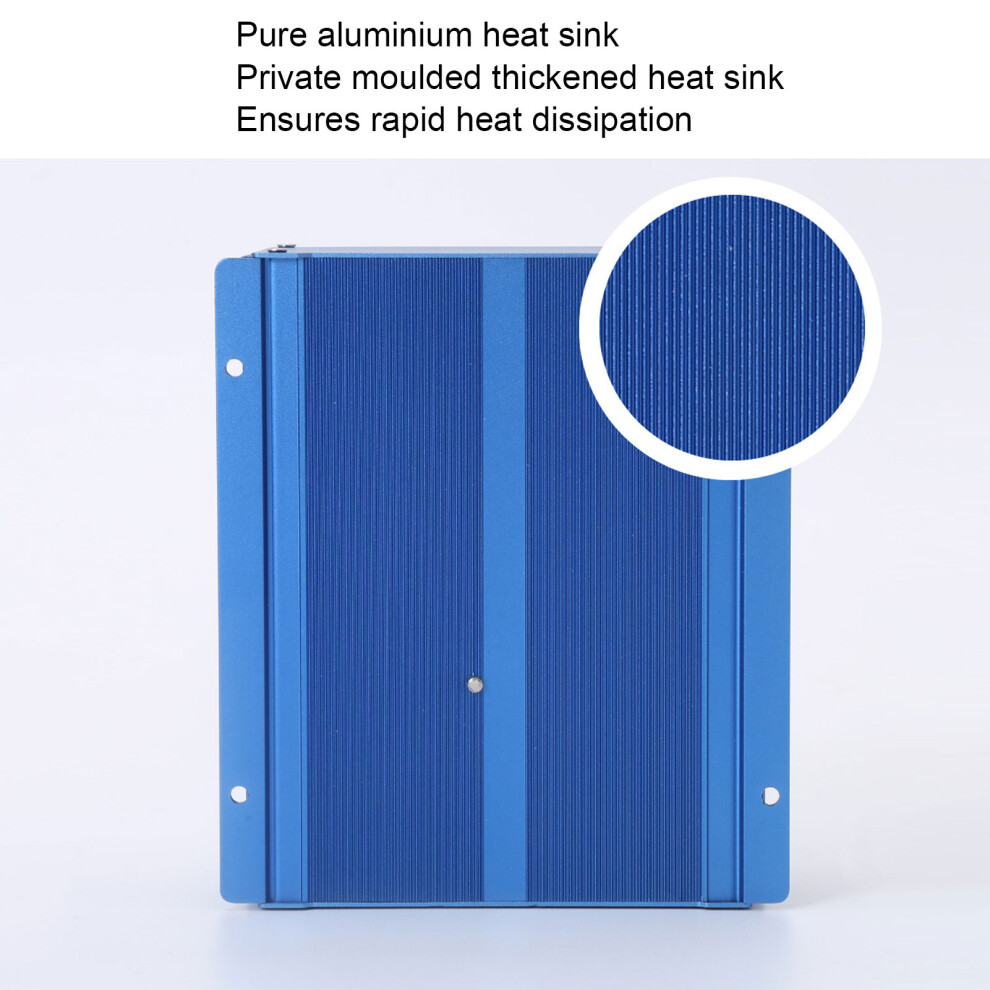

Heat Dissipation Method: Aluminum heat dissipation and self cooling
Operating Temperature And Humidity Range: -20~+55/35~85%RH (but no condensation)
Applicable Battery: General acid lithium battery

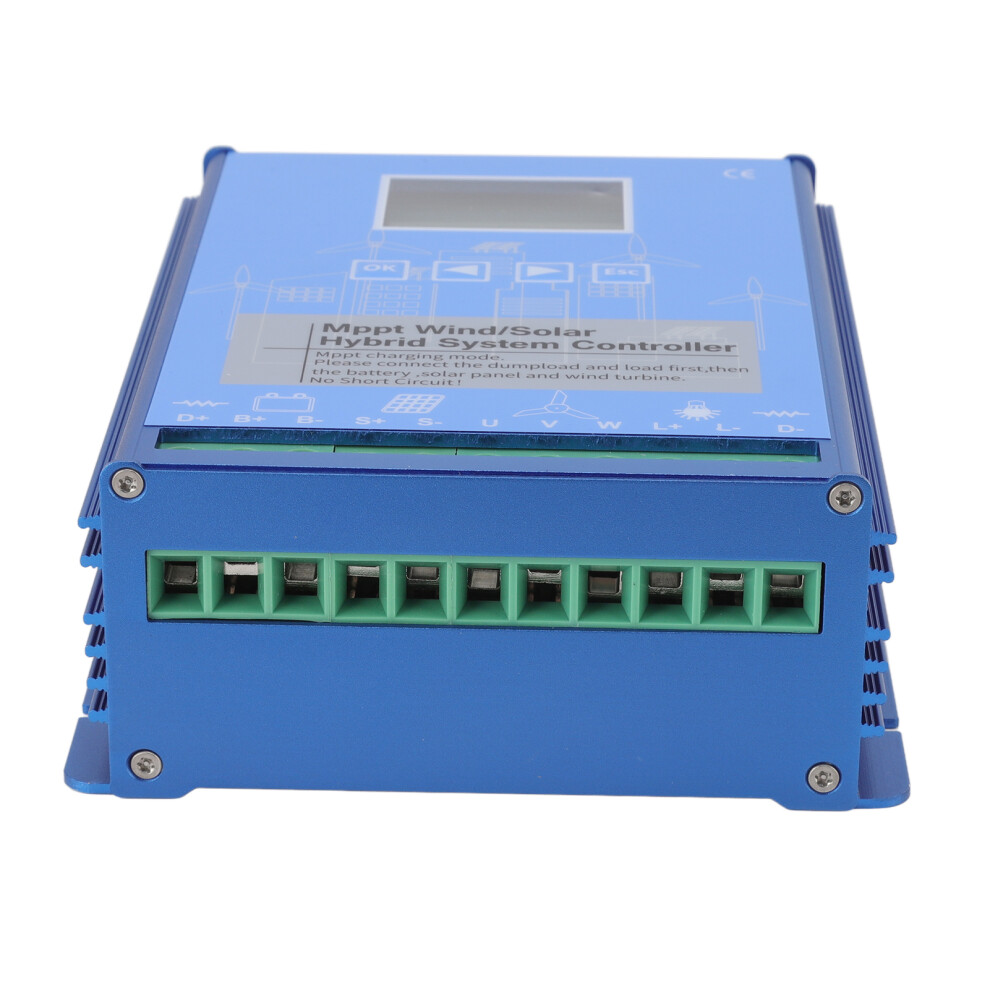

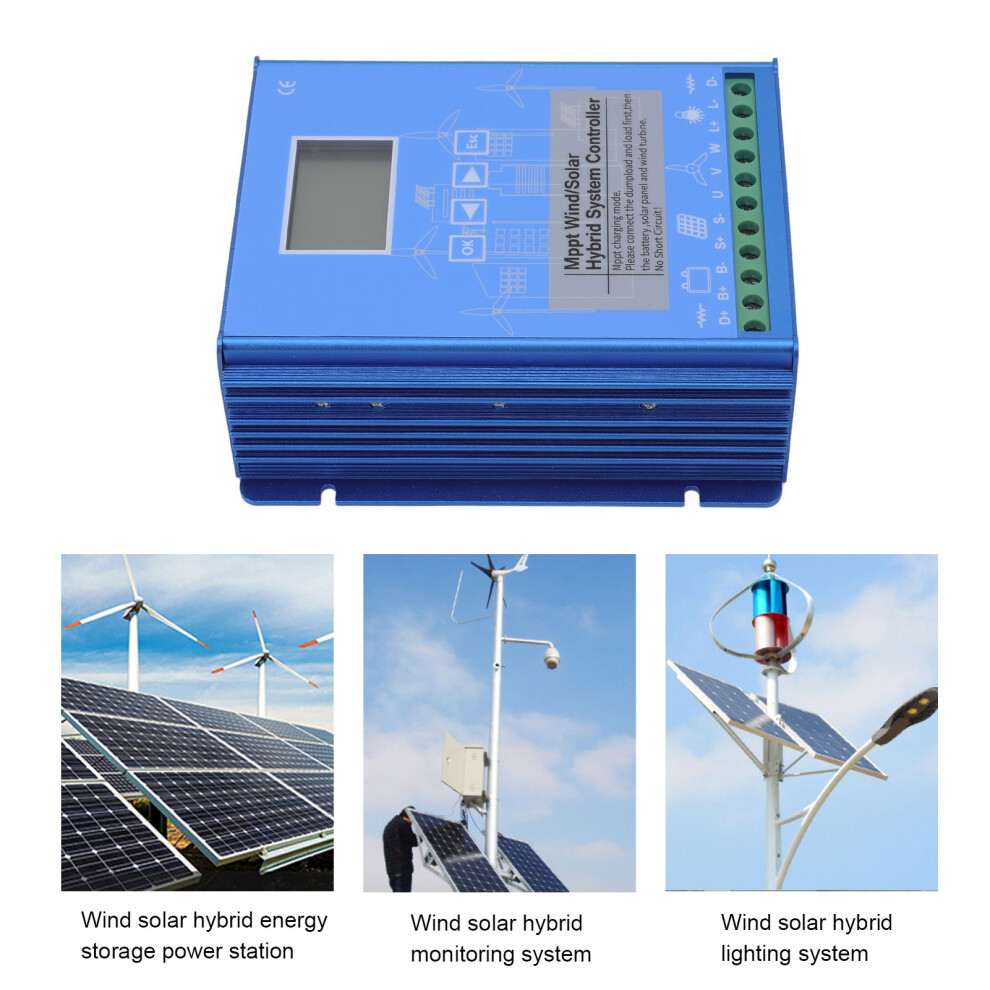

Application: Wind solar hybrid energy storage power station, wind solar hybrid monitoring system, wind solar hybrid lighting system
Failure Analysis:
When the fan is connected to the controller, the speed of the fan becomes very slow immediately?
1. The battery voltage arrive the floating charging point
2. The rated output voltage of the fan is much higher than the rated voltage of the battery, because the fan speed is proportional to the output voltage, and the fan voltage is dragged by the battery and will not be very high, so the speed will be very low
3. The unloading tube was burnt out in the wrong operation
Why does the controller unload when the LCD displays a small current value?
The controller controls the unloading by detecting parameters such as battery voltage, charging current and temperature. When the floating charging voltage point is arrived, or when high temperature protection is arrived, no matter how large the charging current is, the fan will unload.
LCD does not display?
1. The battery is in poor contact, please check the battery connection cable.
2. The battery is damaged, please check and replace the battery.
No charging current?
If the charging voltage is not arrived, the input voltage of the solar panel must be higher than the battery voltage before it can be charged. The fan needs to arrive a certain wind speed in order to generate electricity normally.
