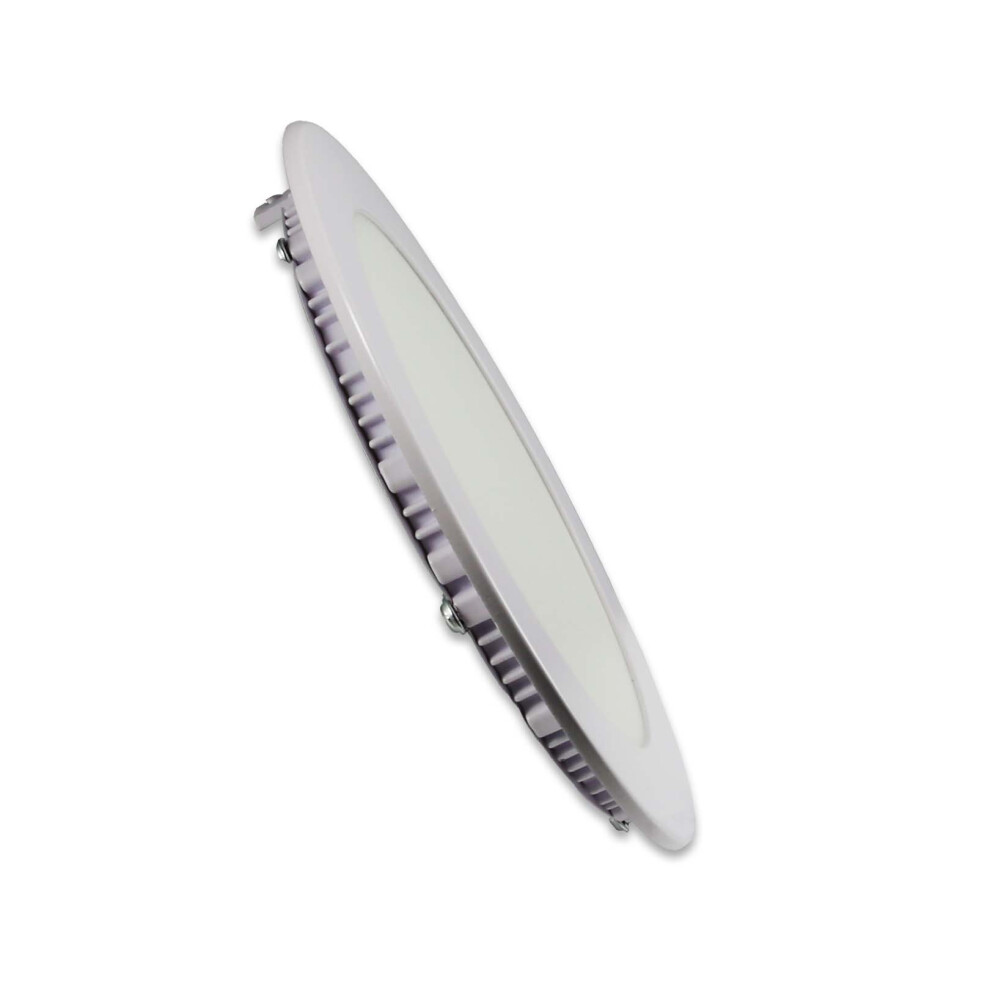

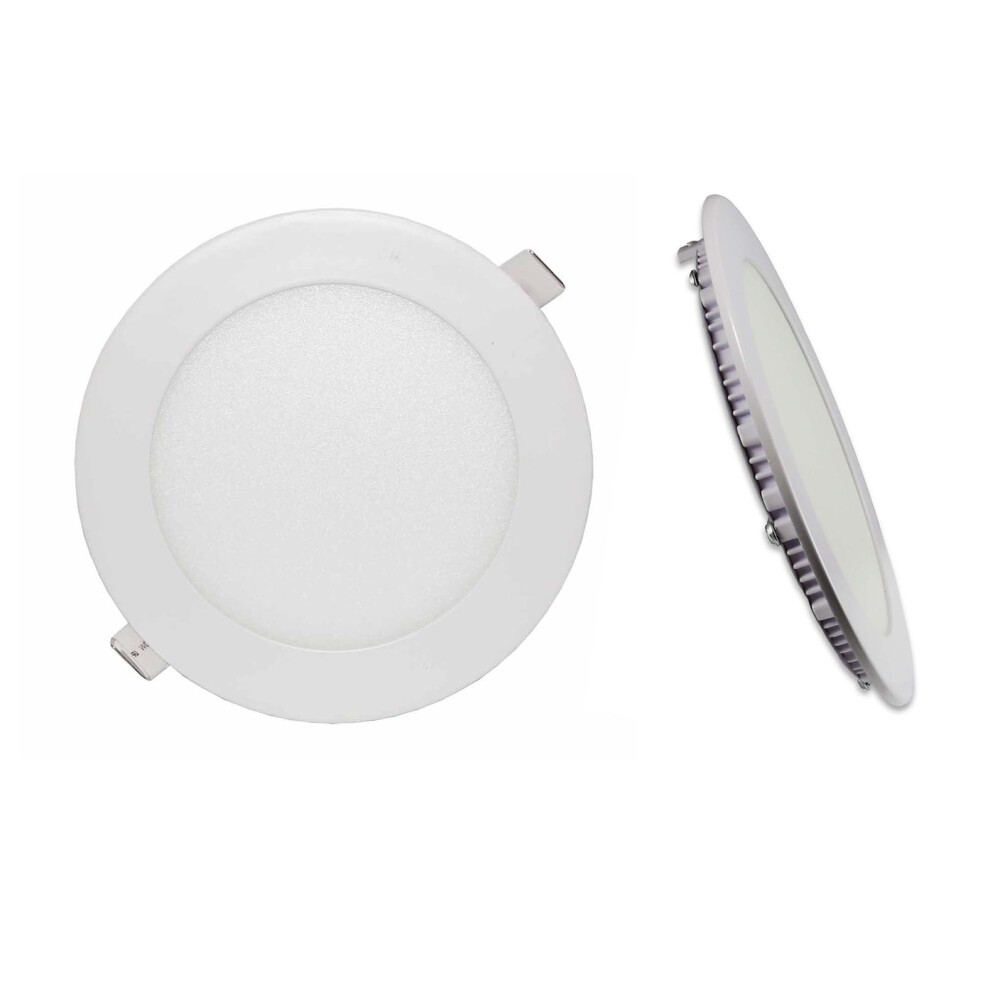

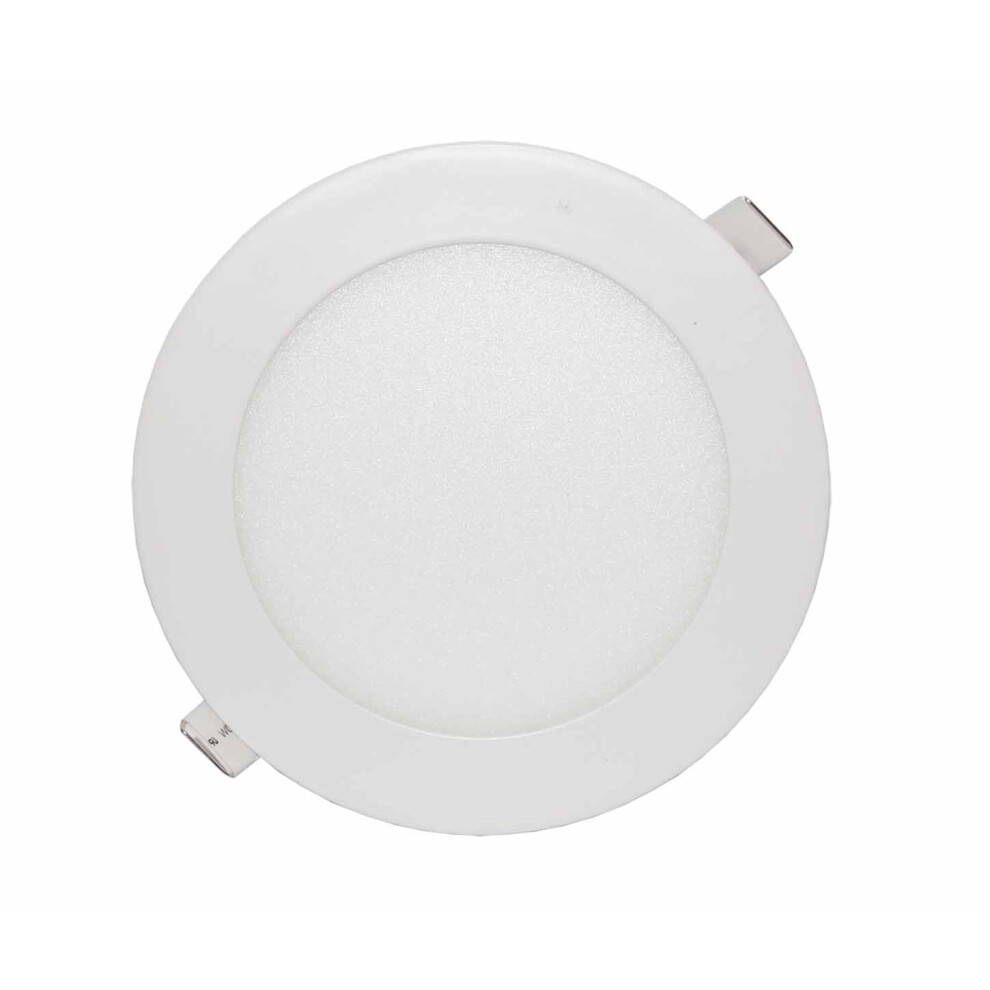

(12w Round, 4000K White) LED Ceiling Panel Light Recessed Down Lighting Bulb Round or Square

(12w Round, 4000K White) LED Ceiling Panel Light Recessed Down Lighting Bulb Round or Square Description

These energy-saving LED panel lights have a very long lifespan and come with a 3-year warranty.  LED lights have an instant start, no flashing and stable performance. Each light includes an aluminium radiator to aid heat dissipation and prolong LED life. Each light also includes an external LED driver power supply.

Our LED round panel lights are suitable for use in bathrooms/ toilets. They do have steam/ water vapour resistance and slight splashing is tolerable but these fittings are not classed as waterproof.

Each Pack Includes:-

• 1 x Boxed LED Panel Ceiling Light + Driver Transformer

General Specifications:-

• Very High 105 Lumens per watt brightness efficiency
• 50,000 - 60,000 hour life (for reference CFL lights are 8000-10,000 hour life)
• 85-265v AC input 50-60Hz
• Each panel light includes the LED driver transformer with 8-45v output
• Anti-breakage polycarbonate translucent panel, 95% light transmittance
• Slimline Depth - 12mm, (24mm incl springs)
• Even light distribution, no glare
• No RF interference & no mercury or hazardous materials
• SELV & CE

3w Round Light

• 275-300 lumens - Equivalent to 25W Halogen
• Cutout diameter - 70mm - Fits directly into most existing halogen spotlight light cutout holes
• Overall diameter - 85mm

6w Round LED Panel Light

• 550-625 lumens - Equivalent to 50W Halogen
• Cutout diameter - 110mm
• Overall diameter - 120mm

9w Round LED Panel Light

• 850-950 lumens - Equivalent to 75W Halogen
• Cutout diameter - 130mm
• Overall diameter - 150mm

12w Round LED Panel Light

• 1150-1250 lumens - Equivalent to 100W Halogen
• Cutout diameter - 160mm
• Overall diameter - 175mm

15w Round LED Panel Light

• 1450-1550 lumens - Equivalent to 125W Halogen
• Cutout diameter - 170mm
• Overall diameter - 190mm

18w Round LED Panel Light

• 1750-1850 lumens - Equivalent to 150W Halogen
• Cutout diameter - 200mm
• Overall diameter - 225mm

24w Round LED Panel Light

• 2300 lumens - Equivalent to 200W Halogen
• Cutout diameter - 282mm
• Overall diameter - 300mm

12w Square LED Panel Light

• 1160 Lumens - Equivalent to 100W Halogen
• Cutout diameter - 150mm
• Overall diameter - 170mm

18w Square LED Panel Light

• 1710Lumens - Equivalent to 150W Halogen
• Cutout diameter - 200mm
• Overall diameter - 225mm

Larger Panel Lights

Why our panel lights are now Better than Cheaper Alternatives on the Market?

• 45,000 hours long life which we have maintained with quality components. We are not trying to be the cheapest on the market! Similar products only 30,000-hour life.
• Mitsubishi Branded LGP - The LGP in panel lights is the Light Guide Plate.  It is a transparent acrylic panel made from pure PMMA resin, on whose bottom face a dot matrix is printed. The panel-light source is installed around its edges therefore the LGP performs an essential role in diffusing the light evenly across the whole upper face of the acrylic panel.  It is a key component to maximize the uniformity of light. The LGP determines the brightness. Cheaper Chinese branded LGP's will have 10% less light output compared to the Mitubishi LGP which we use our Lowenergie panel lights.  The main panel light manufacturing costs come from the LGP, not on the LED chips as maybe expected.

Features

• Instant Brightness, no flicker, no noise, uniform plane glow effect
• Long Life, reduced maintenance costs, lasts up to 5 times longer than fluorescent
• Up to 70% energy saving over fluorescent lighting, only 12-16 months payback for shop and office applications.
• E.g. Twenty 40w panels can save over £1000 of electricity per year with 7-11 operational hours.

Large LED Panel Light Specifications

All Panels

• Input Voltage 85-265V AC
• Working Life 45,000 Hours
• LED Light Source 2835 Epistar
• Brightness
• LED efficiency 108.44 Lumens per watt, whole fitting efficiency >92 lumens per watt
• Installation Recessed into ceiling grid or suspended on cables (not supplied)
• Beam angle 180 degree
• Led color index(CRI) Ra > 90
• Power factor 0.975, excellent
• IP Rating IP44
• Vapour resistance Steam and vapour resistant, suitable for use in kitchens, washrooms or changing rooms
• Materials PMMA & aluminium frame, RoHS Compliant
• Working Temperature 20-40 degrees Centigrade
• Working Humidity 30-85%
• EU Energy Label A+
• CE & EMC BS EN 60598 Passed; EMC EN 55015 passed, EN 61547, EN 61000
• RoHS Restriction of Hazardous Substances compliant
• WEEE Registered and compliant

40W Square (36w Panel & 4w Transformer)

• 3680 lumens
• 596mm x 596mm, Ultra Slim 11mm

48W Square

• 4400 lumens
• 596mm x 596mm, Ultra Slim 11mm

60W Square (56w Panel & 4w Transformer)

• 5520 lumens
• 596mm x 596mm, Ultra Slim 11mm

72W Rectangle

• 7200 lumens
• 595 x 1195mm Rectangular
