13S 48V 20A Li-Ion Lithium Cell Battery Protection

13S 48V 20A Li-Ion Lithium Cell Battery Protection Description

Continuous discharging current:20A
Instantaneous diacharge current:100A
Charging voltage:54.6V
Charging current:20A(Max.)
Over-charge detect:4.280.05V
Protect delay:100ms
Color: Silver + Green
Material: metal + PCB
Over-charge release:4.080.05V
Over-discharge:2.550.08V
Over-discharge detect delay:50mS
Release voltage:2.90.1V
Detect voltage:150mV
Detect delay:15mS
Current detect:1205A
Resistance:15mΩ
Working current:50uA
Sleep Current(when Over-discharge):10uA
Working temperature:-30~80
Size:69mm*52mm*8mm
Main function:
Over charge protection, over discharge protection function, short circuit protection
function, over current protection function,no with band-balance.

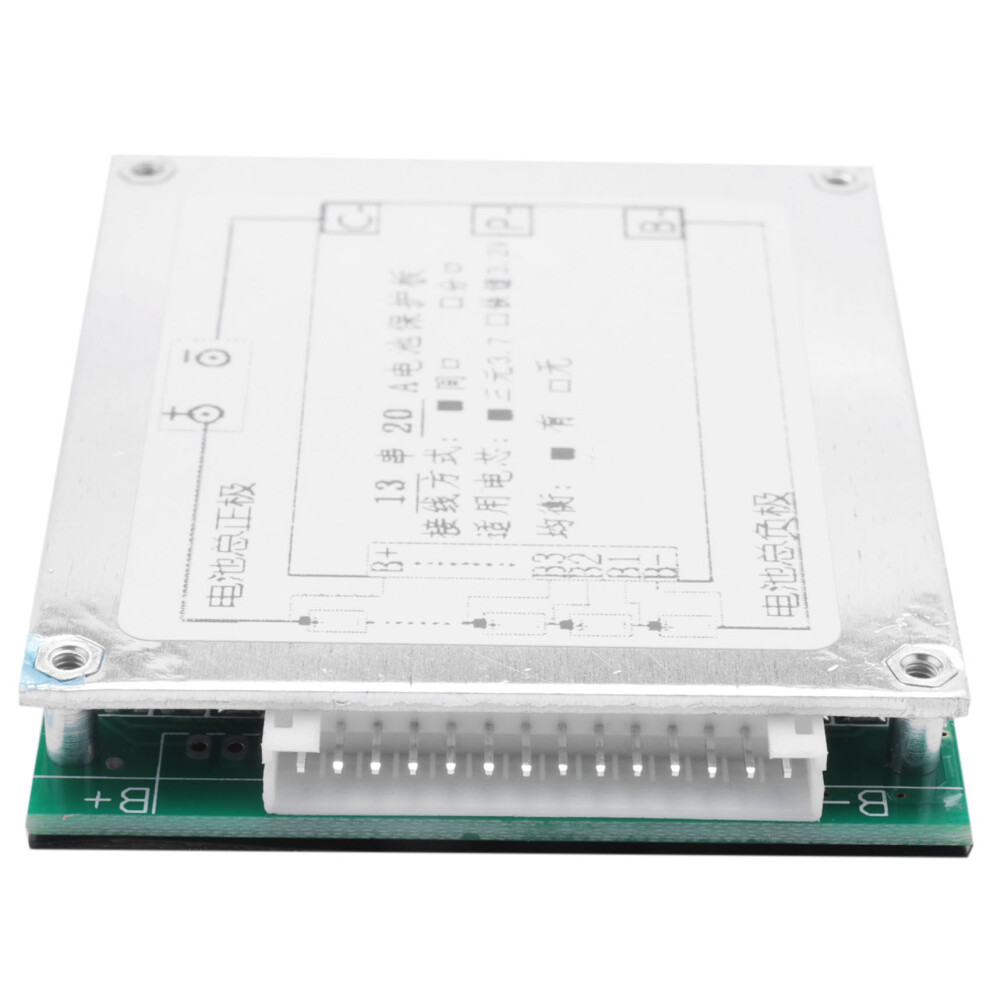

Connections:
Step1:Connect charging /discharging wire , battery pack negative wire
Step2: After confirm the wires are connected OK, plug the connector cable in the
DO NOT plug CONNECTOR CABLE in the before connect wire!!
Package include:

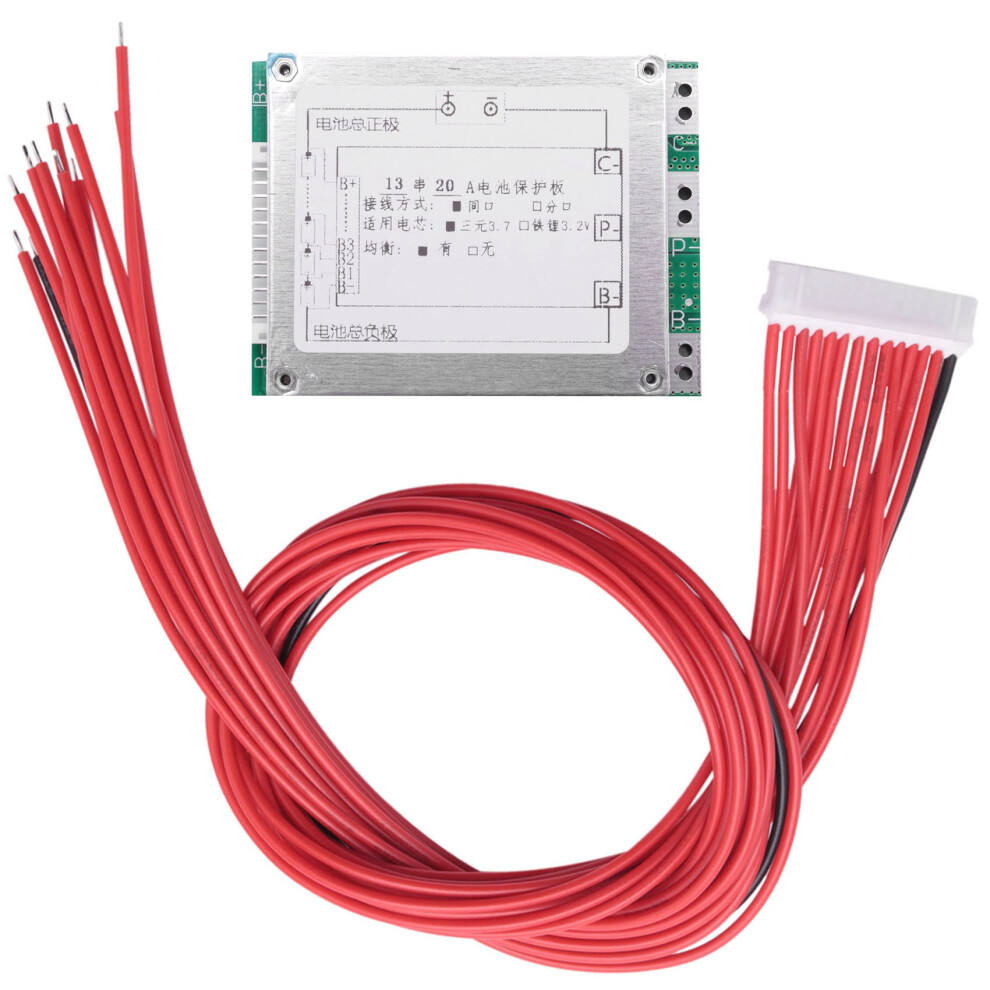

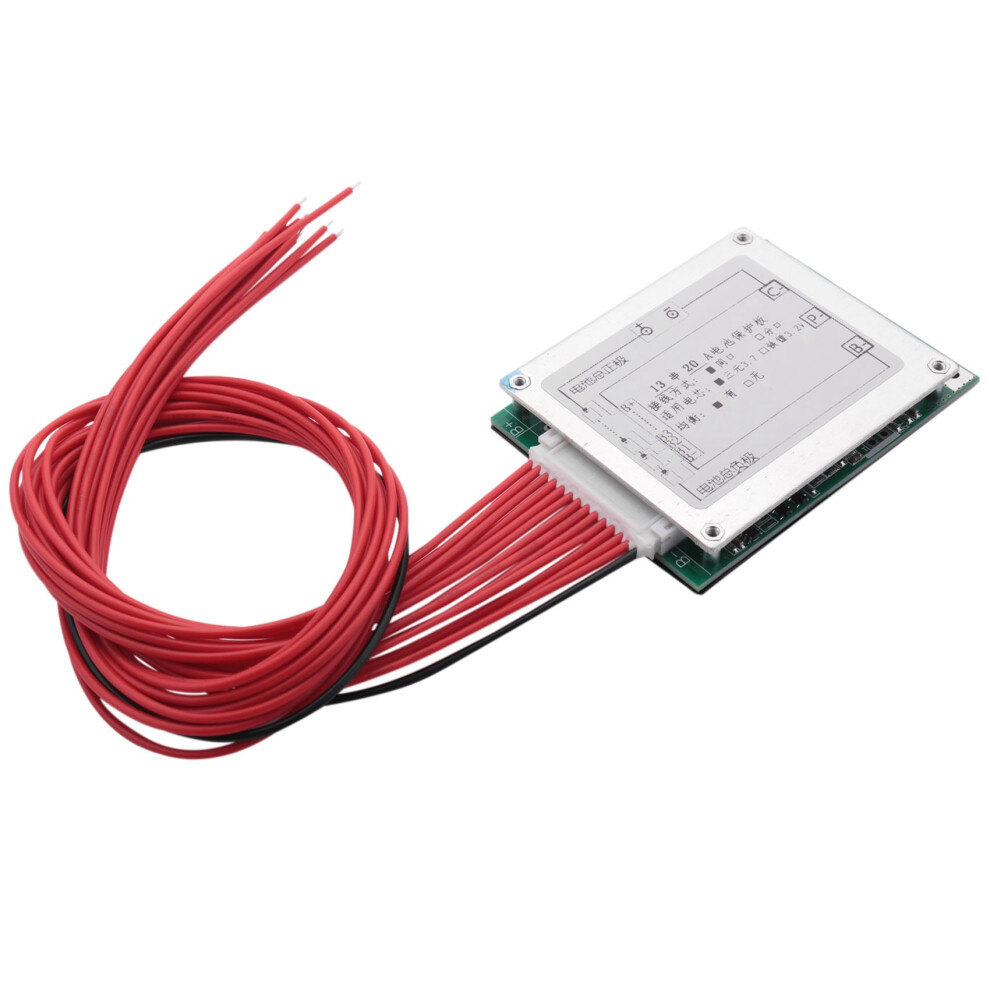

1x 13S 48V 20A Li-ion Battery Protection Board
Only the above package content, other products are not included.
