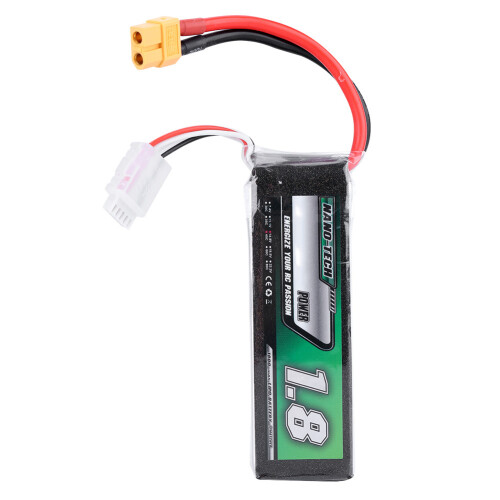

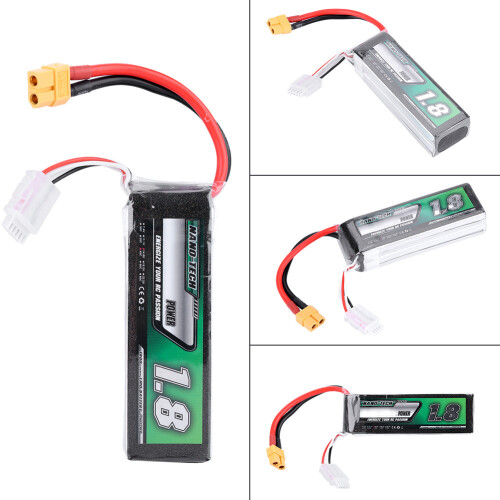

14.8V 45C 1800mAh Lithium Polymer RC Battery with XT60 Plug

14.8V 45C 1800mAh Lithium Polymer RC Battery with XT60 Plug Description

14.8V 45C Rechargeable 1800 mah Lithium Battery for Remote Control Model with XT 60 Plug

Features:



Wide applications - can be used for model car, model aircraft and model ship.


remote control model lithium battery.


Rechargeable - polymer lithium battery.


Long time use - good raw material, able for long time use.


100%&.







Specifications:


Product Type: Rechargeable Lithium Polymer Battery

Battery parameters: 1800mAh, 14.8V, 45C, XT60 plug

Instant magnification: 90C

Continuous rate: 45C


Weight: Approx 234g/8.3oz


Size: Approx 11 * 3.4 * 2.6cm/4.3 * 1.3 * 1inch

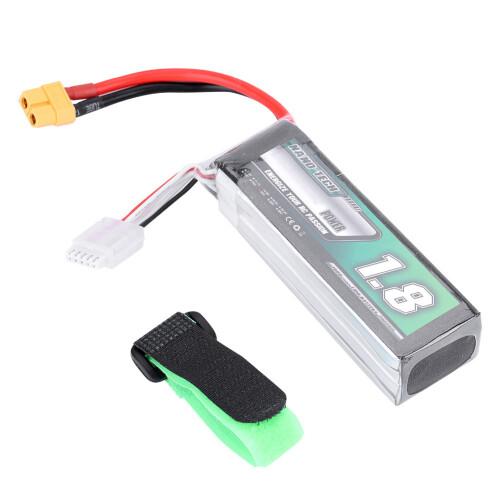

Package list:


1 * Lipo Battery

1 * Battery Cable Tie











Note:


During charging, prevents fever and flatulence to prolong battery life.

Charging current: The charging current must not exceed the specified maximum charging current.  Charging voltage: The charging voltage can't exceed the rated voltage of 4.2V battery, and 4.25 is the highest limit of charging voltage.


Charging temperature: The battery cell must be charged within the ambient temperature range of 0 to 40 Celsius. The recommended charging temperature is 232 Celsius.

Reverse charging is prohibited. Connect the positive and negative terminals of the battery correctly. Reverse charging is strictly prohibited.

Discharge

Discharge current: The discharge current must not exceed the specified maximum discharge current. Large currents will cause the cell capacity to drop sharply and cause overheating.

Discharge temperature: The battery cell must be discharged within the ambient temperature range of -10 to 40 Celsius. It is recommended that the discharge temperature be 232 Celsius.

Over-discharge: It should be noted that during the long-term unused period of the battery, it may be in some over-discharge state with other self-discharge characteristics. To prevent over-discharge, the battery should be periodically charged to maintain its voltage between 3.6-3.9V.


Step: Before the battery is quickly charged, it should be pre-charged for 15~30 minutes with a small current (0.01C), so that the voltage of each cell reaches 3V or more, and then charge quickly.

Storage

The battery storage temperature must be stored in the range of -20C~40 Celsius for a long time (more than 3 months) and should be placed in an environment with a temperature of 235 Celsius and a humidity of 6520% RH.

Storage voltage is 3.6V~-3.9V

Aluminum foil packaging materials are easily damaged by sharp parts, such as nickel sheets and sharp needles!

Do not use sharp parts to collide with the battery!

When taking the discharge core, please shorten the nail or put on the glove!

The working environment should be cleaned to avoid the presence of sharp objects!
