1.5-4.5G High Linear Low Noise Passive Diode Mixer

New

In stock

Smart shoppers OnBuy it!

  • Earn Cashback on every purchase – spend it instantly on your next order
  • Free delivery – on millions of items across the site
  • Customers love us – 126,000 Trustpilot reviews and an 'Excellent' rating

See full product description & details

£10.72
£20.42 48% off!
FREE Delivery
1% What is instant Cashback? Learn More
Add to Basket

Interest-free payment options available

Sold by SkyDome Trek Gear
Professional Seller
Visit store
151 orders

See full product description & details

Delivery: Standard (Free) | Tue 23rd - Sat 27th Jun

Returns: 30 days

180-day payment protection

Add to Basket
Description & Details

Summary

  • 1.5-4.5G High Linear Low Noise Passive Mixer Diode Double Balanced Mixer

1.5-4.5G High Linear Low Noise Passive Diode Mixer Description

1、The mixer has the advantage of high isolation 2、The passive mixers adopt mini components design,compact and light weight 3、Passive Mixer has low conversion loss of 8.5 dB 4、GaAs Schottky diode and novel in-plane transformer chip barron structure are used. 5、It can be used as up-converter, down-converter, two-phase modulator and demodulator or phase comparator.
Features:
The mixer has the advantage of high isolation
The passive mixers adopt mini components design,compact and light weight
Passive Mixer has low conversion loss of 8.5 dB
GaAs Schottky diode and novel in-plane transformer chip barron structure are used.
It can be used as up-converter, down-converter, two-phase modulator and demodulator or phase comparator.
Specification:
Conversion loss: 8.5db
LO to RF isolation: 40 dB
LO to IF isolation: 35dB.
Frequency range, RF and LO: 1.5-4.5GHz
Frequency range, IF: dc-1.5GHz
1dB gain compression (input) : 8dBm
IP3 (input) : 18dBm
Weight: Approx.10g/0.4oz
Package list:
1 x Passive Mixer

Details

OPC PM567GC
Codes 323163242583 (UPC)

Product Images

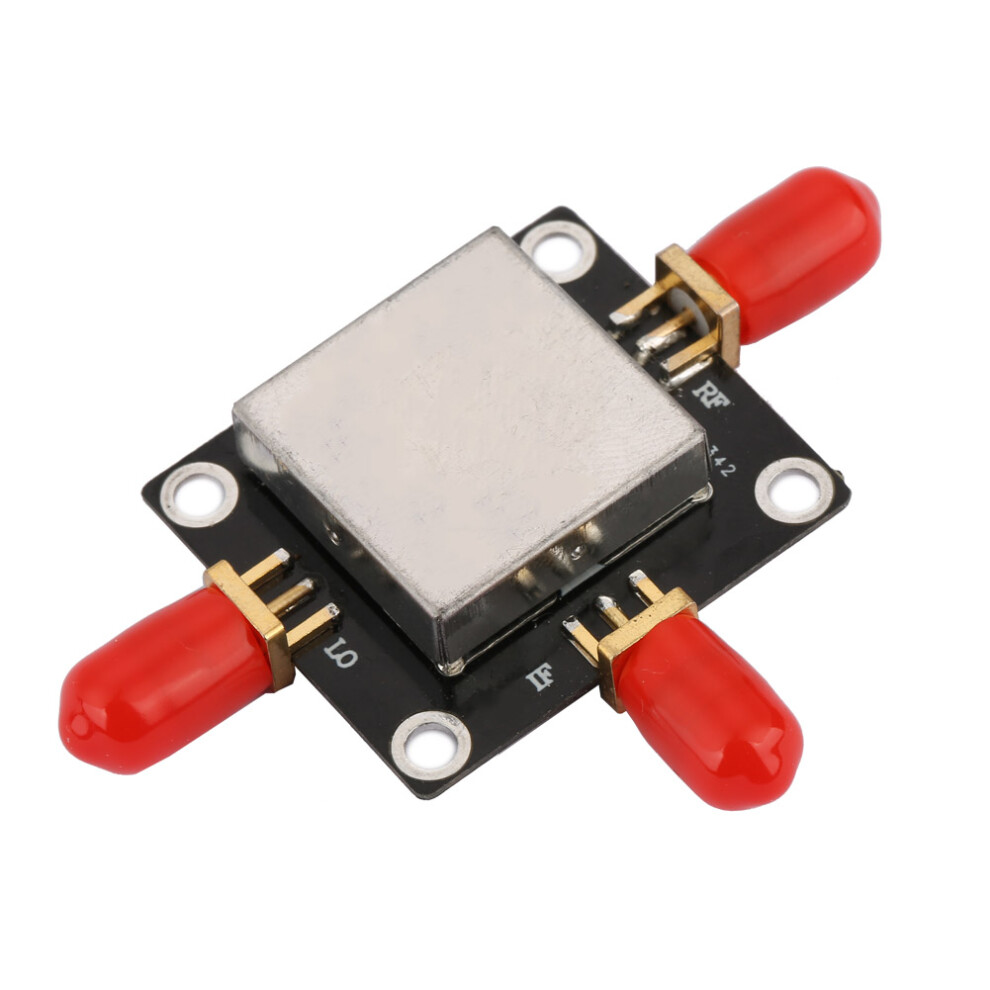

1.5-4.5G High Linear Low Noise Passive Diode Mixer 1

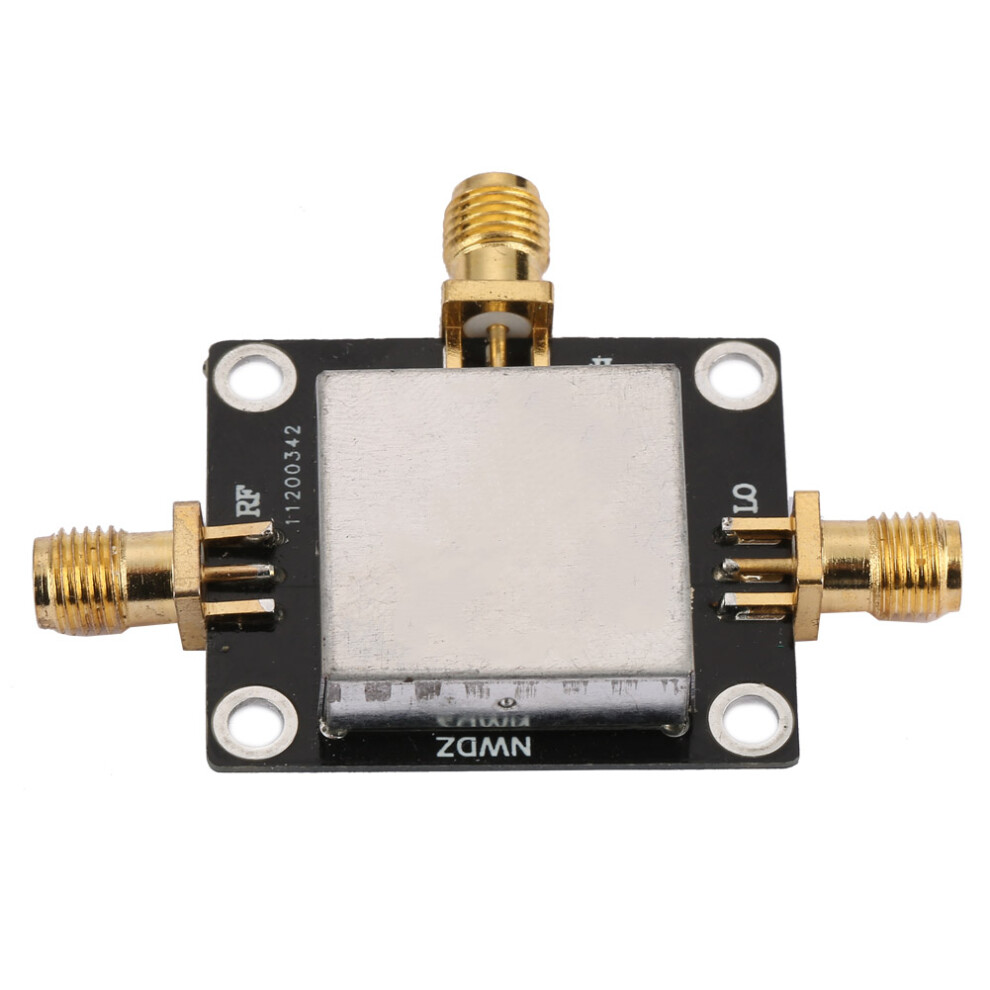

1.5-4.5G High Linear Low Noise Passive Diode Mixer 2

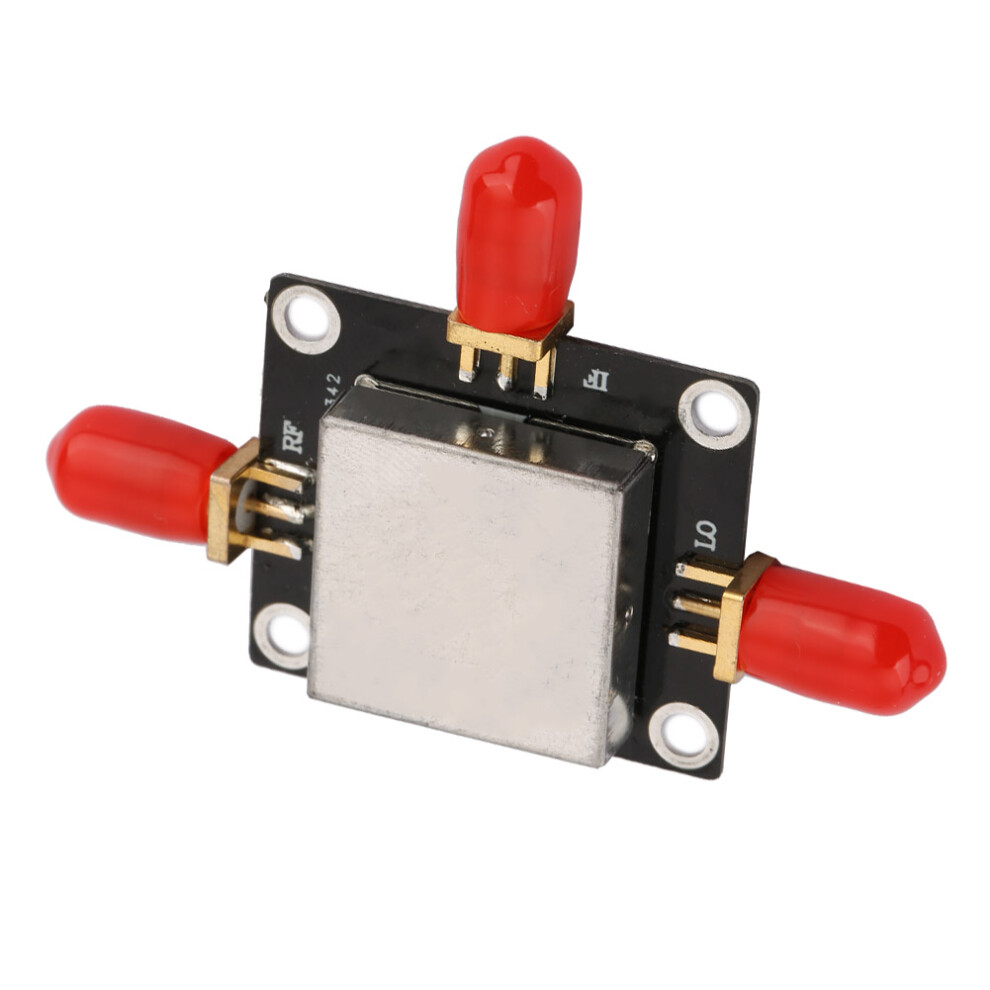

1.5-4.5G High Linear Low Noise Passive Diode Mixer
