1500μs/ 330hz 360 Continuous Rotation

1500μs/ 330hz 360 Continuous Rotation Description

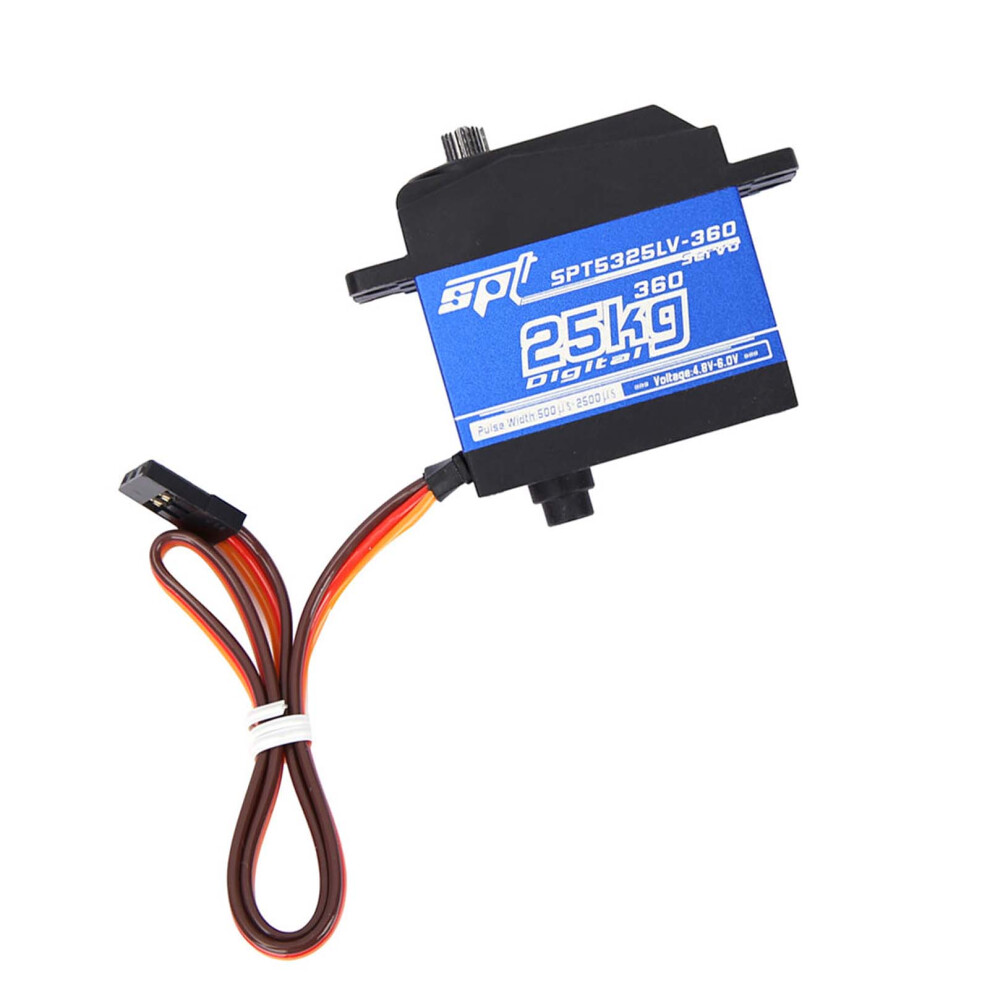

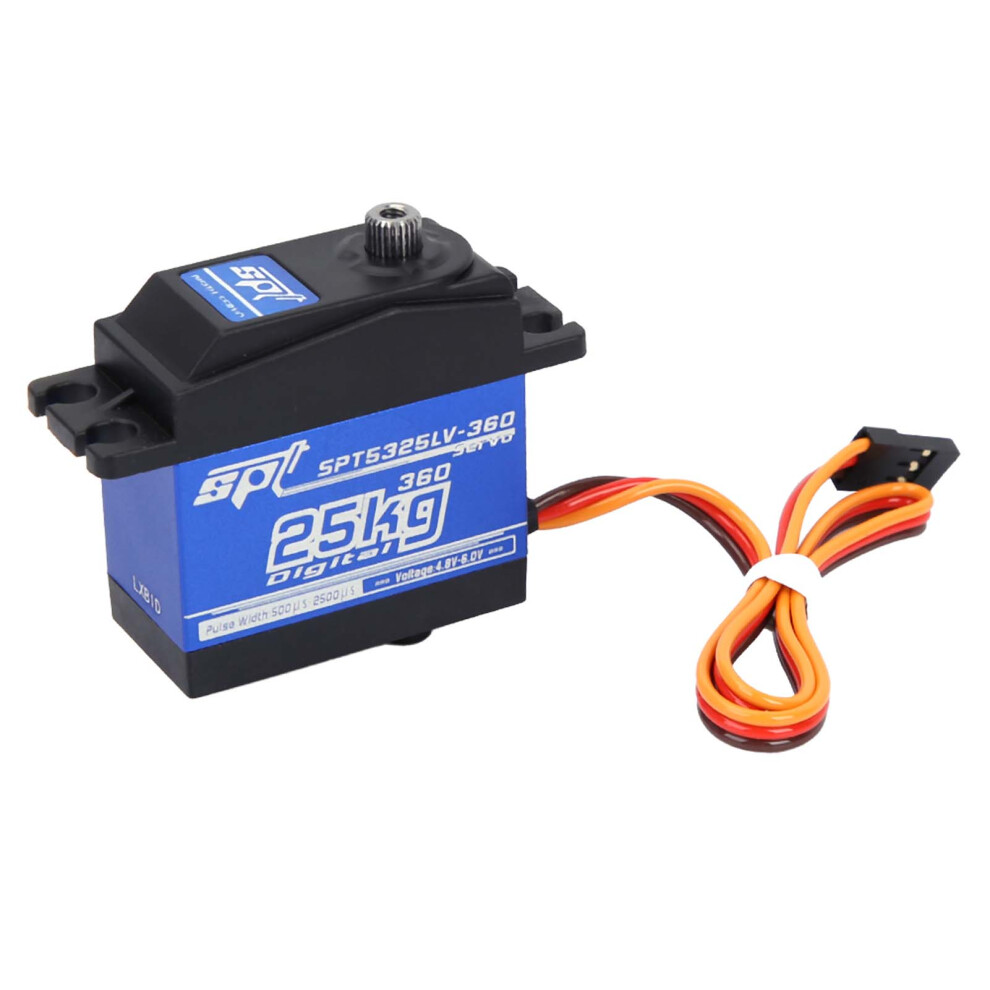

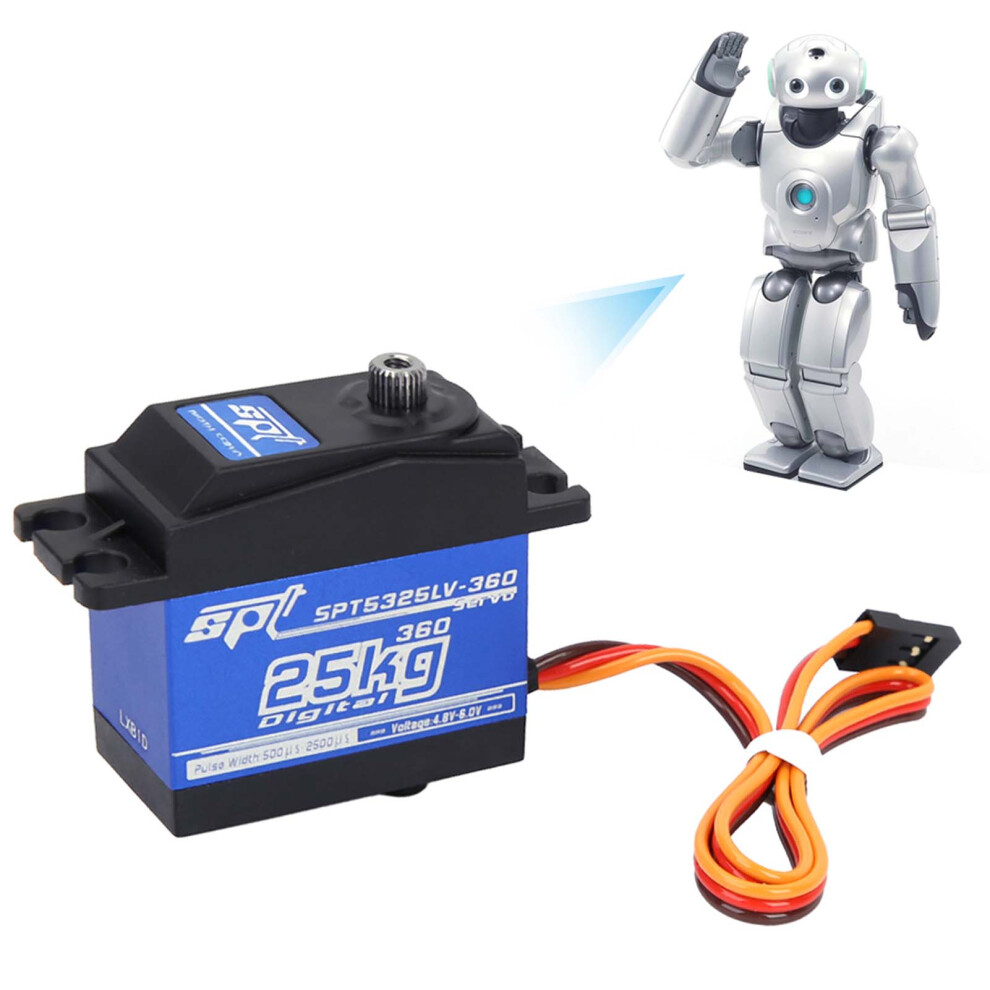

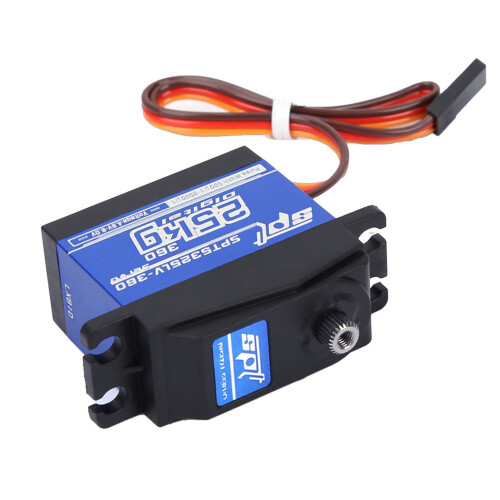

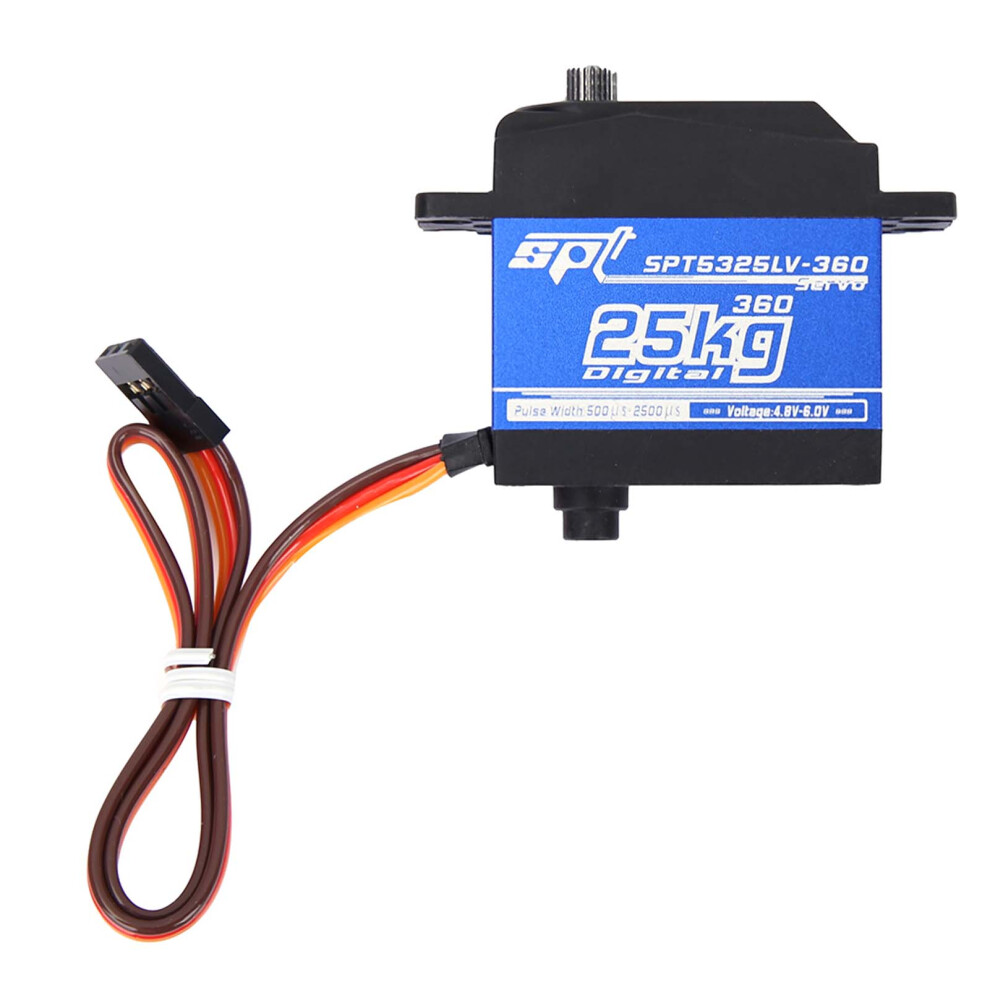

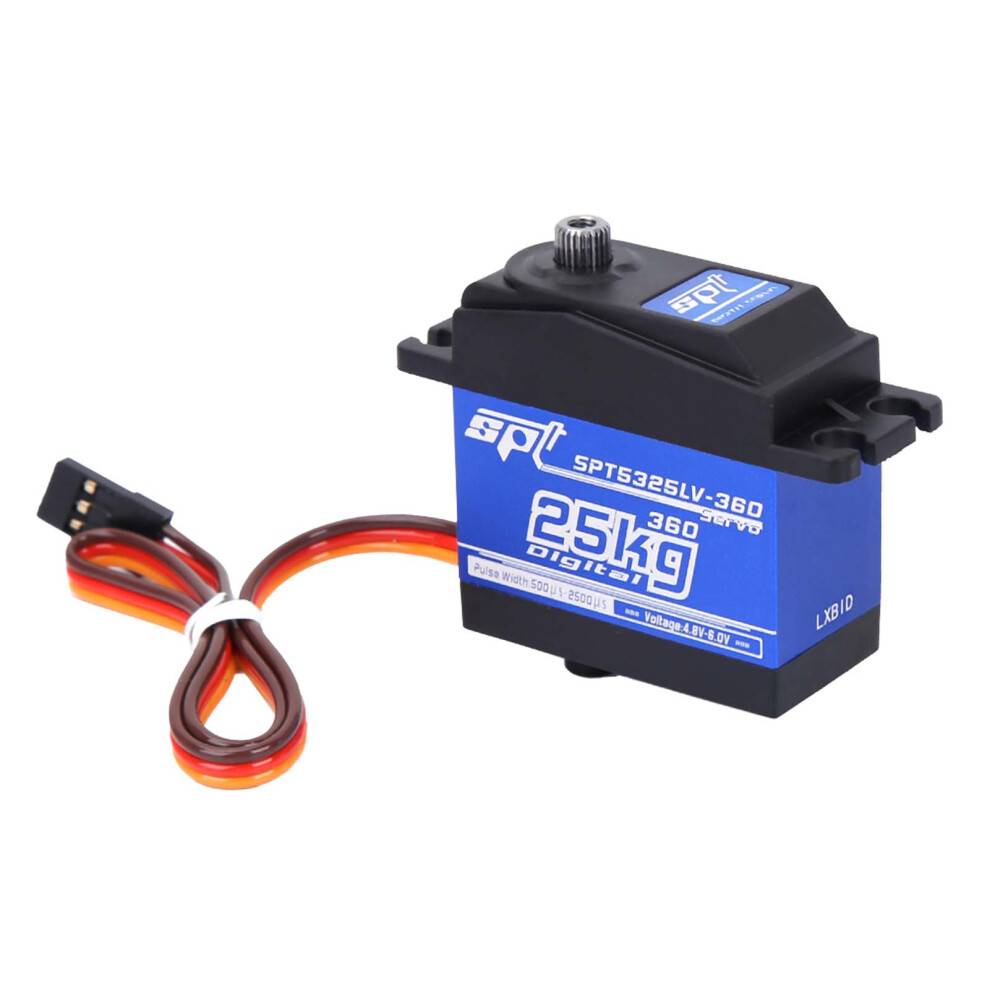

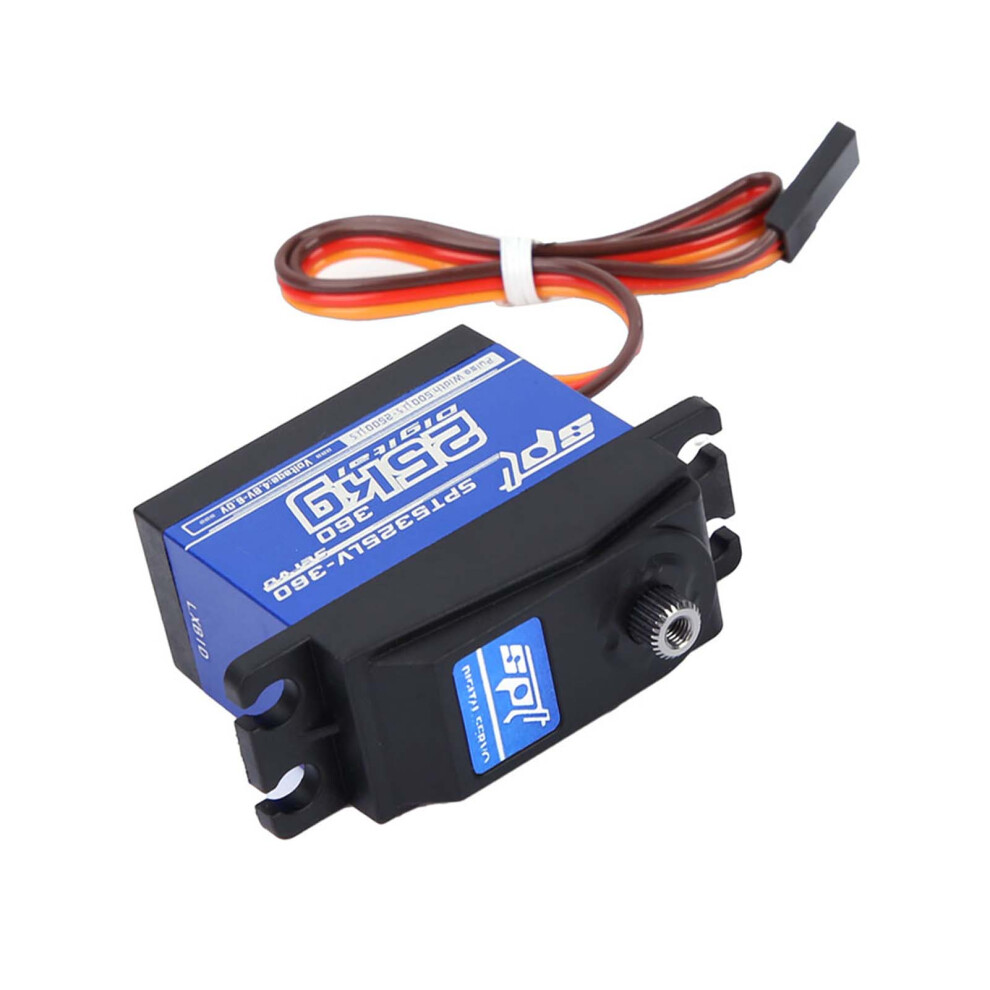

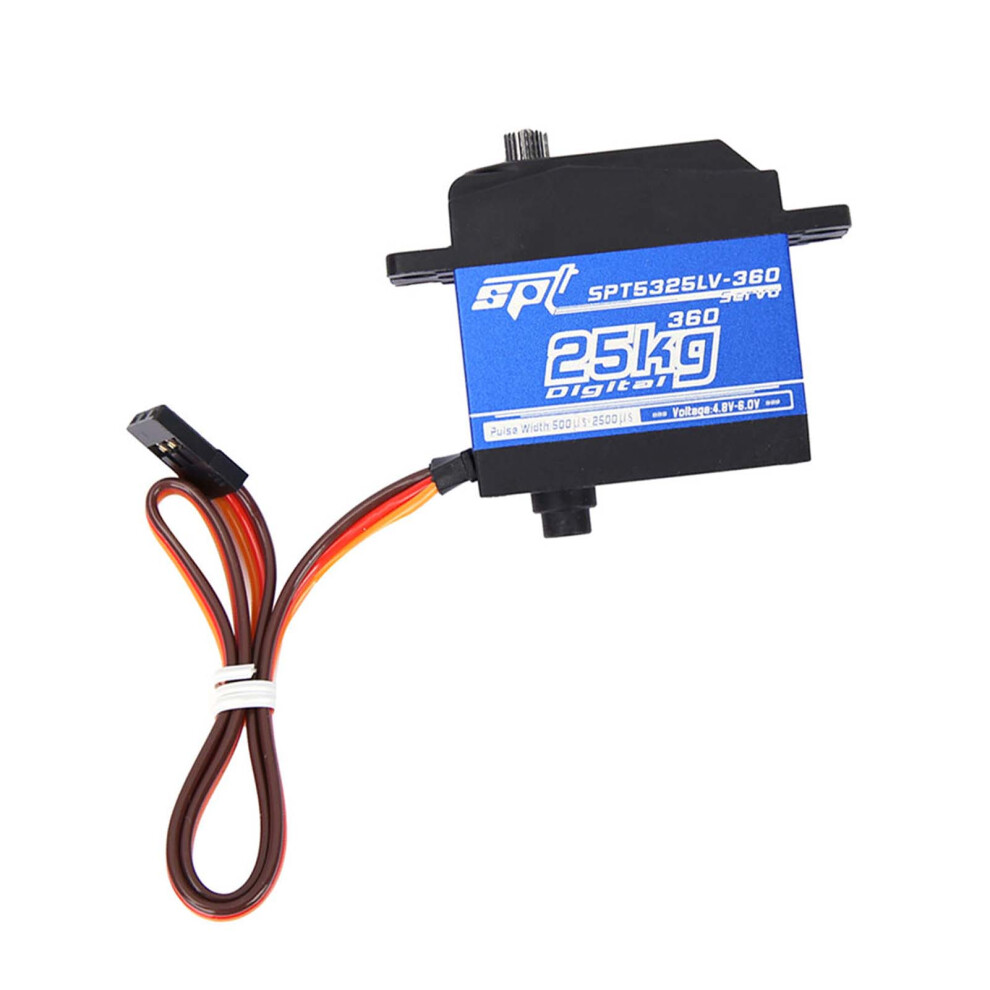

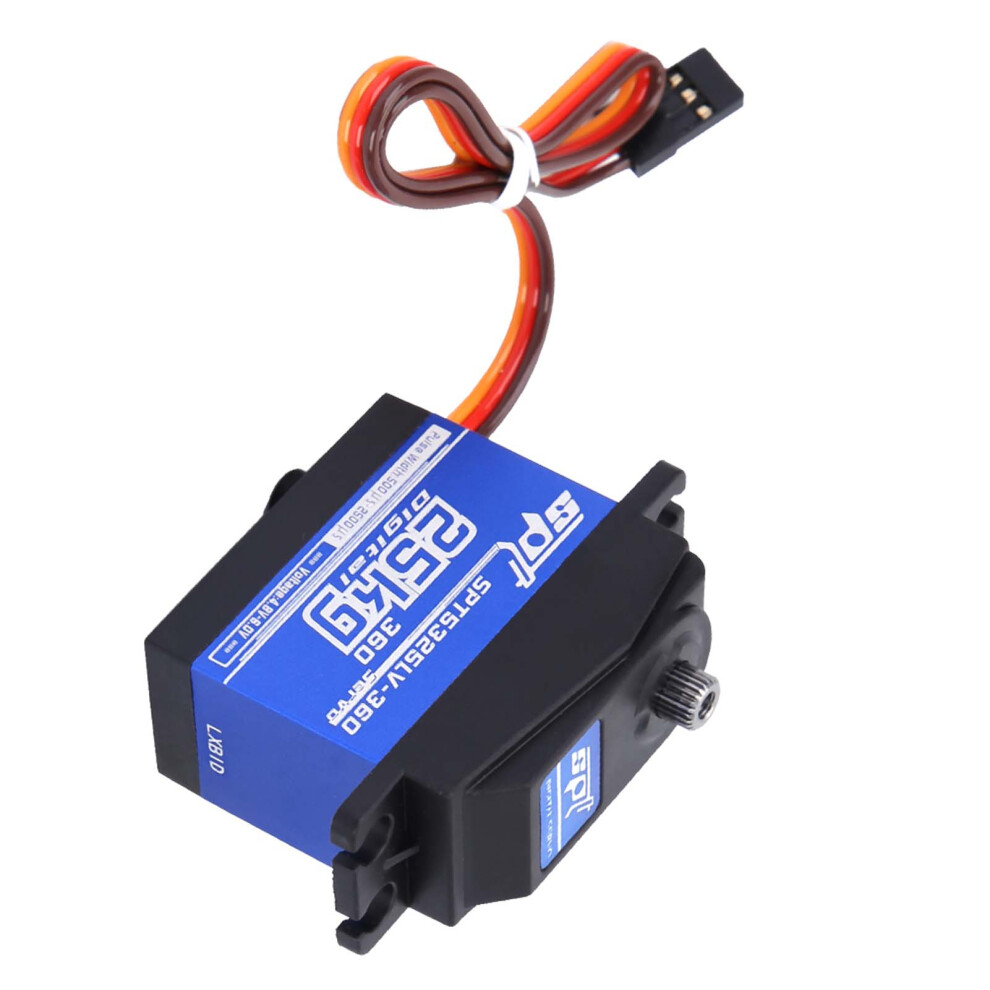

1500μs/ 330hz 360 Continuous Rotation SPT5525LV-360 25KG Digital Servo RC Robot



1、Made of high quality metal material,durable in use. 2、Professional manufacturing, high sensitivity, high reliability. 3、Simple to install and remove, it is convenient to use. 4、Stable performance, it is suitable for robots. 5、A great replacement for the old or damaged one.



Features: Made of high quality metal material,durable in use. Professional manufacturing, high sensitivity, high reliability. Simple to install and remove, it is convenient to use. Stable performance, it is suitable for robots. A great replacement for the old or damaged one. Specifications: Condition: Brand New Material: metal Color: Shown as picture Product: SPT5525LV-360 25KG Digital Servo Dead Band: 4μs Neutral Position: 1500μs/330hz Motor: Core motor 500-2500μs Angle: 360 Continuous Rotation Operating Speed(4.8V): 44rpm Operating Speed(6.0V): 55rpm Stall Torque(4.8V): 24 kg.cm Stall Torque(6.0V): 26 kg.cm Dimensions: 40.5*20*40.5mm/1.6*0.8*1.6in Weight: Approx.68g/2.4oz Connector Wire Length: JR 260mm/10.2in Bearing: 2BB Adapt to the control board pulse width support 500μs-2500μs 360 continuous rotation, the midpoint stop position 1450-1550μs 1450-1000μs has linear variation, Counterclockwise 1550-2000μs has a linear change, Clockwise 1000-500μs and 2000-2500μs maximum number of revolutions Suitable for robots Package List: 1 * SPT5525LV-360 25KG Digital Servo 1 * Accessories 2 * Screws
