(150mm) Linear Guide Set Openbuilds V Linear Actuator Effective Travel 100-400mm Linear Module with Stepper Motor

(150mm) Linear Guide Set Openbuilds V Linear Actuator Effective Travel 100-400mm Linear Module with Stepper Motor Description

Description:

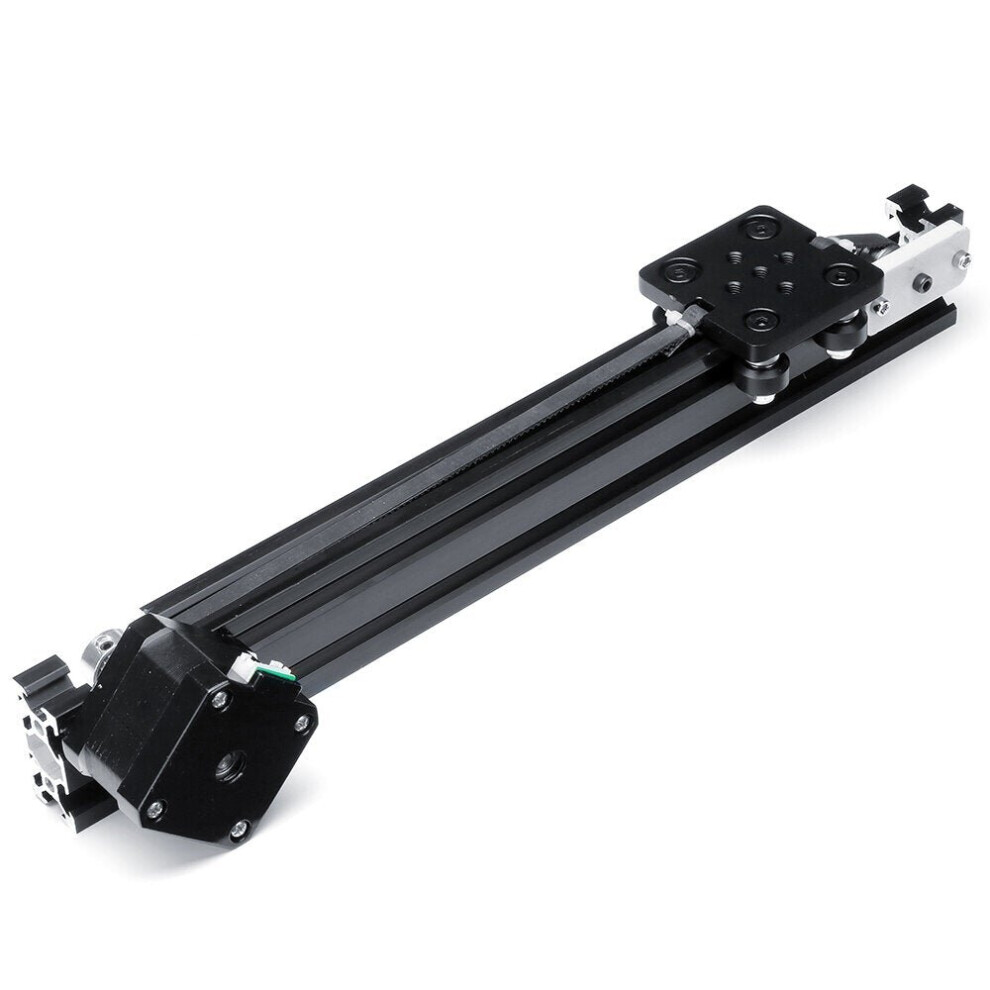

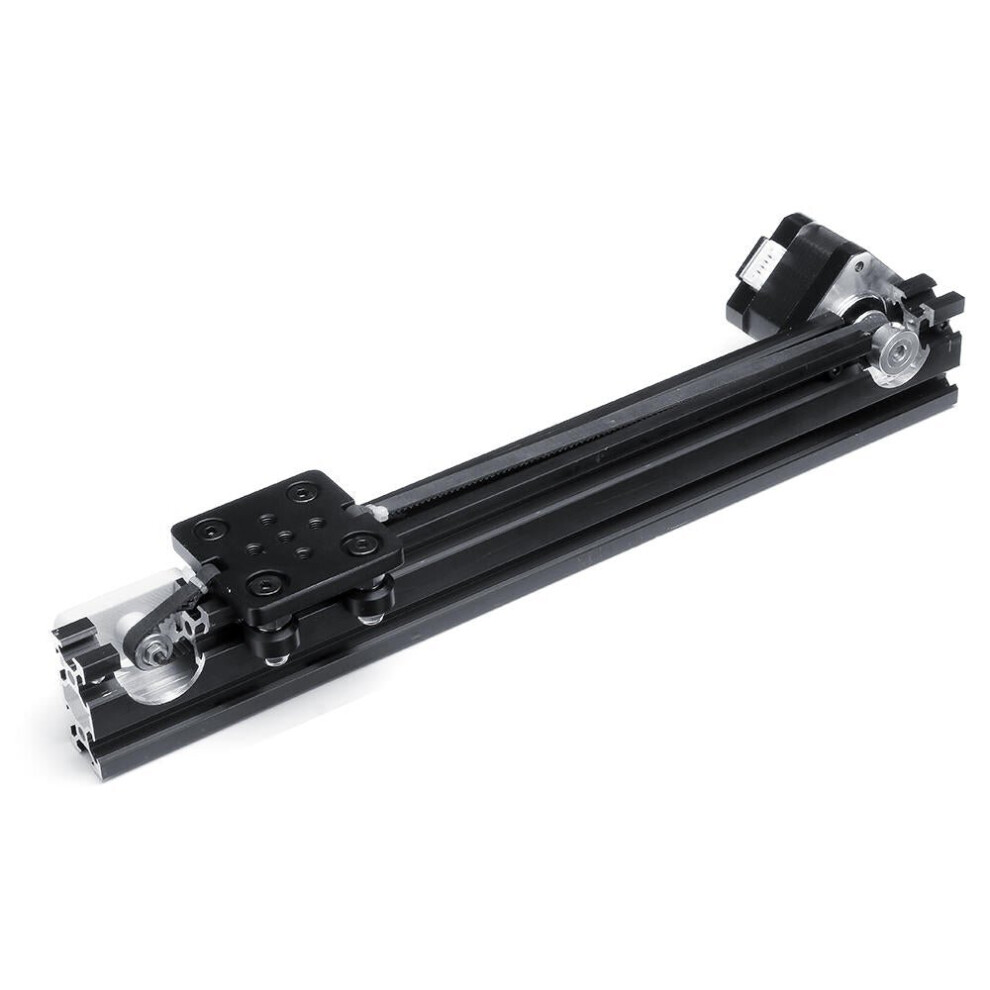

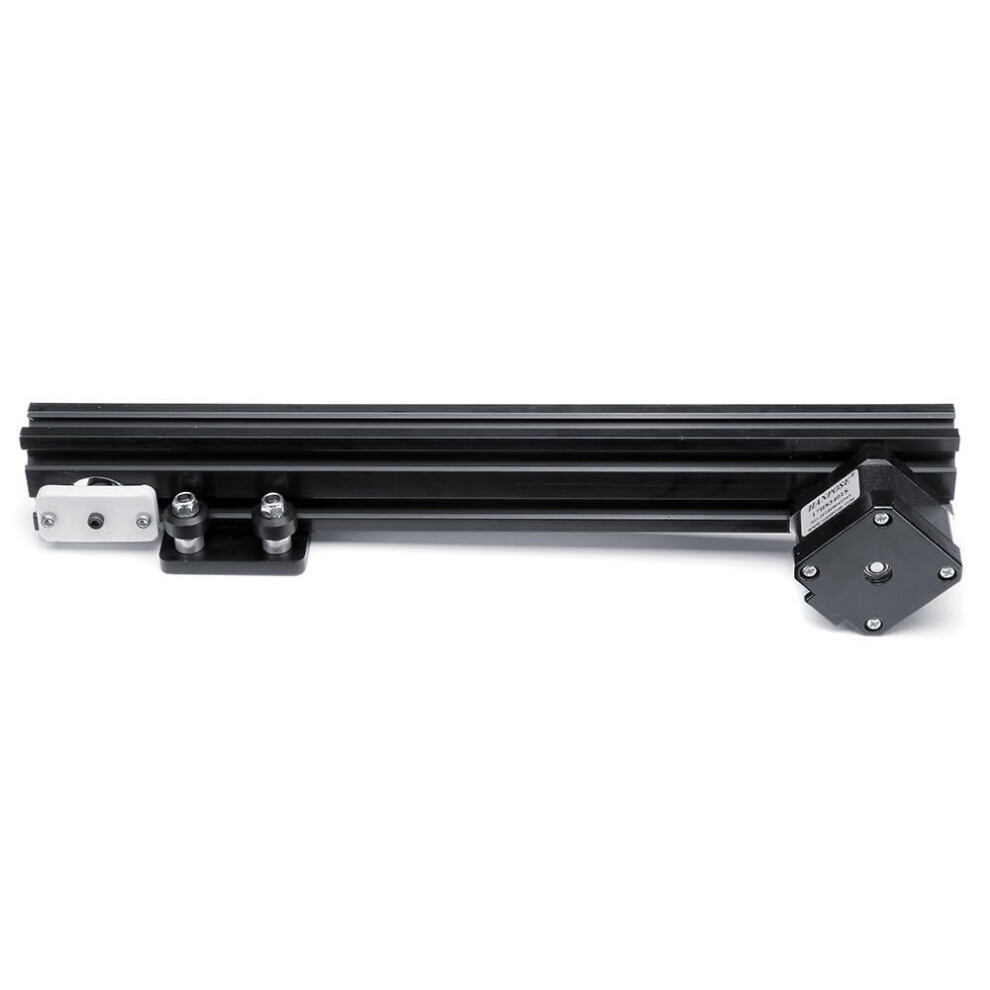

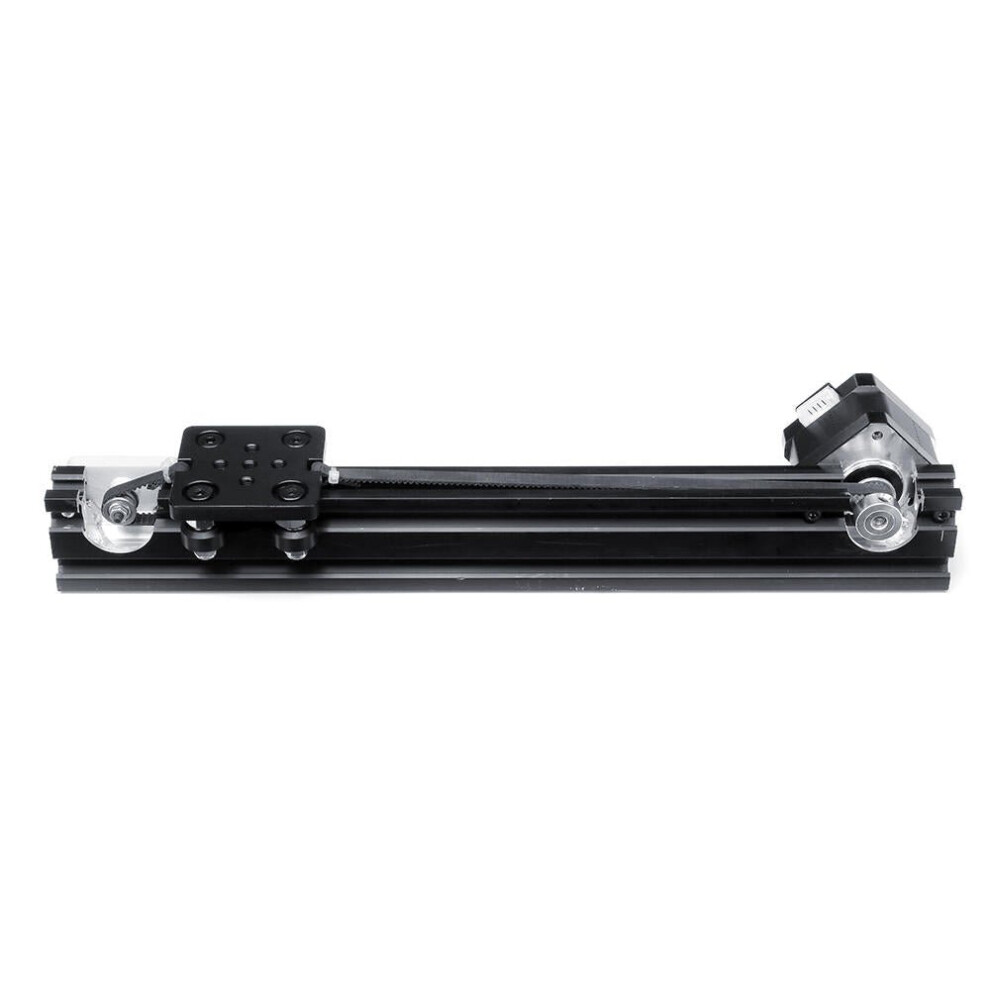

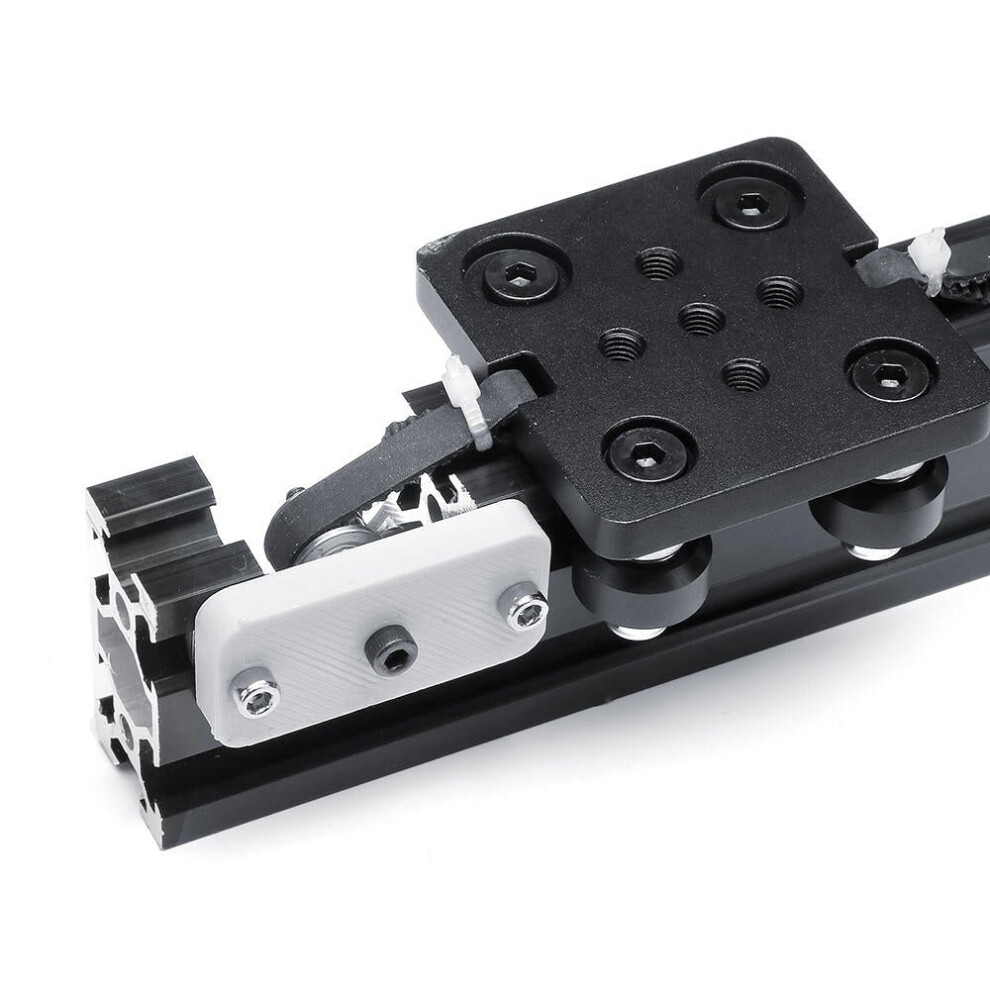

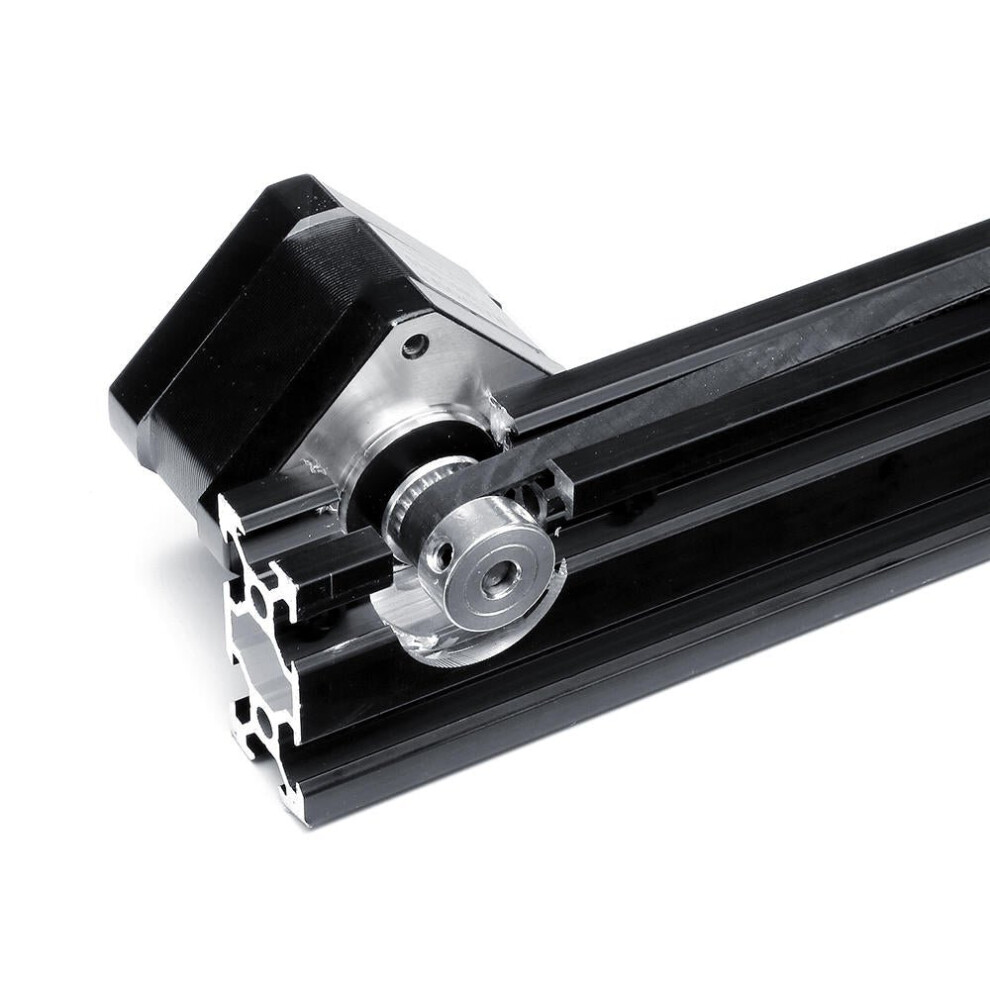

Linear Guide Set Openbuilds V Linear Actuator Effective Travel 100-400mm Linear Module with Stepper Motor.

Specification:
Width or Diameter of Guide:2040;
Effective Travel:100/150/200/250/300/350/400mm;
Motor leads:30cm;
Total lenght=Effective Stroke+160mm;
Type:Hybrid;
Phase:2;
Step Angle:1.8;
Motor Size:42 x 34mm;
Shaft:"D" shaft 21 x5mm;
Outlet way:"4" plug line;
Motor leads:Dupont line(1M);
Adapter drive:Two-phase step drive;
Scope:3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery,Packaging Machinery, Stage Lighting,Laser engraving, AutomationEquipment, Non-standardEquipment,Placement machineect.

General Specification:
Precision angle step:5% (full step, no charge);
Resistance accuracy:10%;
Precision inductance:20%;
Temperature rise:80deg Max (rated current, 2 phase on);
Ambient temperature:( - 20)-(+ 50);
Insulation resistance:100M Min, 500VDC;
Insultion Force:500VAC for a minute.

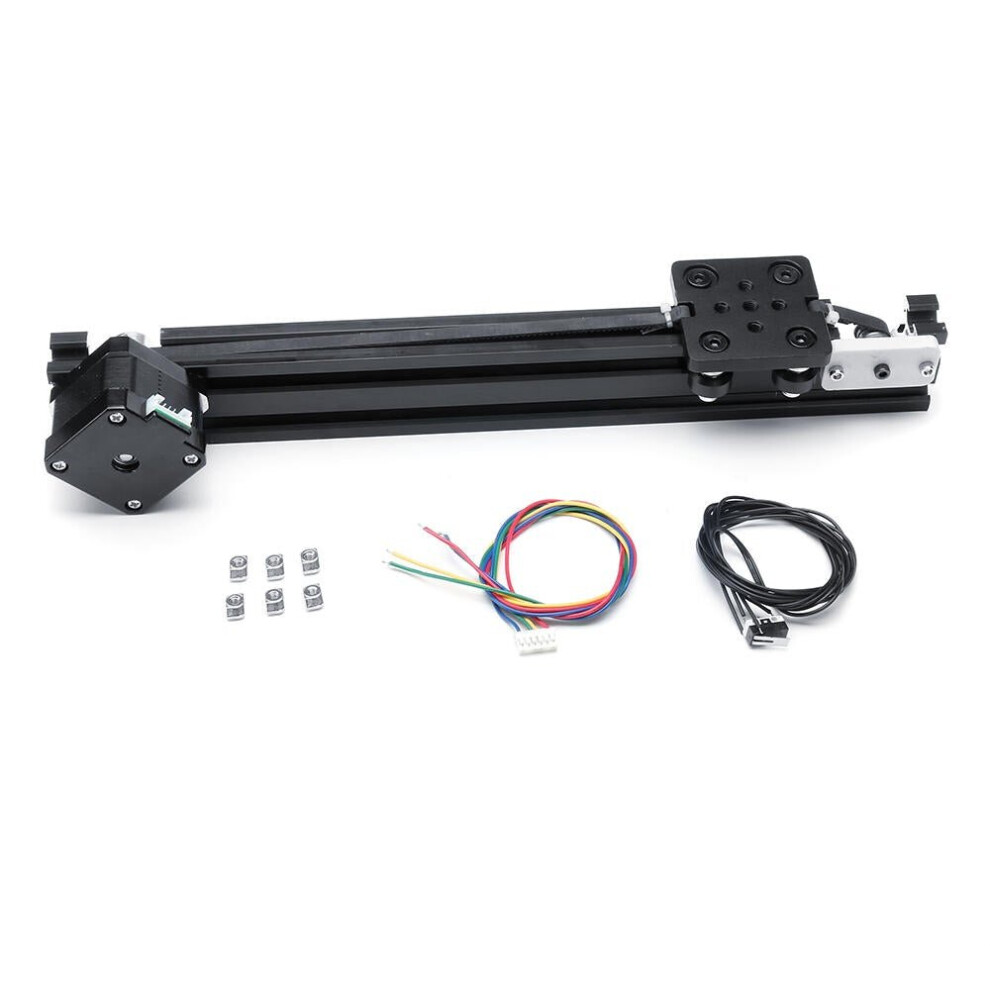

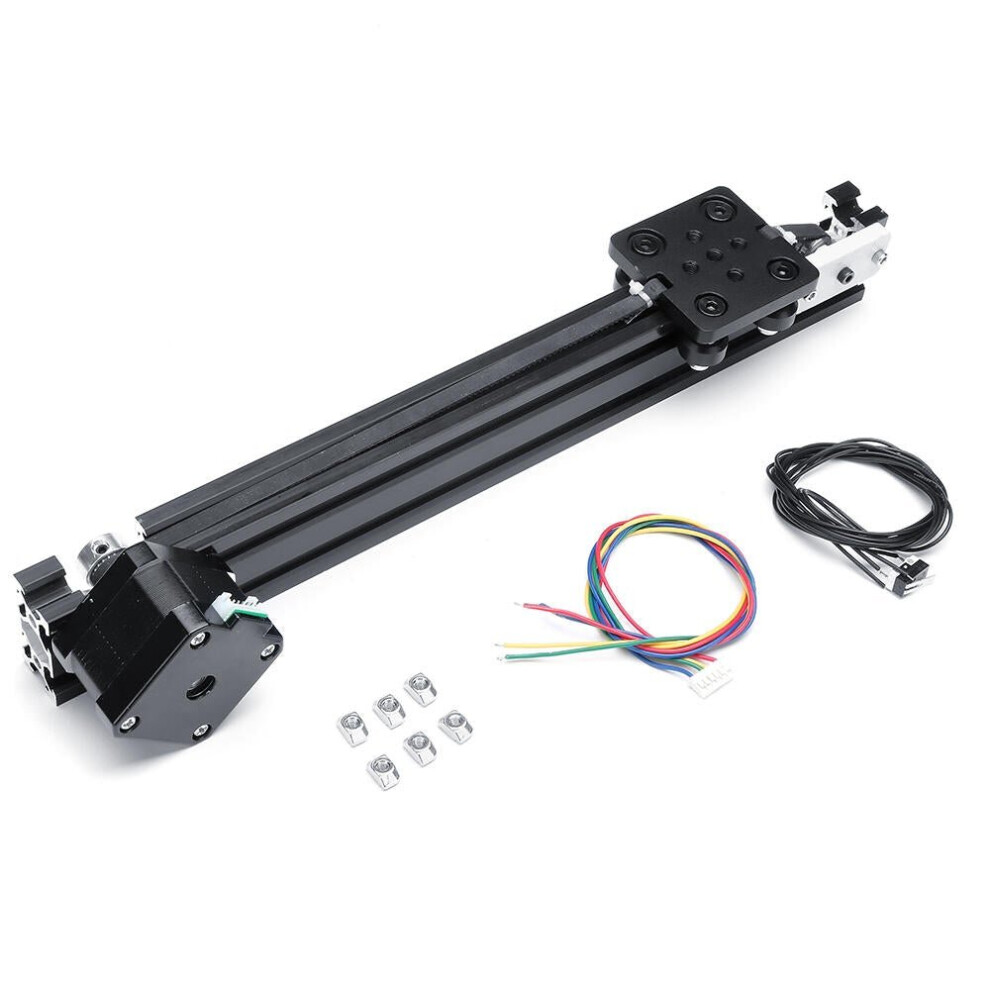

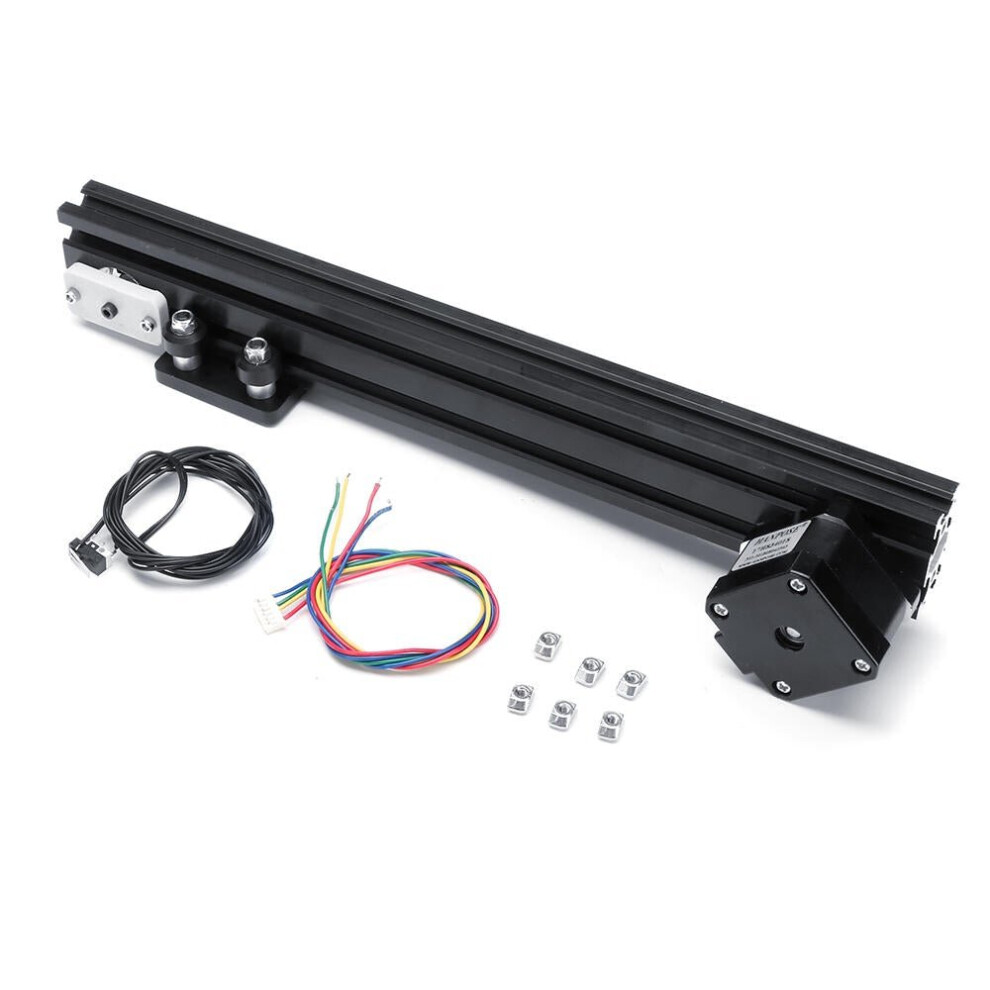

Package Included:
1 X MINI V Linear Actuator Set;
1 XMotor leads(30cm);
1 X Limit switch;
6 X Screws
