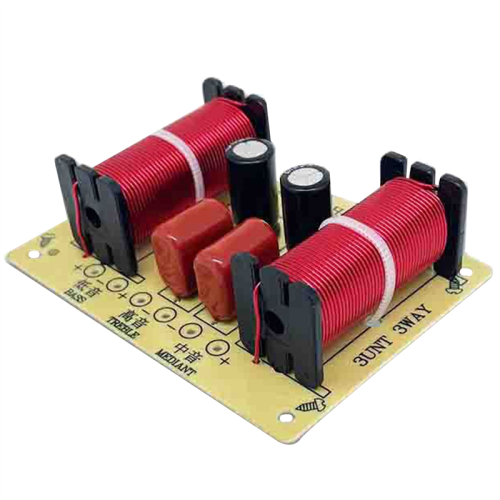

150W HiFi Crossover Filter Module -305 3 Way Speaker Frequency Divider for DIY Home Treble Medium Bass

150W HiFi Crossover Filter Module -305 3 Way Speaker Frequency Divider for DIY Home Treble Medium Bass Description

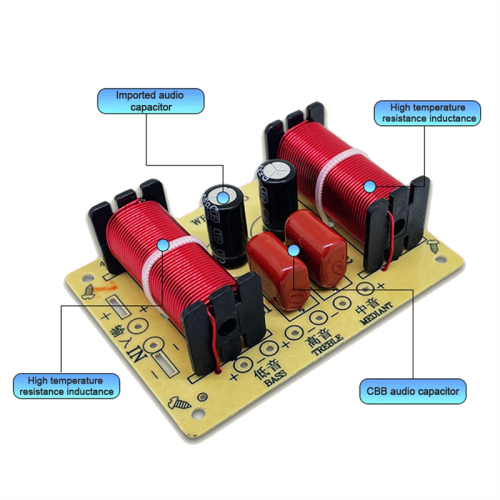

Hollow core inductor with high heat dissipation
Special capacitor for audio. sound capacitor
Suitable for 4-11 inch speakers below 150W
Adopt over current protection device, , long service life.
High temperature resistant inductor. 41mm frame inductor is adopted and fixed with cable ties to prevent co-vibration of music

Item Type:Speaker Accessories Kits
Model: - 305
Filter characteristics: 1 high, 1 medium, 1 low
Frequency dividing point: mid-high 4000Hz/ mid-low 900Hz
Power: 150w
Suitable impedance: 4-8 ohms
Dimension: 85 x 62mm/3.3 x 2.4in
Application: home speaker high, middle and low three DIY modification upgrade
Center hole spacing: 75 x 52mm/3 x 2in
color:Photo color
Material:plastic

Package Contents:
1 x Audio Divider

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
