1.51 Inch Screen Module 128x64 SPI I2C Transparent Blue

1.51 Inch Screen Module 128x64 SPI I2C Transparent Blue Description

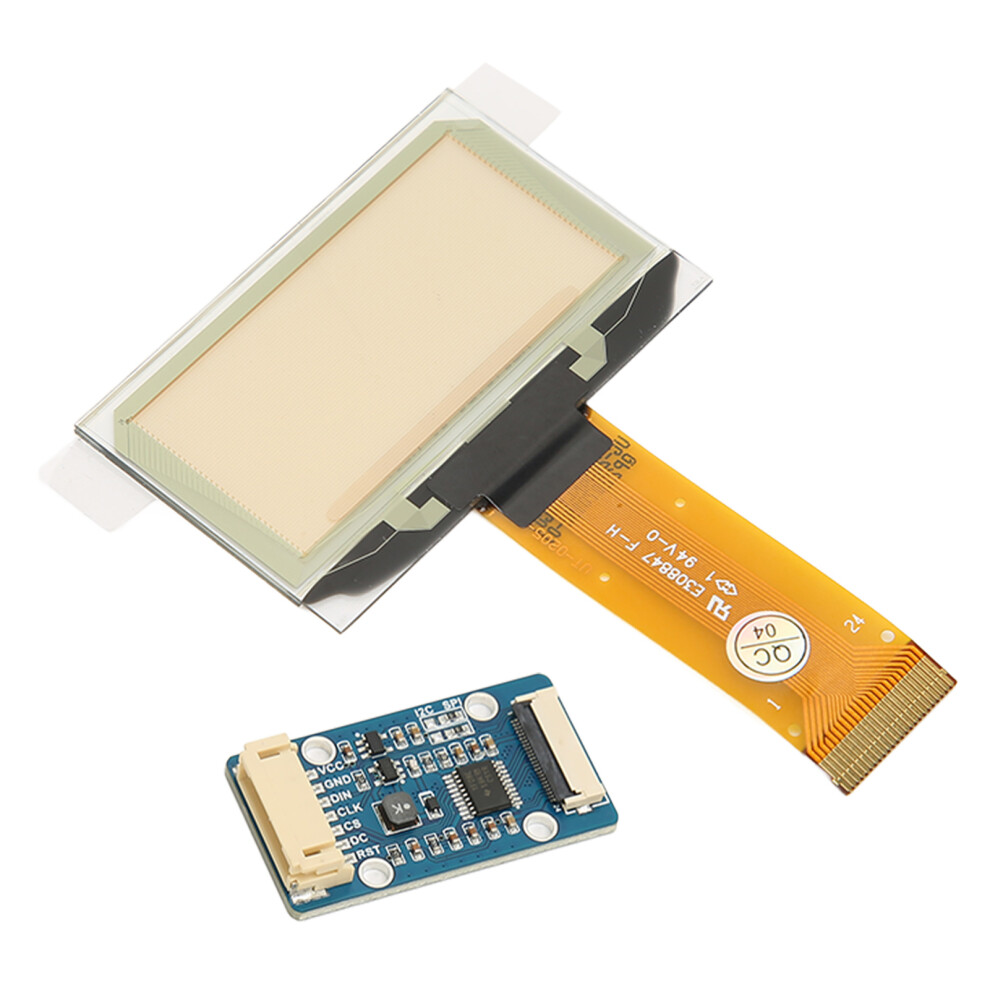

1、1.51 Inch: 1.51 inch screen with expansion board, transparent screen, full viewing angle, 128x64 resolution. 2、Professional Chip: SPI I2C Screen Module has built in SSD1309 driver chip and uses SPI and I2C interface to communicate. 3、Two Interfaces: Transparent blue screen module adopts four wire SPI and I2C interfaces, with good compatibility and high transmission speed 4、Compatibility: SPI and I2C control interface switching, can be connected to main control boards such as for Raspberry Pi, for STM32, etc. 5、Welding Resistors: Two resistors can be welded on the back of the module, and the corresponding communication mode can be selected through the selection of the resistors.
Item Type: 1.51 Inch Screen Module
Material: Glass
Model: 1.51 Inch Transparent
Communication Interface: SPI I2C
Control Chip: SSD1309
Resolution: 128x64
Function Pin:
VCC: Power Supply Positive (5V 3.3V Power Input)
GND: Power Ground
DIN: Data Input
CLK: Clock Signal Input
CS: Chip Selection, Active at Low Level
DC: Data, Order, Low Level Indicates Order, High Level Indicates Data
Reset: Reset, Active at Low Level

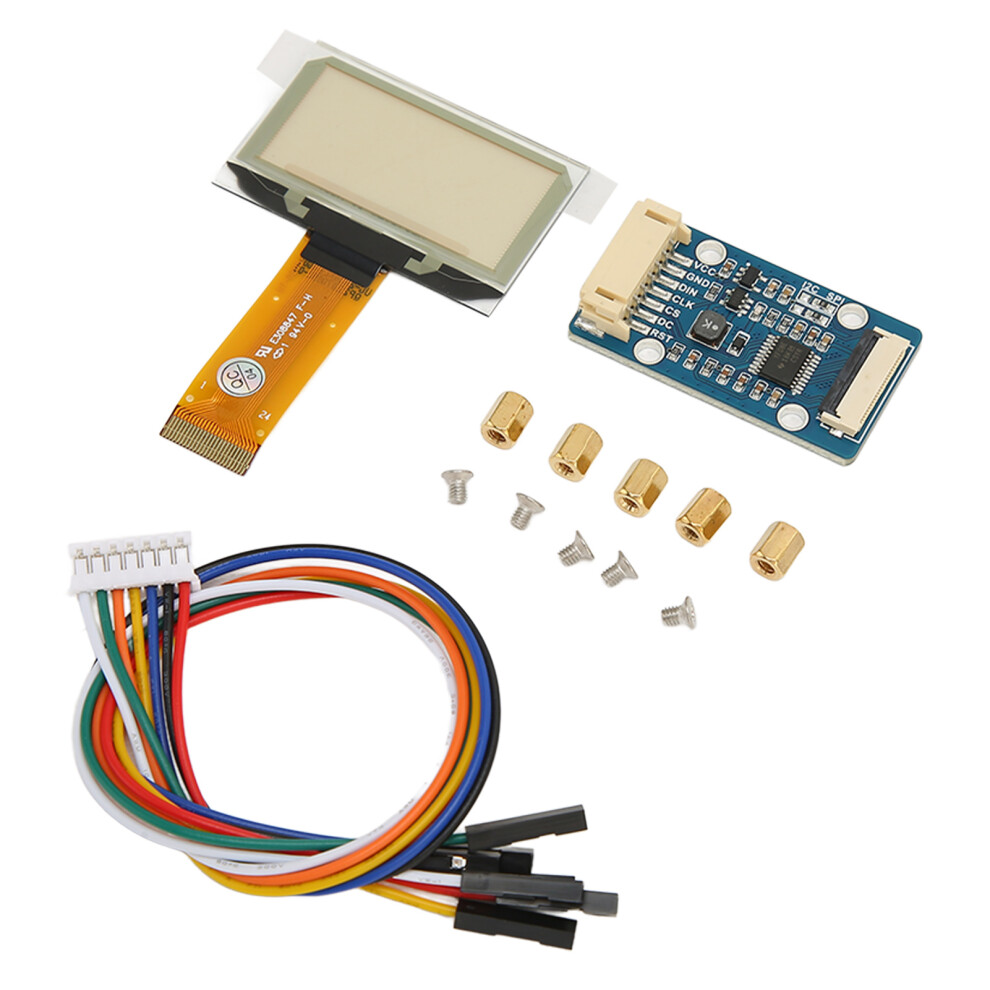

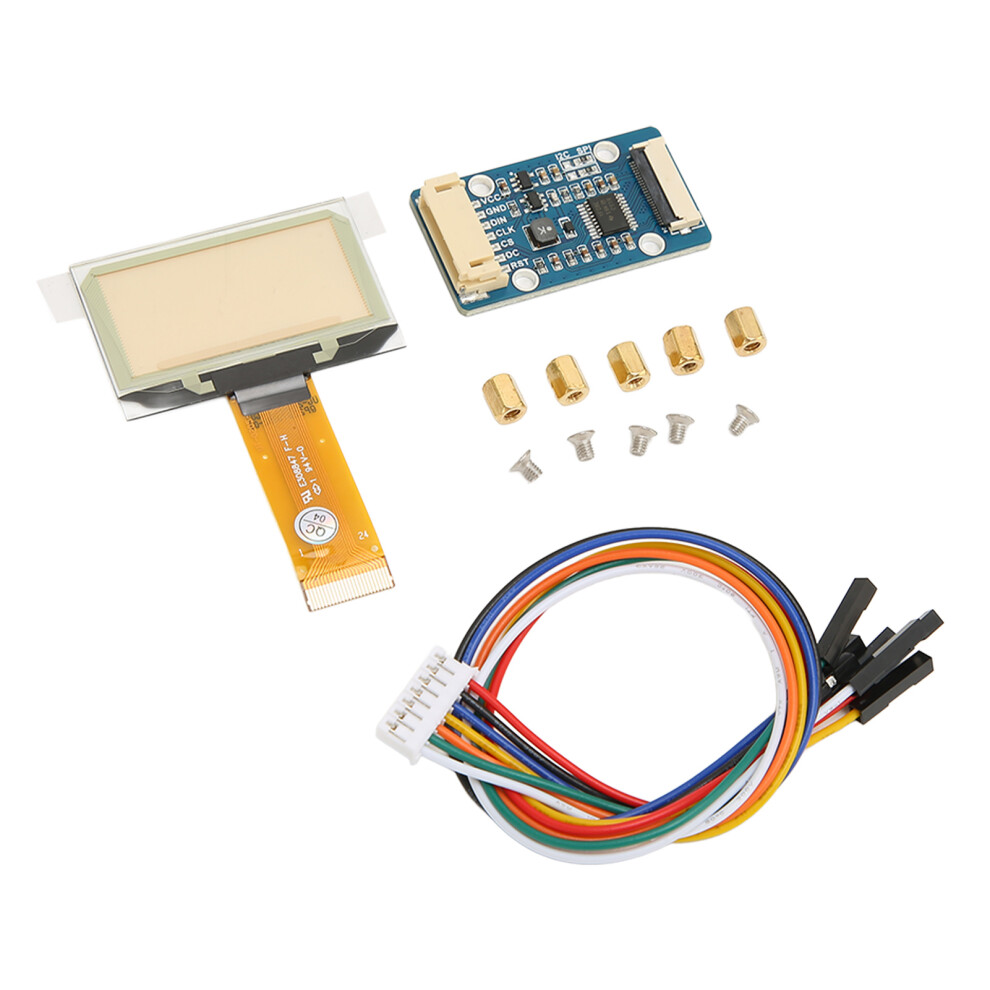

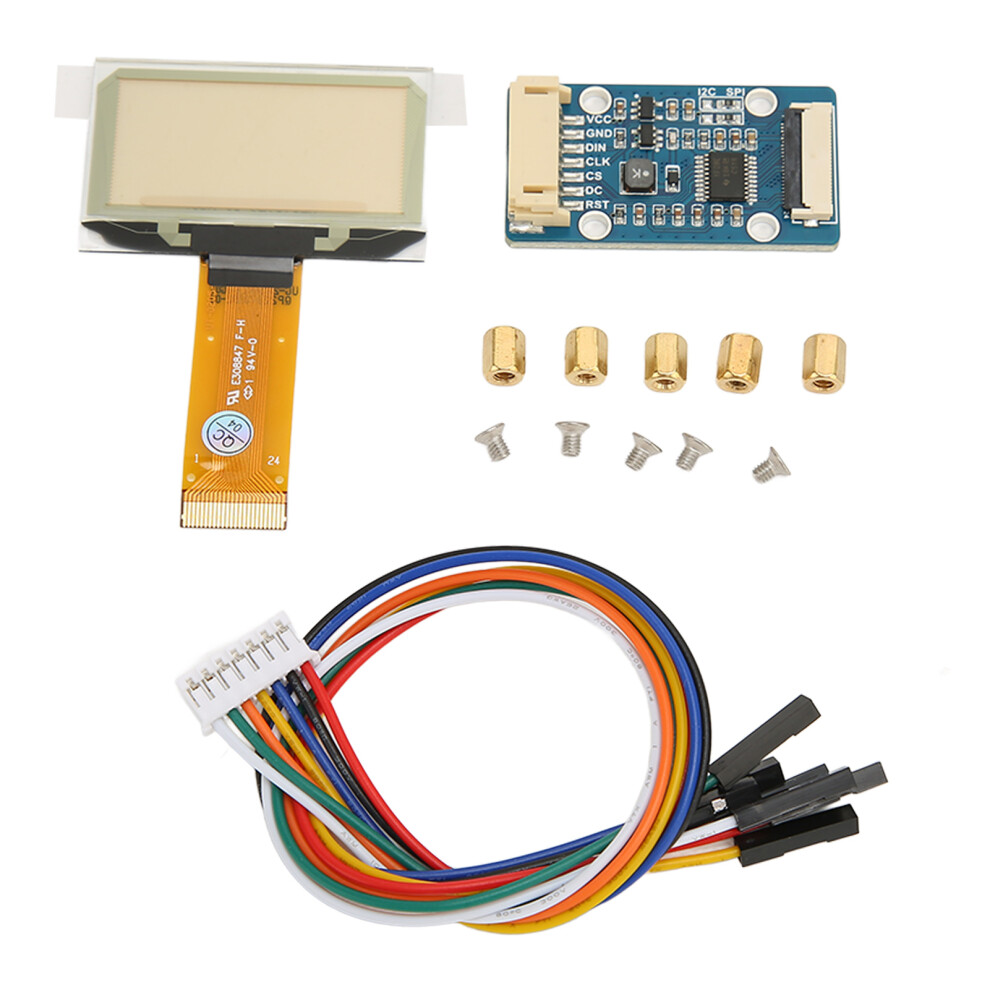

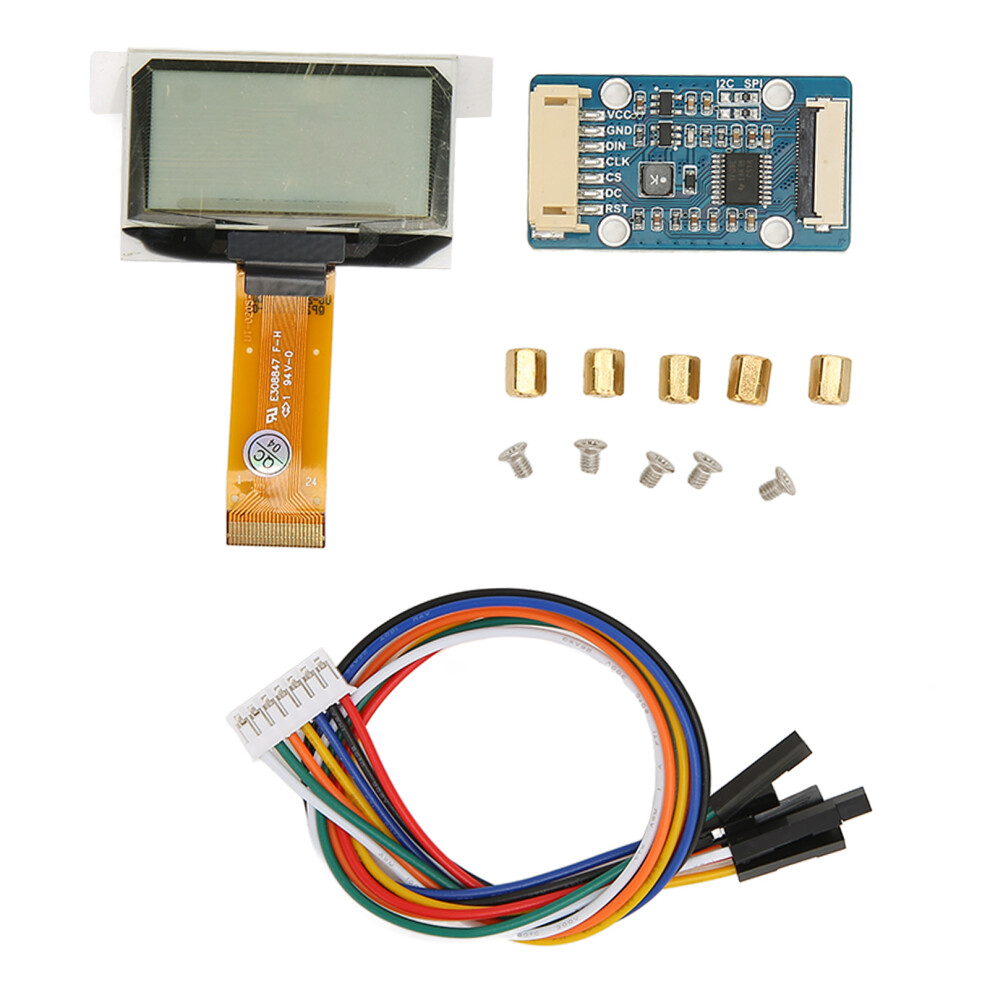

1 x Screen Module
1 x Expansion Board
1 x Flat Cable
5 x Screw
5 x Nut
