(155° Hinge ) 155 & 110 Degree Soft Close Cabinet Hinge & Plate

(155° Hinge ) 155 & 110 Degree Soft Close Cabinet Hinge & Plate Description

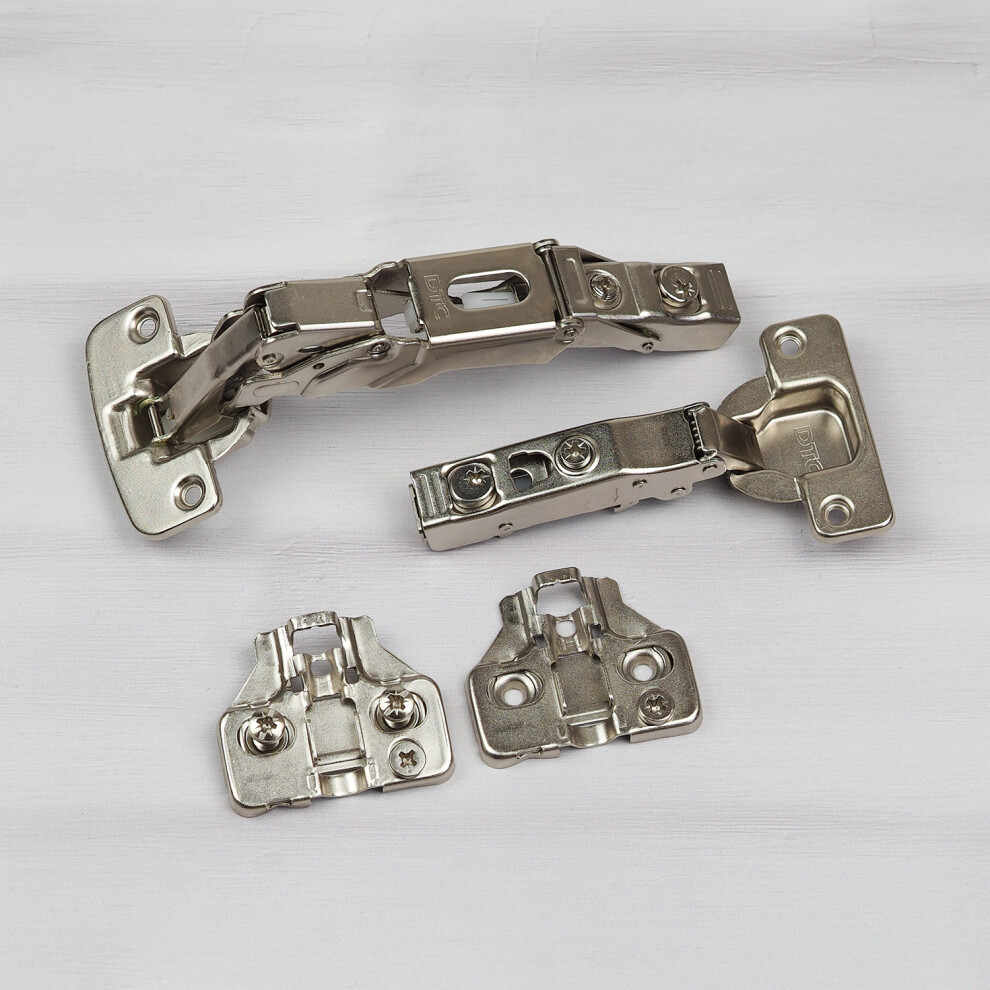

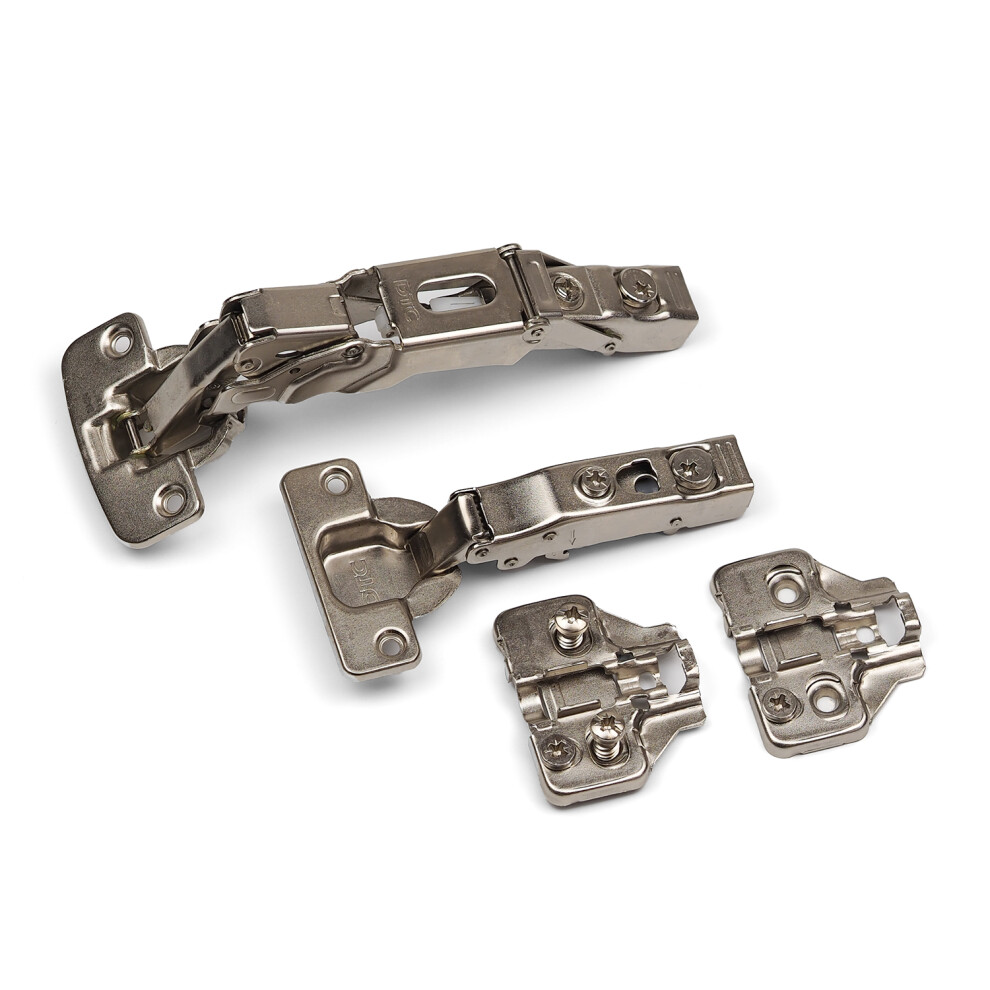

DTC Nickel 155 Degree, 110 Degree Soft Close Cabinet Hinges & Choice of Matching Hinge Plates

A Family of Soft Close Hinges & Compatible Plates for use on Kitchen Cabinets. Easy to Install via Clip On mechanism and rigid, FIRA tested design. The perfect way to bring soft close functionality to an existing kitchen - no more slamming doors! Please check specifications below against requirements.

These hinges and plates are sold individually, so the price displayed on the dropdown is for a single item.

Screw On Hinge Plate
Adjustable Hinge Plate to suit both 110° & 155° Hinge

• No Screws Included - Fixed with Chipboard Screws
• ± 2mm Cam Height Adjustment
• Suitable for 18mm Board

Euroscrew Hinge Plate
An adjustable hinge plate with euro grub style screws. Plate fits both 110° & 155° Hinge

• Integrated Euro Screw plate for Quick clip-on fixing
• ± 2mm Cam Height Adjustment
• Suitable for 18mm Board

110° Soft Close Hinge
A 110° Full Overlay Clip On Hinge with Soft Close integration - finished in Nickel
Typically used in standard kitchen cabinets

• 35mm Hinge Cup Diameter
• 45mm Drilling Pattern
• Opening Angle: 110 Degrees
• Up & Down adjustment: +2mm
• Fore & Aft adjustment: +3mm -1mm
• Left & Right adjustment: +2mm -4mm
• Built-In Soft close nylon cylinder piston to prevent rusting
• No Screws Included - Fixed with Chipboard Screws

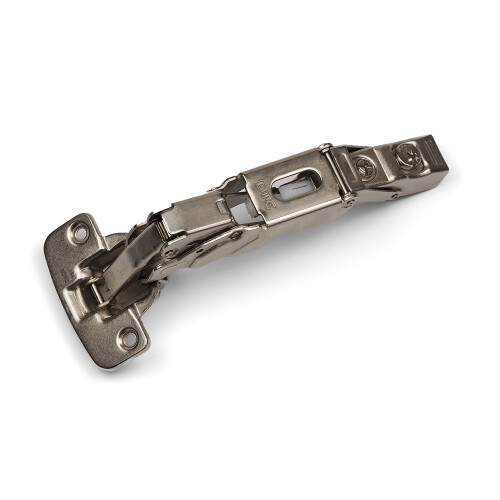

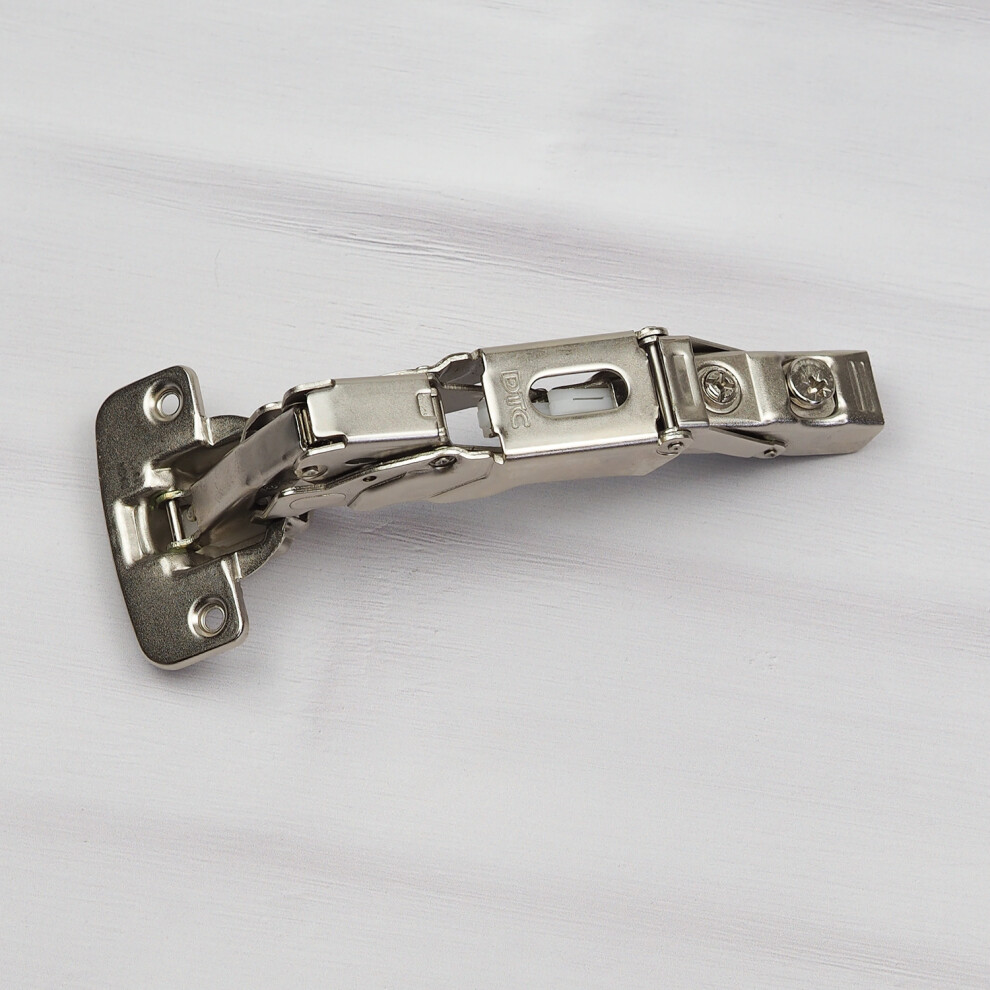

155° Soft Close Hinge
A 155° Full Overlay Soft Close Clip On Hinge with Soft Close Integrated
Nickel finish
Usual application is on corner kitchen cabinets

• 35mm Hinge Cup Diameter
• 11.5mm Hinge Cup Depth
• 45mm Drilling Pattern
• Opening angle: 155 Degrees
• Up & Down adjustment: +2mm
• Fore & Aft adjustment: +3mm -1mm
• Left & Right adjustment: +2mm -4mm
• Built-In Soft close nylon cylinder piston to prevent rusting
• Zero Protrusion
• No Screws Included - Fixed with Chipboard Screws

Each item is sold separately so exact quantities and requirements can be selected. Please note that a Hinge + Plate are required for installation and screws are not provided.
