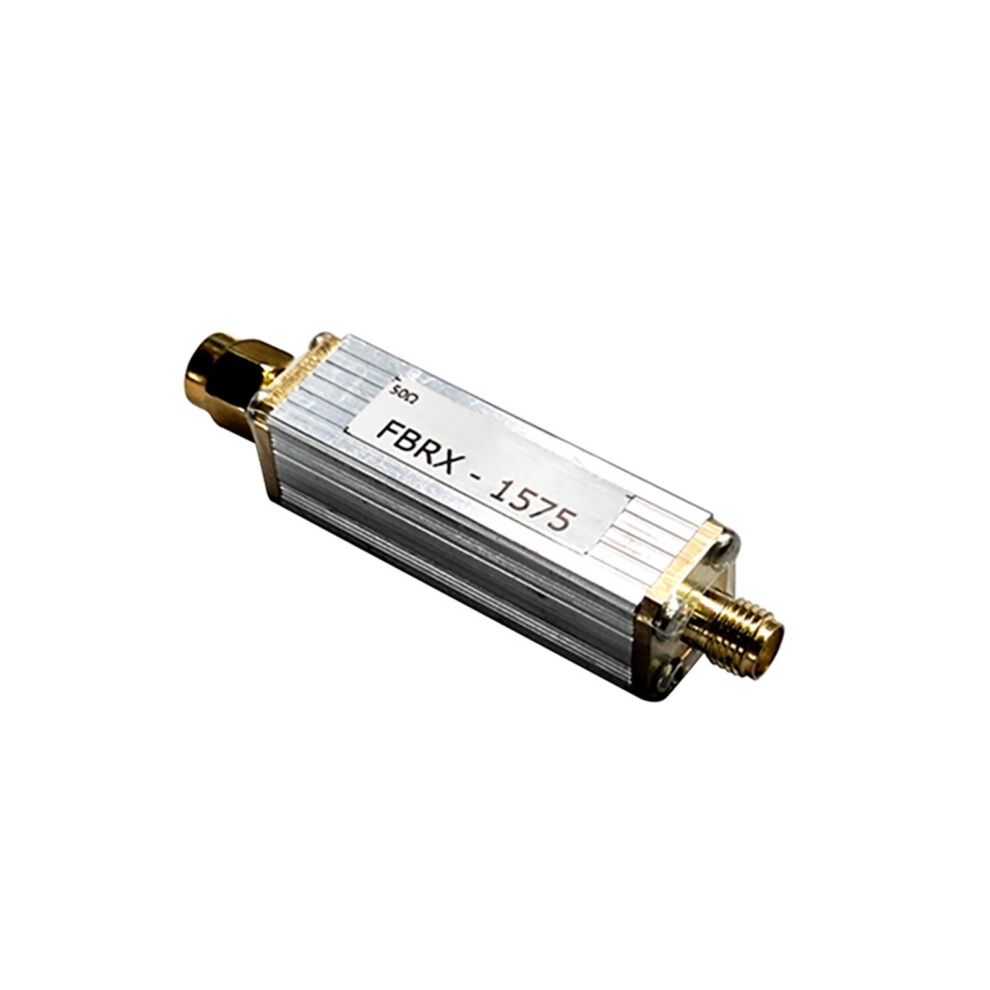

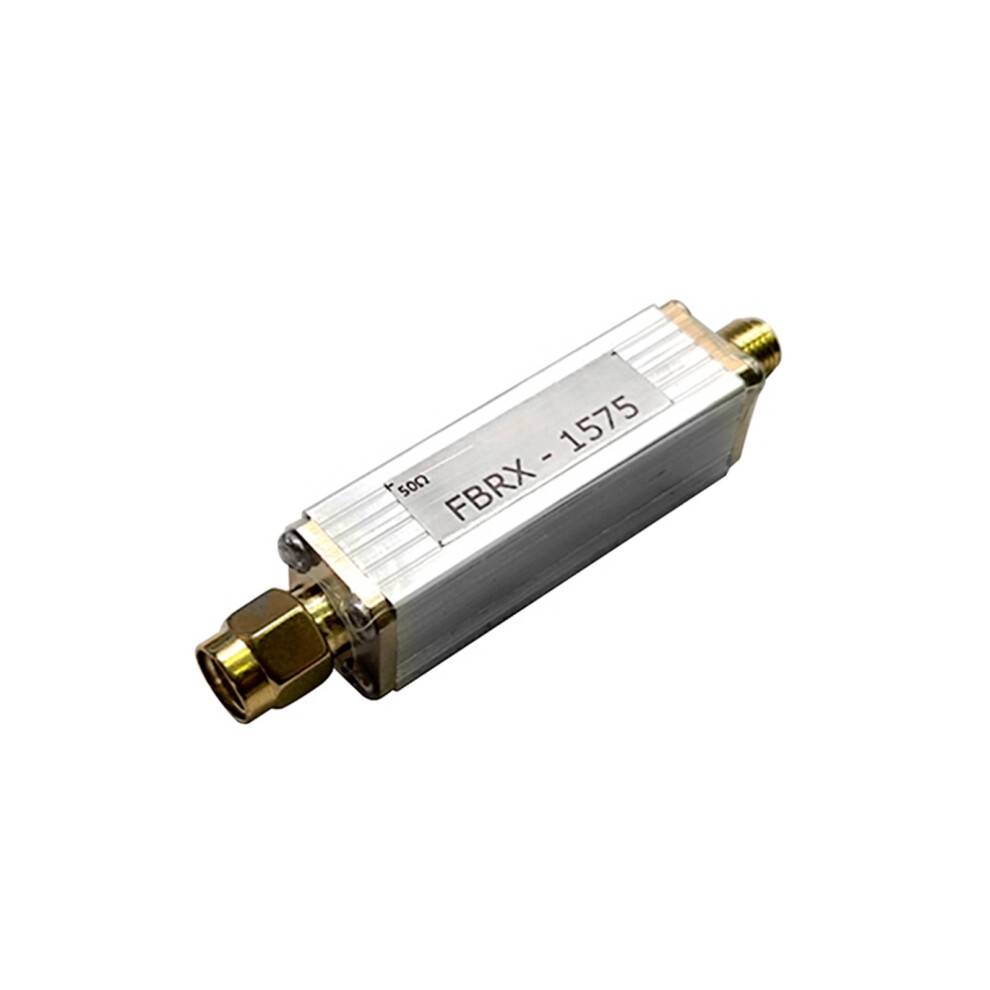

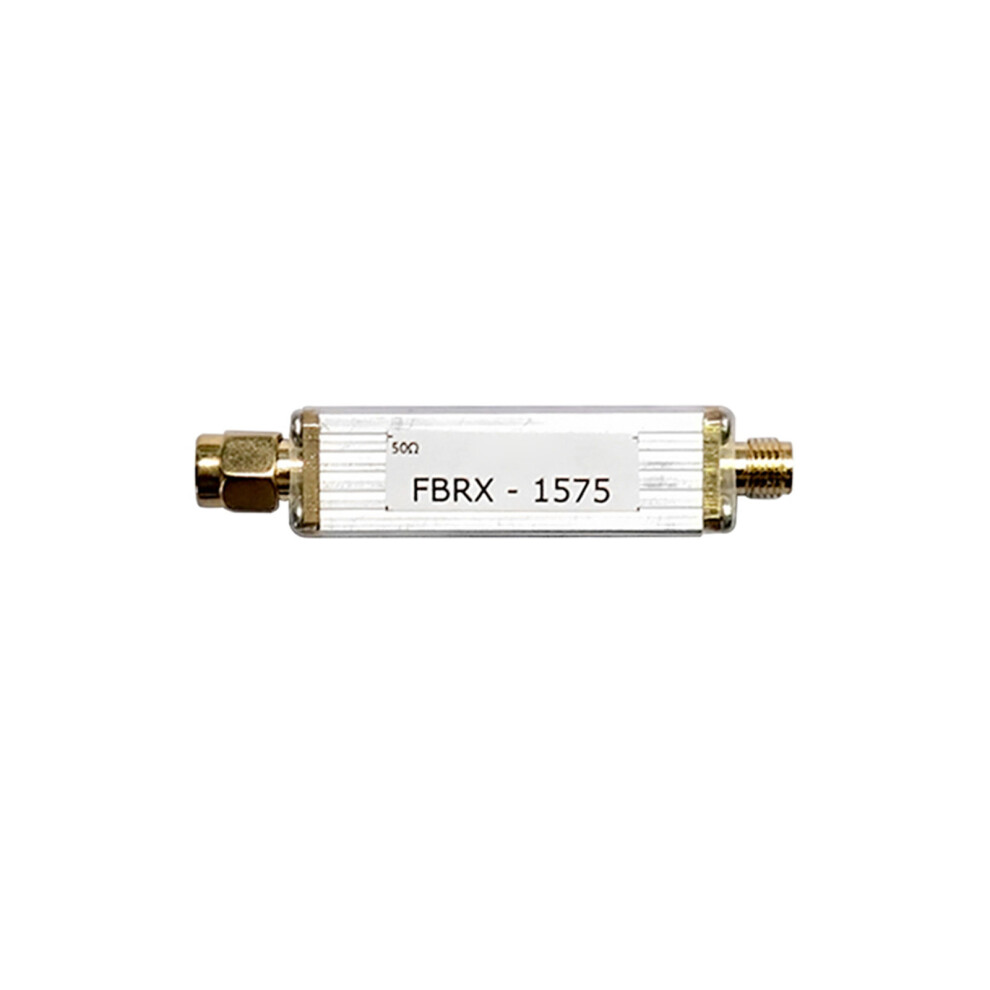

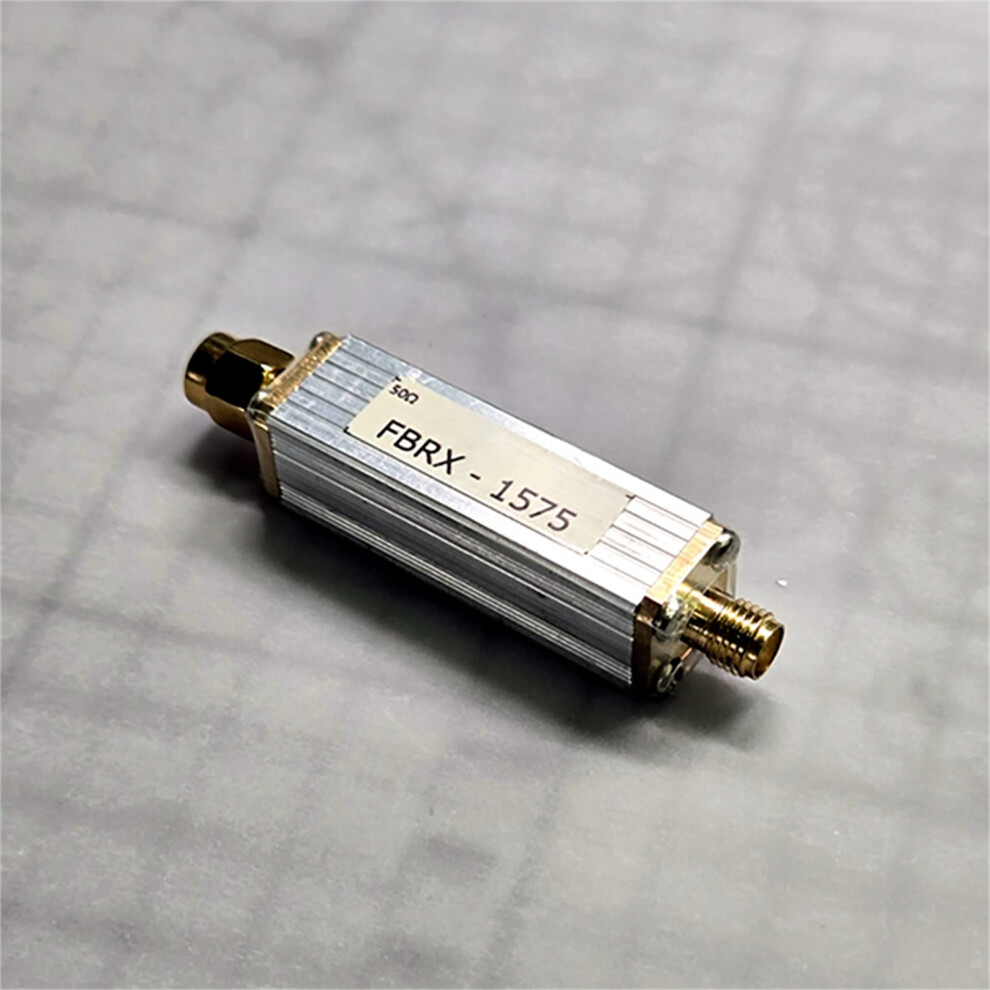

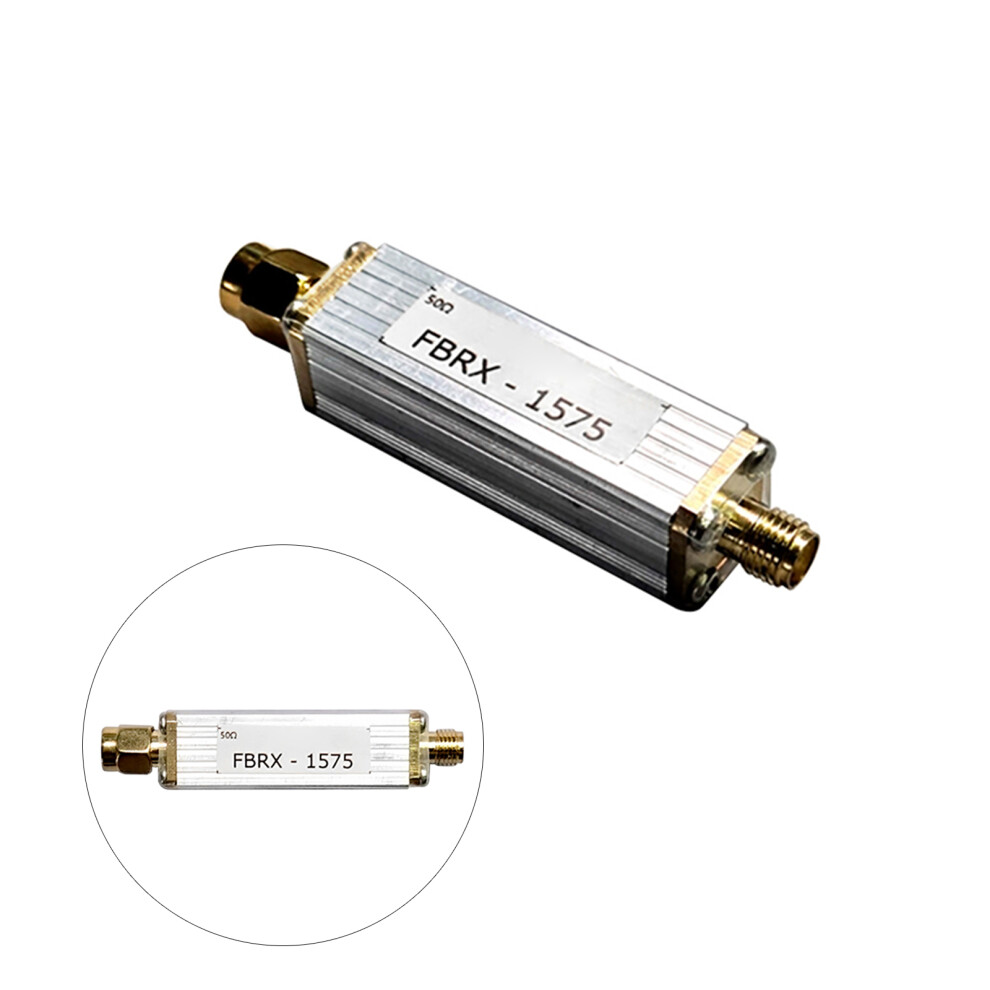

1550-1615MHz Band Rejection Filter Trap Filter for Satellite

1550-1615MHz Band Rejection Filter Trap Filter for Satellite Description

Features:

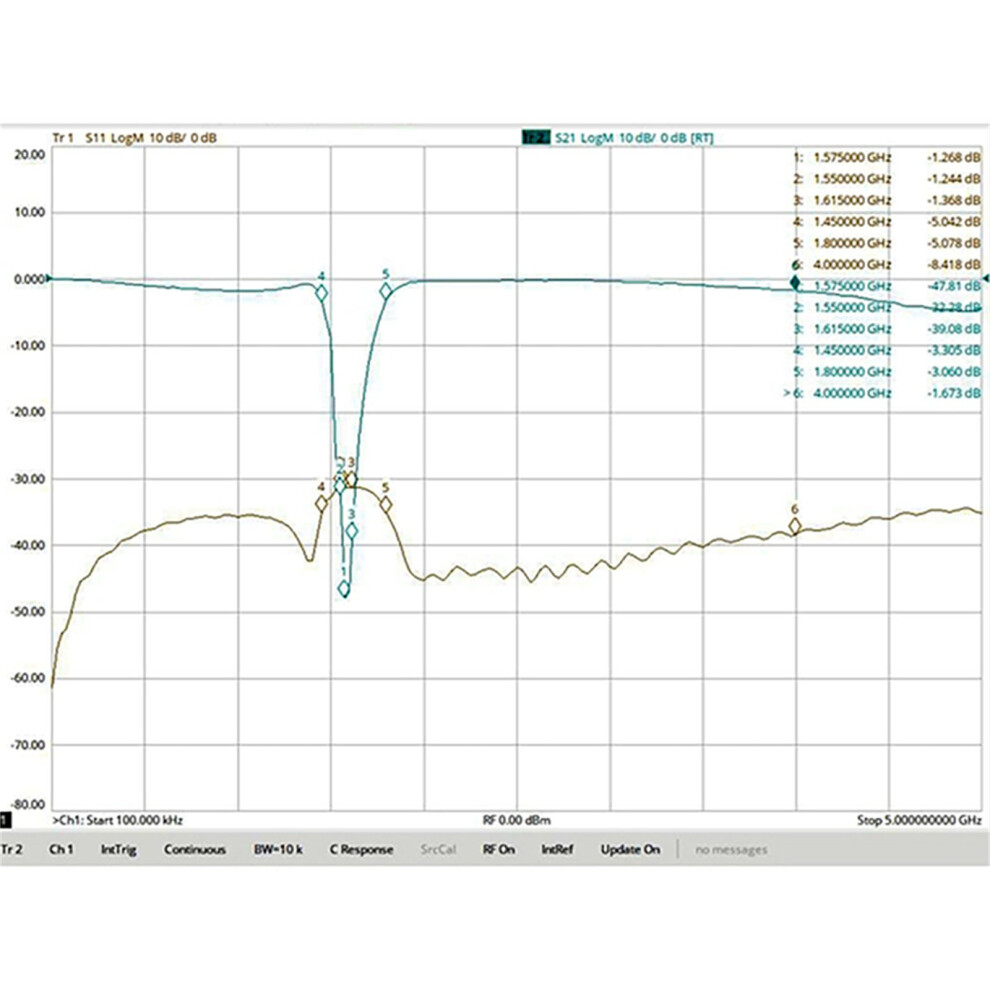

The stop filter provides 30dB suppression across 1550-1615MHz, effectively blocking while maintaining integrity in satellite navigation
Features 40dB insertion loss at the 1575MHz center frequency, ensuring superior elimination of spurious in critical positioning bands.
Deliver insertion loss in 1300MHz and 4000MHz passbands
Supports up to 3W power capacity, making it ideal for lab testing, multi communication isolation, and anti jamming applications.
Compact metal housing with connector (male/female option) ensures easy installation in front end protective circuits, and analysis equipment.

Specifications:
Component:Metal

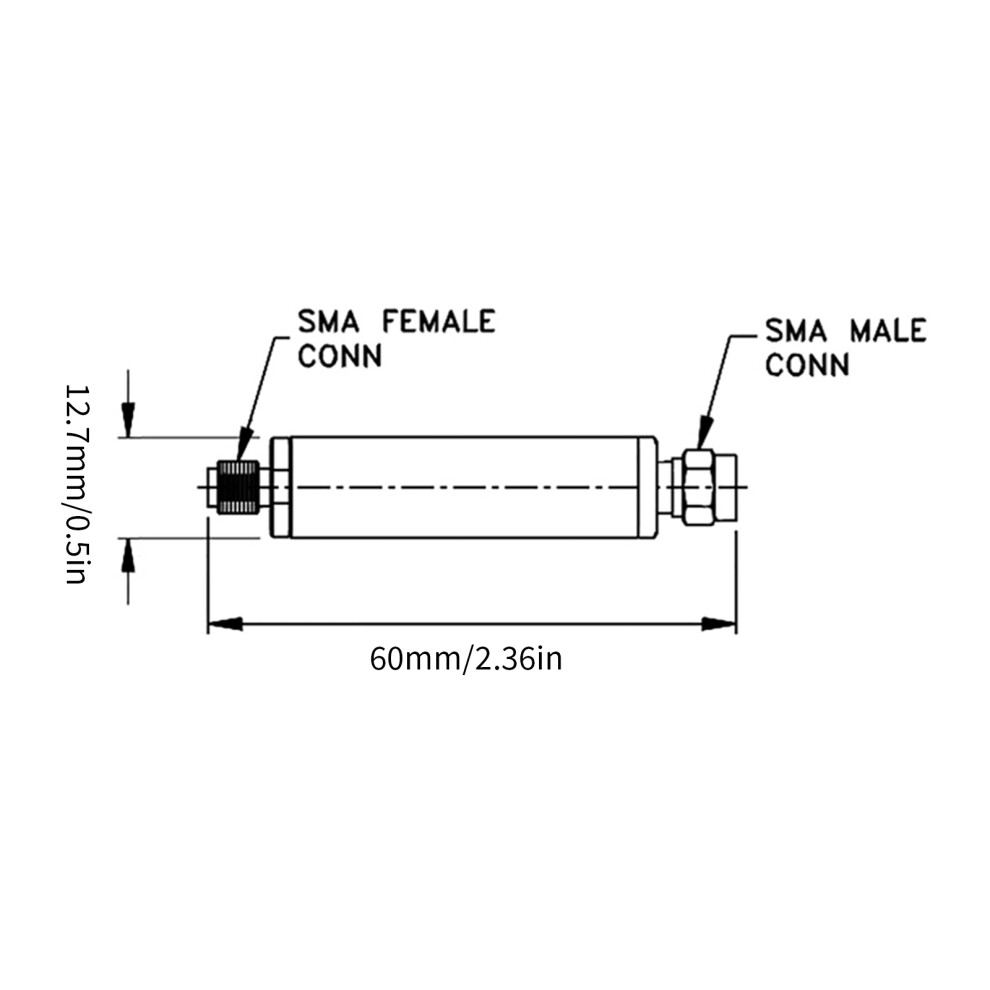

Size:Approx.60mm/2.36inch
Impedance: 50Ohms
Center frequency: 1575MHz
Center frequency insertion loss: > 40dB
30dB stopband bandwidth: 1550-1615MHz
3dB passband edged: 1450 MHz & 1800MHz

Package Includes:
1Pc Rejection Filter
