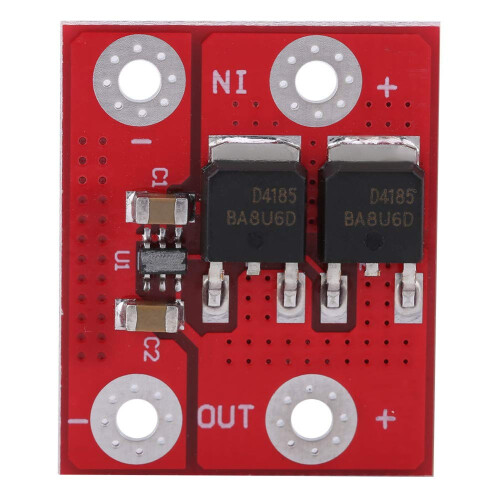

15A Ideal Diode for Solar Panel Battery Charging, Anti‑Reverse Protection, Efficiency 331 Design

15A Ideal Diode for Solar Panel Battery Charging, Anti‑Reverse Protection, Efficiency 331 Design Description

Compact Ideal Diode for Solar Panel Battery Charging This compact ideal diode is designed for use in solar panel battery charging systems where antireverse protection and efficient power transfer are required. Its small 3 x 3 x 1 footprint and 15A current rating make it suitable for embedded charge paths and power routing in offgrid and small commercial solar installations. Key benefits Prevents reverse current flow: Protects batteries from discharging back into solar panels or other power sources when input voltage falls. Improves charging efficiency: Low forward voltage drop compared to conventional diodes reduces power loss and improves overall energy conversion during charging. current capacity in a small package: 15A rating supports typical panel to battery currents while occupying minimal board area. Easy integration: Compact dimensions simplify placement on charge controllers, distribution boards, or custom PCBs. Reliable solidstate protection: Provides continuous antireverse function without mechanical parts. Important attributes Function: Charging ideal diode with antireverse current protection for solar battery charging applications. Compatibility: Suitable for solar panels, battery banks, charge controllers, offgrid power systems, and solarpowered irrigation controllers. Can be used wherever a lowloss diode function and reverse current protection are needed. Size: Compact 3 x 3 x 1 physical profile for tight installations and PCB mounting. Performance: Rated for 15A continuous current handling with low forward drop to preserve charging efficiency. Typical applications Solar charge path protection: Install between a solar panel array and battery to prevent nighttime or lowirradiance battery discharge into the panels. Solarpowered irrigation systems: Protect batteries and controllers from reverse current when pumps are idle or panels are shaded. Multisource power routing: Isolate parallel inputs or route the voltage source to a battery without significant power loss. This ideal diode offers a straightforward, spaceefficient solution for improving the reliability and efficiency of solar battery charging circuits while preventing unwanted reverse currents.
