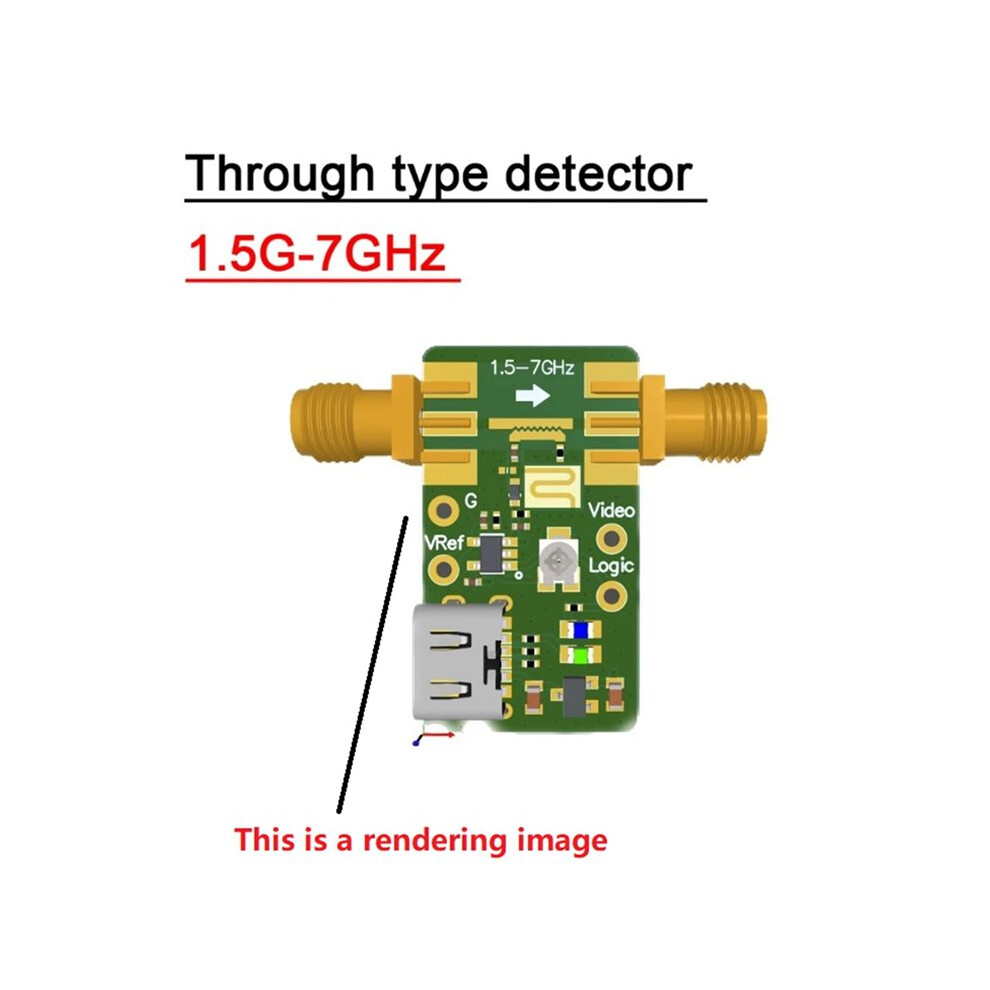

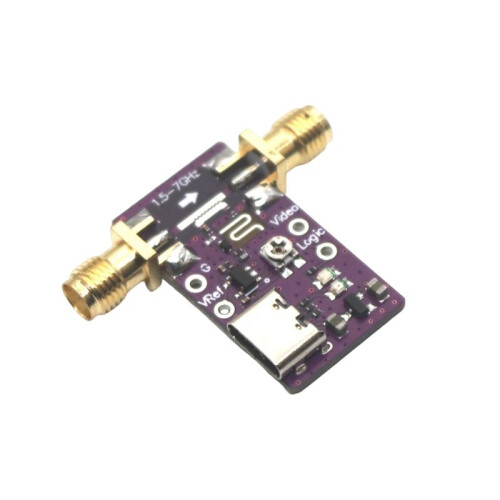

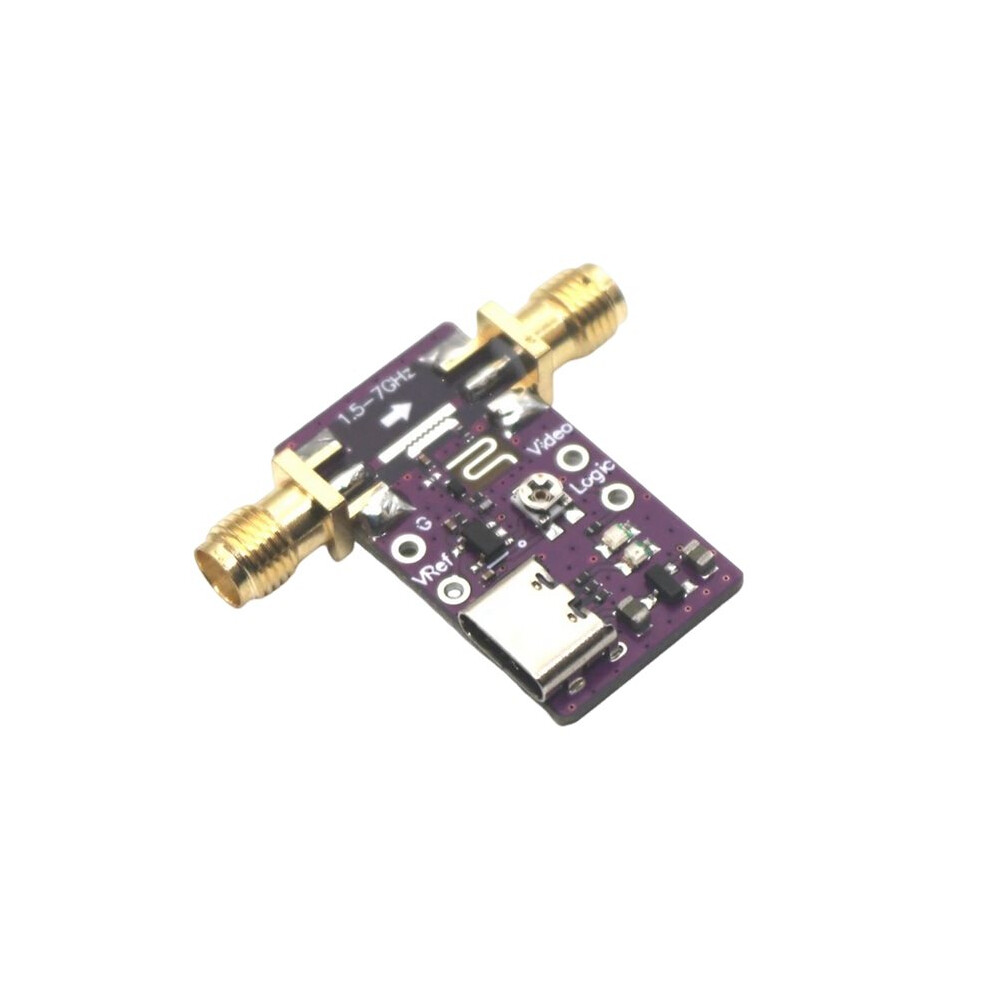

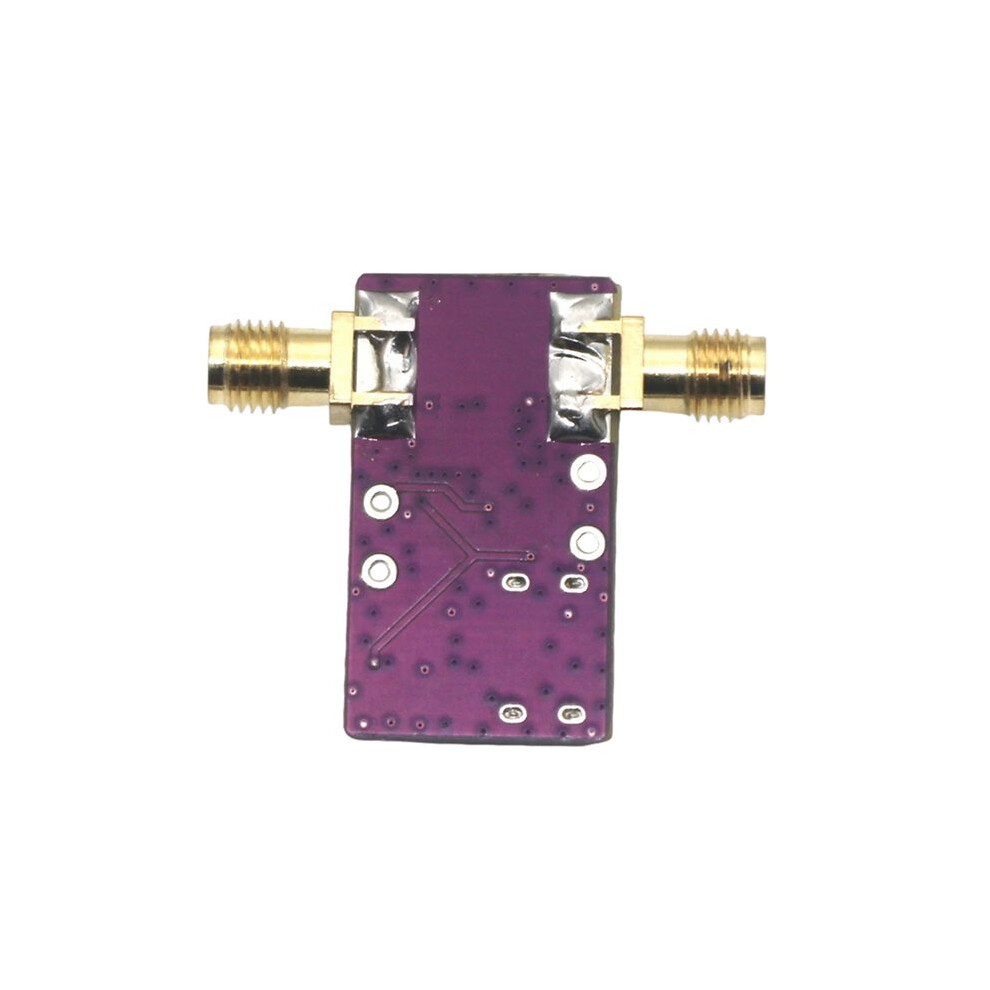

1.5G-7GHz Through Type Detector Comparator Radiodetector Directional Coupler Standing Wave Protection

1.5G-7GHz Through Type Detector Comparator Radiodetector Directional Coupler Standing Wave Protection Description

Wideband operation: Frequency range 1.5GHz - 7GHz, meeting common RF band requirements.

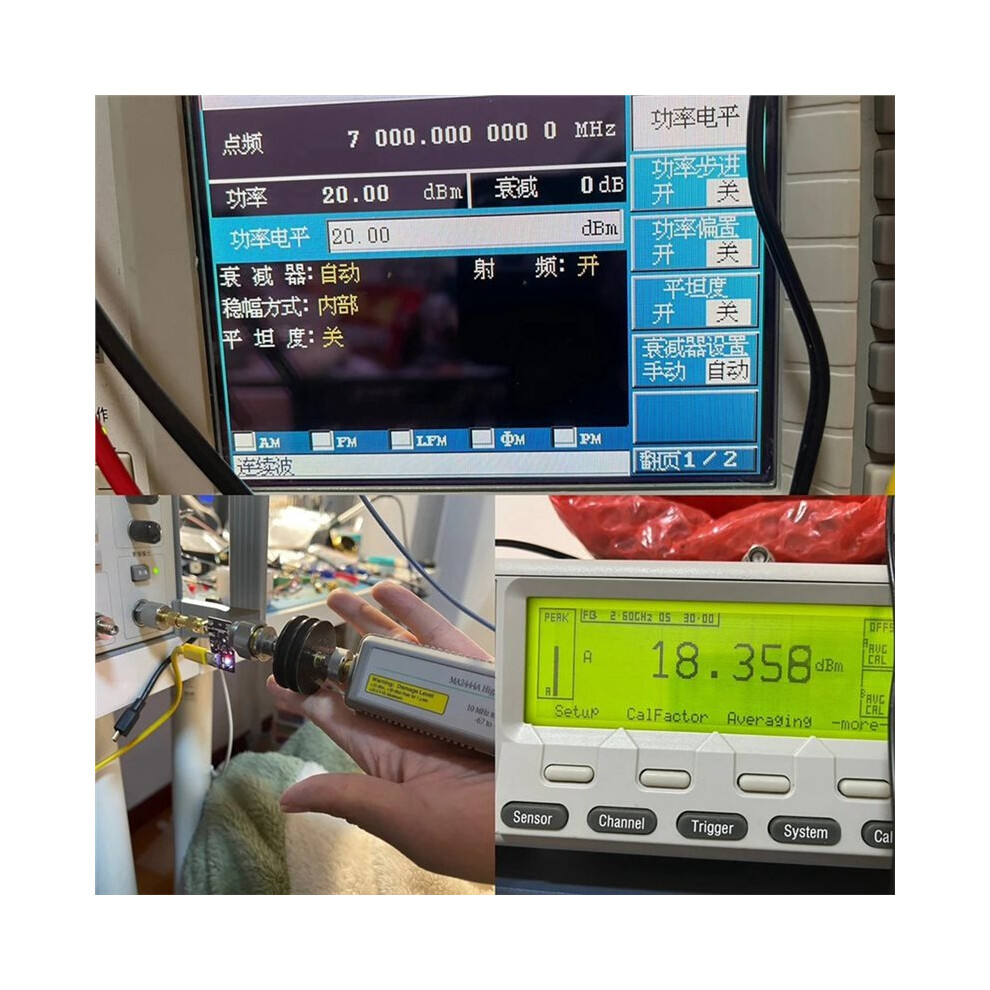

Low insertion loss: 1.5GHz insertion loss only 0.3dB, 7GHz insertion loss 1.7dB, minimal impact main signal.
Onboard directional coupler: Microstrip structure, good directivity, compact size.
Built-in comparator: Compares detector voltage with reference voltage, directly outputting TTL level, no external comparator circuit required.
TTL level output: Logic port outputs standard TTL signal, clear high/low level for easy logic judgment.

USB Type-C Power Supply: Convenient power supply; can be directly powered by a USB charger or a computer's USB port.
Dual Output : The Video port outputs the detected voltage (analog signal), which can be connected to an ADC or voltmeter; the Logic port outputs a TTL signal, with a high level output when the detected voltage is higher than Vref and a low level output when it is lower than Vref.
Adjustable Reference Voltage: The Vref pin can be connected to an external reference voltage, allowing for flexible threshold setting.

Technical Specifications:
Frequency Range: 1.5GHz to 7GHz
Insertion Loss: 0.3dB at 1.5GHz, 1.7dB at 7GHz
Power Supply: USB Type-C (5V)
Output Interfaces: Video (analog detector voltage), Logic (TTL level)
Comparator Reference Voltage: External Vref input, threshold adjustable
Logic Output: Outputs high when the detector voltage is higher than Vref, outputs low when it is lower than Vref

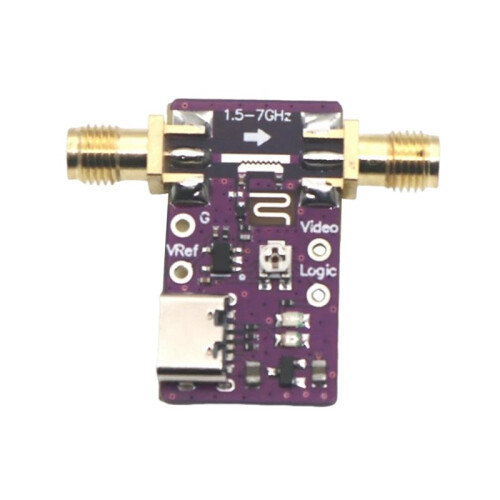

Pin/Interface Descriptions:

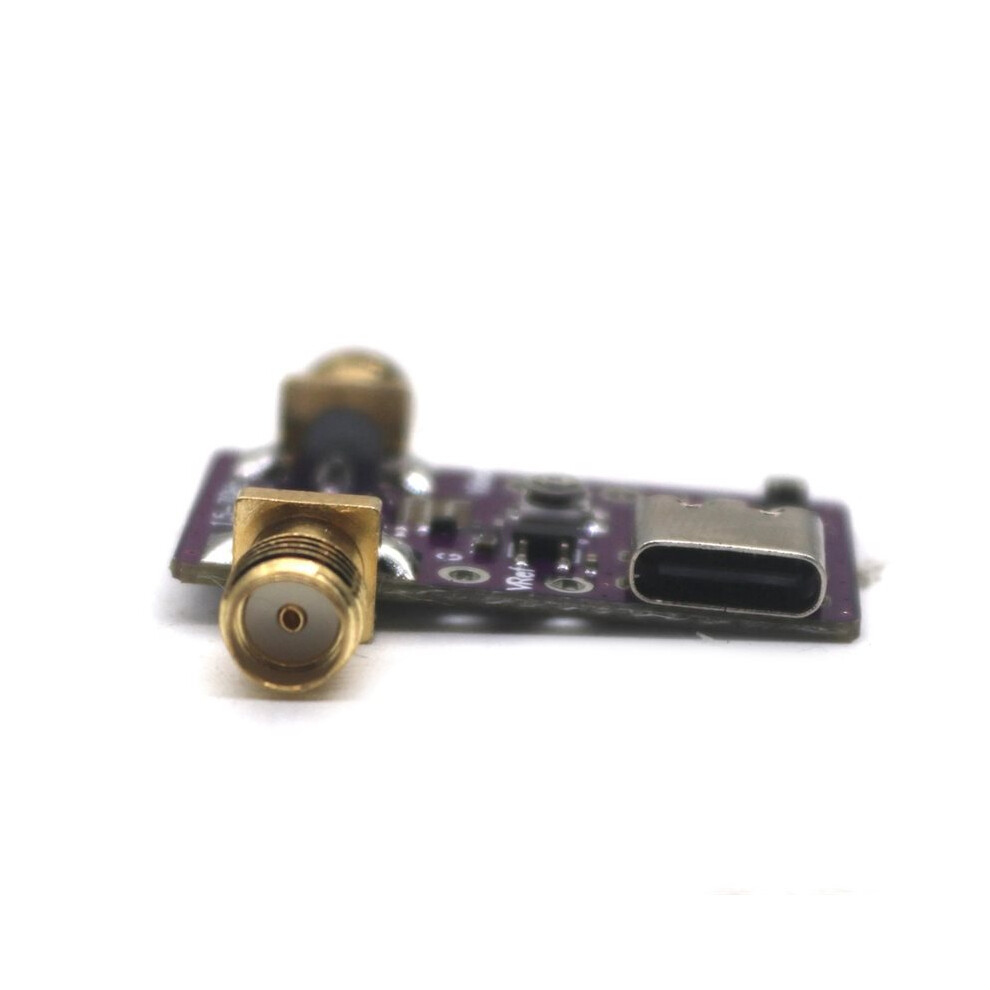

USB Type-C: 5V power supply input
Vref: Reference voltage input, used to set the comparison threshold
Video: Detector voltage output (analog signal, varies with input power)
Logic: TTL signal output (comparison result)
Color:
Material: PCB+Metal

Package Contents:
