16 Channel 12V Relay Module with Optocoupler Low Level Trigger Expansion Board for Raspberry Pi
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 129,000 Trustpilot reviews and an 'Excellent' rating
£10.90
£14.72
26% off!
+£1.33 Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (£1.33) | Wed 29th Jul - Tue 4th Aug
Sold by: Zemaoxia
Returns: 30 days
180-day payment protection
Most Popular in Circuit Board Opto-Electronics
Description & Details
Summary

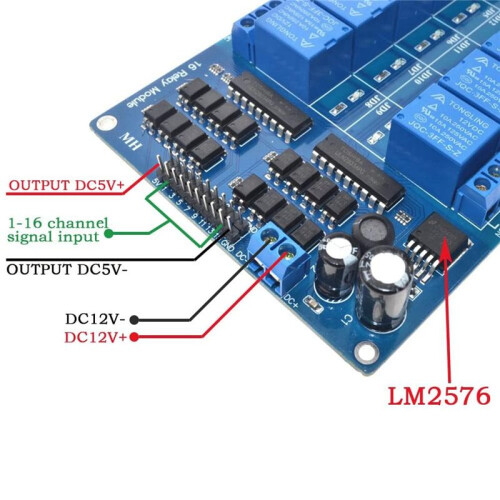

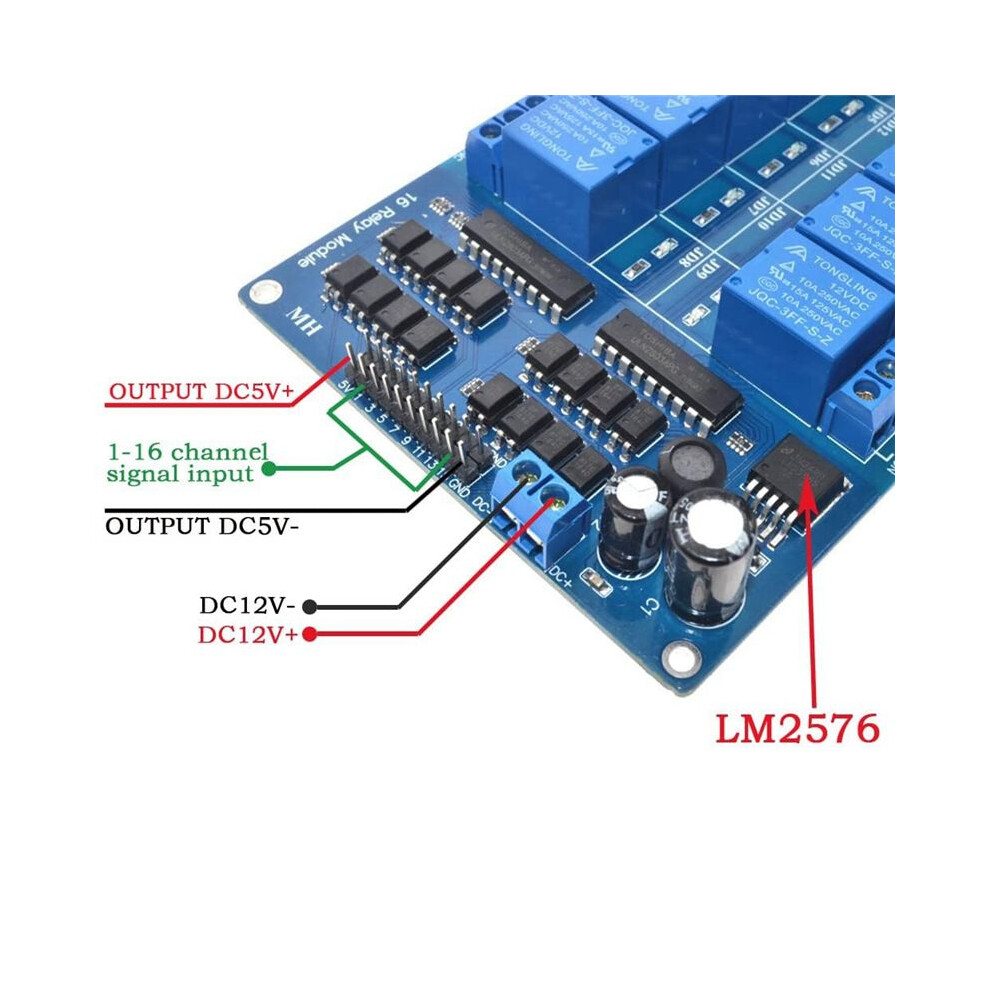

- It is an isolated 12V 10A relay module with 16 channels, each relay can be switched on and off individually via opto-isolated digital input. The standard interface can be directly connected to microcontrollers and controlled by a variety of microcontrollers such as for Arduino, AVR, PIC, ARM, DSP, etc.
- Equipped with high current relay, maximum load: AC250V 10A, 15A 125VAC, DC30V 10A; opto-isolator tripping current: 5mA.
- RELIABLE: Fault-tolerant design, even if the control line breaks, the relay will not move; With optical coupling insulation, tripping more reliable, more stable.

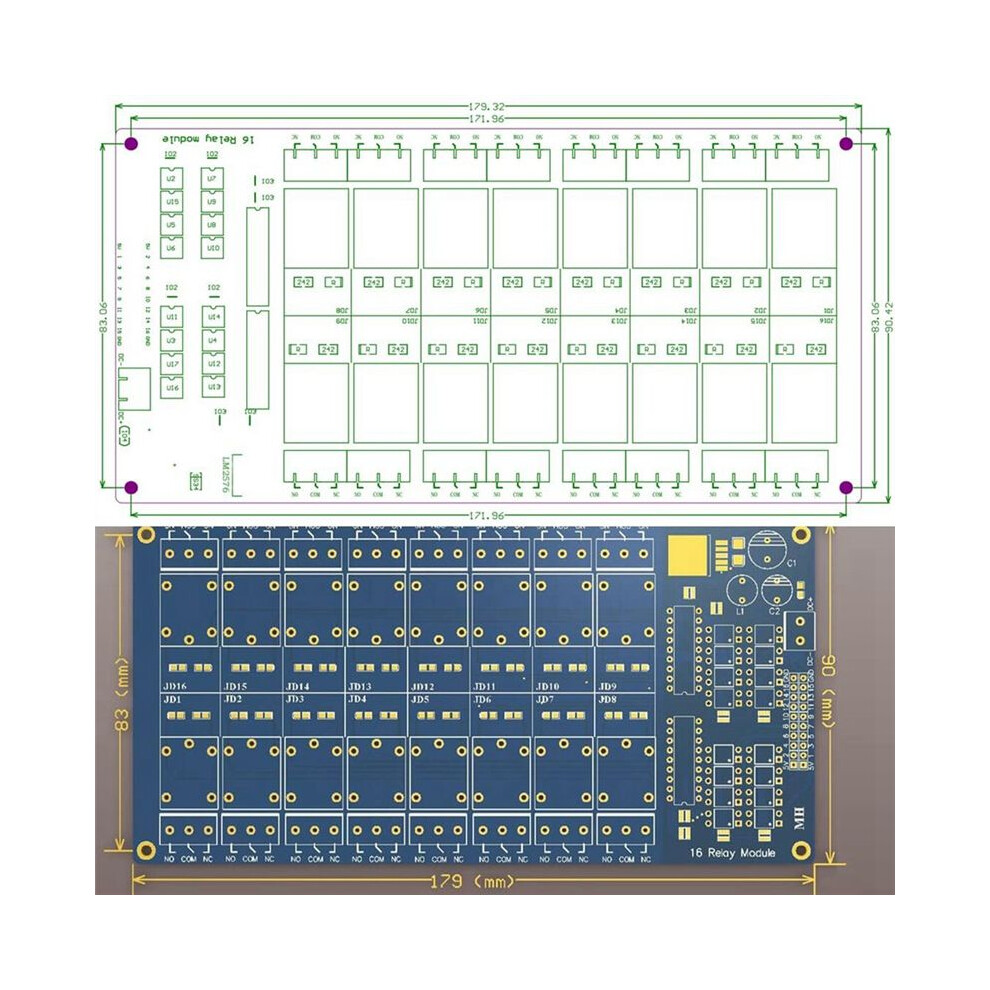

- EASY INSTALLATION: Equipped with screwed terminal plate and fixed screw holes (diameter: 3.1mm) on both sides for easy installation.

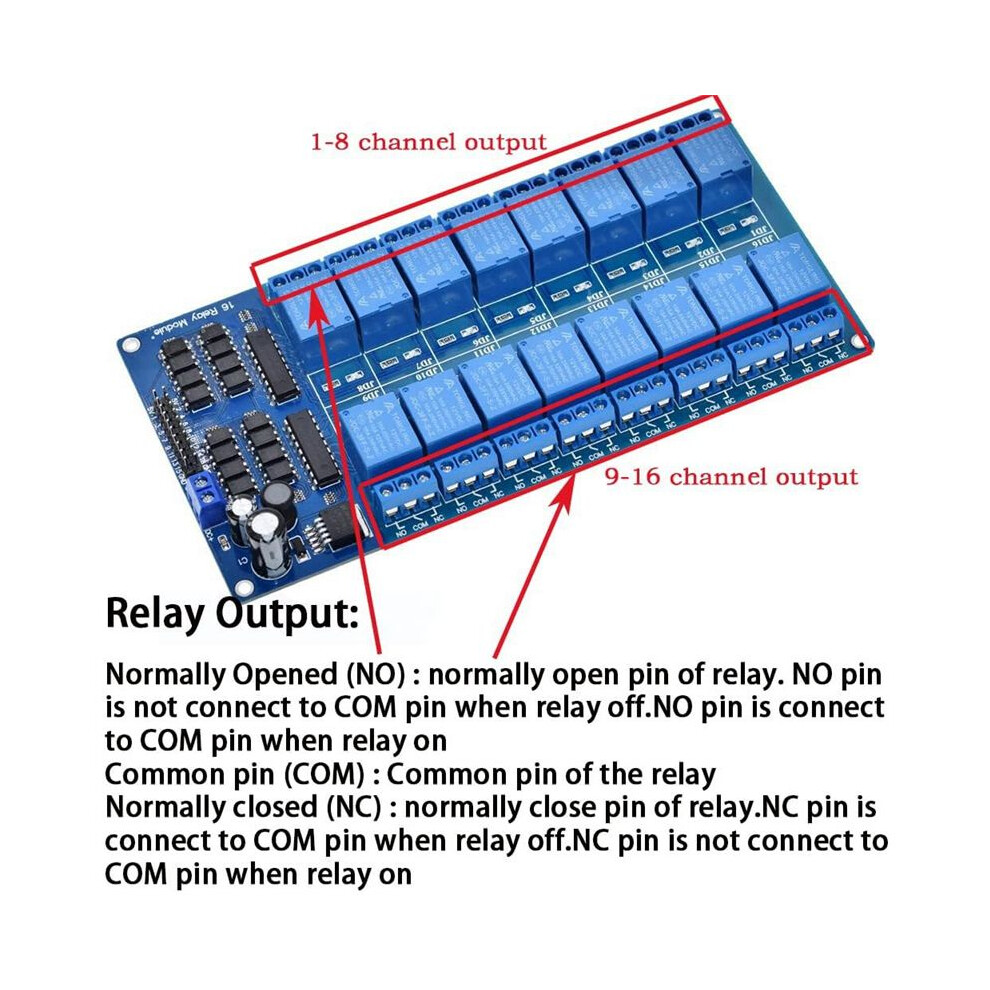

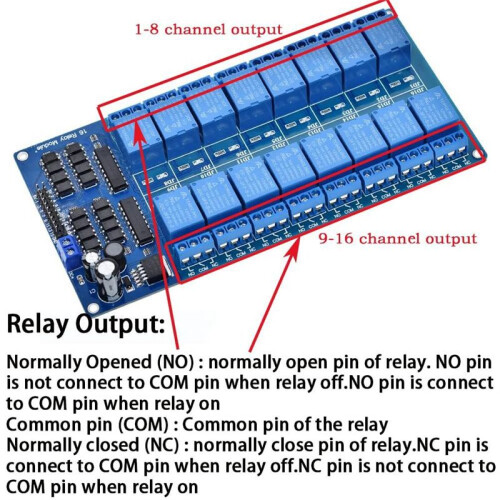

- With indicator LEDs for relay output status. The working status indicator lights up to ensure safe use.
16 Channel 12V Relay Module with Optocoupler Low Level Trigger Expansion Board for Raspberry Pi Description
It is an isolated 12V 10A relay module with 16 channels, each relay can be switched and off individually via opto-isolated digital input. The standard interface can be directly connected to microcontrollers and controlled by a variety of microcontrollers such as for , AVR, , ARM, DSP, etc.
Equipped with high current relay, maximum load: AC250V 10A, 15A 125VAC, DC30V 10A; opto-isolator tripping current: 5mA.
RELIABLE: Fault-tolerant design, even if the control breaks, the relay will not move; With optical coupling insulation, tripping more reliable, more stable.
EASY INSTALLATION: Equipped with screwed terminal plate and fixed screw holes (diameter: 3.1mm) both sides for easy installation.
With indicator LEDs for relay output status. The working status indicator lights to ensure safe use.
Colour:
Material:pcb
Package Contents:
1 x Relay Module
Details
| OPC | PRDGQVF |
|---|---|
| Codes | 6033797287648 (EAN) |
Product Data
| Height | 3cm |
|---|---|
| Width | 8cm |
| Length | 18cm |
| Weight | 0.1955kg |
| Colour | Blue |
| Material | pcb |
