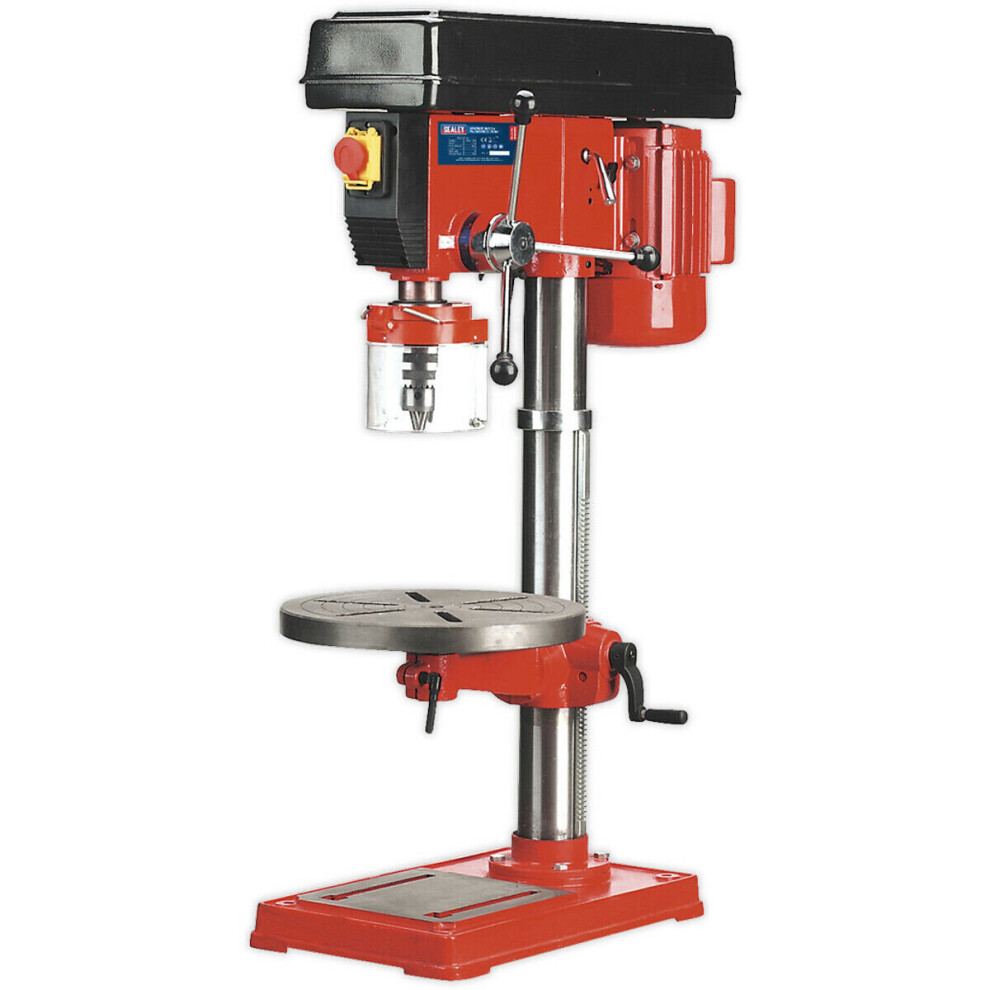

16-Speed Bench Pillar Drill - 750W Motor - 1085mm Height - Safety Release Switch

16-Speed Bench Pillar Drill - 750W Motor - 1085mm Height - Safety Release Switch Description

16-Speed Bench Pillar Drill - 750W Motor - 1085mm Height - Safety Release Switch

Overview:

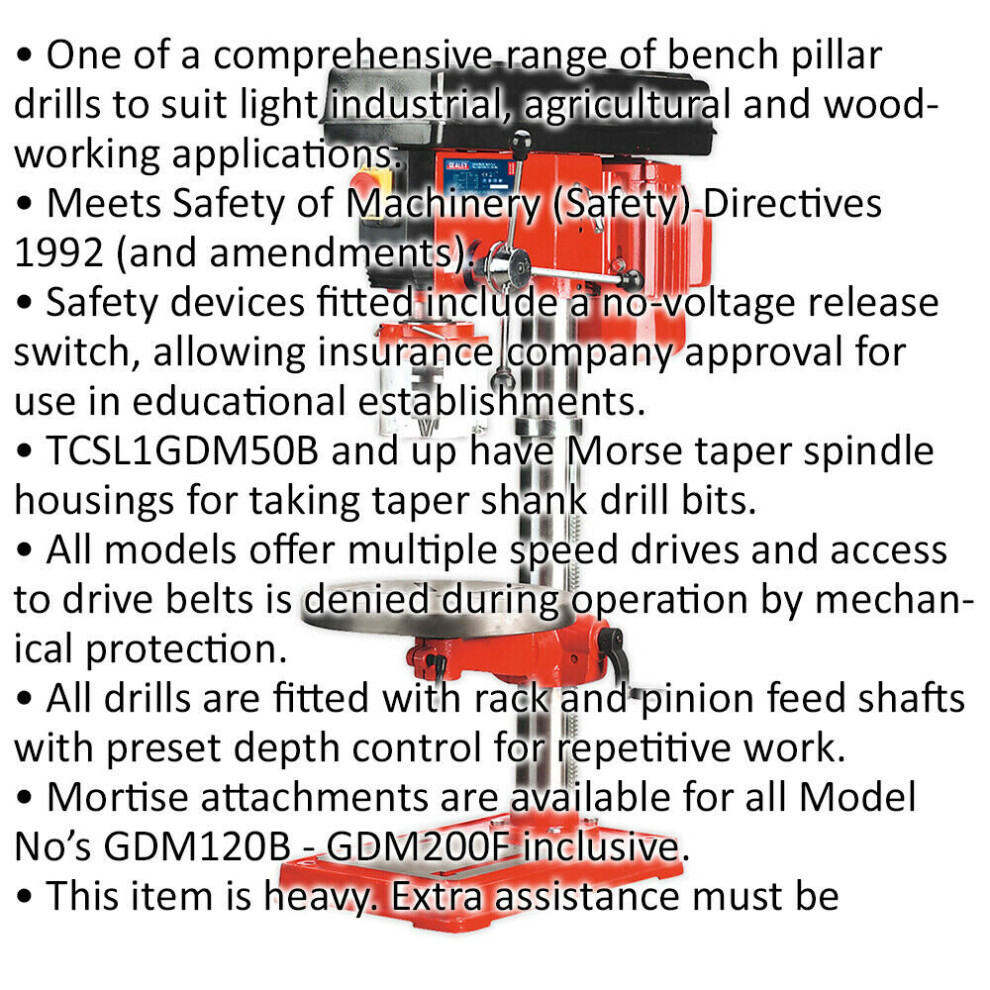

One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications. Meets Safety of Machinery (Safety) Directives 1992 (and amendments). Fitted with rack and pinion feed shafts with adjustable preset depth control for repetitive work. Features multiple speed drives and Morse taper spindle housing for accepting taper shank drill bits. Fully guarded and suitable for educational use. Fitted with no-voltage switch and locking cover to prevent accidental starting. As to drive belts is denied during operation by mechanical protection. Optional Mortise attachment is available.

Features:

• Suitable for industrial, agricultural and woodworking applications.
• Fully guarded and suitable for educational use.
• Fitted with rack and pinion feed shafts with preset depth control for repetitive work.
• Fitted with no-voltage switch and locking cover to prevent accidental starting.
• 20mm(3/4") Capacity chuck No. MT3.
• Height: 1085mm.
• Spindle Centre to Column: 216mm.
• Motor Power: 550W, Input Power: 750W.
• Column Diameter: 80mm.
• Spindle Travel: 80mm.
• Weight: 80kg.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Base Size - 520 x 320mm
• Collar Diameter - 75mm
• Column Diameter - 80mm
• Drilling Capacity (Chuck Size) - 20mm
• Maximum Distance Spindle to Base - 685mm
• Maximum Distance Spindle to Table - 495mm
• Motor Power (Start) - 550W(750W)
• Net Weight - 80kg
• Number of Speeds - 16
• Overall Height - 1085mm
• Speed Range - 120-3000rpm
• Spindle Centre to Column - 216mm
• Spindle Nose Taper - MT3
• Spindle Travel - 80mm
• Supply - 230V
• Swing - 432mm
• Working Base Surface Size - 240 x 280mm
• Working Table Surface Size - Ã355mm
