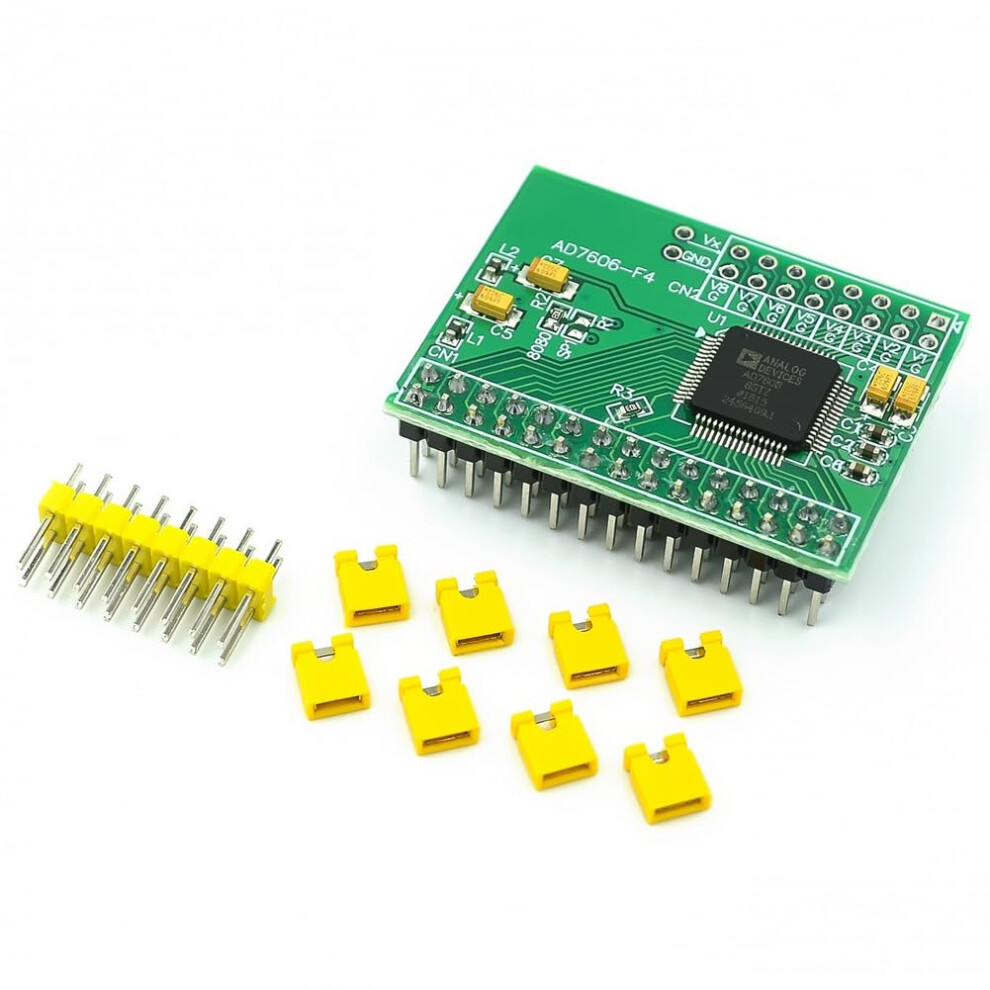

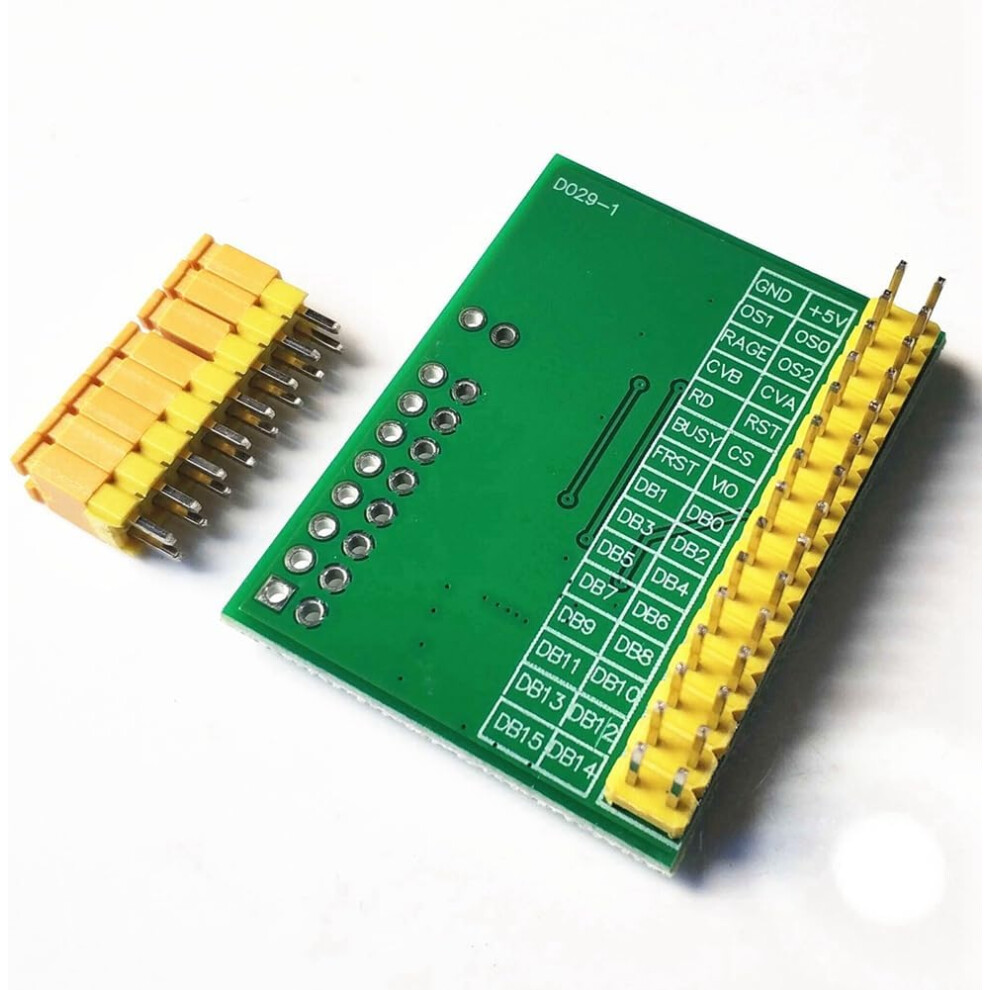

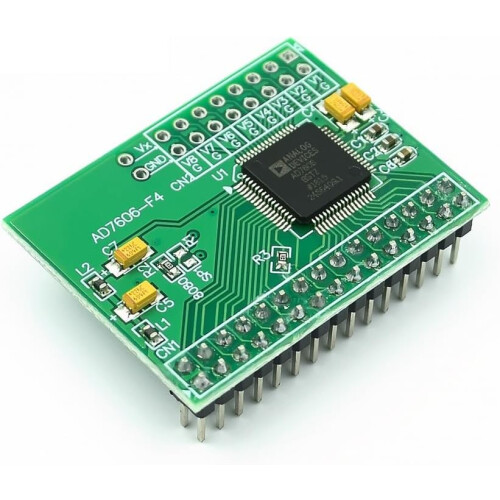

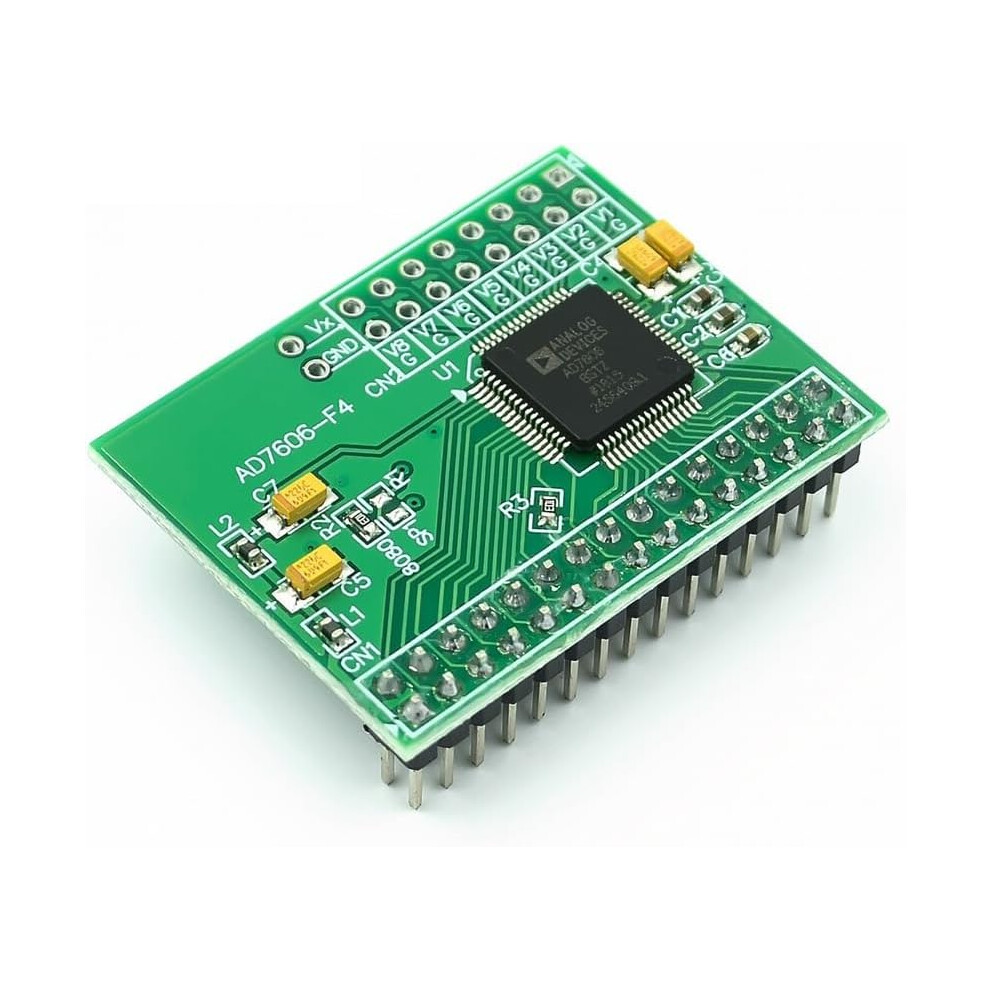

16Bit 8Channel ADC Data Acquisition Module 200ksps Speed Synchronous Sampling

16Bit 8Channel ADC Data Acquisition Module 200ksps Speed Synchronous Sampling Description

Key specifications and benefits Maximum sampling rate: 200 ksps for fast, accurate data capture of dynamic signals 8 analog inputs with 1 MΩ input impedance for direct sensor connection without frontend amplification Singlesupply operation; no negative supply required, allowing direct connection to sensor outputs without an external frontend amplifier 16bit ADC: AD7606 for resolution measurement Supports eight sampling setting profiles to effectively reduce jitter and improve measurement stability What makes it stand out Multichannel data acquisition with resolution and fast sampling to reliably capture transient events Simplified sensor integration thanks to direct connection and singlesupply design Flexible timing control via eight configurable sampling profiles to minimize jitter in varying signal conditions Compatibility and practical use Works with sensors that can be connected directly to the device output without additional frontend amplification Suitable for laboratory testing, multichannel signal monitoring, and data logging where resolution and timing precision matter Use scenarios Laboratory sensor validation and characterization: quickly acquire and compare multiple sensor channels with resolution Machinery vibration or structural monitoring: capture multichannel vibration data to analyze performance and detect anomalies Industrial process monitoring: record and monitor multiple electrical signals with reduced jitter for reliable process control Notes All specifications refer to the device's stated capabilities: 8 analog inputs, 1 MΩ input impedance, singlesupply operation, 16bit AD7606 ADC, and up to 200 ksps sampling rate No negative supply is required, and there is no need for frontend amplification to connect directly to sensor outputs
