16L Portable Car Refrigerator with Display

16L Portable Car Refrigerator with Display Description

Description

The weather is so hot, so bring a portable compressor refrigerator to always have cool drinks to quench your thirst. With an 16L capacity, it can accommodate enough drinks and snacks without taking up too much space in the car. It also provides two modes, fast cooling and energy-saving mode, so that your food will always stay fresh and not easy to spoil. With a digital display, you can easily adjust the temperature or lock it. With voltage protection, you can use it safely and enjoy a pleasant road trip.

Specifications

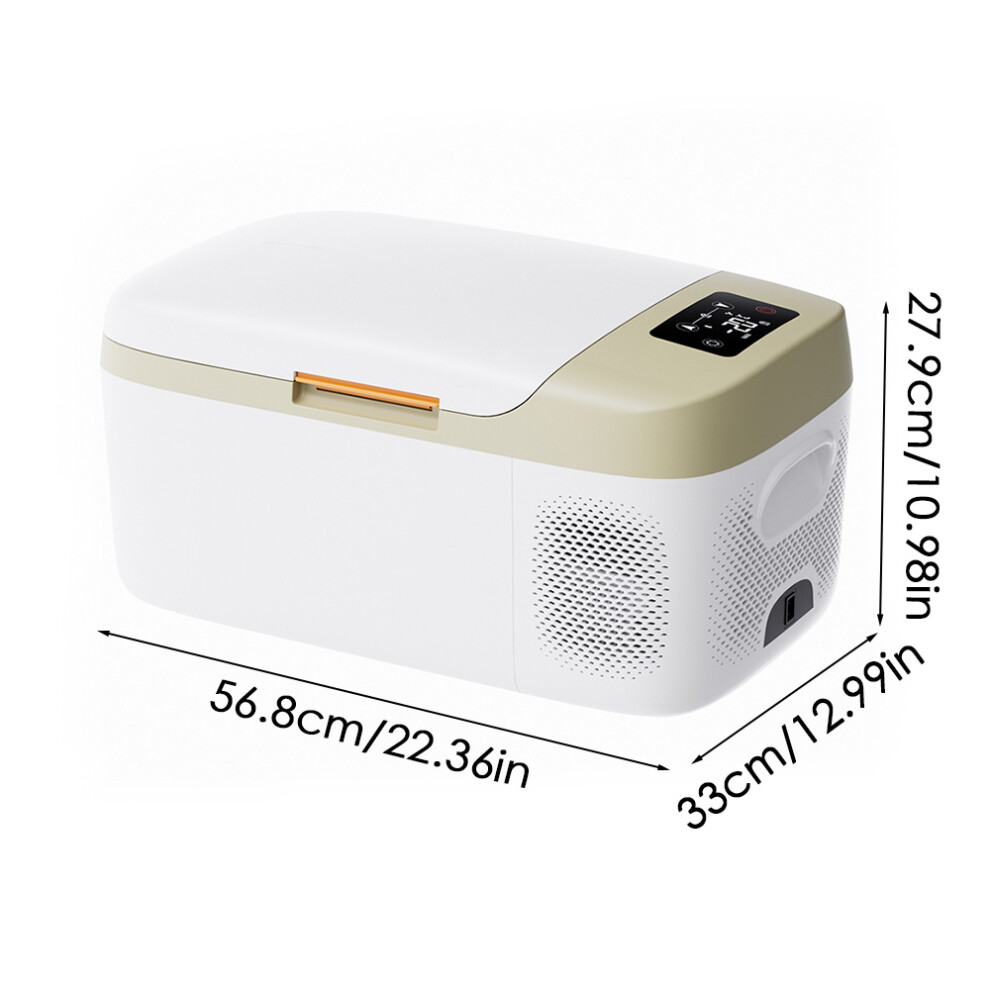

Overall Dimensions: 56.8cm W x 33cm D x 27.9cm H

Colour: White+Green

Capacity: 16L

Material: ABS+PP

Range: -20℃~+20℃(32℃)

Power: 45W（±20%）

Voltage: DC 12V/24V

Noise: ≤45dB

Cooling: Compressor

Package Included

1 x Portable Refrigerator

Package Specifications

Package Dimensions (WxDxH): 614 x 384 x 330cm

Gross Weight: 10kg

Safety Cautions

• Do not touch power cords, power sockets, or power strips with wet hands.
• Have a professional install the refrigerator if using it in cars, RVs, or yachts.
• Ensure the power supply lines and fuses are suitable and that the power is connected correctly.
• Do not expose the refrigerator to rain or strong sunlight for extended periods.
• Place the refrigerator in a well-ventilated area to ensure proper heat dissipation. Maintain at least a 100 mm gap between the cooling vents and other objects.
• Use the refrigerator on a flat surface to maintain its efficiency and prolong its service life.

Operation Guide

Start-Up: Connect to DC 12V/24V power. Hold the power button for 3 seconds to start. The display shows the current temperature and mode.

Shut-Down: Hold the power button for 3 seconds to stop while the keyboard is unlocked.

Lock: Hold the up button for 6 seconds. The child lock icon will light up. The keyboard locks automatically after 20 seconds of inactivity.

Unlock: Hold the down button for 6 seconds.

Adjust Temperature: Press the up/down button to change the set temperature (increments of 1℃). Hold the button for quick adjustment. The set value saves automatically after 5 seconds of inactivity.

Switch Modes: Press the set button to toggle between "ECO" and "MAX". Use "MAX" for quick cooling and "ECO" for energy-saving constant temperature.

Low Voltage Protection: Automatically stops the compressor if battery voltage is too low, indicated by the "E1" code. Resumes normal operation when voltage stabilizes.

Note: For more detailed instructions and Bluetooth function please refer to the user manual.
