1730Mbps for Dual Band Wireless AC 9560 Desktop Kit

1730Mbps for Dual Band Wireless AC 9560 Desktop Kit Description

For IntelWireless-AC 9560
The Wireless-AC 9560 adapter is a CRF(companion module)supporting the integrated wireless 802.11ac solutions from .The solution provides Bluetooth 5 and 2x2 802.11ac Wi-Fi including wave 2 features such as 160MHz channels.
These new features deliver a significant increase in user speeds in dense deployments,supporting fast downloads and long battery life compared to legacy 802.11ac devices.Combined with Core processors and exceptional wireless ,the Wireless-AC 9560 can provide Gigabit wireless speed4 and dramatically improve your connected experience ,work,or .
Antenna Set. Item: 6dbi MHF4 To RP-SMA External Antenna Set.
The item can competible With Router, PC, WiFi card, 3G 4G Card etc

Color: white+green
Material: PCB
6Dbi Antenna Length: 19.5cm
MHF4 U.FL Length: 30cm
Support Network: 802.11b, 802.11g,802.11n,802.11ac
Flexible WiFi antenna
It currently only support certain processors:
For 8th Gen Core processors
For Pentium Silver processors based on Gemini Lake
Celeron processors based on Gemini Lake
Note:Even though you can insert these CRF to a standard M.2 Key E socket, they are only compatible with a system designed with the CNVi. Contact your system or motherboard manufacturer to verify compatibility.
Description:

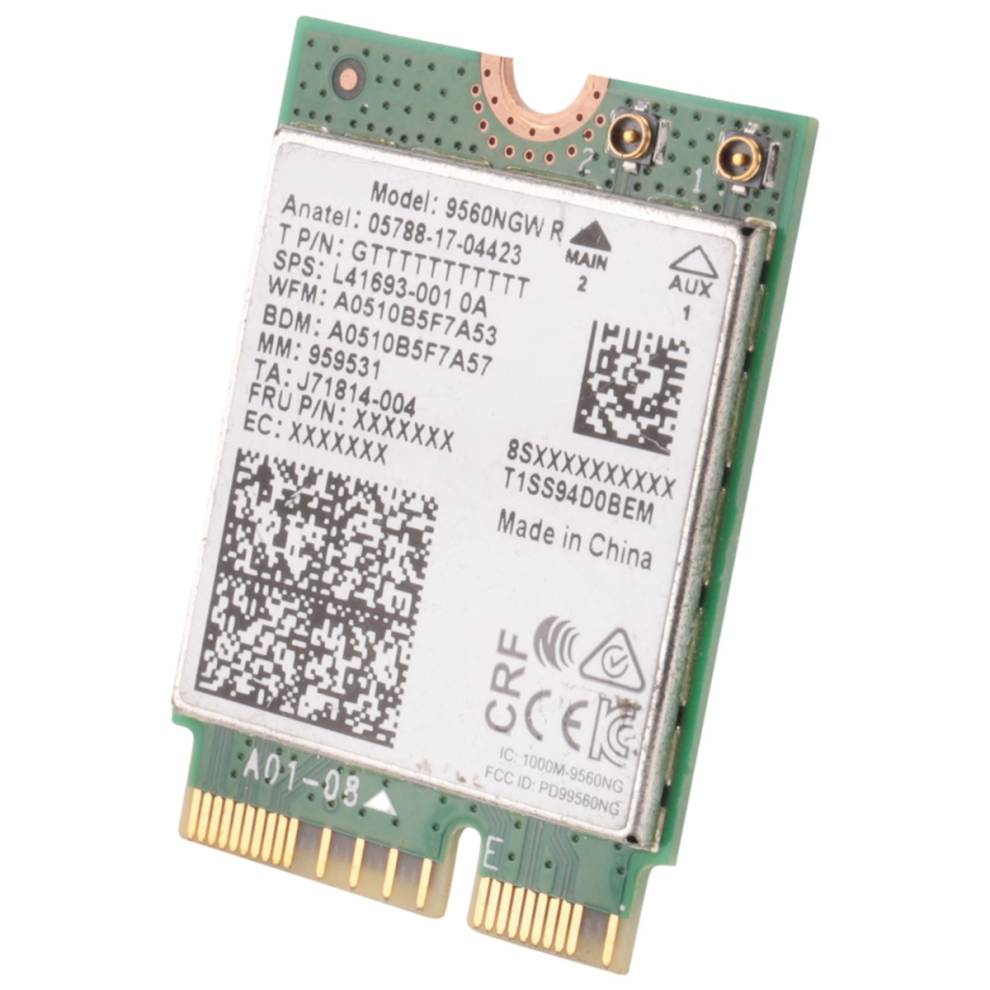

Model: For 9560NGW
SPS: 937263-001 0B
P: 01AX768
Dual band:2.4Ghz / 5Ghz(160Mhz)
Max speed: to 1730Mbps (The router must on 160Mhz)
Bluetooth Version:Bluetooth 5.0
Interface:NGFF Key E,22x30mm
IEEE WLAN Standard:IEEE 802.11a/b/g/ac
-MIMO:Supported
Antenna diversity:Supported
Radio ON/OFF control:Supported
Connector Interface:M.2:CNVio
Operating Temperature(Adapter Shield):0 to 80 (Celsius)
Supported Operating Systems:Only work with 10
Note: Not support 7/8/8.1
Compatible With:
It can used on ////ISUS///Terransforce/Hasee etc.
Not support /// laptop.

Package Contents:

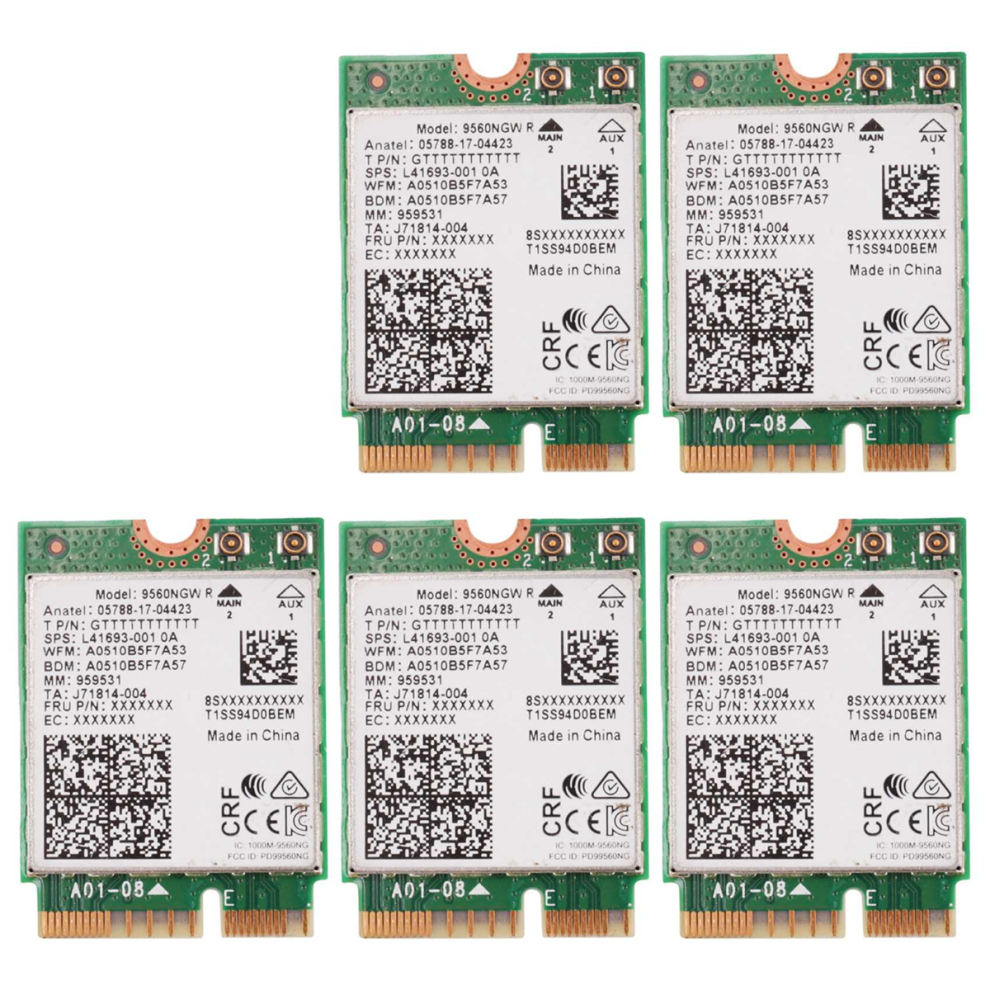

5 x Wireless network card

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
