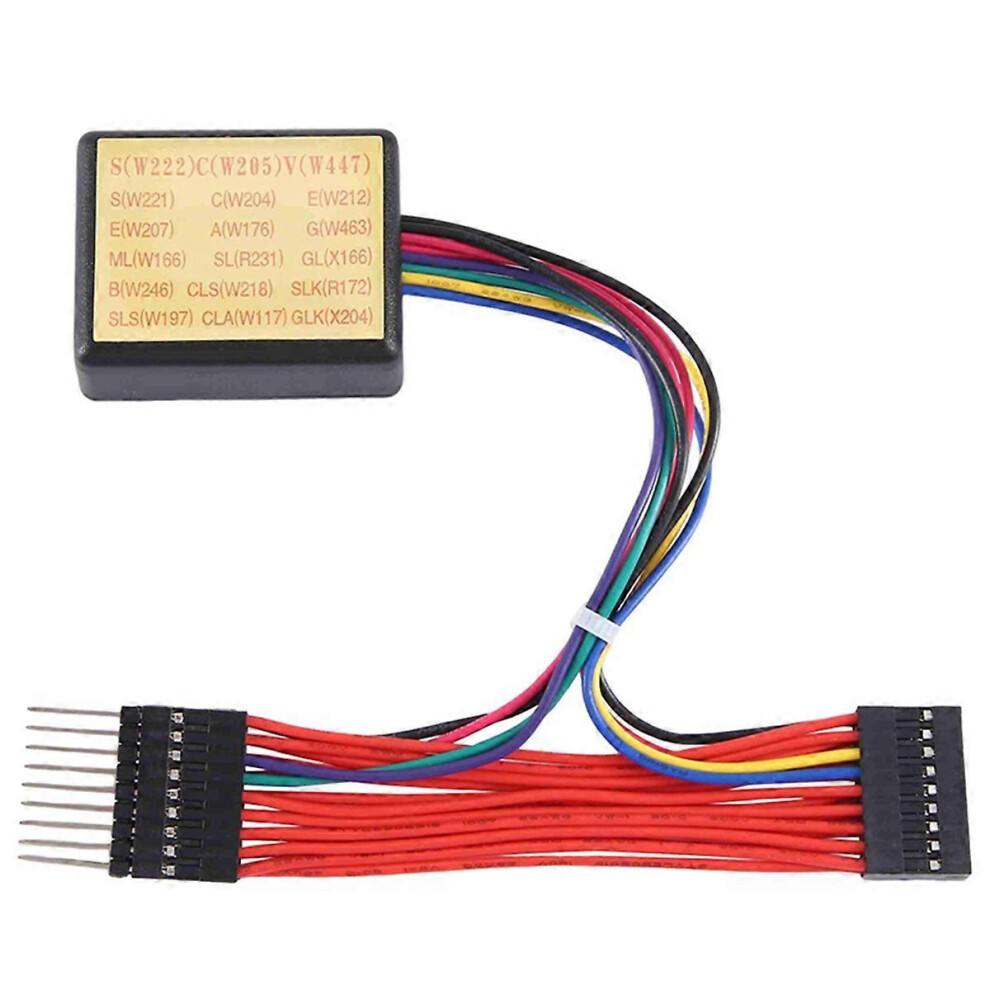

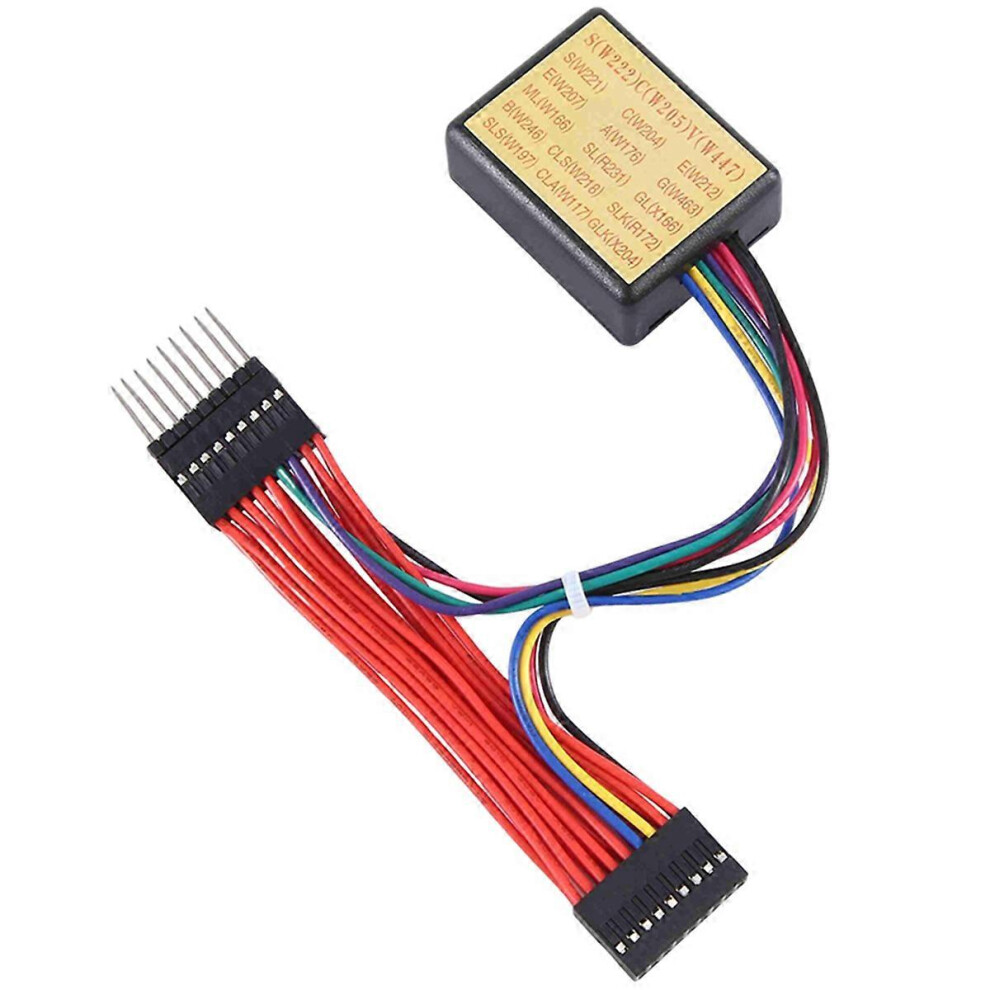

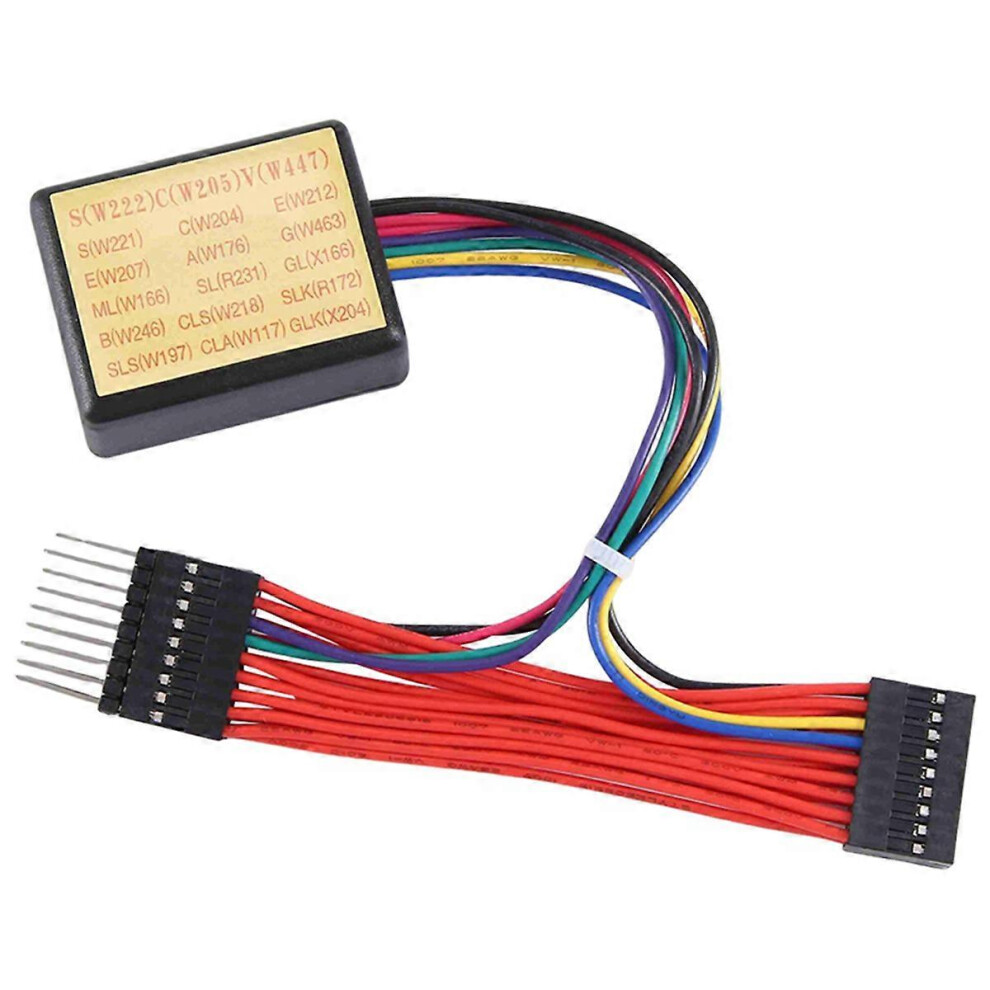

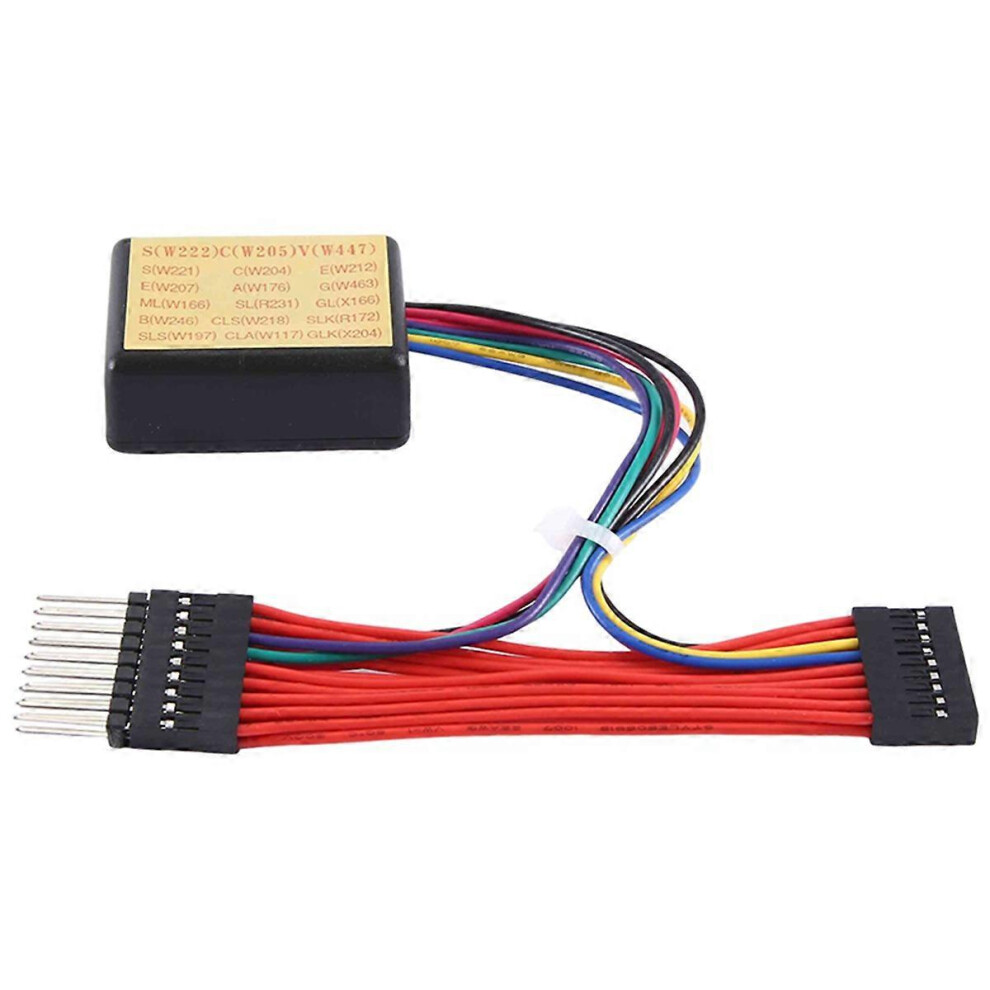

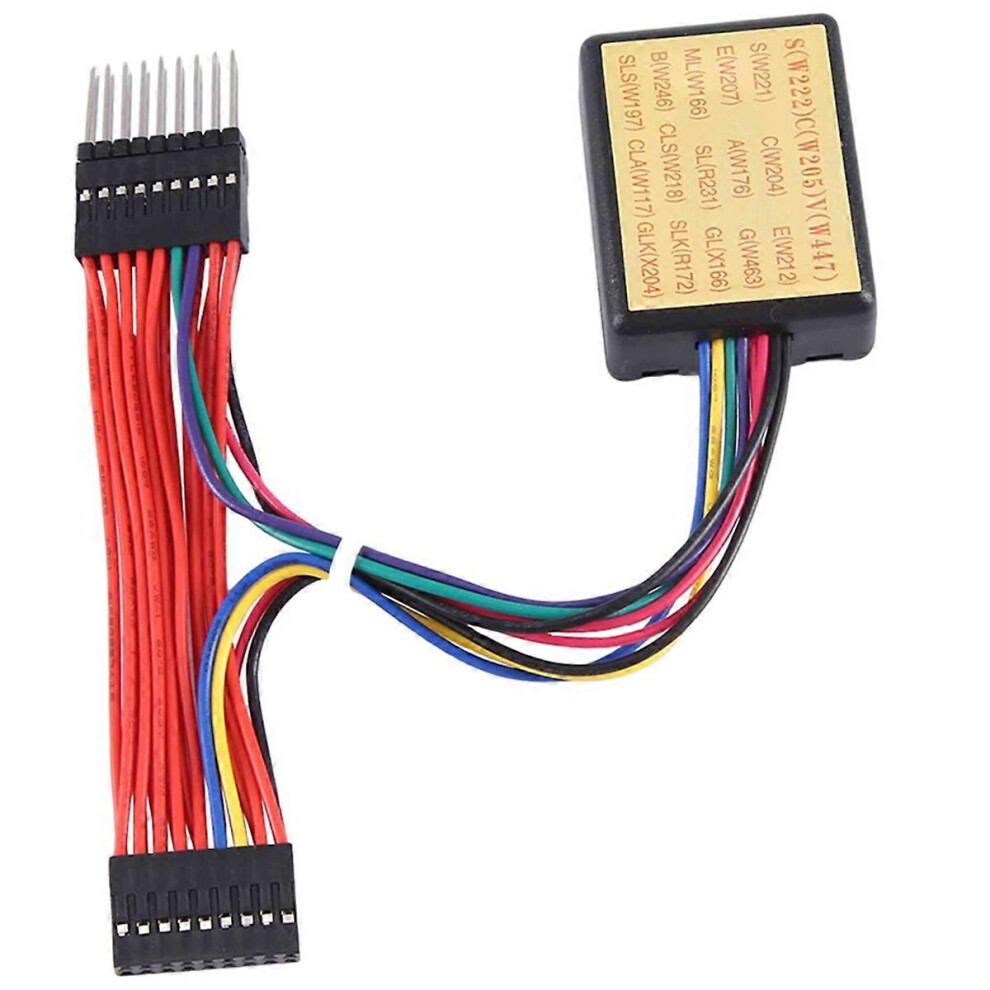

18-IN-1 CAN Filter Universal Emulator compatible with Multiple Car Models

18-IN-1 CAN Filter Universal Emulator compatible with Multiple Car Models Description

1. High Compatibility: 18-in-1 CAN filter cable is replacement for G series and replacement for ‑ W222 W205 W166 to better meet your demands.
2. Function: CAN bus filter can effectively reduce unnecessary data storage, only record the required data, save the storage space in the data recording device.
3. Superior Material: CAN filter cable is made from superior ABS plastic, oil , heat , not easy to damage, and has a long service life.
1. For 18 types chasis model: S(222), S(221), C(205), C(204), V(W447), E(W212), E(W207), A(W176), G(W463), ML(W166), SL(R231), (X166), B(W246), (W218), (R172), (W197), CLA(W117), (X204)
For : CAS4/FEM Fxx
2. For Model:
For 1 series F2X, 3 series F3X, for X5 etc., FEM mileage adjustment( no need to remove FEM, connect directly to instrument panel);
For 5 series F10, 7 series F01/02 etc., CAS4 Fxx chassis.( F01, F02, F07, F18, F10, F20, F25, X3 etc., applicable for 9S12 XEP series 5M48H/1N35H).
This filter is universal for multiple car models, small and convenient, easy operate, with stable performance and reliability.
NOTICE!!
New style:222/205/217
Old style:166/212/463
CHECK the car model correctly before adjust.
Old style W166 short circuit to GND
New style W222 short circuit to GND
Black wire connect to plug 1
for /for Universal filterDiagram for
Below is wiring illustration:
BlackGND Red+12V White+5V
L1(CAN_L1) GreenH1(CAN_H1)
YellowL2(CAN_L2) BlueH2(CAN_H1)
NOTICE! Please connect the 2 for dot together(short circuit) BEFORE connect to car!
Note:Due to different production batches, the color of circuit boards is random and cannot be specified.
Colour:As Shown
Material:Plastic
Package Contents:
1 x 18-IN-1 CAN Filter
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of th
