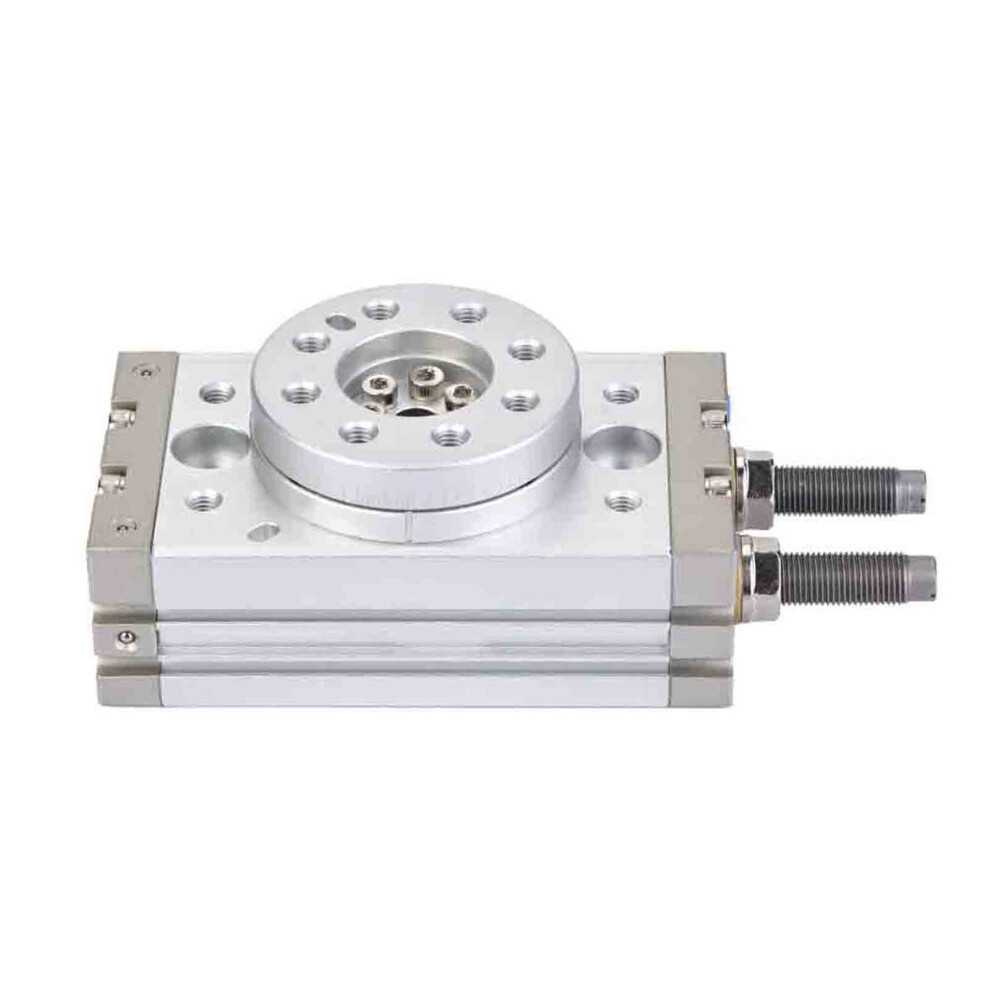

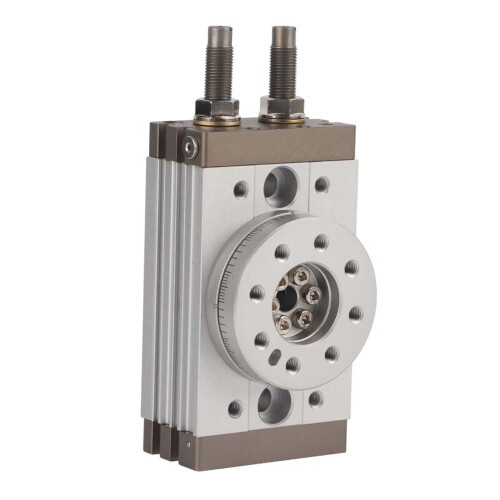

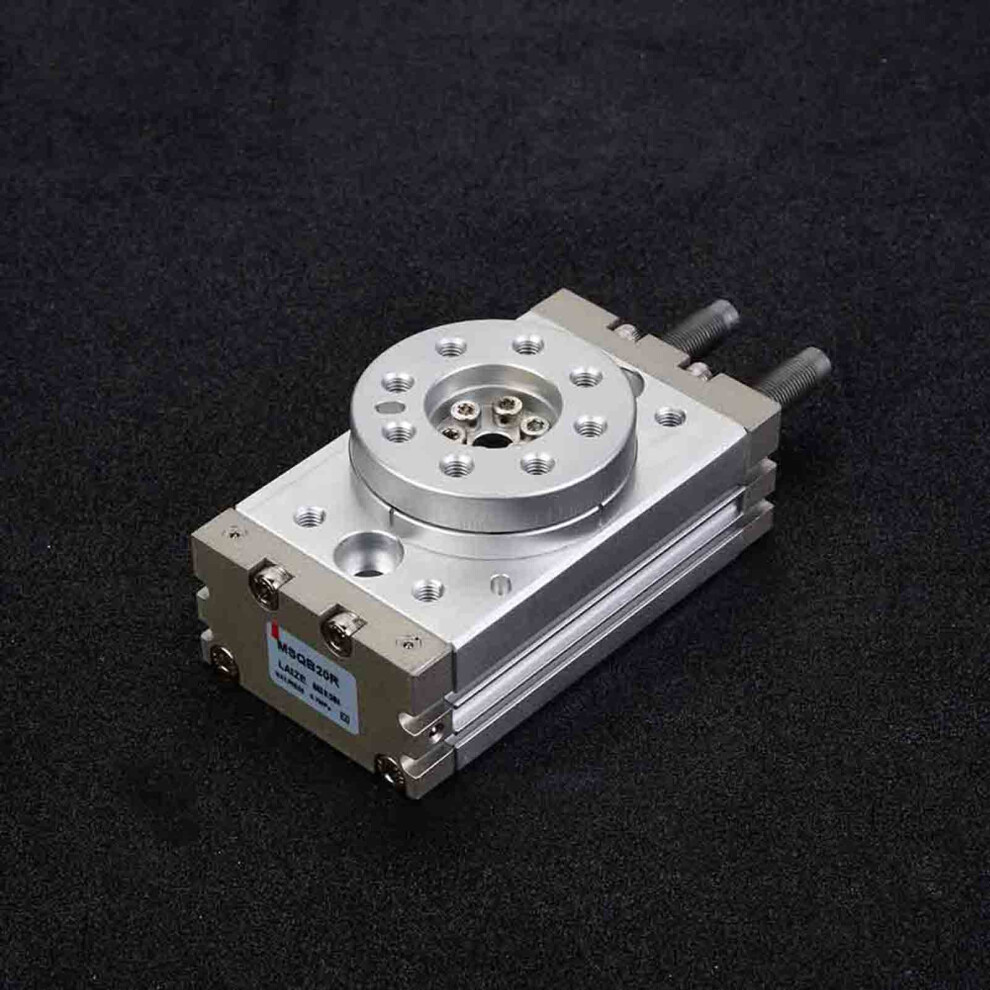

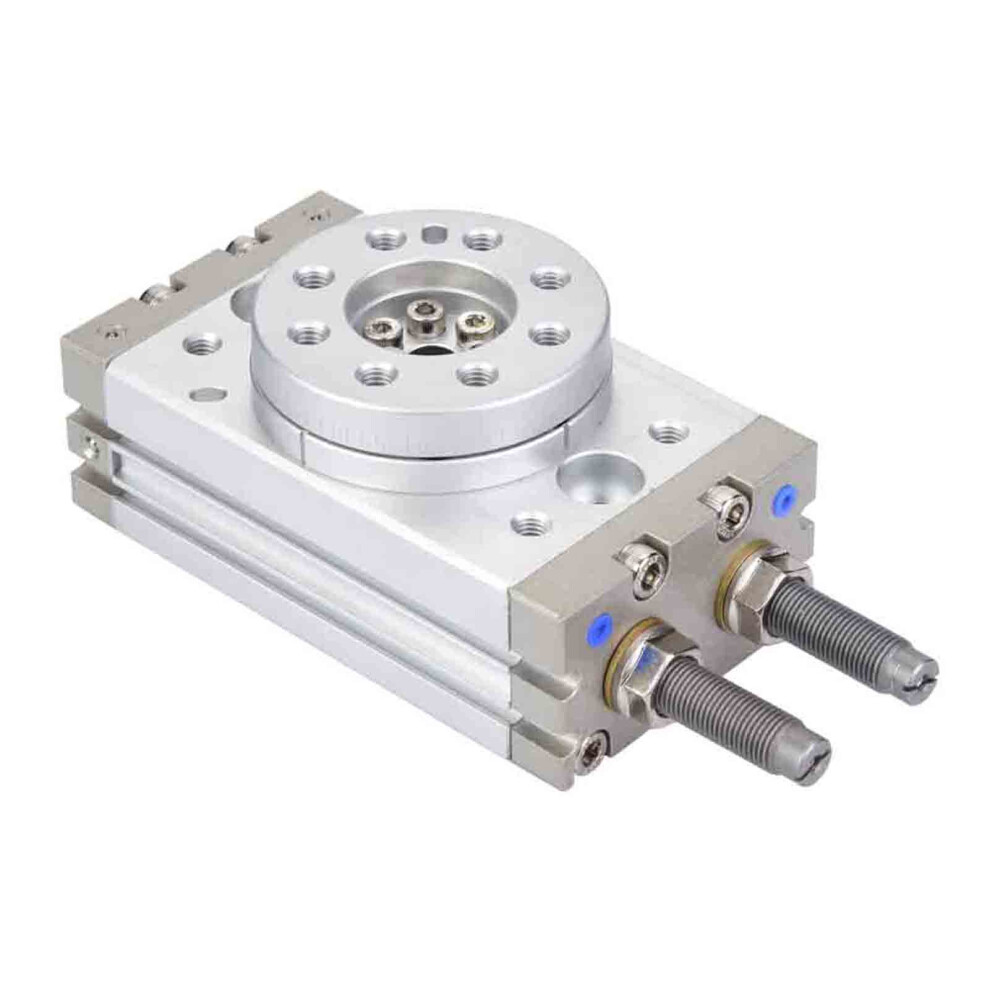

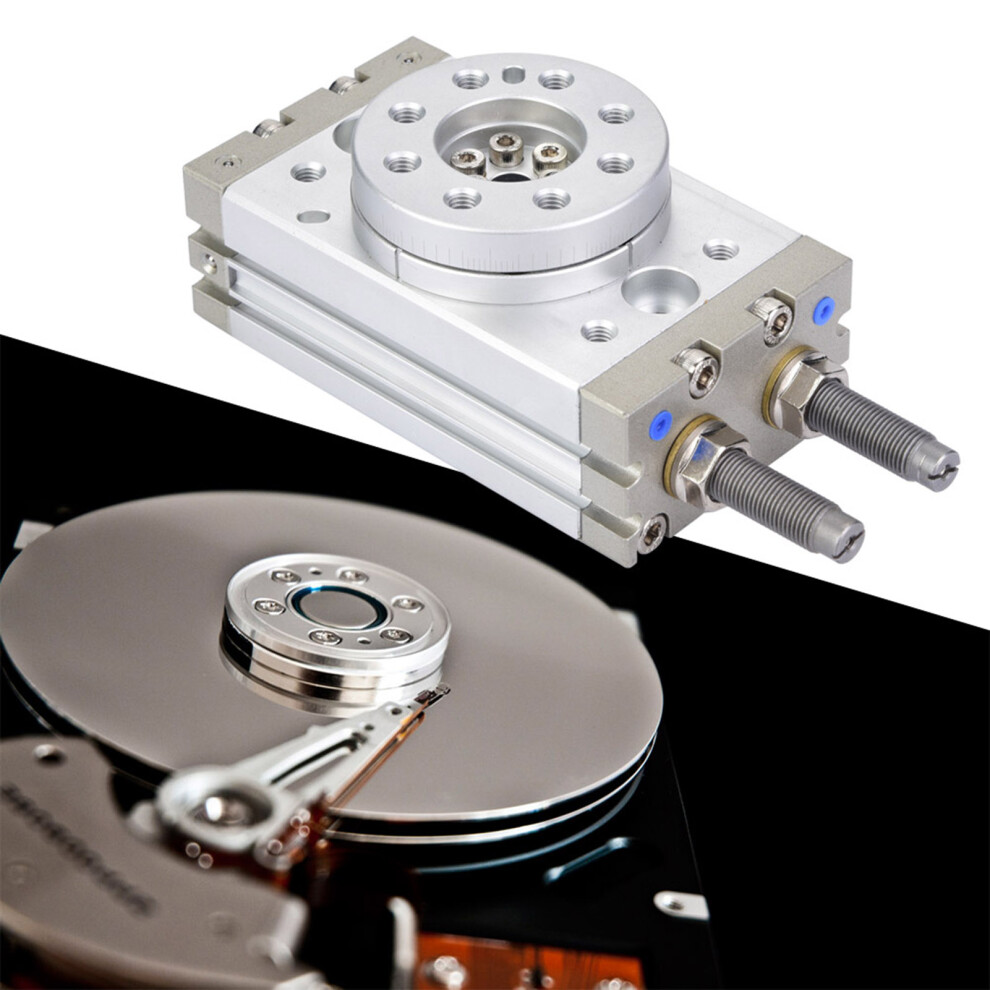

180 Degrees Rotary Pneumatic Air Cylinder MSQB-20R With Buffer

180 Degrees Rotary Pneumatic Air Cylinder MSQB-20R With Buffer Description

1、Made of high quality aluminum alloy cylinder, sturdy, anti-corrosion and rust proof 2、With angle adjustment unit, you can adjust the angle at 0-190 3、With the increase of pressure, it automatically improves the sealing performance and lasts for a long time 4、The surface hardness of the cylinder has been increased, which is not easy to deform and is durable 5、Precision bearings, flexible rotation and accurate positioning
Features:
1. Made of high quality aluminum alloy cylinder, sturdy, anti-corrosion and rust proof.
2. With angle adjustment unit, you can adjust the angle at 0-190.
3. With the increase of pressure, it automatically improves the sealing performance and lasts for a long time.
4. The surface hardness of the cylinder has been increased, which is not easy to deform and is durable.
5. Precision bearings, flexible rotation and accurate positioning.
Specification:
Condition: 100% Brand New
Model: MSQB-20R
Material: Aluminium Alloy
Fluid: Air (no oil)
Max Using Pressure: 1Mpa with Screw
Min Using Pressure: 0.1Mpa
Environment Temperature and Fluid Temperature: 0~60
Angle Adjustment Range: 0-190
Max Swing Angle: 190
Cylinder Inner Diameter: 18mm / 0.7 inch
Import Size: M5*0.8
Weight: Approx. 1013g / 35.7 oz
Package list:
1 * MSQB-20R Pneumatic Cylinder
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
