18650 12.6V Lithium Battery 20A 3S Pack with PCB Protection Auto Reboot

18650 12.6V Lithium Battery 20A 3S Pack with PCB Protection Auto Reboot Description

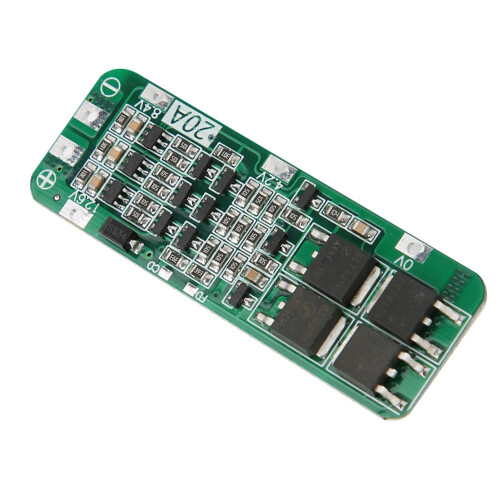

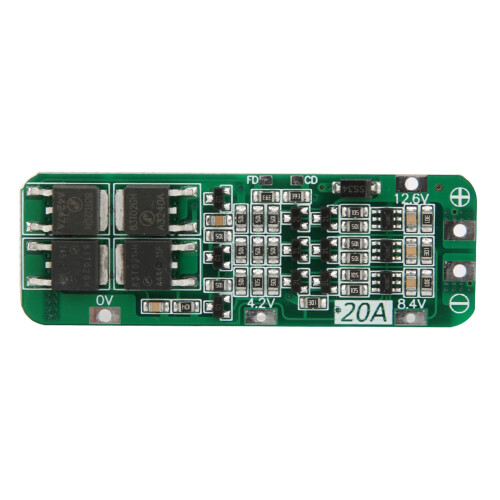

3S 20A 12.6V Cell Li ion Lithium Battery 18650 PCB Protection Board Auto Recovery

Specifications:

Suitable range: For nominal voltage 3.6V 3.7V lithium battery(Including 18650,26650, lithium polymer batteries)

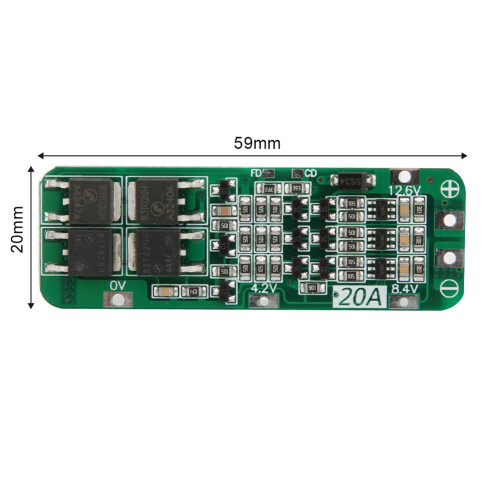

Product Size: 59mmx20mm


Maximum output current: 20A (if the cooling environment is not good, please reduce the load current use)


Continuous charge current (upper limit): 10A

Maximum output power / charging power: 252W

Weight:5g


Precautions:

1.Strictly according to the diagram wiring: 0V/4.2V/8.4V/12.6V,Otherwise it will cause damage to the chip.

2.After connection,it need to first charge activation, then will have the output.



Attention: Do not mix the good battery and poor battery e.The
internal resistance of 3 battery capacity are closer will be
better.Please buyers know the professional knowledge of this module
before buying


Package Included:

1 x PCB Protection Board


Note:

-Due to different producing batches, product details might be a
little different. If you minding the difference, please buy it
carefully.

-Please allow 1-3CM differs due to manual measurement.

-Due to the different display and different light, the picture may
not reflect the actual color of the item. Thanks for your understanding.
