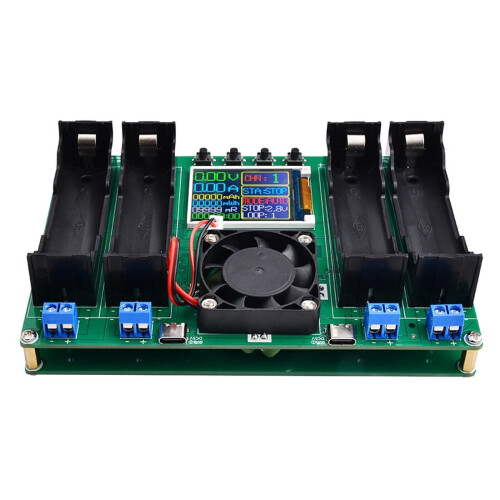

18650 Lithium Battery Capacity Tester Automatic Internal Resistance Tester MAh Digital Battery Power Detector Module

18650 Lithium Battery Capacity Tester Automatic Internal Resistance Tester MAh Digital Battery Power Detector Module Description

Test quantity: 4-way charging and discharging measurement Internal resistance measurement: support, use DC two-wire method to test internal resistance Charging function: support, automatic cut-off charging when fully (lithium iron phosphate battery charging is not supported) Discharge function: support, automatically stop when conditions are met, and the discharge current is not adjustable Automatic charging and discharging: supported. The battery is fully at of automatic mode Cyclic charging and discharging: supported, 1~9 cycles adjustable (only supported in automatic mode) Status prompt: Supported Cooling mode: fan active cooling Overheat protection: support Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 11 adjustable gears Discharge current: the maximum current is about 1A, which is not adjustable, and does not support transformation Charging voltage: controlled by a special battery charging chip, with a maximum charge of about 1A and a full charge voltage of 4.2V Power-off saving: only save the set parameters, not the measurement data Note: lithium iron phosphate battery charging is not supported The product display defaults to Chinese if you need to switch, watch the video below Colour:green Material:plastic Package Contents: 1 x Battery Capacity Tester Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm. Power supply interface: Dual Type-C power supply interface (power supply and power cord are not included) System language: English/Chinese can be switched Active cooling of fan supports overheating protection. Using DC two-wire method to measure internal resistance. Working voltage: DC5V. Applicable battery: suitable for all batteries that meet the requirements of stopping discharge voltage of 2.5~3.5V and starting from 2.8V to 4.2V The product supports four-channel capacity and internal resistance measurement.Support separate charging and discharging, and support up to 9 charging and discharging cycles in automatic mode Each channel is of each other, set separately, operates independently, and does not interfere with each other. 18650 battery holder uses compact battery holder, suitable for flat- battery measurement
