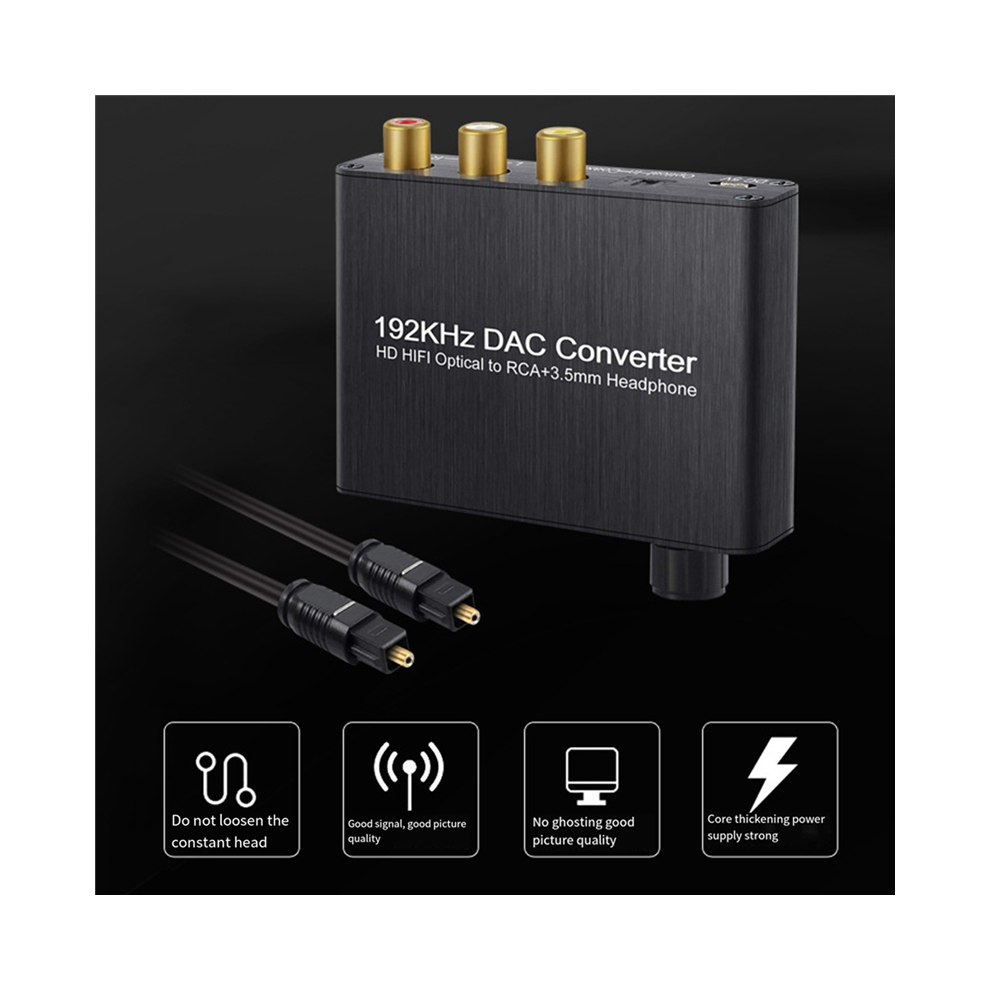

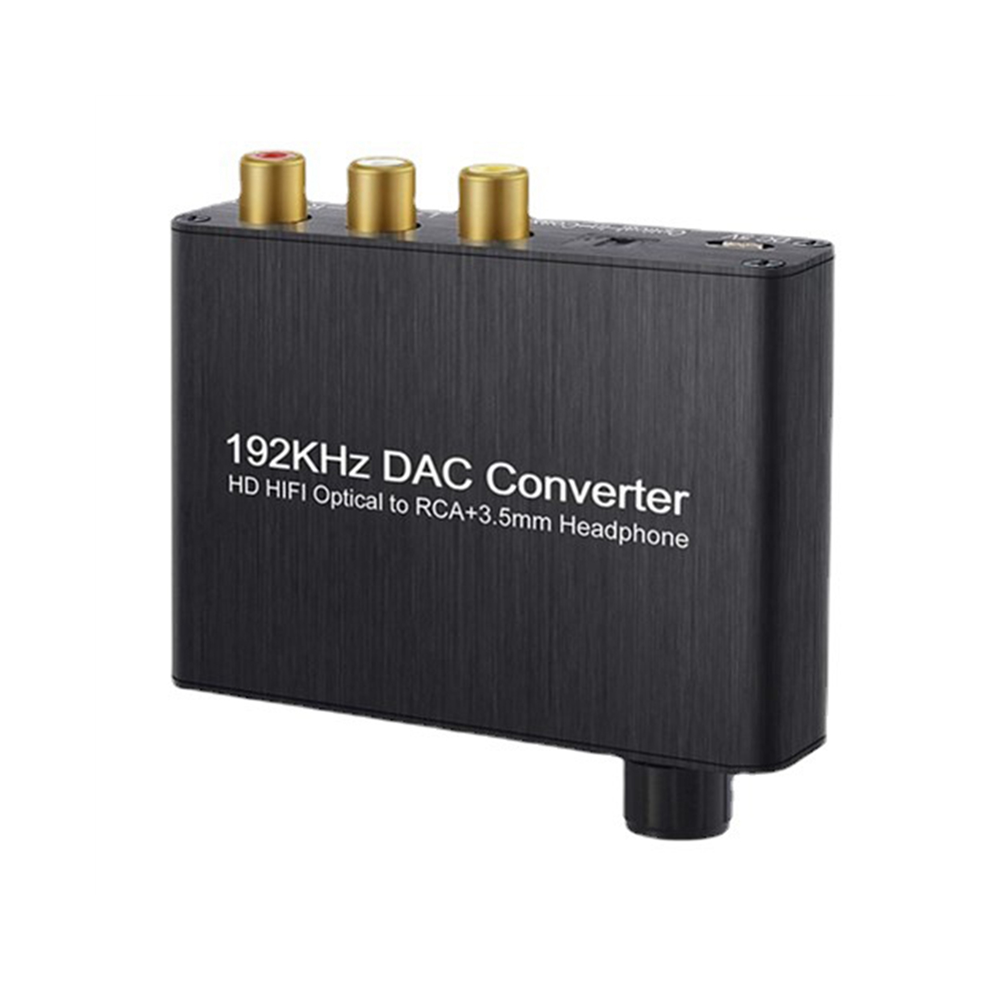

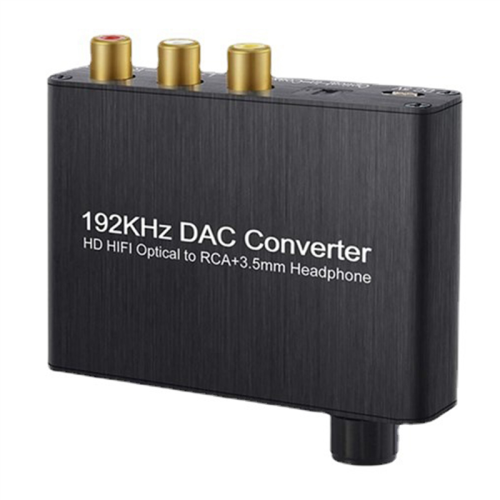

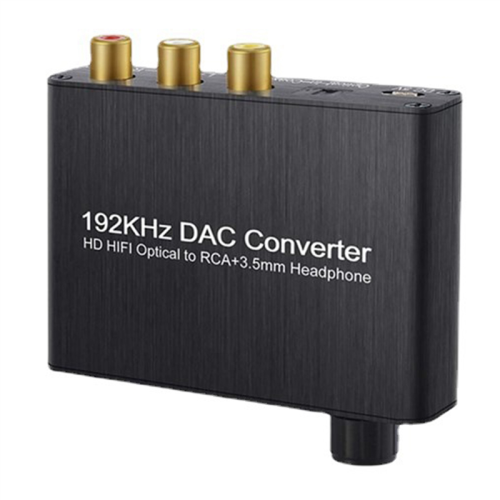

192KHz Converter Digital to Analog with Headphone

192KHz Converter Digital to Analog with Headphone Description

[192 khz conversion] Digital to analog audio converter, convert coaxial or toslink digital PCM audio signal to analog L/R and 3.5mm jack audio at the same time (not to reverse)
[Support volume adjustment] Headphone amplifier function; there are professional audio amplifier chips and volume adjustment switches. Allows you to direct your headphones and adjust output volume. A similar amp function can provide better sound quality.
[192 KHz 24-bit sampling rate] Support sampling rate at 32 KHz, 44.1 KHz, 48 KHz and 96 KHz and 192 KHz; 24-bit S/PDIF incoming bit stream in left and right channels, when there is no signal, it can be Eliminate noise input, and automatically mute while Non-audio signal input
[Aluminum Metal Housing] Have aluminum metal housing which makes it , Heat-resistant and high quality; it can be easily installed and operated
[Gold-plated input and output] Gold-plated interface to reduce signal transmission loss. Gold Plated Input : 1 x Toslink(Inculded 1m 4.0/OD Toslink Cable), 1 x (Coaxial); Gold Plated Output : 2 x (R/L), 1 x 3.5mm Jack; by 5.5mm USB power cable (power adapter not included); don't use other plugs, does it only use 5 v 1 plug

Support audio format:PCM
Signal-to-noise ratio:105dB
Resolution (1khz):94dB
Response frequency:20 Hz - 20 khz -0.2 db
+ N:-90dB
Total Harmonic Distortion ():10 Hz - 20 khz 0.25 - -0.065%
Deadline:0.577
Sampling rate:32 - 192 KHz
Bit rate:16 - 24 bits
Input level:0.3V
Output level:3V
Maximum output power:0.3w
Headphone output power:0 - 250 mw
Storage temperature range:60-150
Operating humidity range:10% - 80% rh (non-condensing)
Storage humidity range:5 - 90% rh (non-condensing)
ESD Protection Human Body Model:8 kV (air- discharge) 4 kV (contact discharge)
Colour:Black
Material:ABS
Size:About 70x60x20mm

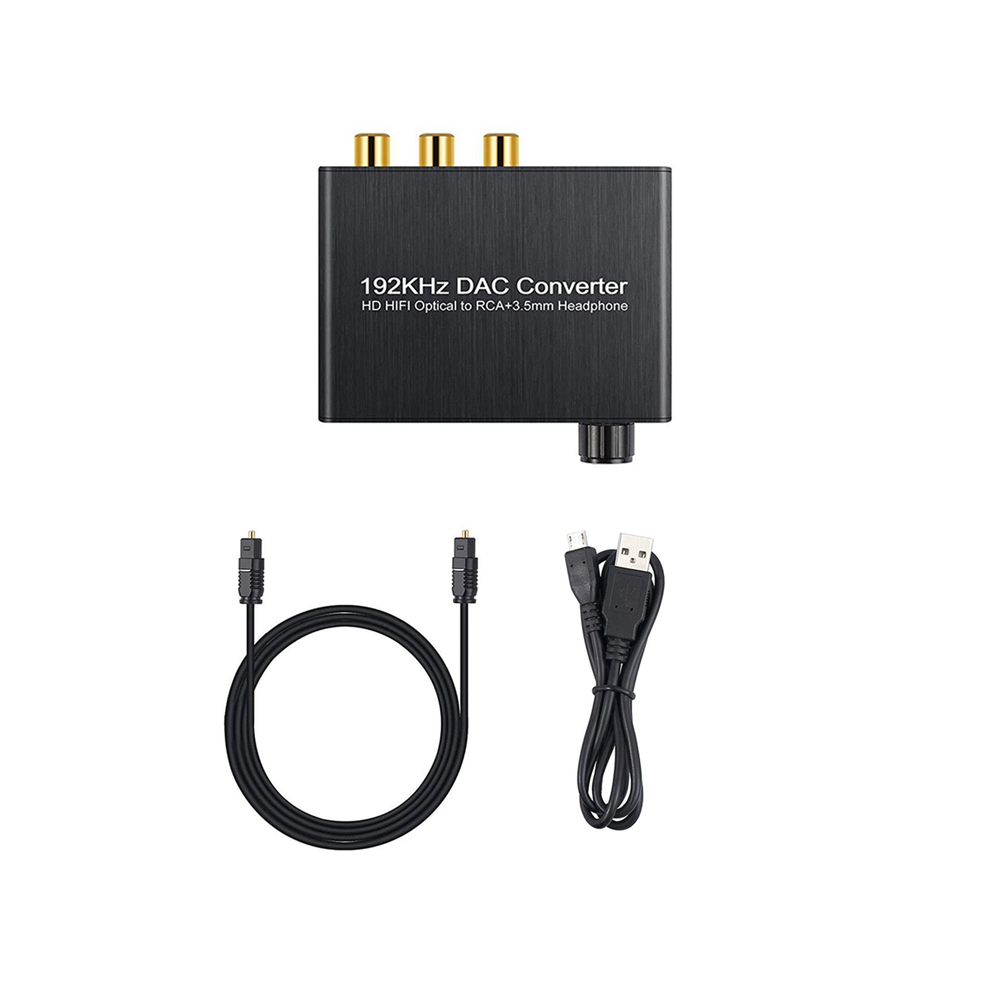

Package Contents:
1 x 192KHz Converter

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
