4X PCM1808 105dB SNR Audio Stereo ADC Single-Ended Analog-Input Decoder 24bit Amplifier Board Player Module

4X PCM1808 105dB SNR Audio Stereo ADC Single-Ended Analog-Input Decoder 24bit Amplifier Board Player Module Description

The PCM1808 device is a high-performance, low-cost, single-chip, stereo analog-to-digital converter with single-ended analog voltage input. The PCM1808 device uses a - modulator with 64-times oversampling and includes a digital decimation filter and high-pass filter that removes the dc component of the input signal. For applications, the PCM1808 device supports master and slave mode and two data formats in serial audio interface.
The PCM1808 device supports the power-down and reset functions by means of halting the system clock.
The PCM1808 device is suitable for wide variety of cost-sensitive consumer applications requiring good performance and operation with a 5-V analog supply and 3.3-V digital supply. Fabrication of the PCM1808 device uses a highly advanced CMOS process.

24-Bit - Stereo A/D Converter
Single-Ended Voltage Input: 3 -p
High Performance:
+N: -93 dB (Typical)
SNR: 99 dB (Typical)
Dynamic Range: 99 dB (Typical)
Oversampling Decimation Filter:
Oversampling Frequency: x64
Pass-Band Ripple: 0.05 dB
Stop-Band Attenuation: -65 dB
On-Chip High-Pass Filter: 0.91 Hz (48 kHz)
Flexible PCM Audio Interface
Master- or Slave-Mode Selectable
Data Formats: 24-Bit I2S, 24-Bit Left-Justified
Power Down and Reset by Halting System Clock
Analog Antialias LPF Included
Sampling Rate: 8 kHz-96 kHz
System Clock: 256 , 384 , 512
Resolution: 24 Bits
Dual Power Supplies:
5-V for Analog
3.3-V for Digital
(Different batches may result in different printing screens, which not affect the use)
Color:
Material: PCB

Package Contents:

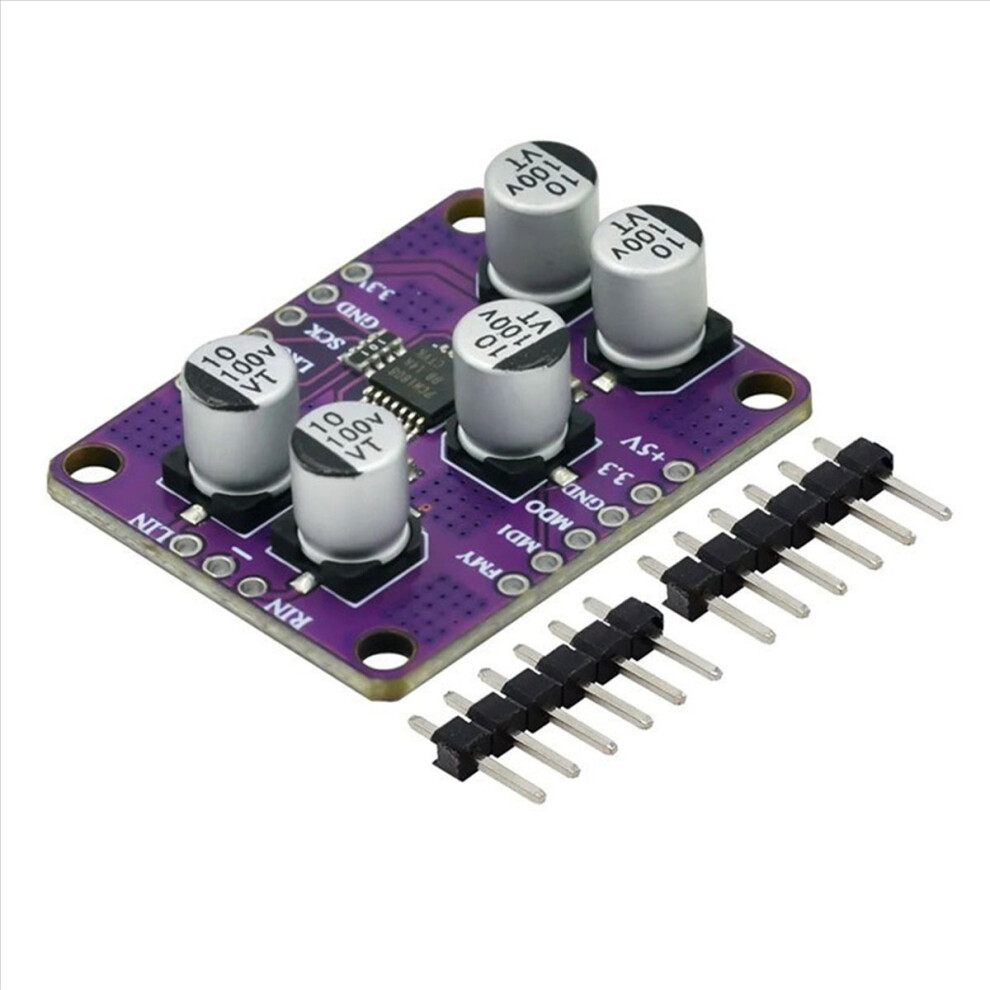

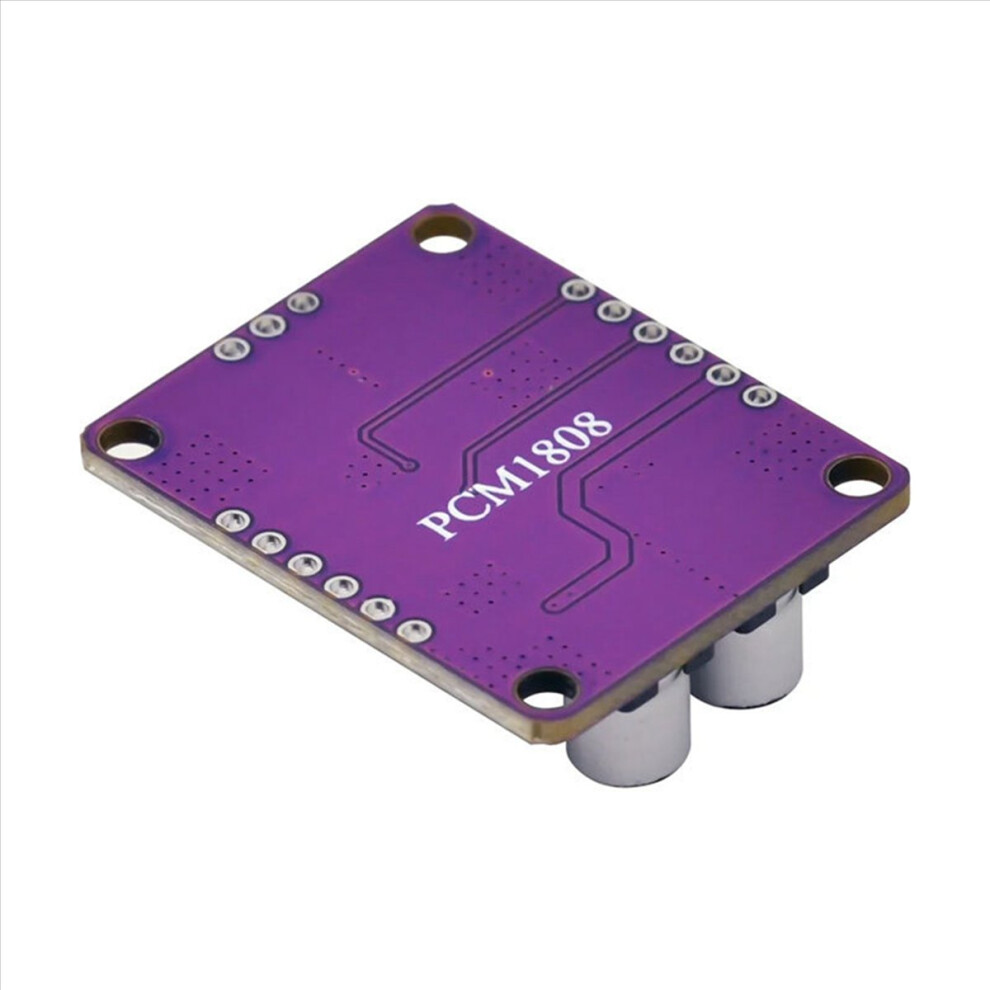

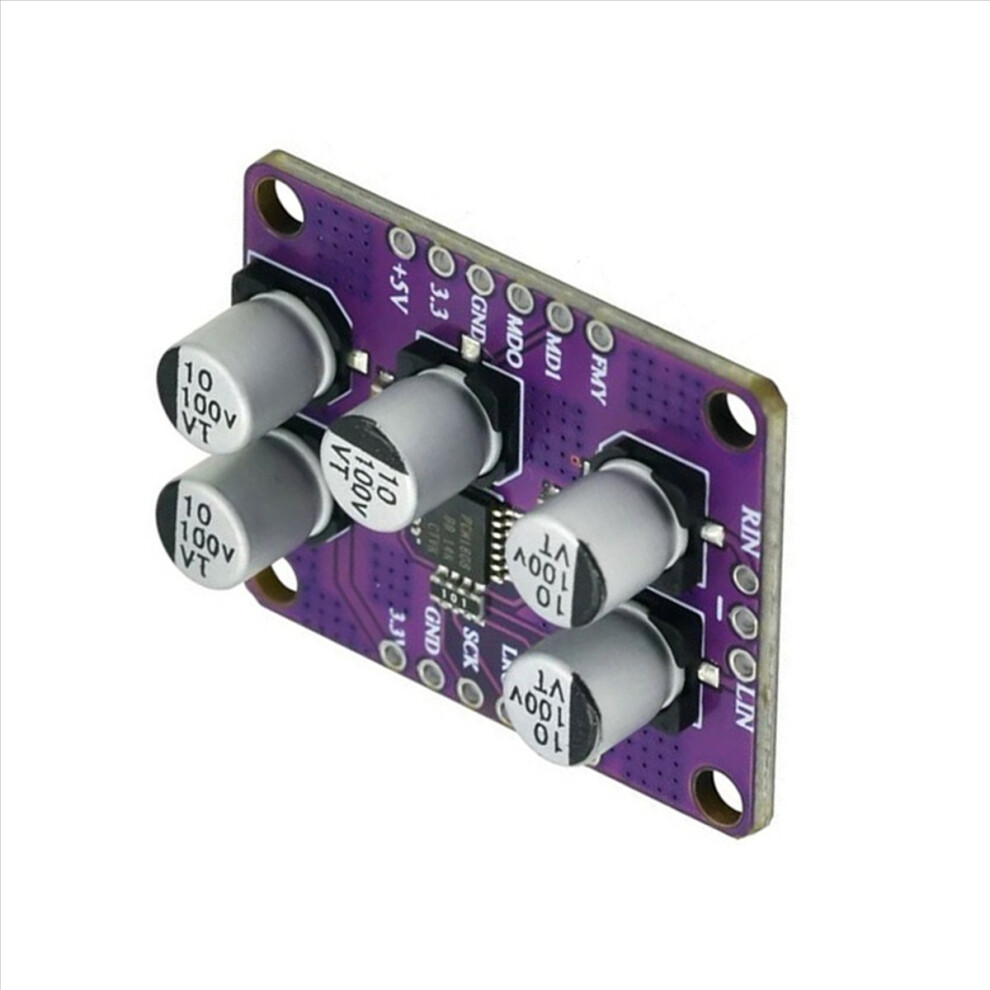

4 x PCM1808 Module with pin

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
