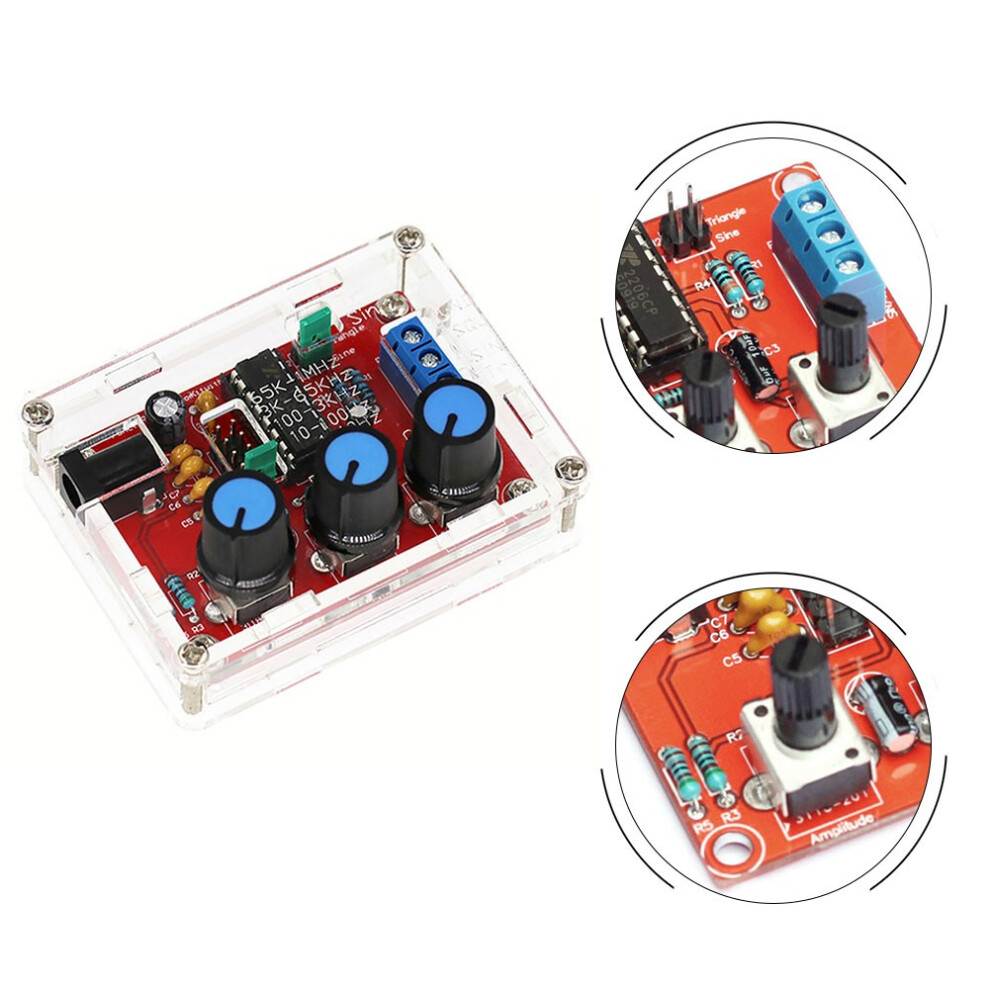

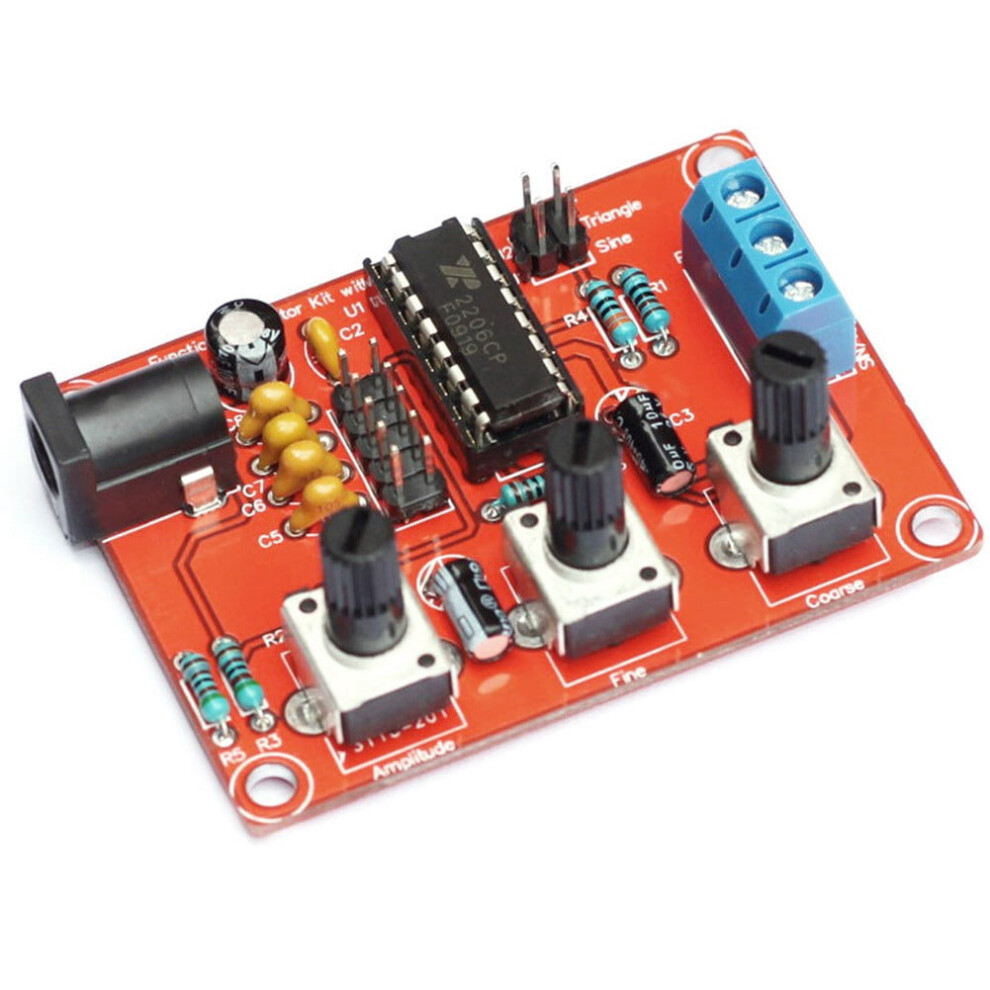

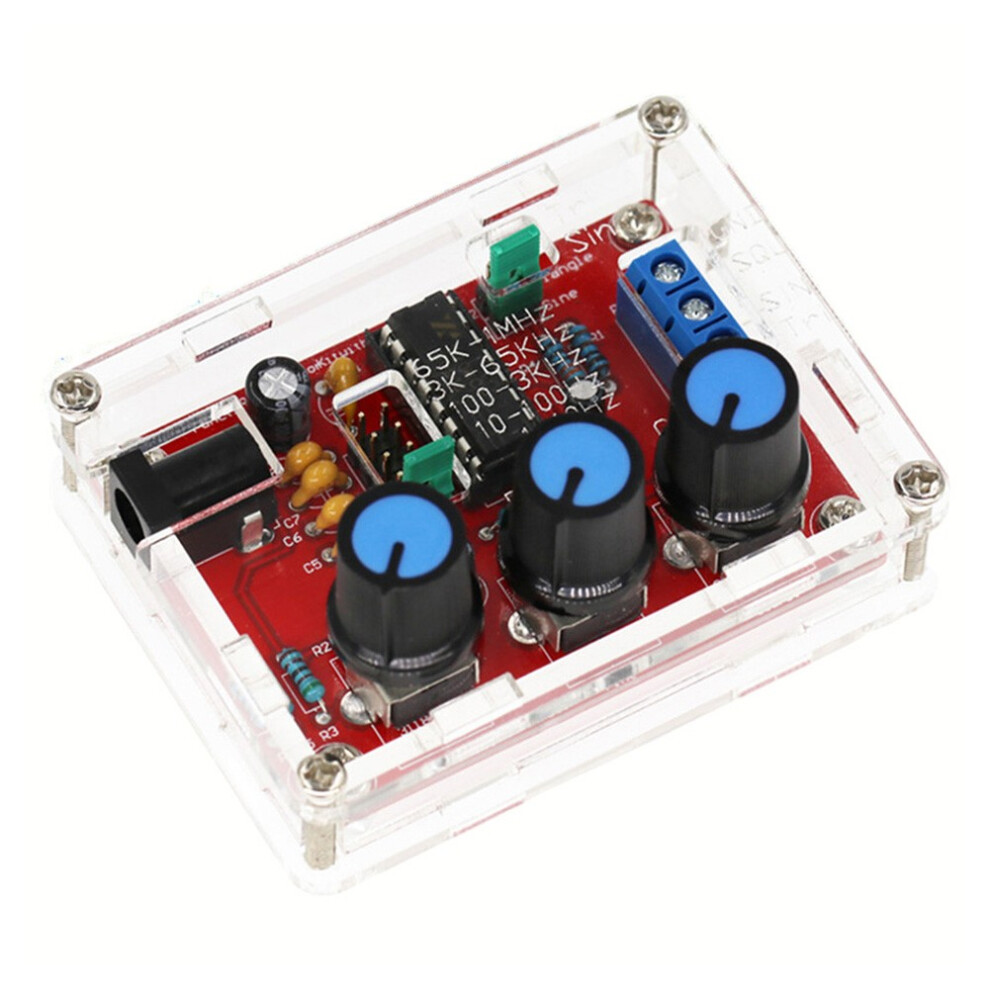

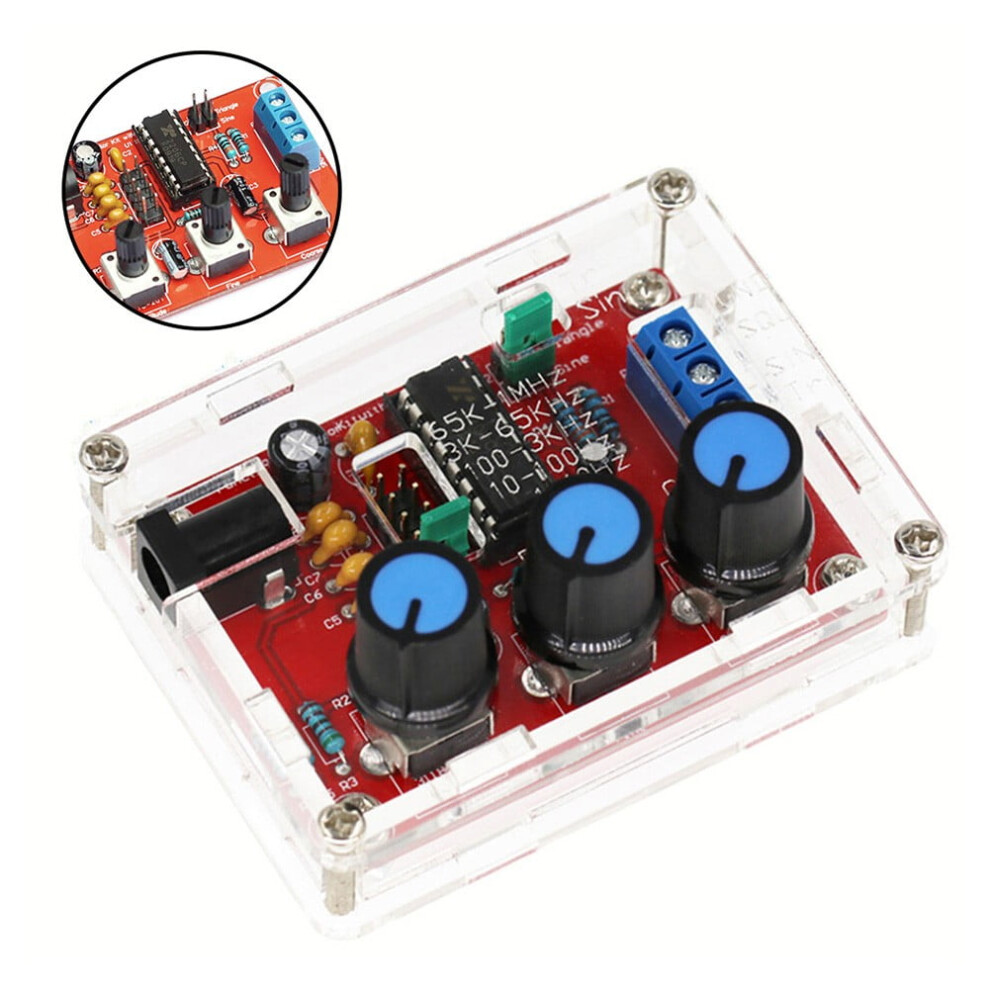

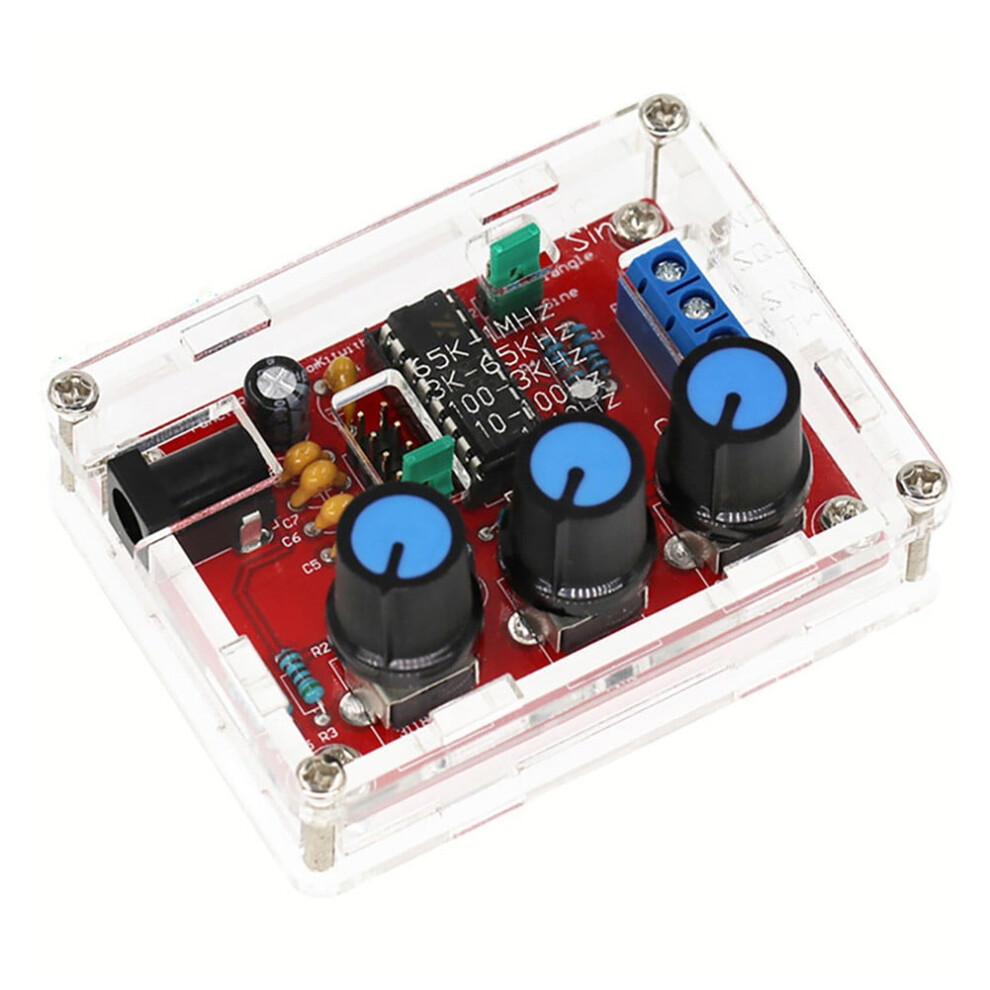

1Hz-1Mhz High-Precision Signal Generator Diy And Shell Sine Triangle Square Wave

1Hz-1Mhz High-Precision Signal Generator Diy And Shell Sine Triangle Square Wave Description

Feature: * It can produce sine waves, triangular waves, Square waves. * The frequency can be adjusted from 1Hz-1MHz, the amplitude of the frequency can be adjusted. *Five accuracy resolution, frequency adjustment has coarse tone, fine tone. *The power supply range is wide, and the external power supply 9-12V or 9V battery can be used. *All directly insert components, the number of components is small, and the installation and debugging are simple. Specification: Voltage support: 9-12VDC input WaveForms: Square, Sine & Triangle Impedance: 600 OHM + 10% Frequency: 1Hz -1MHz Sine wave： Amplitude: 0-3V at 9V DC Input Distortion: Less than 1% (AT 1KHz) Flatness: +0.05DB 1Hz -100kHz Square wave： Amplitude: 8V (No load) at 9V DC Input Rise time: Less than 50ns (at 1kHz) Fall Time: Less than 30ns (at 1kHz) Symmetry: Less than 5% (AT 1kHz) Triangle wave： Amplitude: 0 -3V at 9VDC Input Linearity: Less than 1% (up to 100kHz) 10mA Package included: 1*XR2206 High -precision signal generator Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data. Made of high quality material, durable and practical to use. Perfect functions,give you a wonderful experience. Every customer can enjoy 30 days refund or replacement for Damaged/Quality Issues. If you have any questions, please feel free to contact us, we will solve it for you. 1Hz-1Mhz High-Precision Signal Generator Diy And Shell Sine Triangle Square Wave
