Description & Details
Summary

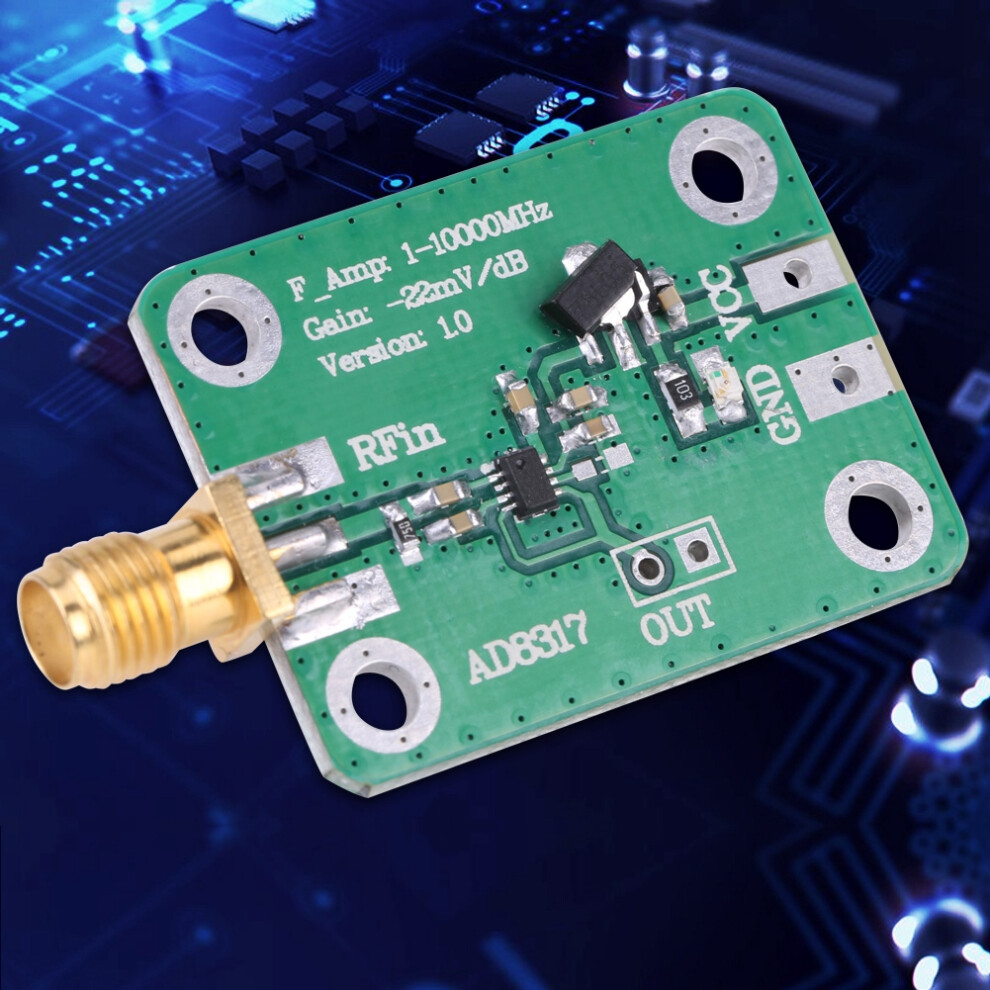

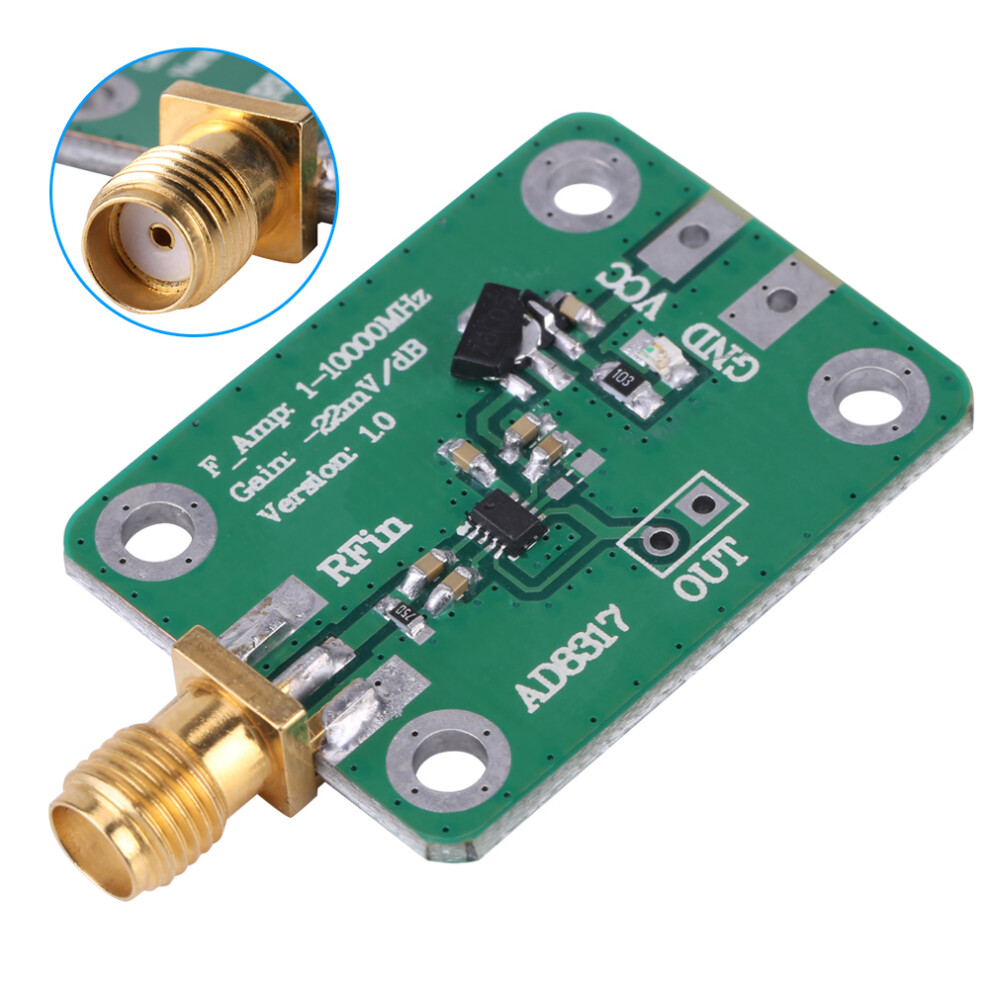

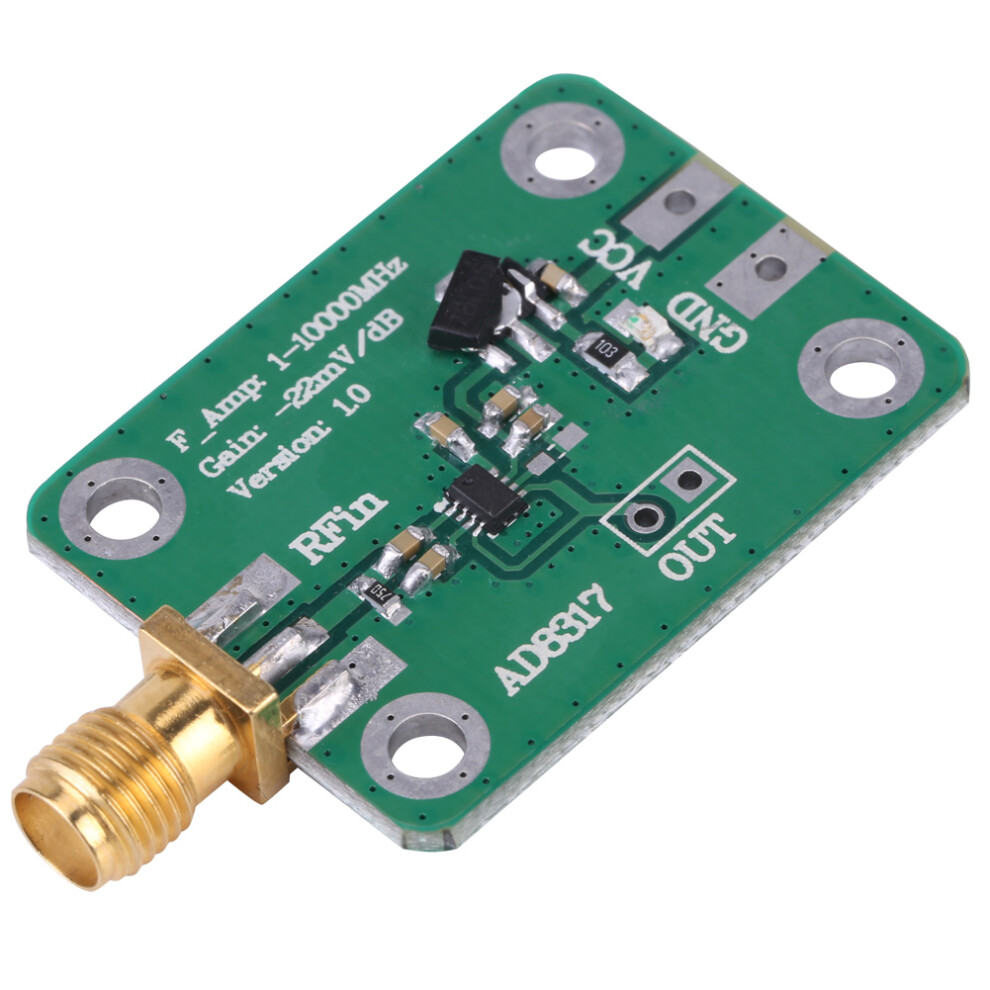

- The product is designed by using AD8317 chip, and is used for RF signal power detection
- Can detect power in -55dBm to -0dBm of an RF signal, so that the RF signal is converted to DC voltage output
- The greater the amplitude or power of the RF signal, the higher the output voltage, and the output voltage is directly proportional to the logarithm of the input signal amplitude, thus expanding the dynamic range of the detected signal, which ranges reac
- It can be widely used in radio frequency signal detection, signal power measurement, environmental field strength detection
- It can also be used as part of automatic gain control and automatic level control
1M-10GHz RF Logarithmic Power Detector - Wide Range, Compact Design Description
1M-10000MHz AD8317 Radio Frequency Logarithmic Detector Power Meter
Features:
The product is designed by using AD8317 chip, and is used for RF signal power detection,Detection frequency range 1M---10GHz, can detect power in -55dBm to -0dBm of an RF signal, so that the RF signal is converted to DC voltage output. It can be widely used in radio frequency signal detection, signal power measurement, environmental field strength detection,It can also be used as part of automatic gain control and automatic level control.
Features:
The product is designed by using AD8317 chip, and is used for RF signal power detection.
Can detect power in -55dBm to -0dBm of an RF signal, so that the RF signal is converted to DC voltage output.
The greater the amplitude or power of the
RF signal, the higher the output voltage, and the output voltage is
directly proportional to the logarithm of the input signal amplitude, thus expanding the dynamic range of the detected signal, which ranges reach 55dB.
It can be widely used in radio frequency signal detection, signal power measurement, environmental field strength detection.
It can also be used as part of automatic gain control and automatic level control.
Specifications:
Working frequency: 1M--10000MHz
Measurement power: -55dBm to -0dbm
Output voltage: 0.33- -1.65V
Detection slope: -22mv/dBm (typical value)
Input impedance: 50Ω
Supply voltage: 7-15V
Size: as the picture
Weight:7g
Detector typical response curve:
Package Included:
1 x RF Logarithmic Detector
Details
| OPC | PN5NGW6 |
|---|---|
| Codes | 7901362927499 (EAN) |
