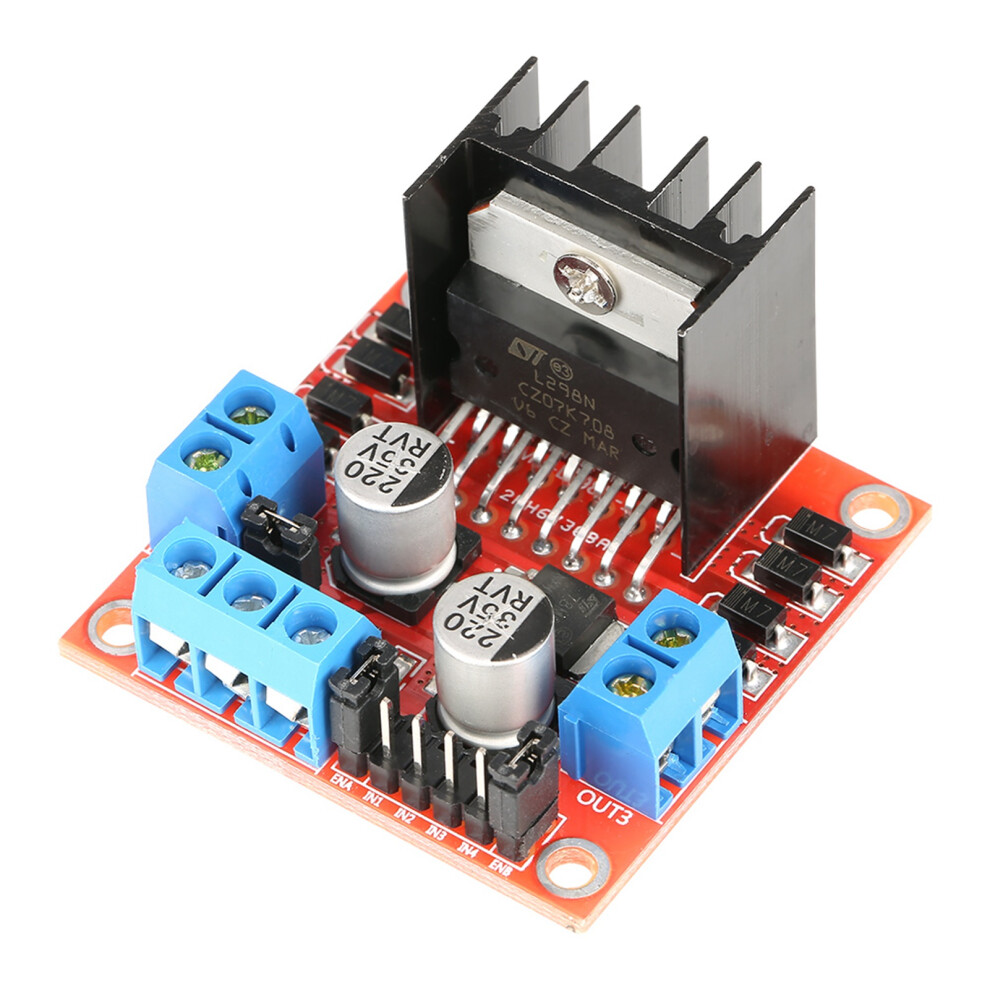

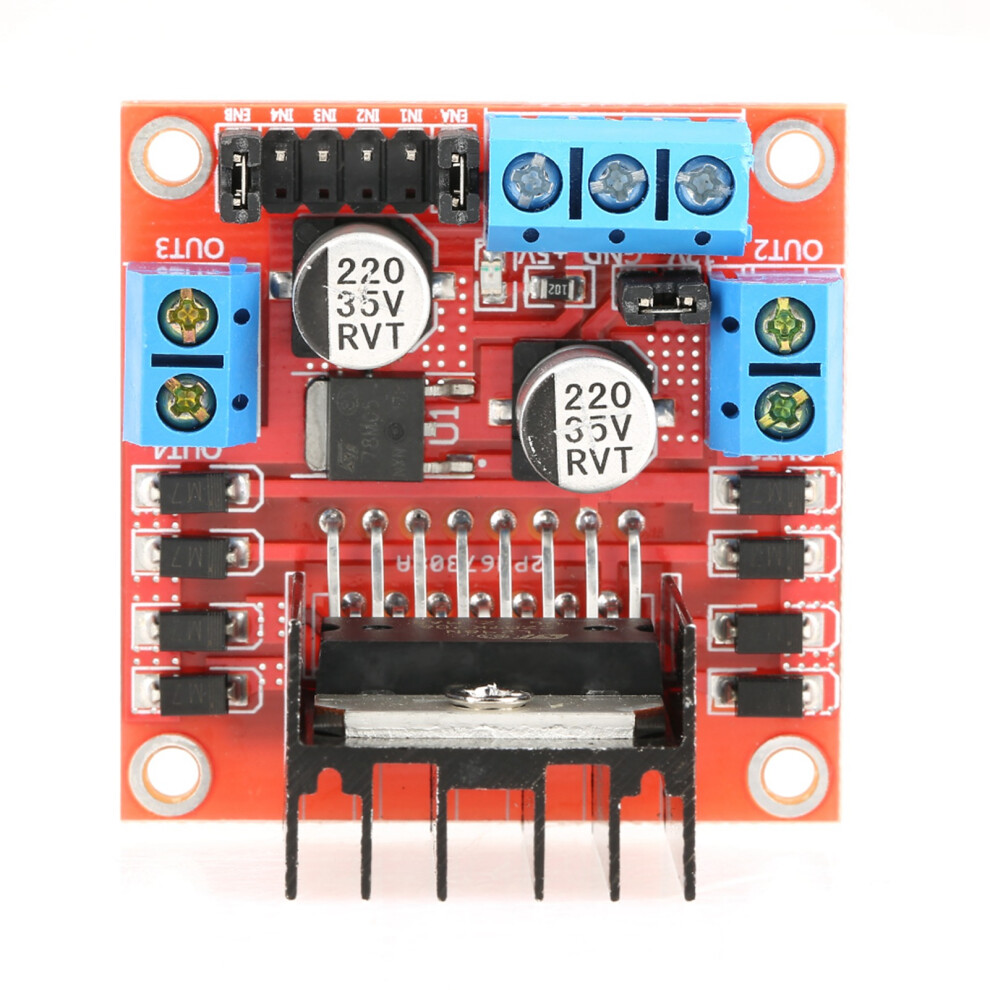

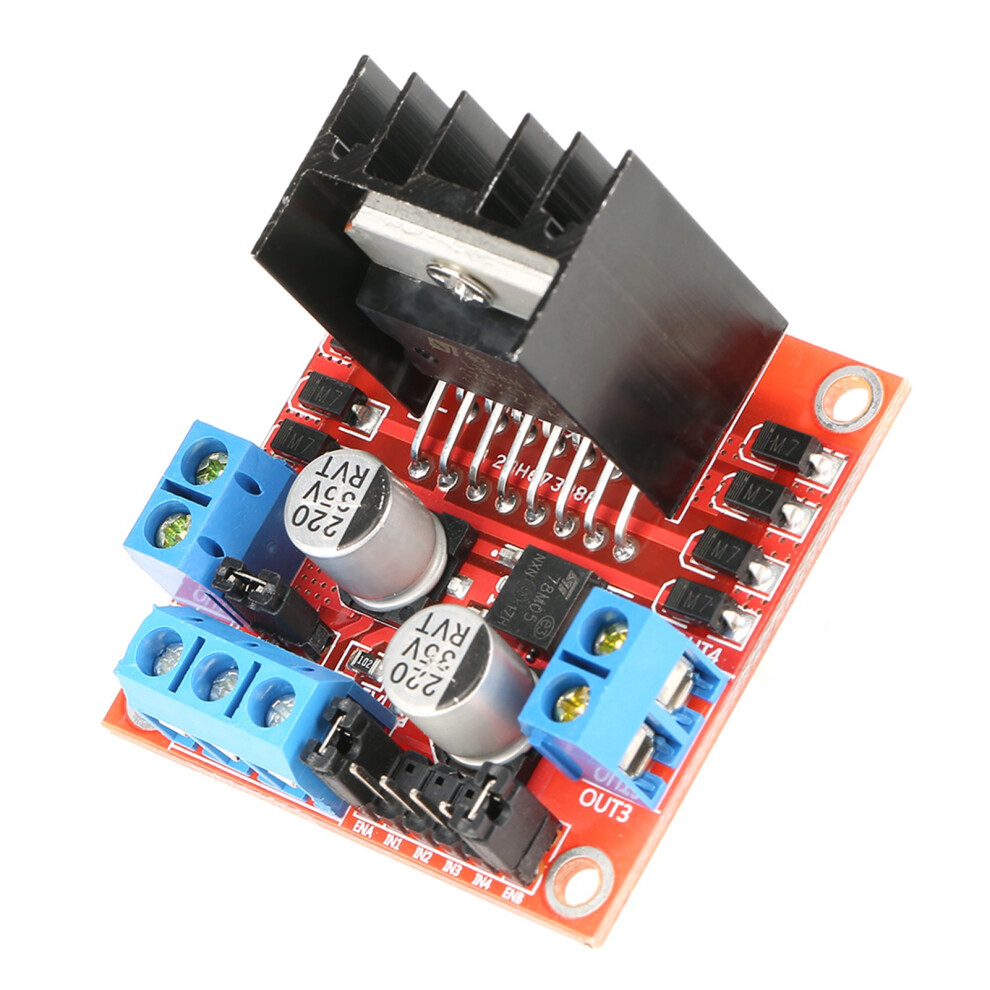

1pc L298N H Bridge Driver Board for Stepper Motor Robot

1pc L298N H Bridge Driver Board for Stepper Motor Robot Description

1、This motor driver has strong driving ability, low heat, strong anti-interference ability. 2、H-bridge dual channel type driver, drive voltage is 5V to 35V, drive current is 2A. 3、There is a big heat sink on board for better heat dissipation. 4、Convenient to use, designed with screw terminals for easy wiring. 5、It is normally used for driving stepping motor on smart cars or robots.
Features:
This motor driver has strong driving ability, low heat, strong anti-interference ability.
H-bridge dual channel type driver, drive voltage is 5V to 35V, drive current is 2A.

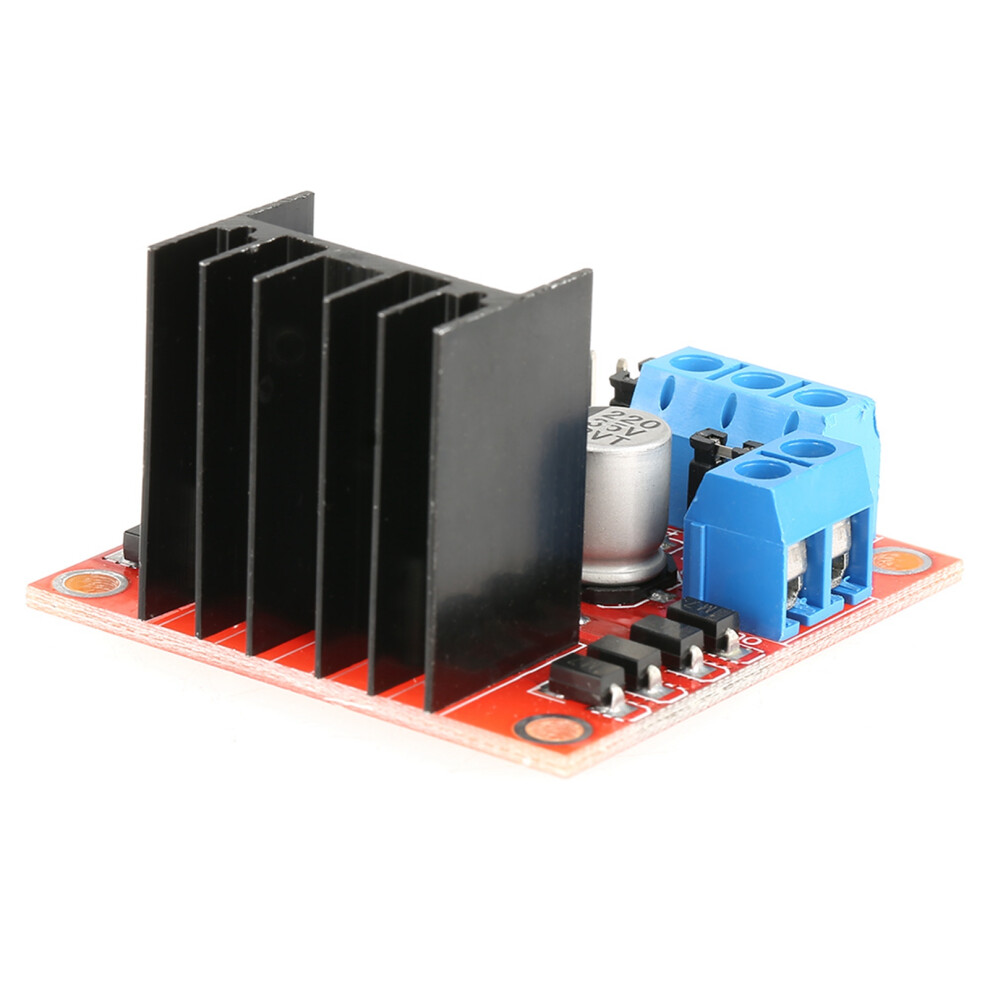

There is a big heat sink on board for better heat dissipation.
Convenient to use, designed with screw terminals for easy wiring.
It is normally used for driving stepping motor on smart cars or robots.
Specifications:
Work Mode: H bridge drive (dual-channel)
Main Control Chip: L298N
Drive Voltage: 5V-35V
Logic Current: 0mA-36mA
Drive Current: 2A(MAX single-bridge)
Storage Temperature: -20 to +135
Max. Power: 25W
Size: 4.5*4.5*2.8cm/1.7*1.7*1.1in
Weight: 27g(approx.)
Notes:
5V enable is a control signal with a 5V level; when the input signal is valid and power supply of motor drive module is normal, motor driver module outputs current. Otherwise, even if the power supply is normal, there is no current on motor.
Package Includes:
1 x Motor Driver
