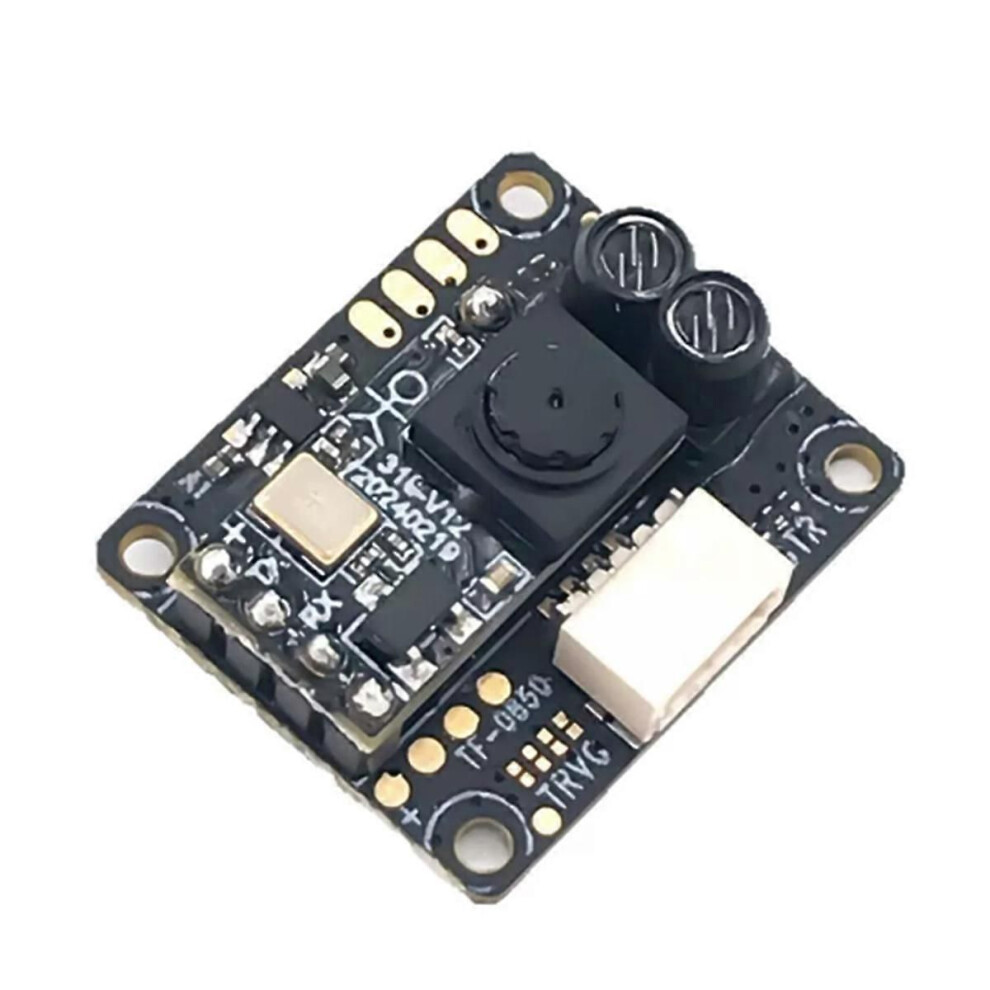

1PCS 3.5-5.5V 50Hz Infrared Ranging Module 50 Frames Optical Flow DToF Range Finding for UART/I2C fo

1PCS 3.5-5.5V 50Hz Infrared Ranging Module 50 Frames Optical Flow DToF Range Finding for UART/I2C fo Description

1PCS 3.5-5.5V 50Hz Infrared Ranging Module 50 Frames Optical Flow DToF Range Finding for UART/I2C fo
PX4 protocol
Direct Flight Time (dToF)
Minimum measurement blind spot: 20mm
No harm to human eyes
Item name: ranging module
Item model: TF-0850
Measurement range: 20-8000mm
Measurement accuracy: 2cm@ Less than 1m, 3%@ equal 1m
Measurement frequency: 50Hz
Light source wavelength: 940nm
Optical flow: 50 frames
Working voltage: 3.5-5.5V
Power dissipation: 35mA@5V
Working temperature: 0-60C
Storage temperature: -20-80C
Anti environmental light range: 8000mm@350 LUX illuminance, 4000mm@100K Lux illuminance
Size: 20x16.5x6.7mm
Weight: about 1.8g
Communication port: UART: 115200 / I2C: Maximum 400K
Application range:
Drone altitude determination
Robot obstacle avoidance
Proximity sensing
Object detection during low-power system operation
Due to different product batches, the words on the product may be different, which not affect the use.
Color:Black
Material:PC
Package Contents:
1 x ranging module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
